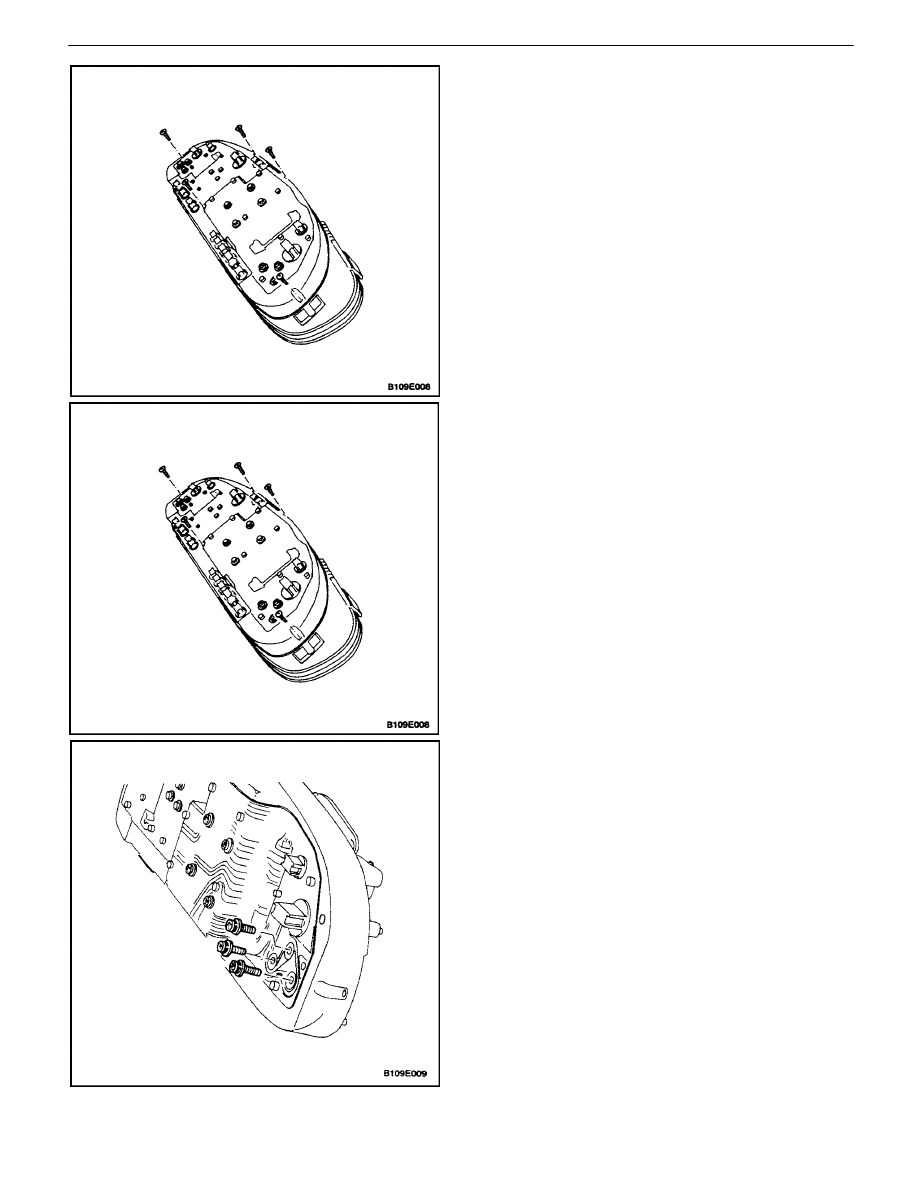

9E – 30

I

INSTRUMENT/DRIVER INFORMATION

DAEWOO V–121 BL4

4.  Remove the screws and the fuel gauge.

5.  Remove the screws and the speedometer/odome-

ter from the instrument cluster.

INSTRUMENT/DRIVER INFORMATION  9E – 31

DAEWOO V–121 BL4

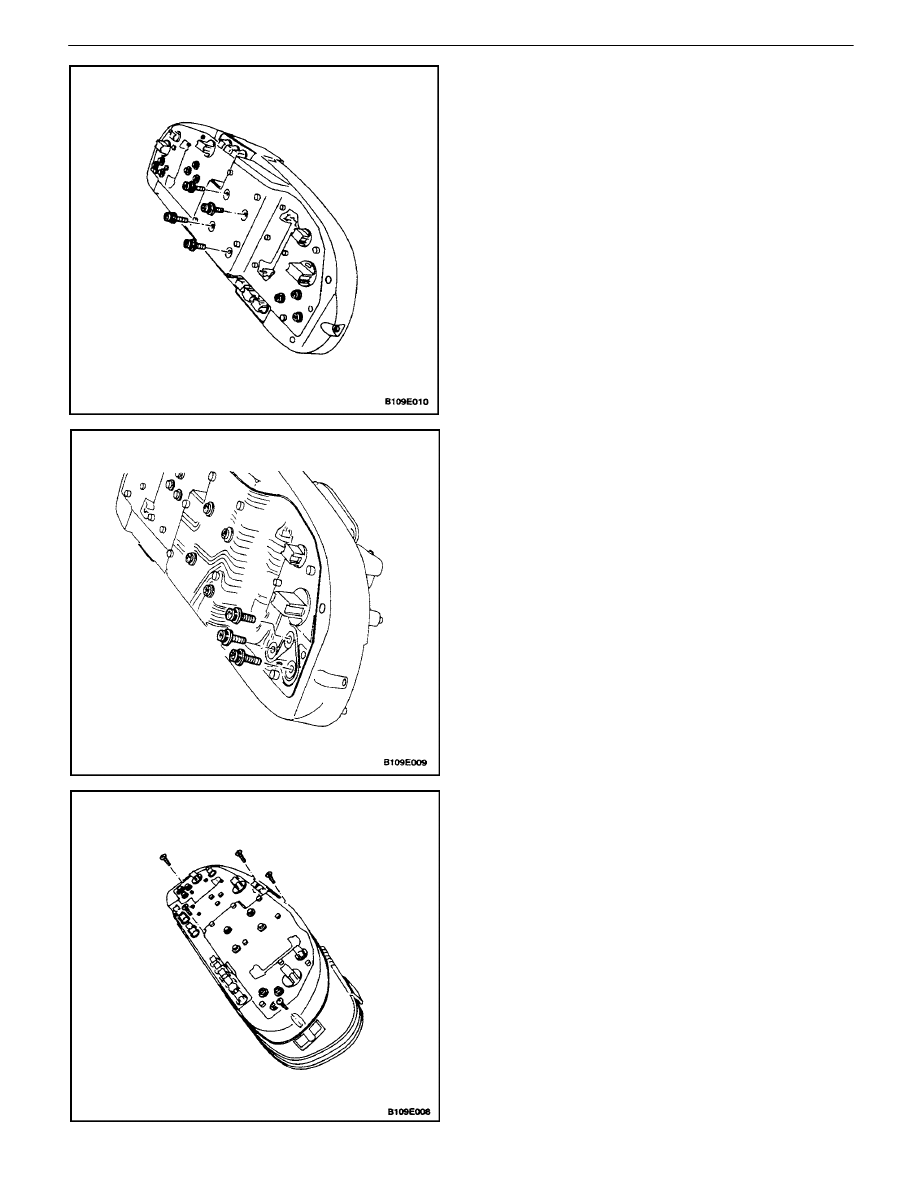

Installation Procedure

1.  Install the speedometer/odometer in the instrument

cluster with the screws.

Tighten

Tighten the speedometer/odometer screws to 2.5
N

S

m (22 lb–in).

2.  Install the fuel gauge with the screws.

Tighten

Tighten the fuel gauge screws to 2.5 N

S

m (22 lb–in).

3.  Install the instrument cluster lens with the screws.
4.  Install the instrument cluster. Refer to ”Instrument

Cluster”  in this section.

5.  Connect the negative battery cable.

9E – 32

I

INSTRUMENT/DRIVER INFORMATION

DAEWOO V–121 BL4

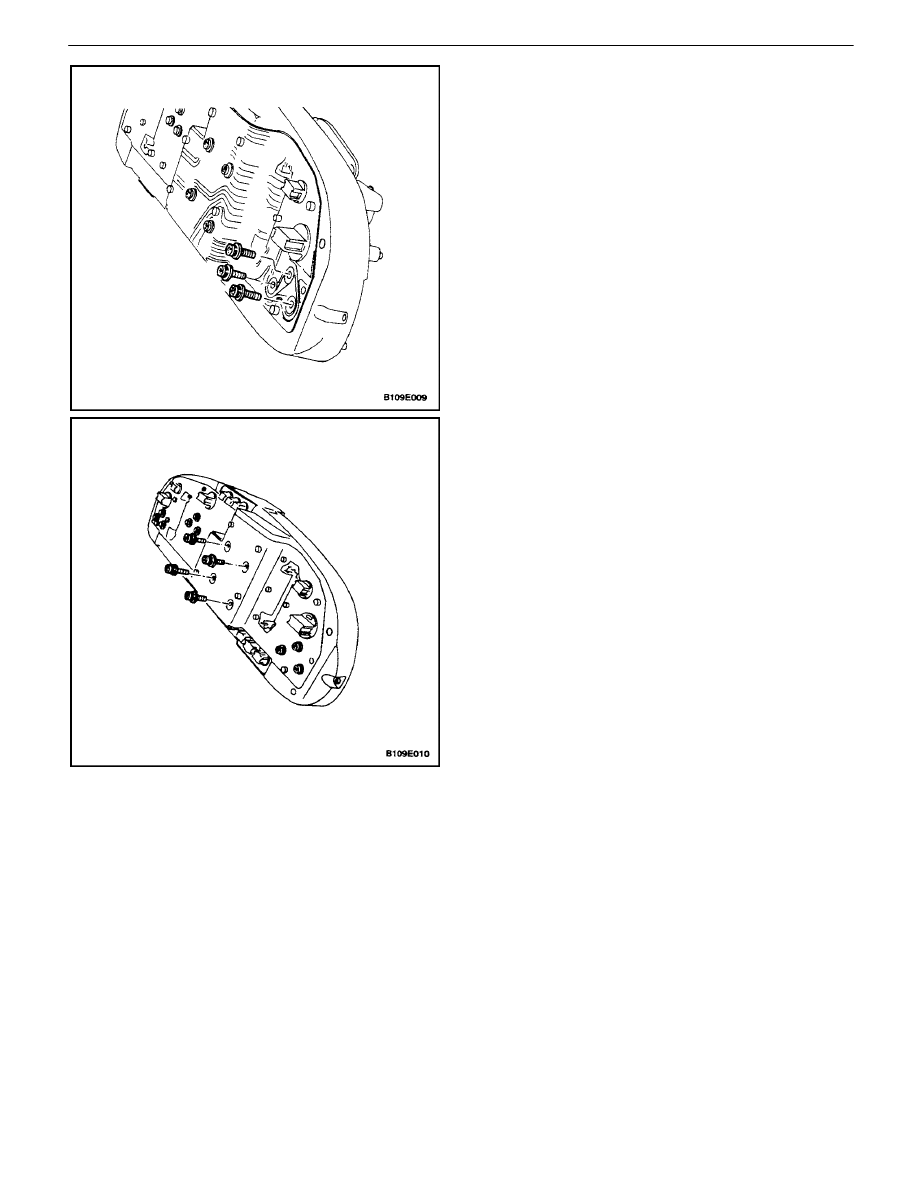

TACHOMETER

Removal Procedure

1.  Disconnect the negative battery cable.
2.  Remove the instrument cluster. Refer to ”Instru-

ment Cluster” in this section

3.  Remove the screws and the instrument cluster

lens.

4.  Remove the screws and the tachometer from the

instrument cluster.

Installation Procedure

1.  Install the tachometer to the instrument cluster with

the screws.

Tighten

Tighten the tachometer screws to 2.5 N

S

m (22 lb–in).

INSTRUMENT/DRIVER INFORMATION  9E – 33

DAEWOO V–121 BL4

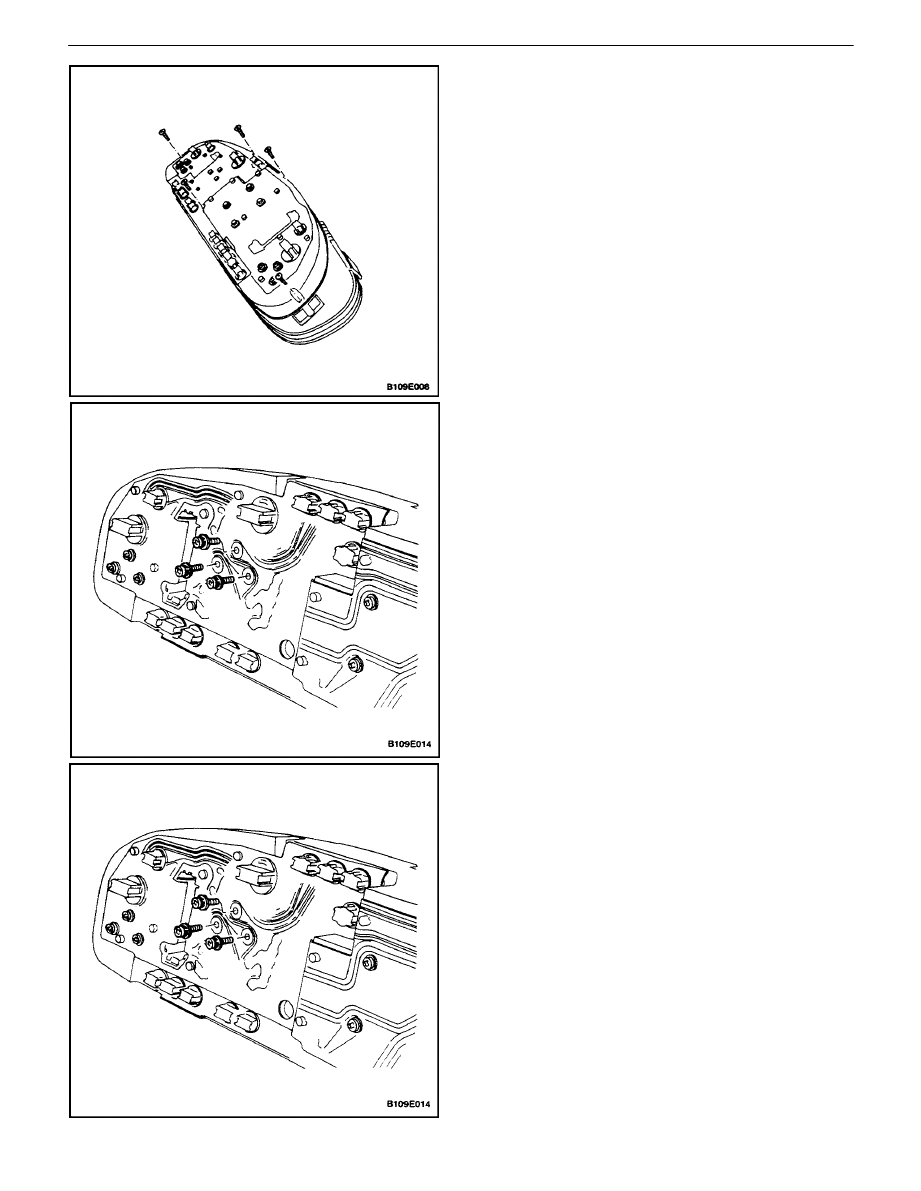

2.  Install the instrument cluster lens.
3.  Install the instrument cluster. Refer to ”Instrument

Cluster” in this section.

4.  Connect the negative battery cable.

FUEL GAUGE

Removal Procedure

1.  Disconnect the negative battery cable.
2.  Remove the instrument cluster. Refer to”Instrument

Cluster”  in this section.

3.  Remove the instrument cluster lens.

4.  Remove the fuel gauge screws and the fuel gauge

from the cluster assembly.
