Daewoo Nubira. Manual - part 189





EXTERIOR TRIM  9M – 5

DAEWOO V–121 BL4

GENERAL DESCRIPTION

AND SYSTEM OPERATION

EMBLEMS AND LETTERING

The emblems and lettering on the vehicle are attached by
adhesive. The company emblem appears on the hood.
The lettering, which appears in several places on the body
of the vehicle, features the model, the grade, and the com-
pany name.

MUD GUARDS

Front and rear mud guards are standard equipment on all
models. Mud guards will help prevent an excessive build-
up of mud on the body.

INSTRUMENT/DRIVER INFORMATION  9E – 23

DAEWOO V–121 BL4

MAINTENANCE AND REPAIR

ON–VEHICLE SERVICE

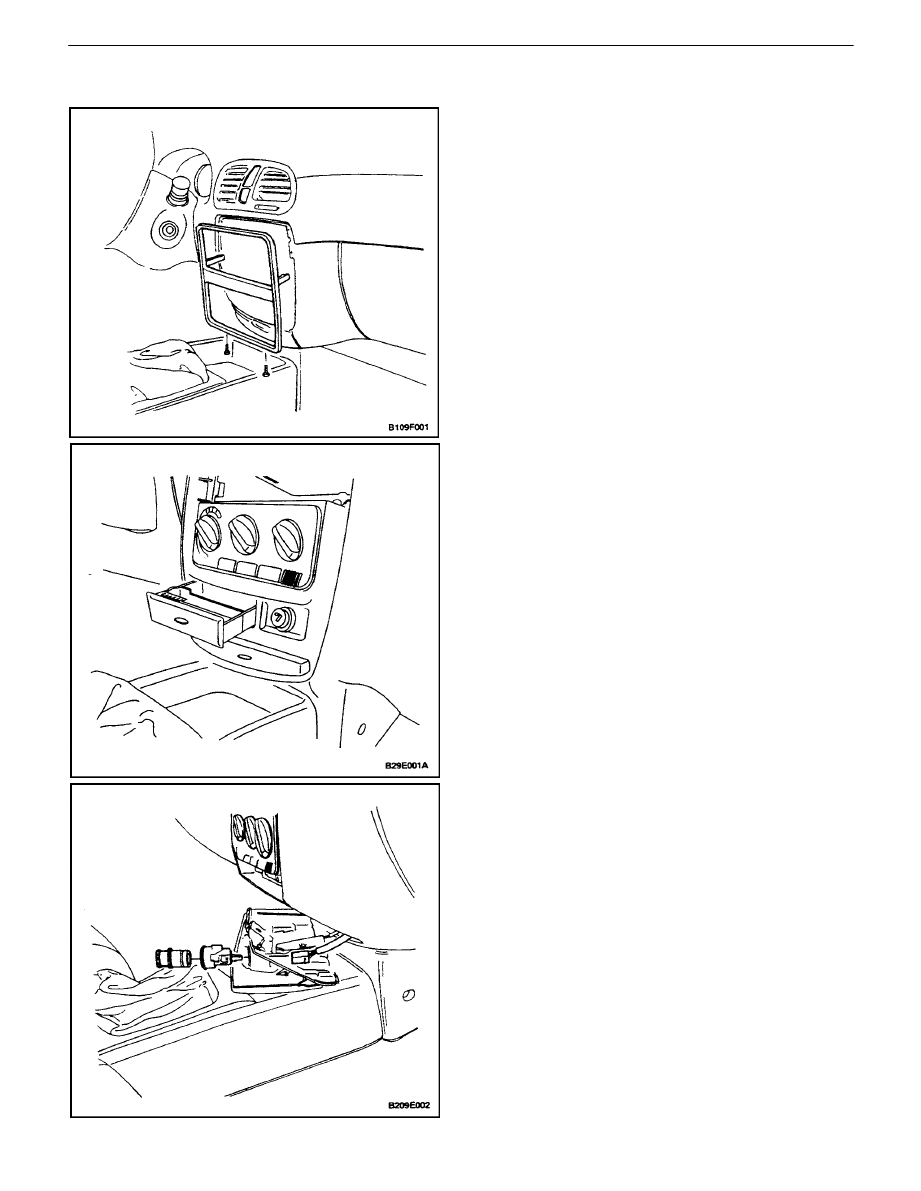

CIGAR LIGHTER

Removal Procedure

1.  Disconnect the negative battery cable.
2.  Remove the floor console. Refer to ”Glove Box” in

this section.

3.  Remove the screw and driver/passenger knee bol-

ster. Refer to ”Driver/passenger Knee Bolster”in this
section 9G.

4.  Remove the screws and the audio system trim

plate.

5.  Disconnect the cigar lighter and ashtray lamp elec-

trical connectors.

6.  Remove the cigar lighter from the cigar lighter

housing.

7.  Remove the cigar lighter housing from the ashtray

housing.

9E – 24

I

INSTRUMENT/DRIVER INFORMATION

DAEWOO V–121 BL4

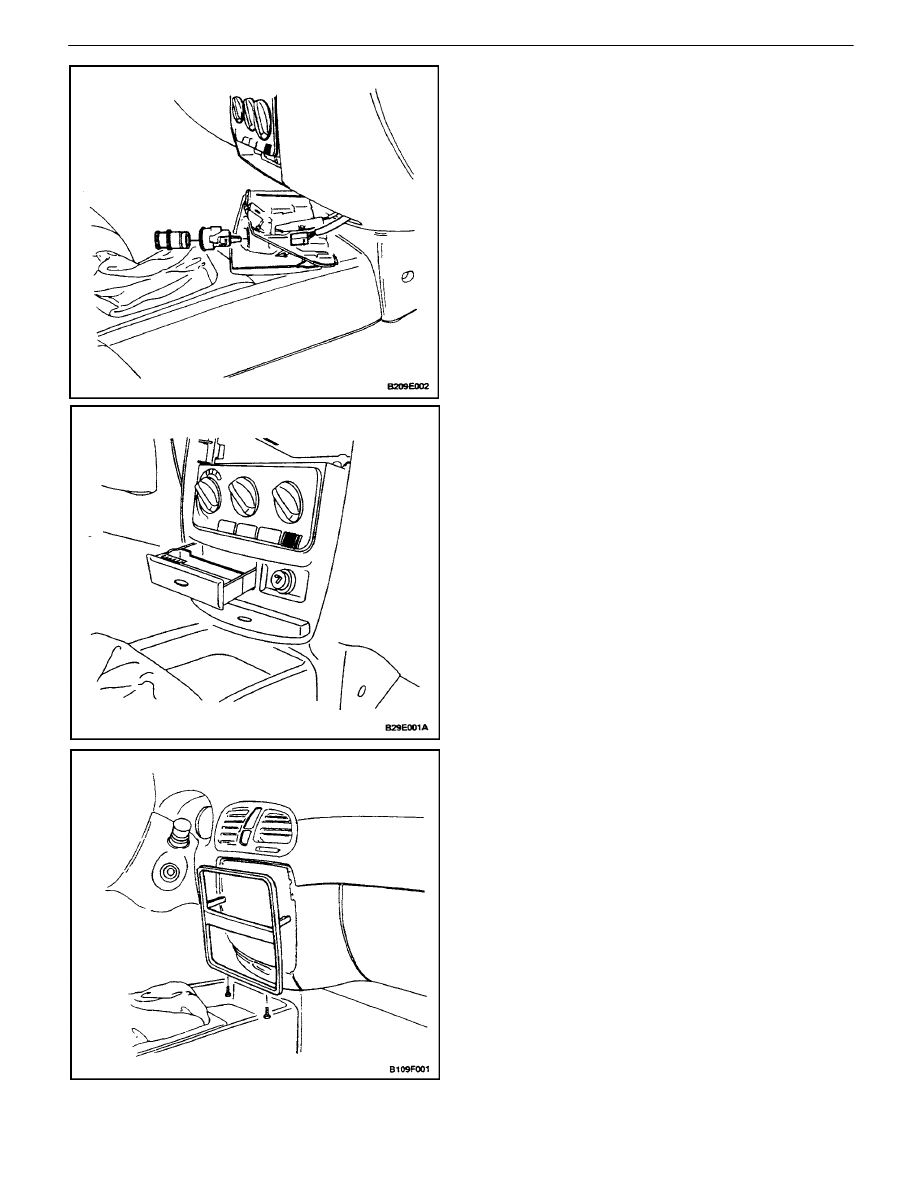

Installation Procedure

1.  Install the cigar lighter housing in the ashtray hous-

ing.

2.  Install the cigar lighter in the cigar lighter housing.
3.  Connect the cigar lighter electrical connector.

4.  Install the ashtray housing with the screw.

Tighten

Tighten the ashtray housing screw to 2.5 N

S

m (22

lbin).

5.  Install the audio system trim plate with the screws.
6.  Install glove box, driver/passenger knee bolster with

the screws.

7.  Connect the negative battery cable.

INSTRUMENT/DRIVER INFORMATION  9E – 25

DAEWOO V–121 BL4

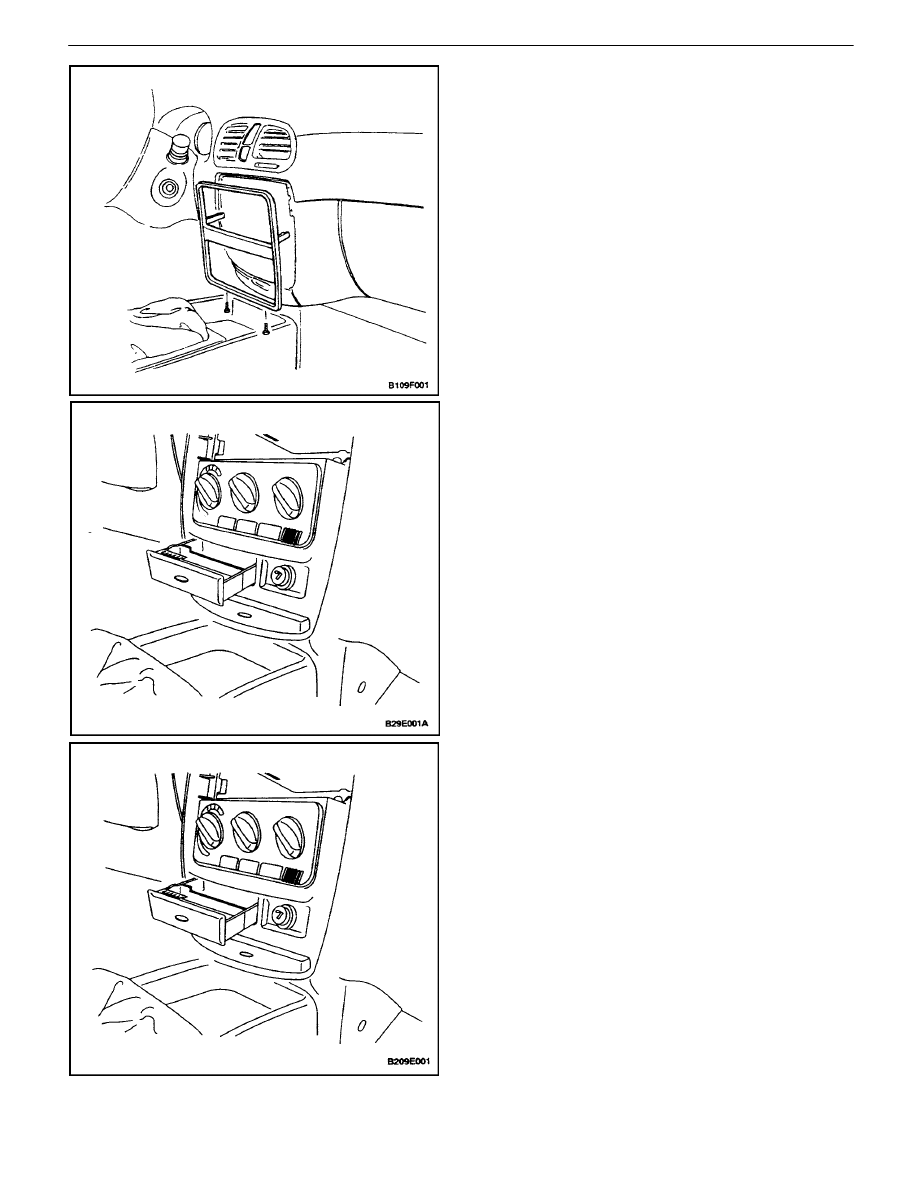

ASHTRAY

Removal Procedure

1.  Disconnect the negative battery cable.
2.  Remove the screws and the glove box.

3.  Remove the screw and driver/passenger knee bol-

ster.

4.  Remove the screws and the audio system trim

plate.

5.  Disconnect the ashtray electrical connector.

Installation Procedure

1.  Connect the ashtray electrical connector.
2.  Install the screw and the ashtray housing.

Tighten

Tighten the ashtray housing screw to 2.5 N

S

m (22

lbin).
