9E – 26

I

INSTRUMENT/DRIVER INFORMATION

DAEWOO V–121 BL4

3.  Install the audio system trim plate with the screws.
4.  Install glove box, driver/passenger knee bolster with

the screws.

5.  Connect the negative battery cable.

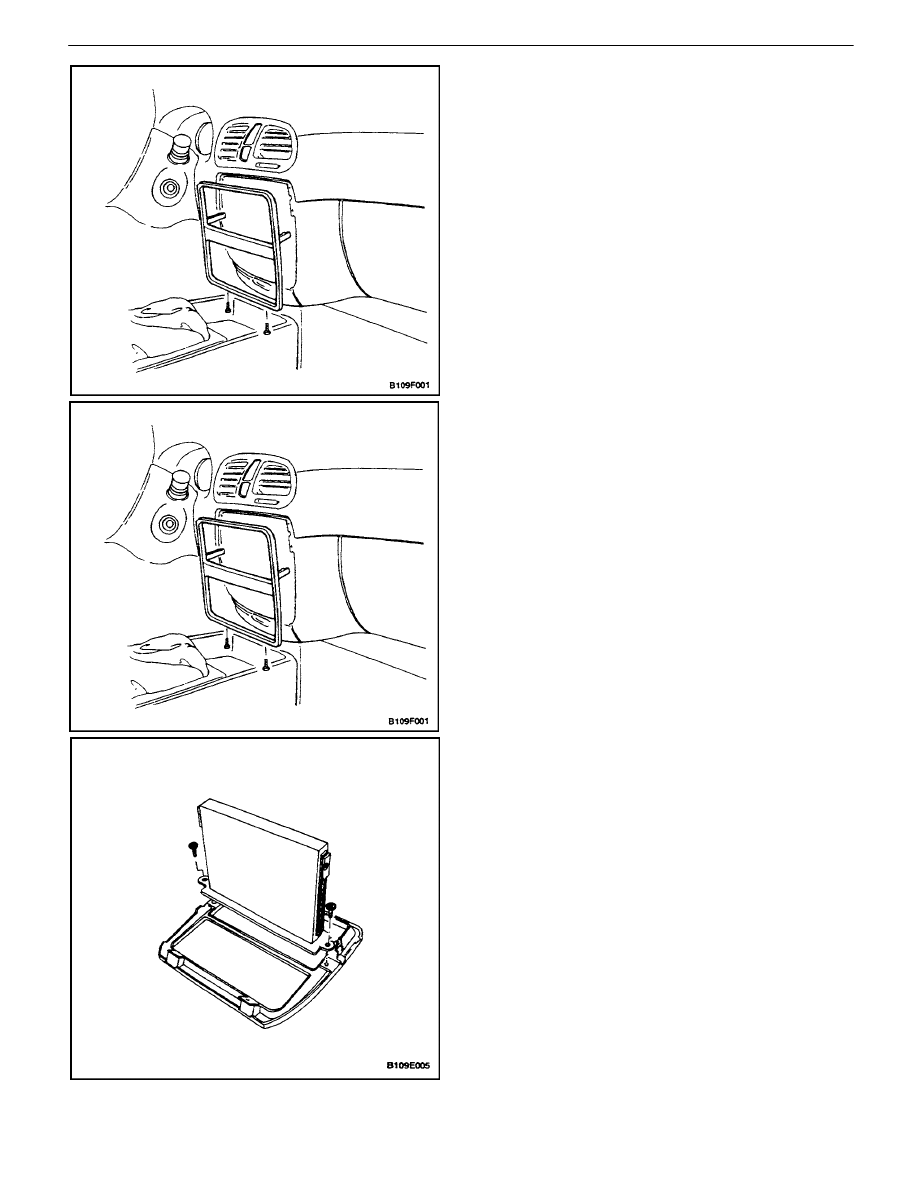

CUP HOLDER

Removal Procedure

1.  Remove the screws and the glove box.
2.  Remove the screw and driver/passenger knee bol-

ster.

3.  Remove the screws and the cup holder from the

audio system trim plate.

INSTRUMENT/DRIVER INFORMATION  9E – 27

DAEWOO V–121 BL4

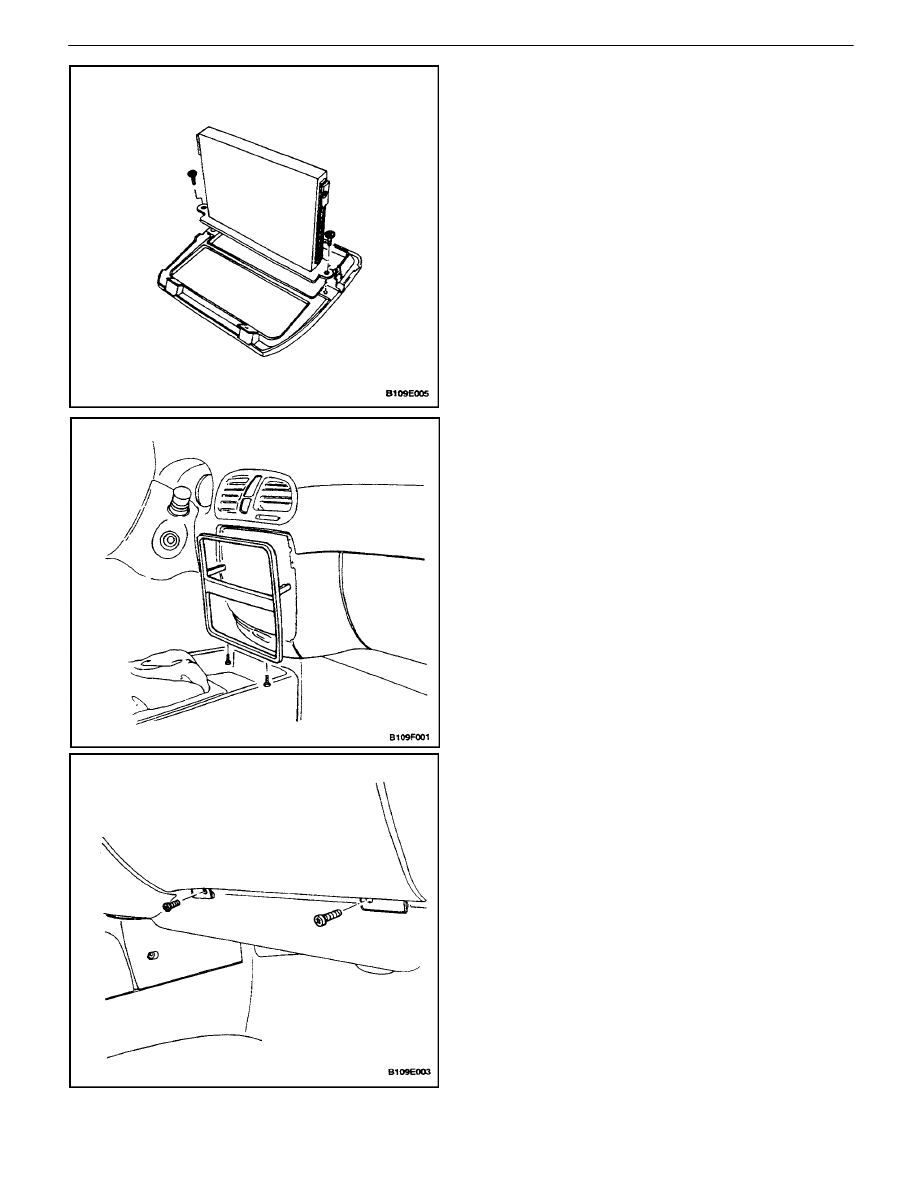

Installation Procedure

1.  Install the cup holder to the audio system trim plate

with the screws.

Tighten

Tighten the cup holder screws to 2.5 N

S

m (22 lb–in).

2.  Install the audio system trim plate with the screws.
3.  Install glove box, driver/passenger knee bolster with

the screws.

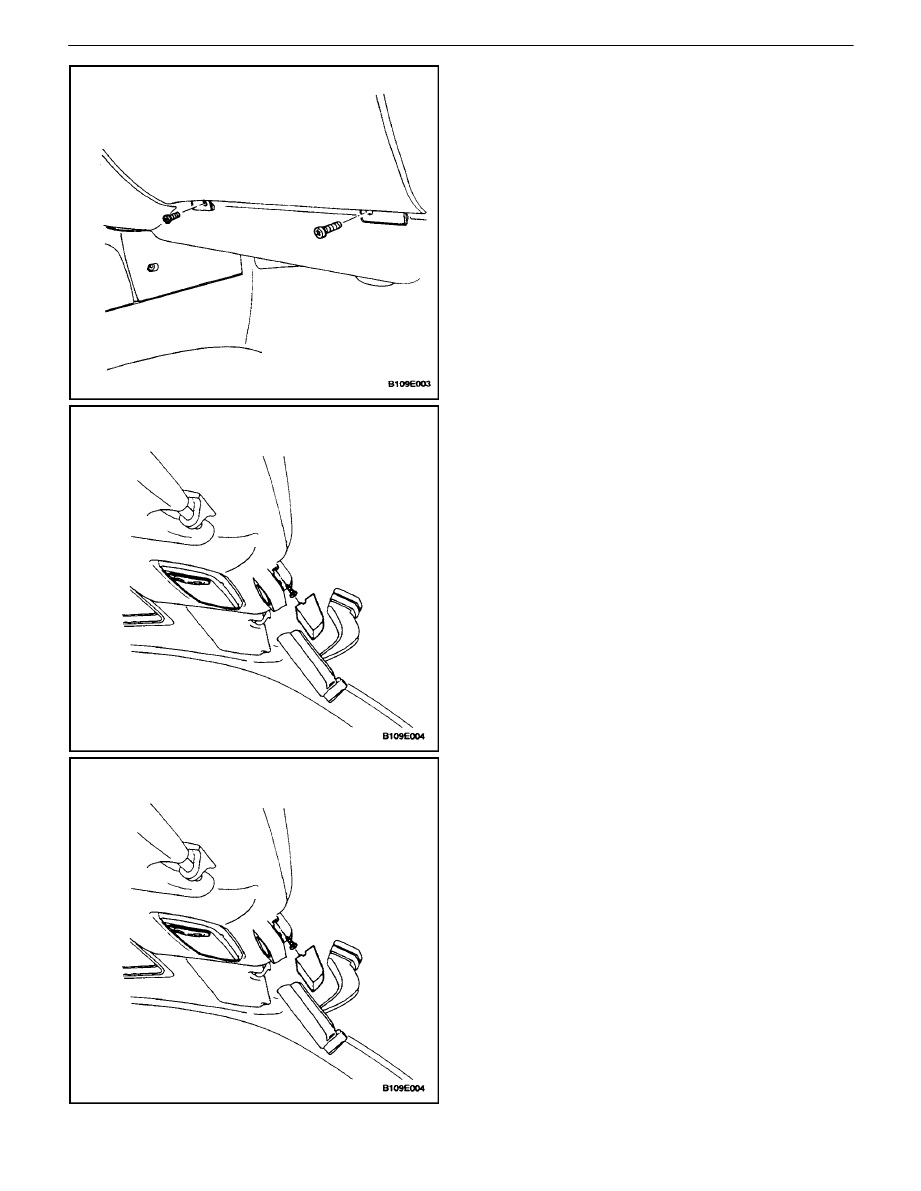

GLOVE BOX

Removal Procedure

1.  Remove the screws at the base of the glove box.
2.  Open and remove the glove box.

9E – 28

I

INSTRUMENT/DRIVER INFORMATION

DAEWOO V–121 BL4

Installation Procedure

1.  Position the glove box in the instrument panel.
2.  Install the glove box with the screws.

Tighten

Tighten the glove box screws to 5.5 N

S

m (49 lb–in).

DIGITAL CLOCK

Removal Procedure

1.  Disconnect the negative battery cable.
2.  Remove the plastic cover to reveal the screws.
3.  Remove the screws and the digital clock.
4.  Disconnect the electrical connector.

Installation Procedure

1.  Connect the electrical connector.
2.  Install the digital clock with the screws.

Tighten

Tighten the digital clock screws to 4 N

S

m (35 lb–in).

3.  Install the cluster housing.
4.  Connect the negative battery cable.

INSTRUMENT/DRIVER INFORMATION  9E – 29

DAEWOO V–121 BL4

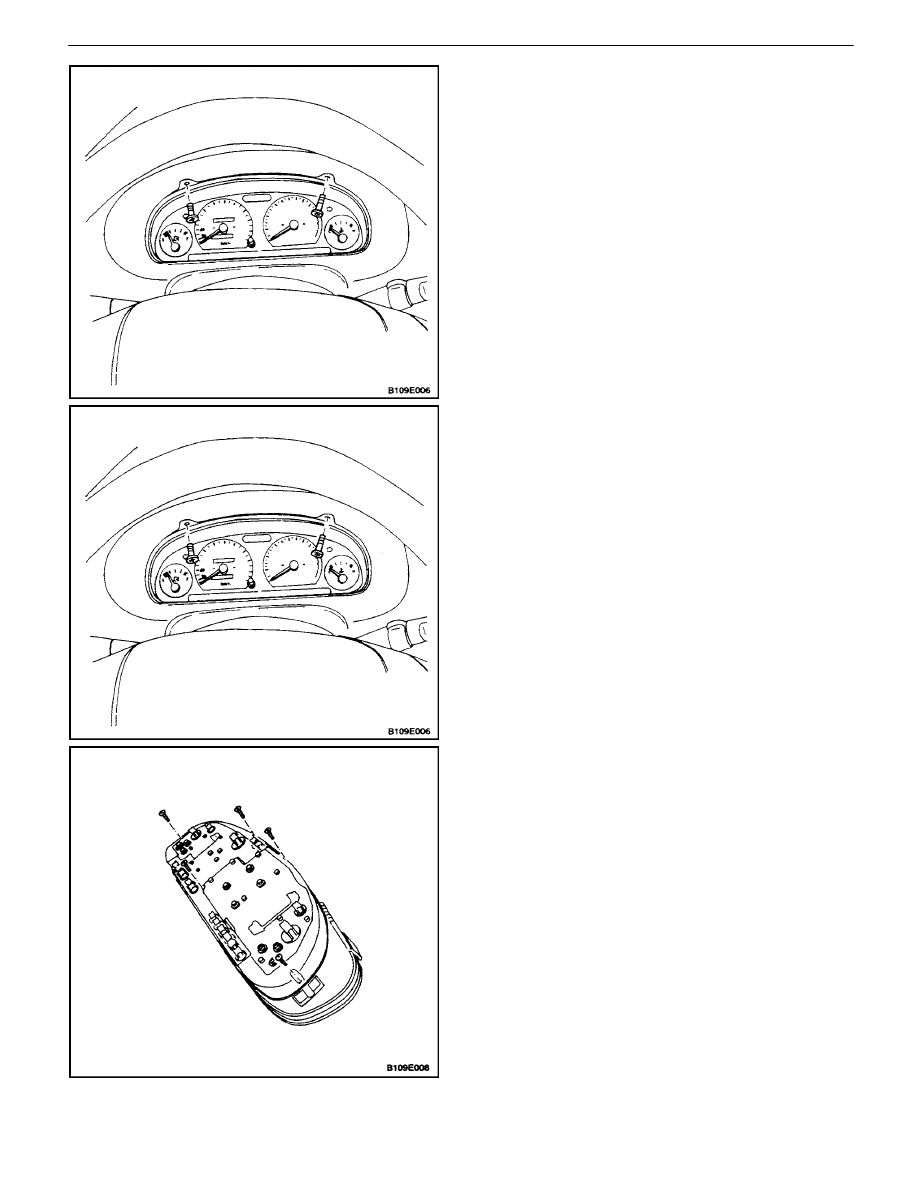

INSTRUMENT CLUSTER

Removal Procedure

1.  Disconnect the negative battery cable.
2.  Remove the screws and the instrument cluster.
3.  Disconnect the electrical connectors.

Installation Procedure

1.  Connect the electrical connectors.
2.  Install the instrument cluster with the screws.

Tighten

Tighten the instrument cluster screws to 4 N

S

m (35

lb–in).

3.  Connect the negative battery cable.

SPEEDOMETER/ODOMETER/TRIP
ODOMETER

Removal Procedure

1.  Disconnect the negative battery cable.
2.  Remove the instrument cluster. Refer to ”Instru-

ment Cluster” in this section.

3.  Push the locking and remove the instrument cluster

lens.
