51–

45

51

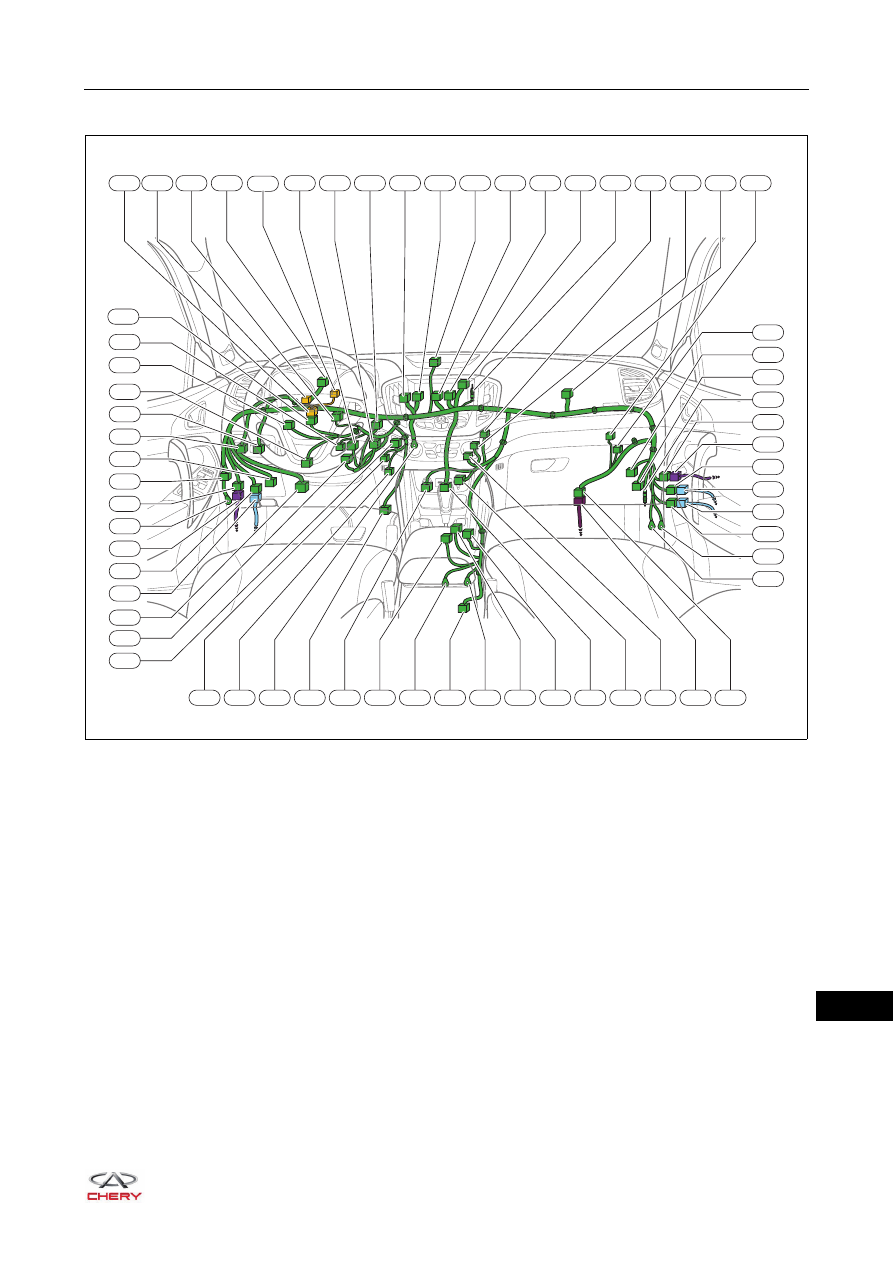

Instrument Panel Wire Harness

ET21510220

I-010

I-009

I-031

I-030

I-008

I-032

I-007

I-033

I-034

I-005

E-027

I-004

I-035

B-059

I-003

B-055

B-003

I-036

I-002

I-057

I-001

I-011

I-013

I-054 I-055

I-012

I-056

I-053

I-014

I-052

I-015

I-051

I-016

I-050

I-017

I-049

I-018

I-048

I-019

I-047

I-020

I-046

I-021

I-045

I-022

I-044

I-023

I-043

I-024

I-042

I-025

I-041

I-026

K-007

I-027

I-040

I-028

I-029

I-038

I-039

I-037

E-071

I-006

51–

46

51

Connector Code

Connector Color/Pin

Connector Name

I-001

B/6

Hazard Switch

I-002

B/4

Key Reminder Switch (for MT Model)

I-003

-

Ground

I-004

W/14

to Engine Compartment Wire Harness Connector E-071

I-005

L/32

BCM (A)

I-006

W/22

to Body Wire Harness Connector B-003

I-007

B/

Instrument Panel Fuse and Relay Box A

I-008

B/10

Rear View Mirror Adjustment Switch

I-009

Br/16

Headlight Adjustment Switch

I-010

B/6

Steering Angle Sensor

I-011

B/10

Combination Light Switch

I-012

W/16

to Spiral Cable Connector I-054

I-013

Lg/6

Ignition Switch (w/o Passive Entry & Passive Start)

I-014

B/10

Wiper Switch

I-015

L/32

Instrument Cluster

I-016

B/2

Key Lamp (w/o Passive Entry & Passive Start)

I-017

W/8

Engine Switch (w/ Passive Entry & Passive Start)

I-018

B/8

Immobilizer Control Module (w/o Passive Entry &

Passive Start)

I-019

B/16

Audio Assistant

I-020

B/16

Audio B

I-021

B/4

Sun Sensor

I-022

B/8

Navigation

I-023

B/10

USB

I-024

Gr/1

GPS

I-025

B/1

Antenna

I-028

Gr/2

Front Passenger Airbag

I-029

Gr/16

PEPS (J1)

I-030

B/16

PEPS (J2)

I-031

W/20

Instrument Panel Fuse and Relay Box B (E)

I-032

Gr/1

GPS

I-033

B/1

Antenna

I-034

W/15

to Engine Compartment Wire Harness Connector E-027

I-035

W/18

to Body Wire Harness Connector B-059

I-036

W/16

to Body Wire Harness Connector B-055

I-037

-

Ground

I-038

-

Ground

51–

47

51

I-039

B/22

to A/C Wire Harness Connector K-007

I-041

W/2

Backup Power Supply

I-042

B/10

USB

I-043

B/2

Low Frequency Antenna 1

I-044

B/8

Passenger Seat Heater Switch

I-045

-

Ground

I-046

Gr/32

SRS Control Module (belong to Instrument Panel Wire

Harness)

I-047

-

Ground

I-048

G/2

Immobilizer Coil (w/o Passive Entry & Passive Start)

I-049

W/3

Cigarette Lighter

I-050

B/16

Diagnostic Interface

I-051

-

Ground

I-055

B/2

Driver Airbag

I-056

W/1

Horn Switch

I-057

B/10

EPS B Connector

Connector Code

Connector Color/Pin

Connector Name

51–

48

51

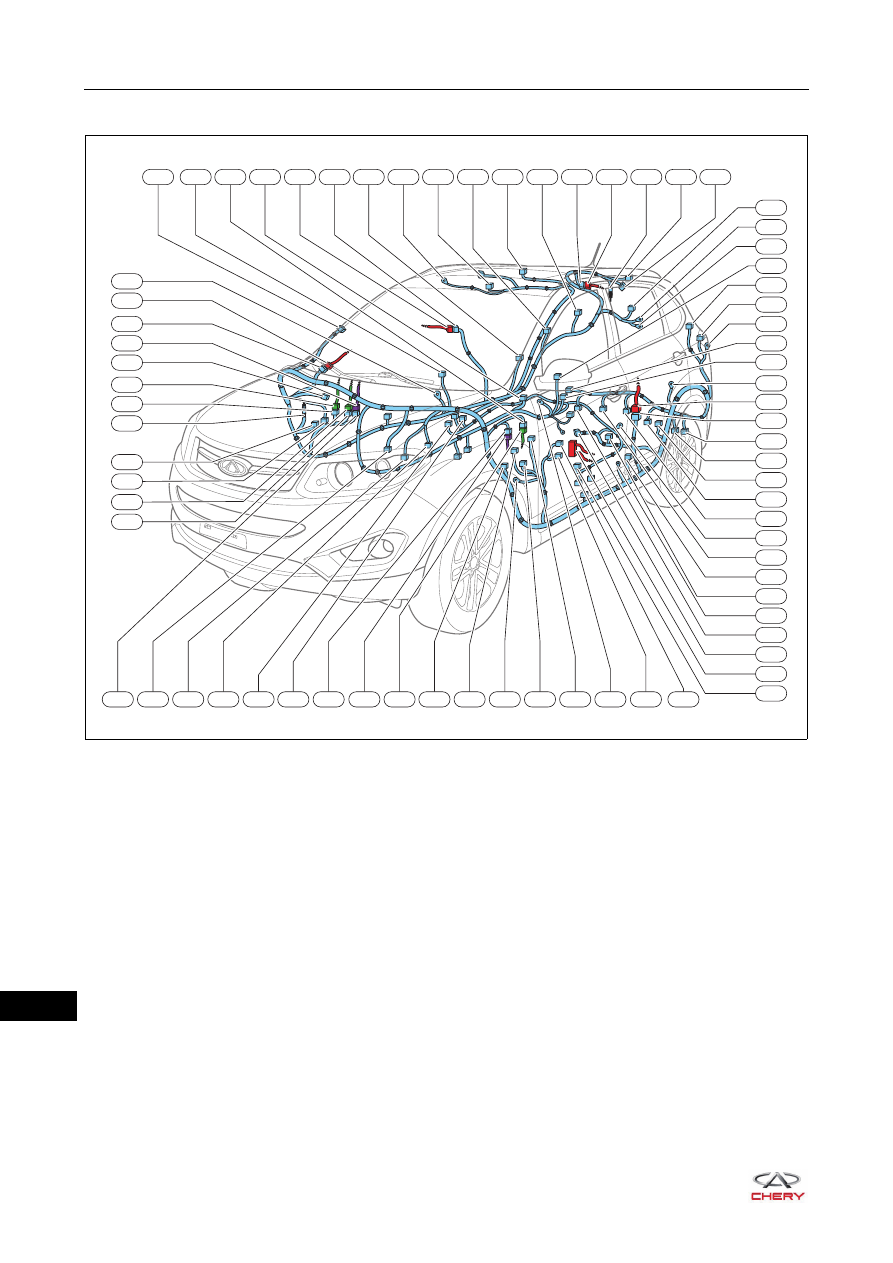

Body Wire Harness

ET21510230

B-016

B-017

B-018

B-019

B-020

B-021

B-022

B-023

B-024

B-025

B-026

B-027

B-028

B-029

B-030

B-031

B-032

B-033

B-034

B-036

B-035

B-037

B-038

B-062

B-059

B-039

B-002

B-001

B-003 B-004

B-006 B-007

B-005

B-008 B-009

B-012

B-014

B-013

B-015

B-046 B-045 B-044 B-043 B-042 B-041 B-040

B-047

B-053

B-054

B-052 B-051 B-050 B-049 B-048

B-058

B-057

B-056

B-055

B-060

B-061

F-007

L-005

H-002

R-002

T-004

I-035

I-036

I-006

E-029

E-070

B-010 B-011
