Instrument Panel Fuse and Relay Box B

No.

Description

No.

Description

RF27

Spare

RF40

Right Window Jam Protection

RF28

-

RF41

Left Window Jam Protection

RF29

-

RF42

Outside Rear View Mirror Heating/
Defrosting Feedback Signal

RF30

IP Fuse and Relay Box A

RF43

-

RF31

-

RF44

-

RF32

Power Seat Adjustment

RF45

Backup Power Supply

RF33

Rear Defroster

RF46

Ignition Switch

RF34

Left Seat Heater

RF47

PEPS

RF35

Brake Light Switch

RF48

-

RF36

Reserve

RF49

Sunroof

RF37

Right Seat Heater

RF50

-

RF38

-

RF51

-

RF39

-

RF27 15A

RF32 20A

RF34 10A

RF35 10A

RF36 10A

RF37 10A

RF42 10A

RF28

RF29

RF31

Rear defroster

Left seat

relay

heater relay

Right seat

heater relay

RF38

RF39

RF43

RF44

RF30

20A

25A

RRL Y02

RRL Y03

RRL Y04

RF33

RF40

30A

30A

RF41

RF46

25A

RF50

RF51

Fuse

puller

+

RF45 10A

RF47 10A

RF48

RF49 20A

RT21510140

51–

38

51

VEHICLE WIRE HARNESS LAYOUT

General Information

Description

Wire harness layout introduces location information of vehicle wire harness and electrical components in the
form of graphic. Entire vehicle wire harnesses are divided into the following parts:
 Engine Wire Harness
 Engine Compartment Wire Harness
 Instrument Panel Wire Harness
 Body Wire Harness
 Front Left Door Wire Harness
 Front Right Door Wire Harness
 Rear Left Door Wire Harness
 Rear Right Door Wire Harness
 Back Door Wire Harness
 A/C Wire Harness (for Electrical A/C System)
 A/C Wire Harness (for Automatic A/C System)
 Battery/Ground Wire Harness

51–

39

51

Vehicle Wire Harness Layout

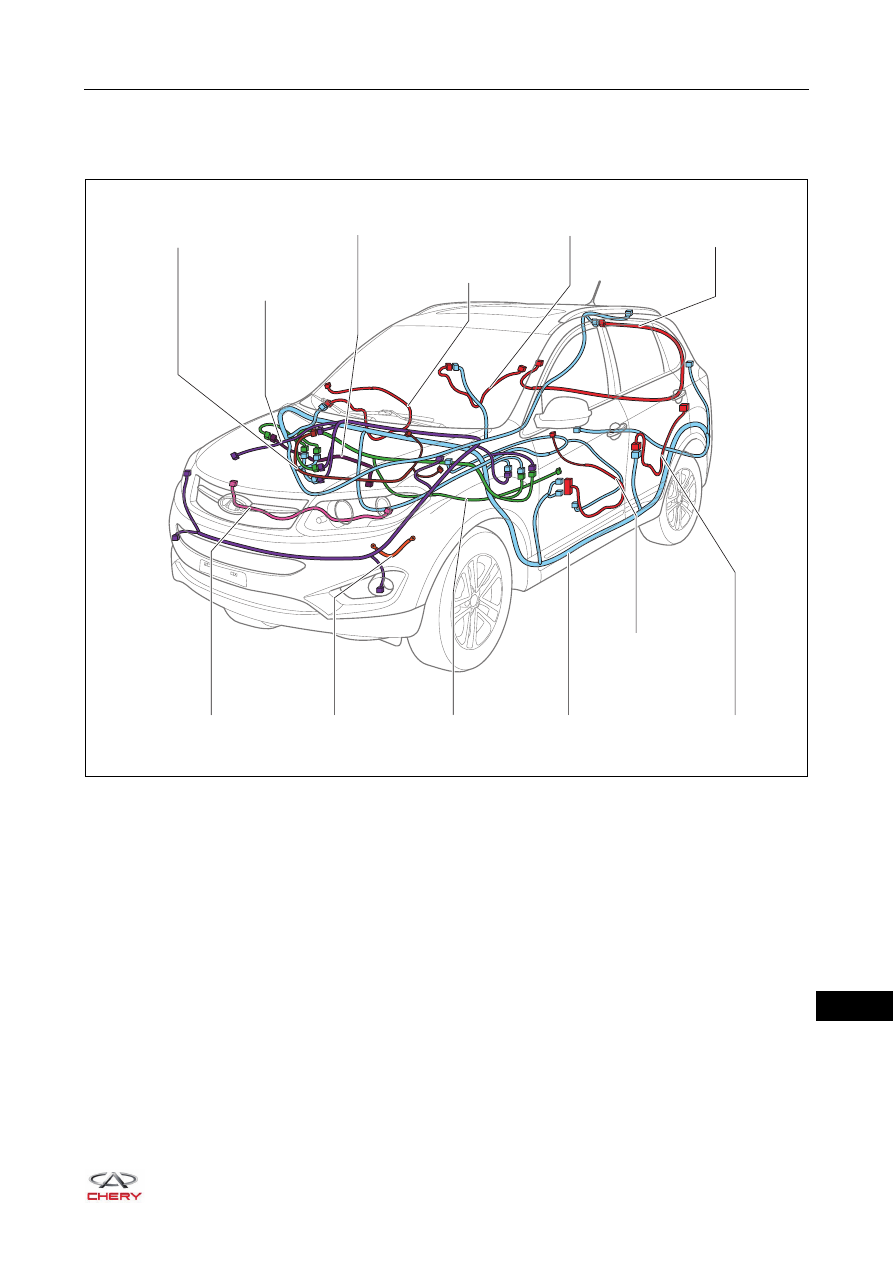

Entire Vehicle Wire Harness Layout

ET21510191

Engine Wire Harness

Engine Compartment
Wire Harness

Instrument Panel
Wire Harness

Body Wire
Harness

Front Left Door
Wire Harness

Rear Left Door
Wire Harness

Front Right Door
Wire Harness

Rear Right Door
Wire Harness

Back Door Wire
Harness Layout



A/C Wire Harness

Battery Wire
Harness

Ground Wire
Harness

51–

40

51

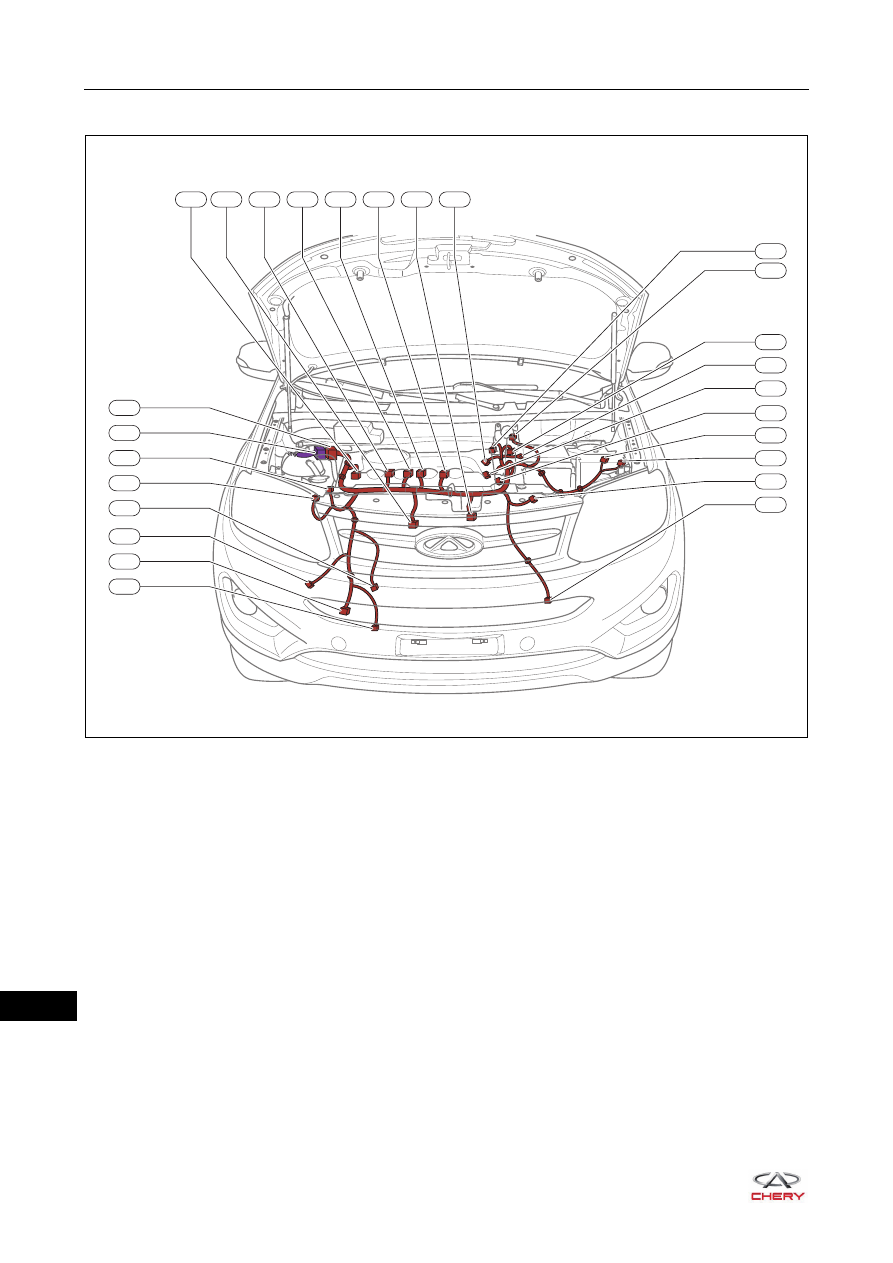

Engine Wire Harness

ET21510200

E-007

E-006

E-005

E-004

E-003

E-002

E-001

E-008 E-009

E-010

E-011

E-012

E-013

E-014

E-015

E-016

E-017

E-018

E-019

E-021

E-020

E-022

E-023

E-024

E-025

E-038
