Chery Tiggo 5 (T21). Manual - part 549

51–

41

51

Connector Code

Connector Color/Pin

Connector Name

E-001

W/1

Oil Pressure Switch

E-002

B/2

A/C Compressor

E-003

B/3

Alternator

E-004

B/2

Electrical Heating

E-005

B/3

Knock Sensor

E-006

B/2

Variable Camshaft Timing (Intake)

E-007

B/42

to Engine Compartment Wire Harness Connector E-038

E-008

B/2

Variable Camshaft Timing (Exhaust)

E-009

B/6

Electronic Throttle

E-010

B/2

Injector 1

E-011

B/2

Injector 2

E-012

B/2

Injector 3

E-013

B/2

Injector 4

E-014

B/1

Starter Control

E-015

B/3

Camshaft Position Sensor(Exhaust)

E-016

B/3

Engine Speed Sensor

E-017

B/5

Air Flow Meter

E-018

B/4

Ignition Coil

E-019

-

Ground

E-020

B/3

Camshaft Position Sensor (Intake)

E-021

L/2

Coolant Temperature Sensor

E-022

W/2

Engine Compartment Fuse and Relay Box

(L)

E-023

L/10

Engine Compartment Fuse and Relay Box

(C)

E-024

B/2

Canister Solenoid Valve

E-025

B/2

Back-up Light Switch

51–

42

51

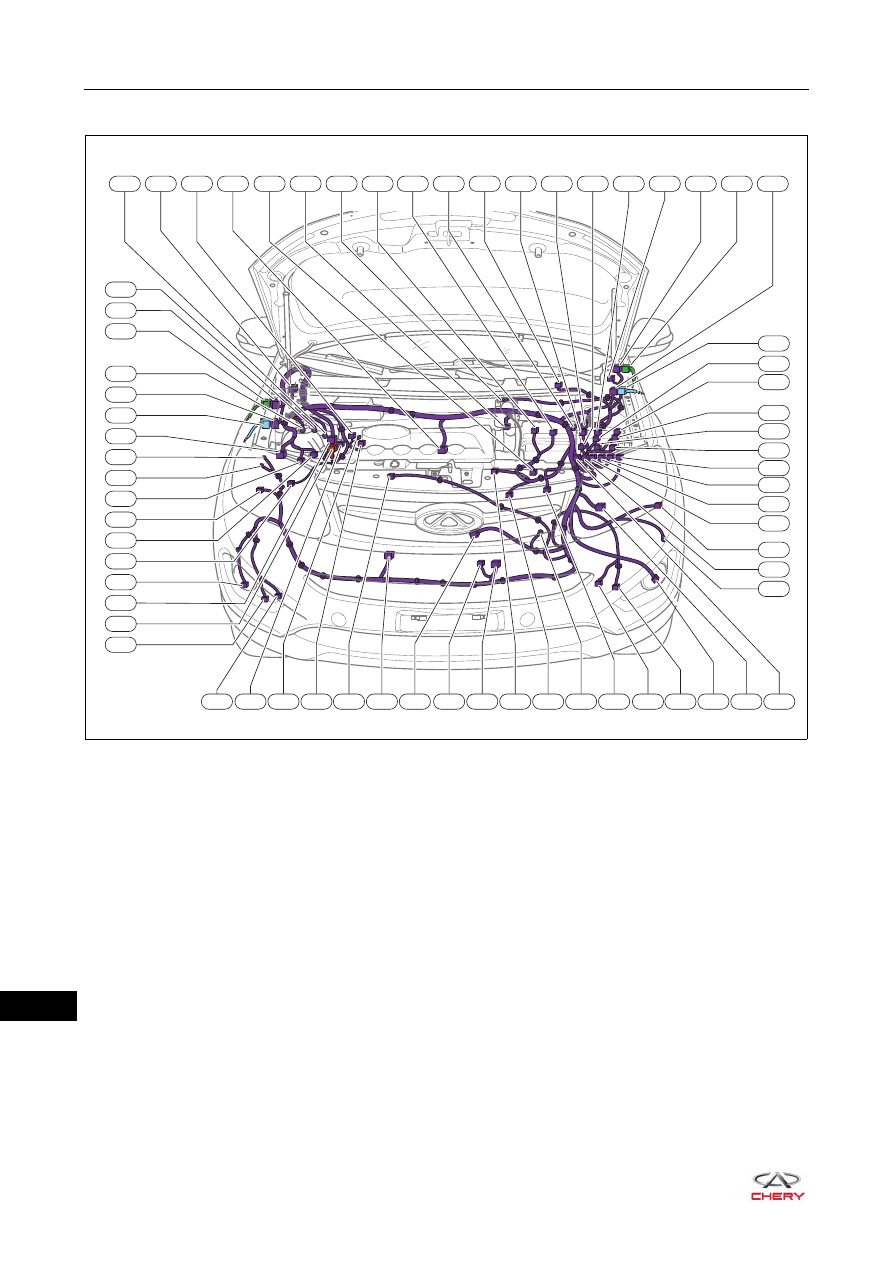

Engine Compartment Wire Harness

ET21510210

I-004

E-027

E-086

E-087

E-028

E-029

E-007

E-073 E-072

E-074

E-075

E-076

E-077

E-078

E-079

E-080

E-081

E-082

E-065

E-064

E-063

E-067

E-068

E-069

E-070

E-066

E-062

E-061

E-060

E-071

E-026

B-048

I-034

E-033

E-030

E-031

E-032

E-034

E-035

E-036

E-037

E-038

E-039

E-040 E-041 E-042 E-043 E-044 E-045 E-046 E-047 E-048 E-049 E-050 E-051 E-052 E-053

E-055

E-054

E-056 E-057

E-058

E-059

E-083

E-084

E-085

B-054

51–

43

51

Connector Code

Connector Color/Pin

Connector Name

E-026

-

Ground

E-027

W/15

to Instrument Panel Wire Harness

Connector I-034

E-028

-

Ground

E-029

W/22

to Body Wire Harness Connector B-054

E-030

B/56

TCU (for CVT Model)

E-031

-

Ground

E-032

-

Ground

E-033

B/64

ECM-2

E-034

B/10

Front Right Headlight

E-035

B/48

ECM-1

E-036

B/2

Front Right Wheel Speed Sensor

E-037

B/2

Front Right Fog Light

E-038

B/42

to Engine Wire Harness Connector E-007

E-039

Gr/2

Front Washer Motor

E-040

Gr/2

Rear Washer Motor

E-041

B/3

A/C Pressure Sensor

E-042

-

Ground

E-043

B/4

Downstream Oxygen Sensor

E-044

W/3

Hood Contact Switch

E-045

Gr/2

  High Pitched Horn

E-046

Gr/3

Fan Controller

E-047

B/2

Outside Temperature Sensor

E-048

Gr/2

Low Pitched Horn

E-049

B/3

Clutch Speed Sensor (for CVT Model)

E-050

B/10

Connector A (for CVT Model)

E-051

-

Ground

E-052

Gr/10

Connector B (for CVT Model)

E-053

B/2

Anti-theft Horn

E-054

W/3

Primary Shaft Pressure Sensor

E-055

B/2

Front Left Fog Light

E-056

B/10

Front Left Headlight

E-057

-

ABS Power Supply

E-058

-

Ground

E-059

-

Fan Power Supply

E-060

B/2

Front Left Wheel Speed Sensor

E-061

-

BCM Power Supply

51–

44

51

E-062

-

IP Box Power Supply

E-063

-

Blower Power Supply

E-064

-

EPS Power Supply

E-065

B/2

Engine Compartment Fuse and Relay Box

(K)

E-066

B/2

Engine Compartment Fuse and Relay Box

(J)

E-067

W/16

Engine Compartment Fuse and Relay Box

(H)

E-068

W/10

Engine Compartment Fuse and Relay Box

(D)

E-069

W/24

Engine Compartment Fuse and Relay Box

(F)

E-070

W/22

to Body Wire Harness Connector B-048

E-071

B/14

to Instrument Panel Wire Harness

Connector I-004

E-072

W/1

 BCM (E)

E-073

Y/10

Engine Compartment Fuse and Relay Box

(B)

E-074

Gr/2

Engine Compartment Fuse and Relay Box

(I)

E-075

L/2

EPS

E-076

Gr/10

Engine Compartment Fuse and Relay Box

(A)

E-077

B/4

Front Wiper Motor

E-078

-

Ground

E-079

B/3

Secondary Shaft Speed Sensor

(for CVT Model)

E-080

B/3

Secondary Shaft Pressure Sensor

(for CVT Model)

E-081

-

Ground

E-082

B/2

Break Fluid Level Sensor

E-083

B/3

Primary shaft speed sensor (for CVT Model)

E-084

B/4

Upstream Oxygen Sensor

E-085

B/38

ABS Control Module

E-086

-

IP Box

E-087

-

Ground

Connector Code

Connector Color/Pin

Connector Name
