51–

49

51

Connector Code

Connector Color/Pin

Connector Name

B-001

B/2

Front Right Speaker

B-002

B/2

Front Passenger Seat Belt Pre-tensioner

B-003

W/22

to Instrument Panel Wire Harness Connector I-006

B-004

W/11

Command Gear Shift

B-005

Y/16

to Rear Right Door Wire Harness Connector R-002

B-006

B/2

Front Left Speaker

B-007

-

Ground

B-008

W/6

Front Room Light

B-009

B/2

Rear Right Wheel Speed Sensor

B-010

W/2

Rear Room Light

B-011

B/2

Luggage Compartment Light

B-012

W/15

to Back Door Wire Harness Connector T-004

B-013

B/1

Antenna

B-014

W/1

Antenna Power Supply

B-015

Gr/1

GPS

B-016

B/6

Rear Right Combination Light

B-017

-

Ground

B-018

-

Ground

B-019

B/1

Parking Brake Switch

B-020

W/16

Reverse Radar Module

B-021

B/6

Rear Left Combination Light

B-022

-

Ground

B-023

B/2

Rear Right Radar Sensor

B-024

B/2

Low Frequency Antenna 2

B-025

-

Ground

B-026

Y/16

to Rear Left Door Wire Harness Connector L-005

B-027

B/2

Rear Left Radar Sensor

B-028

B/2

Rear Left Fog Light

B-029

B/2

Rear Left Wheel Speed Sensor

B-030

B/2

Left Center Radar Sensor

B-031

B/2

Rear Bumper Low Frequency Antenna

B-032

-

Ground

B-033

B/2

Right Center Radar Sensor

B-034

B/2

Driver Seat Belt Pre-tensioner

B-035

B/2

Low Frequency Antenna 3

B-036

-

Ground

B-037

B/2

Rear Right Fog Light

51–

50

51

B-038

B/4

Fuel Pump Motor

B-039

B/2

Driver Seat Belt Switch

B-040

w/18

to Front Left Door Wire Harness Connector F-007

B-041

Gr/18

to Front Left Door Wire Harness Connector F-007

B-042

-

Ground

B-043

W/20

BCM (C)

B-044

W/12

BCM (D)

B-045

-

Ground

B-046

B/1

BCM (F)

B-047

L/32

BCM (B)

B-048

W/22

to Engine Compartment Wire Harness Connector E-070

B-049

W/2

Front Passenger Seat Belt Reminder Switch

B-050

B/2

Front Passenger Seat Belt Switch

B-051

B/2

Clutch Switch

B-052

Lg/4

Brake Switch

B-053

B/4

Electronic Accelerator Pedal

B-054

W/22

to Engine Compartment Wire Harness Connector E-029

B-055

W/18

to Instrument Panel Wire Harness Connector I-036

B-056

B/8

PEPS (J3)

B-057

Gr/1

GPS

B-058

B/1

Antenna

B-059

W/18

to Instrument Panel Wire Harness Connector I-035

B-060

W/18

Instrument Panel Fuse and Relay Box B (F)

B-061

W/18

to Front Right Door Wire Harness Connector H-002

B-062

-

Ground

Connector Code

Connector Color/Pin

Connector Name

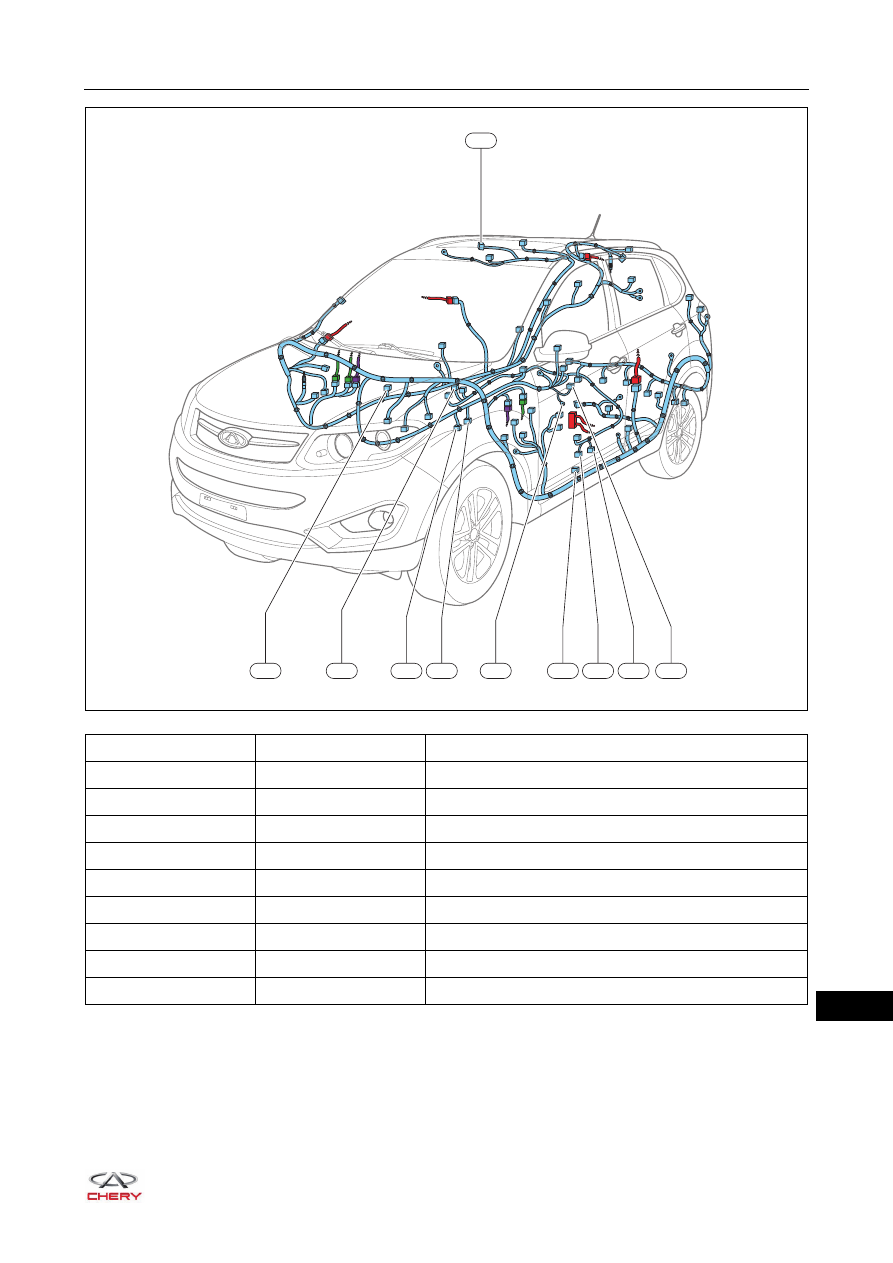

51–

51

51

B-063

B/6

Sunroof

B-064

B/2

Front Right Doorsill Light

B-065

B/4

Front Passenger Seat Heater

B-066

B/4

Steering Angle Sensor

B-067

B/8

Driver Seat Heater switch

B-068

-

Ground

B-069

B/2

Front Left Doorsill Light

B-070

B/4

Driver Seat Power Adjustment Switch

B-071

B/4

Driver Seat Heater

B-072

B/32

SRS Control Module (belong to Body Wire Harness)

ET21510240

B-068

B-069 B-070 B-071 B-072

B-064

B-065

B-066 B-067

B-063

51–

52

51

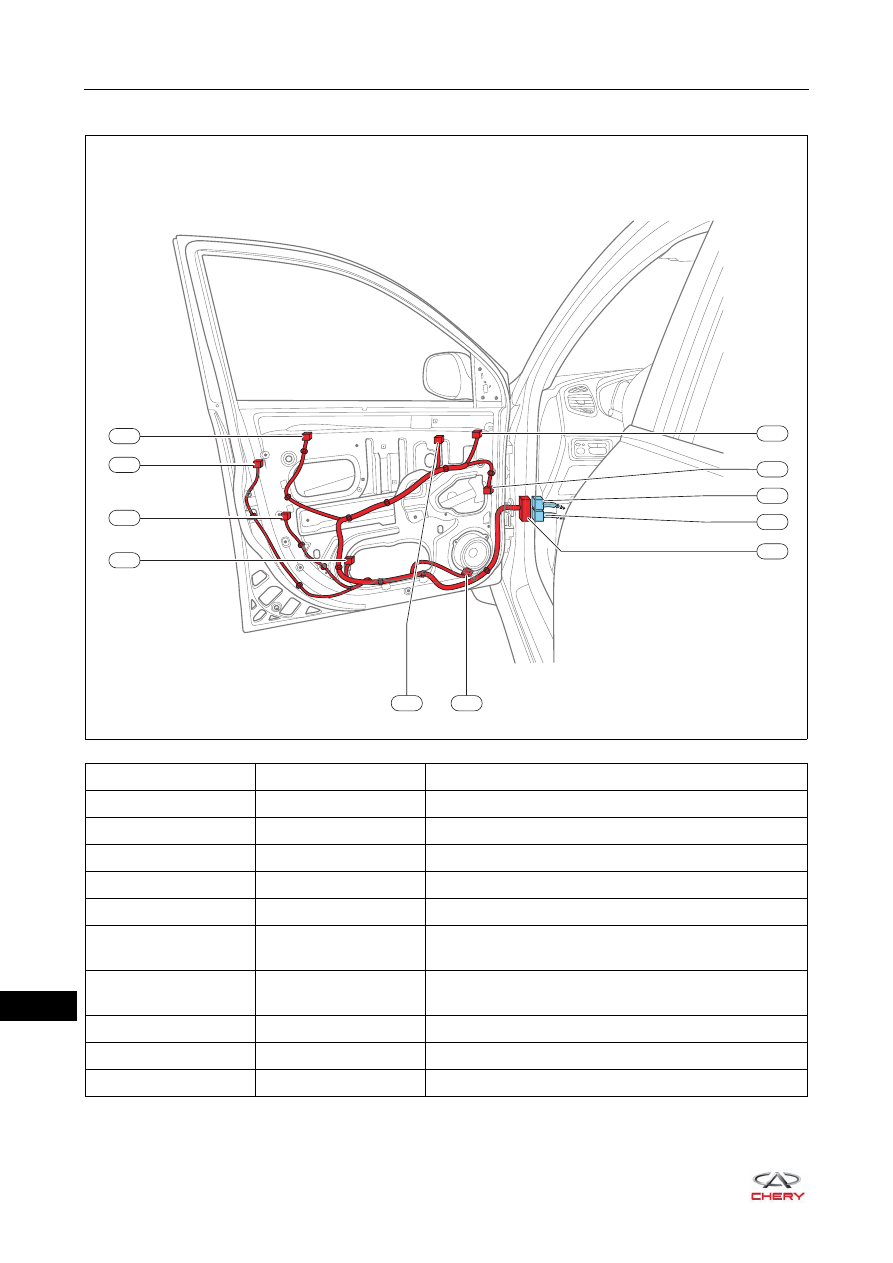

Front Left Door Wire Harness

Connector Code

Connector Color/Pin

Connector Name

F-001

W/2

Front Left Door Courtesy Light

F-002

B/6

Front Left Door Contact Switch

F-003

B/2

Left Handle Sensor

F-004

W/2

Anti-theft Indicator

F-005

W/16

Power Rear View Mirror Motor

F-006 (a)

Gr/2

Front Left Power Window Regulator Motor (w/o jam

protection function)

F-006 (b)

Gr/6

Front Left Power Window Regulator Motor (w/ jam

protection function)

F-007

W/32

to Body Wire Harness Connector B-040, B-041

F-008

B/2

Front Left Door Speaker

F-009

Br/16

Front Left Power Window Switch

ET21510250

F-005

F-006

B-040

B-041

F-007

F-008

F-009

F-004

F-003

F-002

F-001
