Chery Tiggo 5 (T21). Manual - part 494

46–

26

46

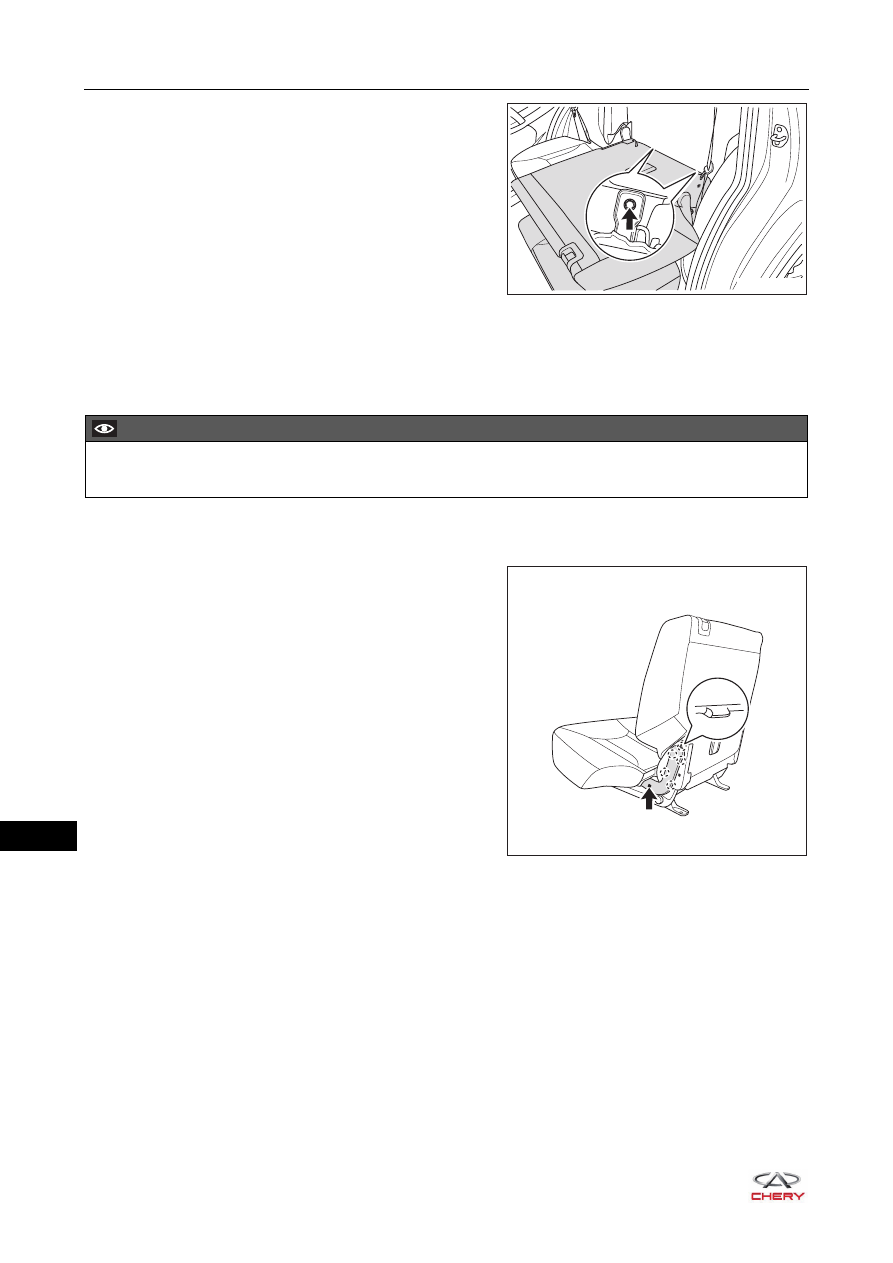

c. Remove 2 fixing bolts (arrow) from the rear part of

rear left seat assembly, and remove the rear left seat
assembly.



(Tightening torque: 50 ± 5 N·m)

Disassembly

HINT:

 Use the same procedures for the rear right seat assembly and rear left seat assembly.

 Procedures listed below are for the rear left seat assembly.

1. Remove the attachment trim cover between rear left seat cushion and seatback (take left side as an

example).
a. Remove the attachment trim cover fixing screw

(arrow) between rear left seat cushion and seatback.



(Tightening torque: 4.8 ± 0.5 N·m)

b. Using a screwdriver wrapped with protective tape, pry

up the claws on the attachment trim cover between
rear left seat cushion and seatback.

c. Remove the attachment trim cover between rear left

seat cushion and seatback.

RT21460310

CAUTION

 Be sure to wear safety equipment to prevent accidents when disassembling rear seat assembly.

RT21460350

46–

27

46

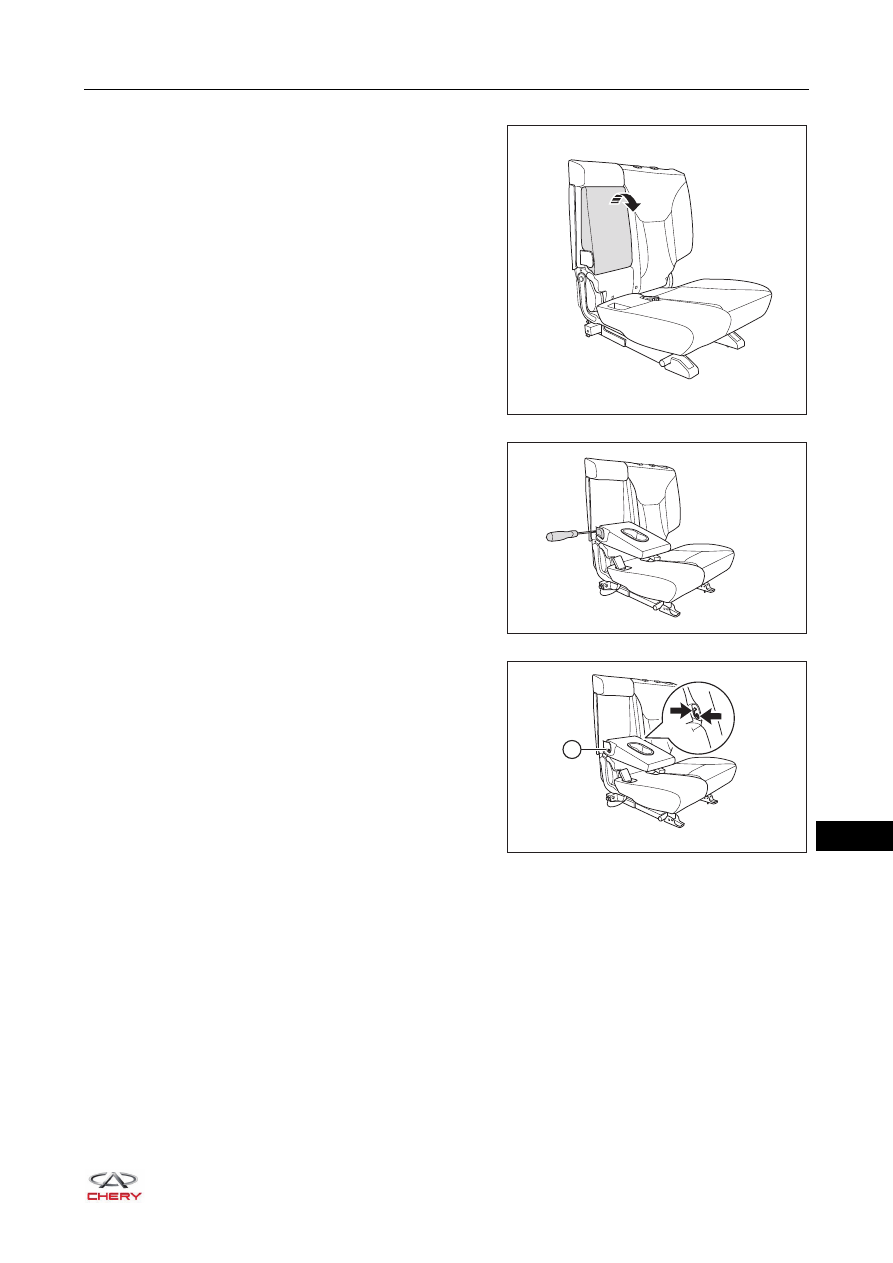

2. Remove the rear seat armrest assembly.

a. Open the rear seat armrest assembly in the direction

of arrow as shown in the illustration.

b. Using a screwdriver wrapped with protective tape, pry

up the claw on the rear seat armrest trim cover, and
remove the rear seat armrest trim cover.

c. Remove the fixing screw (1) from the rear seat

armrest assembly.



(Tightening torque: 4.8 ± 0.5 N·m)

d. Remove the rear seat armrest assembly from the

grooves (arrow).

RT21460361

RT21460362

RT21460363

1

46–

28

46

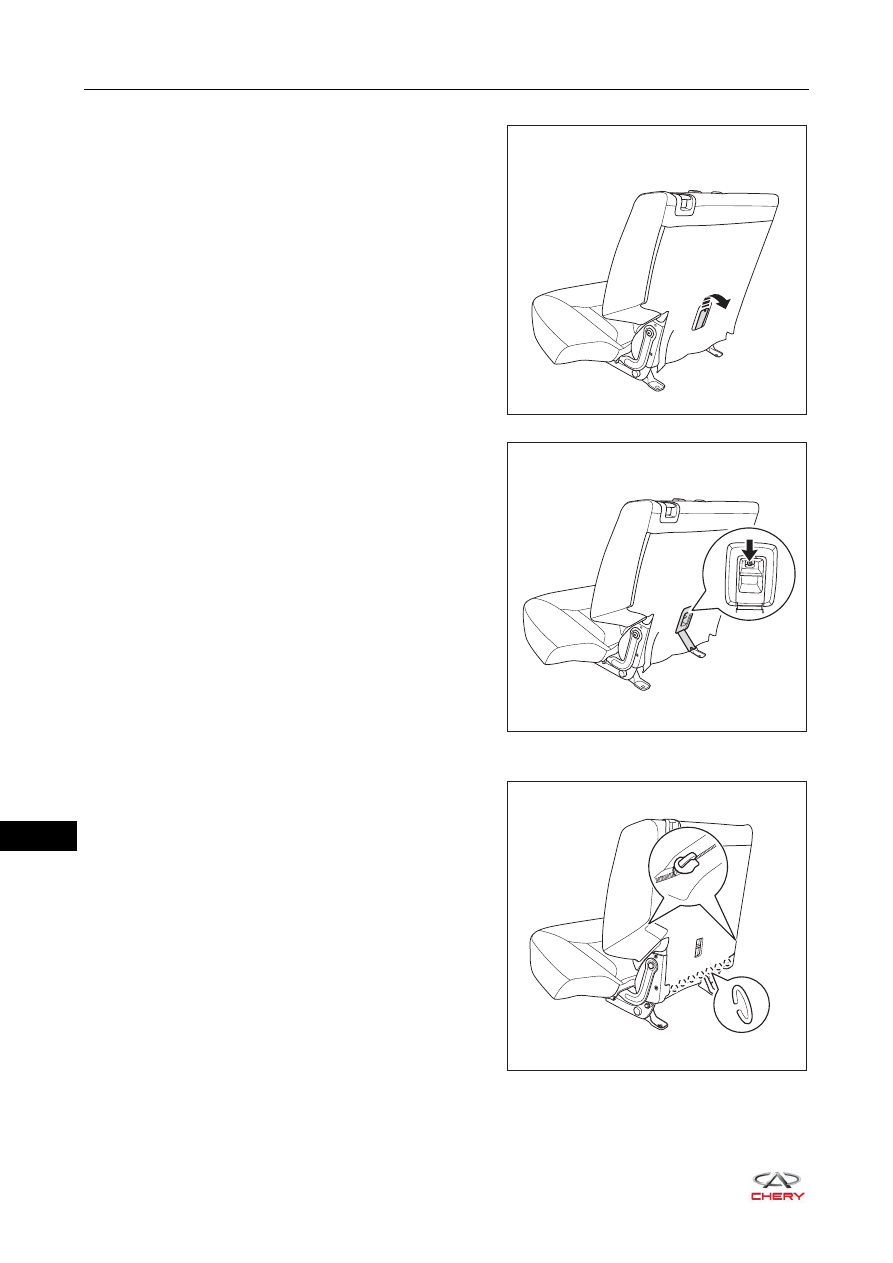

3. Remove the child seat upper fixing point trim cover.

a. Open the child seat upper fixing point trim cover in the

direction of arrow as shown in the illustration.

b. Remove the fixing screw (arrow) from the child seat

upper fixing point trim cover.



(Tightening torque: 4.8 ± 0.5 N·m)

c. Using a screwdriver wrapped with protective tape, pry

up the claw on the child seat upper fixing point trim
cover.

d. Remove the child seat upper fixing point trim cover.

4. Remove the rear left seat headrest guide.

a. Remove 7 hog rings under the seatback.
b. Unzip the rear seatback assembly.

RT21460370

RT21460380

RT21460390

46–

29

46

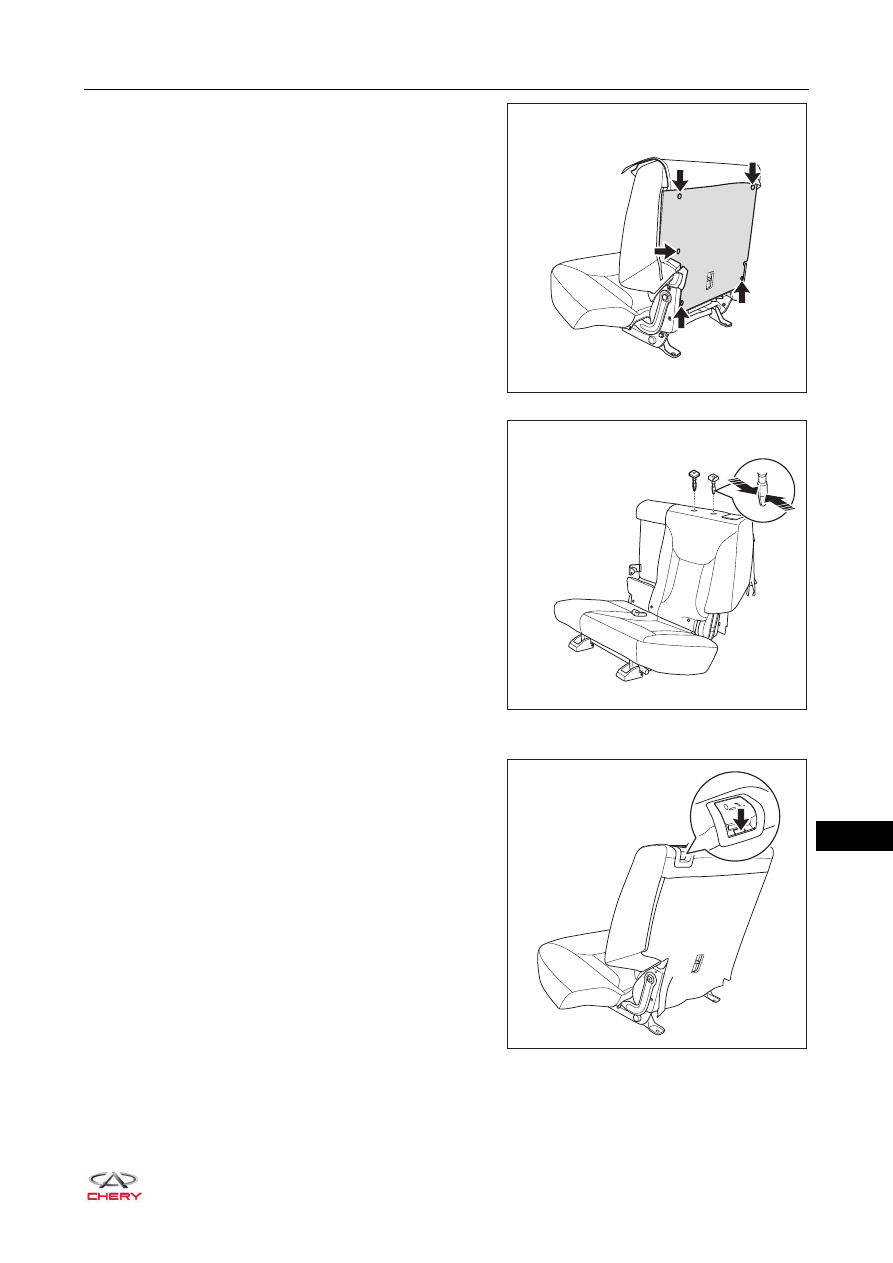

c. Remove 5 fixing clamps (arrow) from the rear

seatback board, and remove the rear seatback board.

d. Press the lower part of rear seat headrest guide in the

direction of arrow as shown in the illustration, and
remove the rear left seat headrest guide.

5. Remove the rear seatback unlock mechanism assembly.

a. Using a screwdriver wrapped with protective tape, pry

up the cover (arrow) of rear seatback unlock
mechanism assembly.

RT21460400

RT21460410

RT21460420
