Chery Tiggo 5 (T21). Manual - part 493

46–

22

46

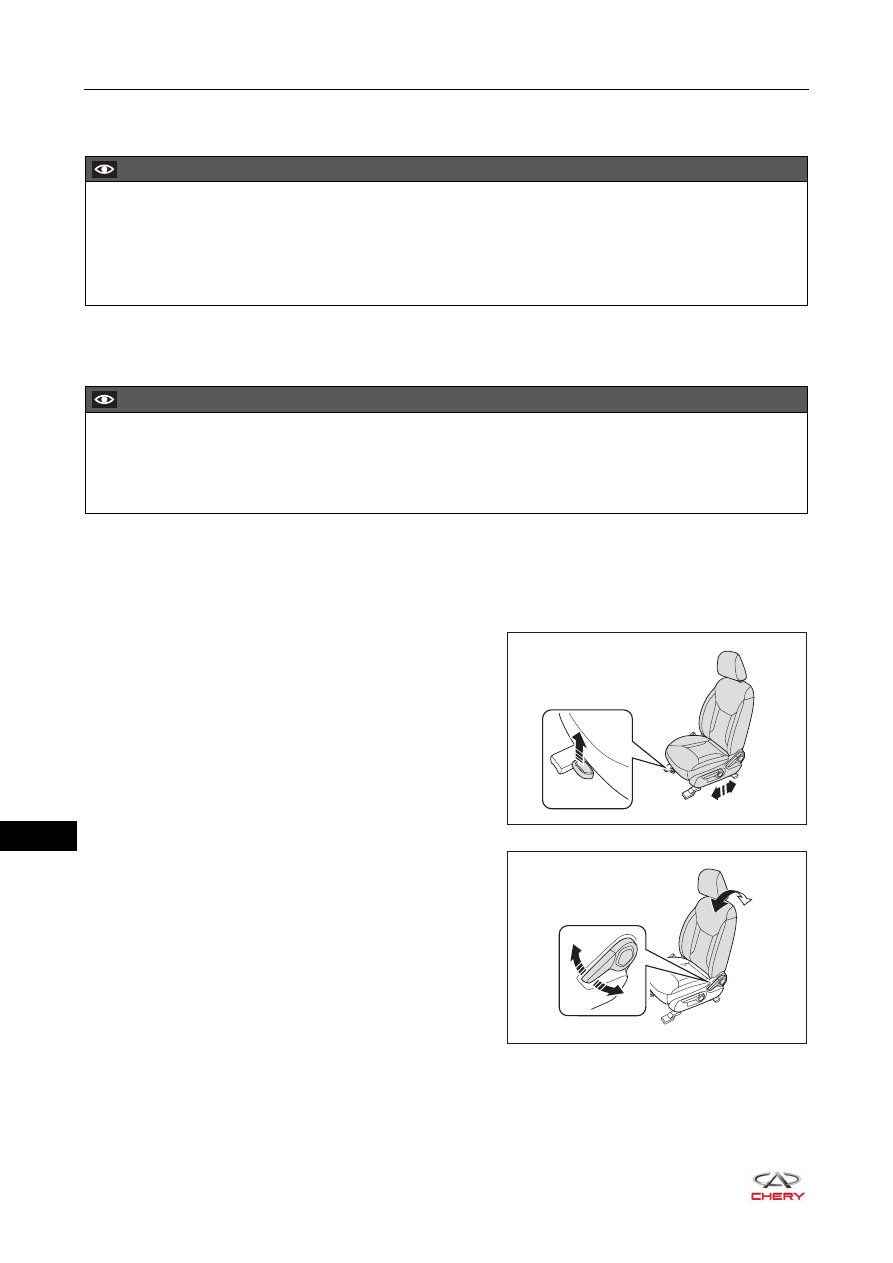

Assembly

Assembly is in the reverse order of disassembly.

Installation

Installation is in the reverse order of removal.

Inspection

After completing the installation of seat assembly, check the basic functions of the seat assembly, and confirm
that the following functions operates normally:
1. Manual seat assembly

a. Move the seat to the foremost and rearmost positions

by pulling up the seat track unlock handle, and check
if the seat is difficult to move, stuck, has high sliding
resistance, makes noise, etc. If the above conditions
occur, repair or replace in time.

b. Adjust the seatback reclining to the maximum and

minimum angle by pulling up the seat reclining
adjuster handle, and check if the seat is difficult to
move, stuck, etc. If the above conditions occur, repair
or replace in time.

CAUTION

 Be sure to wear safety equipment to prevent accidents when assembling seat.
 Be careful not to damage the seat cover during assembly.
 Replace the damaged hog rings during assembly.
 Keep the seat cover clean and tidy, and try to prevent wrinkles during assembly.

CAUTION

 Be sure to wear safety equipment to prevent accidents when installing seat assembly.
 Be careful not to damage the body paint surface when installing seat assembly.
 Avoid scratch or damage to the carpet when installing seat assembly.

RT21460240

RT21460250

46–

23

46

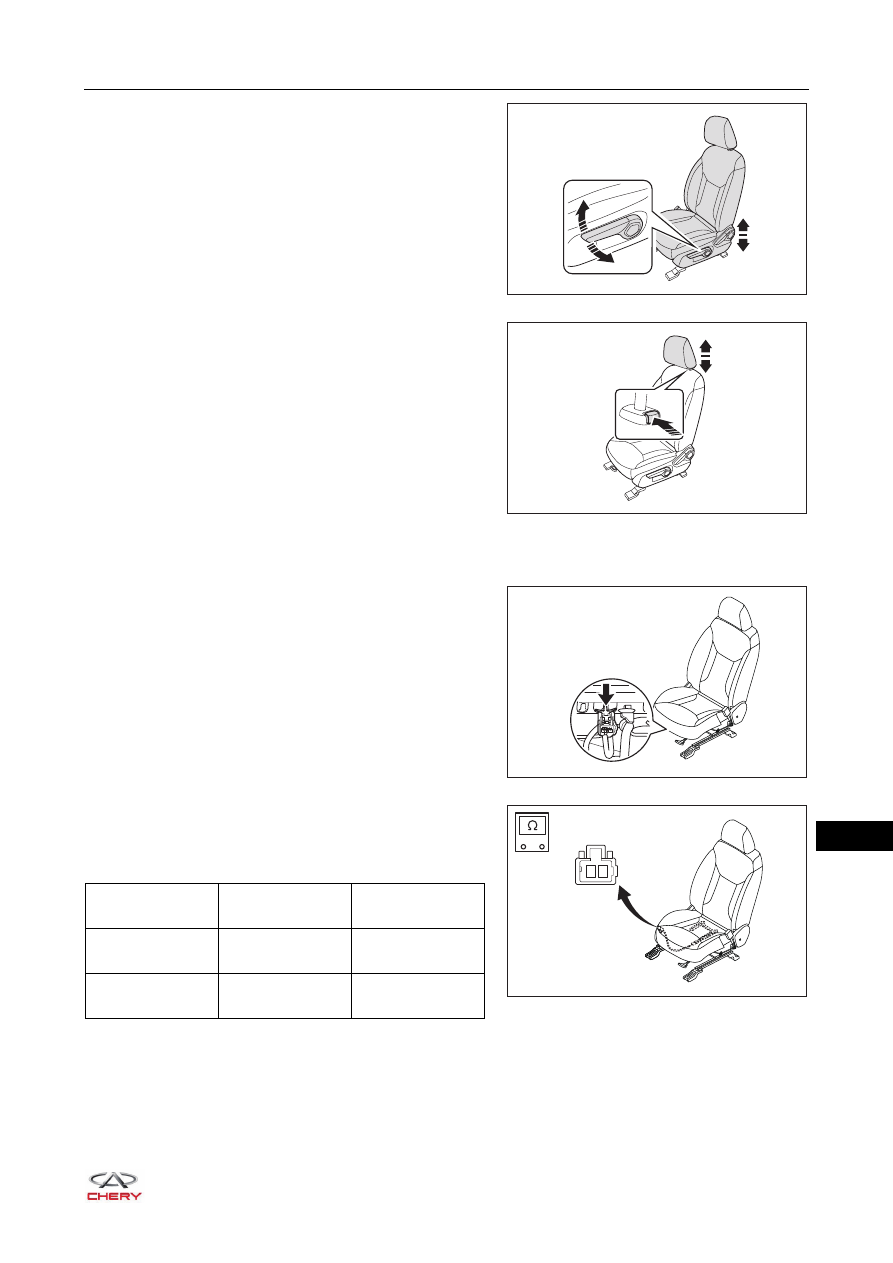

c. Adjust the seat height to the highest and lowest

position by pulling up the seat height adjuster handle
(for driver side), and check if the seat is difficult to
move, stuck, etc. If the above conditions occur, repair
or replace in time.

d. Press the headrest guide w/ button, move the

headrest up and down, and check if the headrest is
difficult to move, stuck, etc. If the above conditions
occur, repair or replace in time.

e. Check if the fixing bolts are set in position. Tighten to the specified torque as necessary.
f. Check the passenger side seat belt reminder (for front passenger side).

- Disconnect passenger side seat belt reminder

connector (arrow).

- Using a digital multimeter, measure resistance

between terminals of passenger side seat belt
reminder according to the value(s) in the table
below.

If result is not as specified, replace passenger side
seat belt reminder.

RT21460260

RT21460270

RT21460251

2

1

RT21460252

-

+

Multimeter

Connection

Condition

Specified

Condition

Terminal 1 -

Terminal 2

No occupant

∞ Ω

Terminal 1 -

Terminal 2

With occupant

≤ 20 Ω

46–

24

46

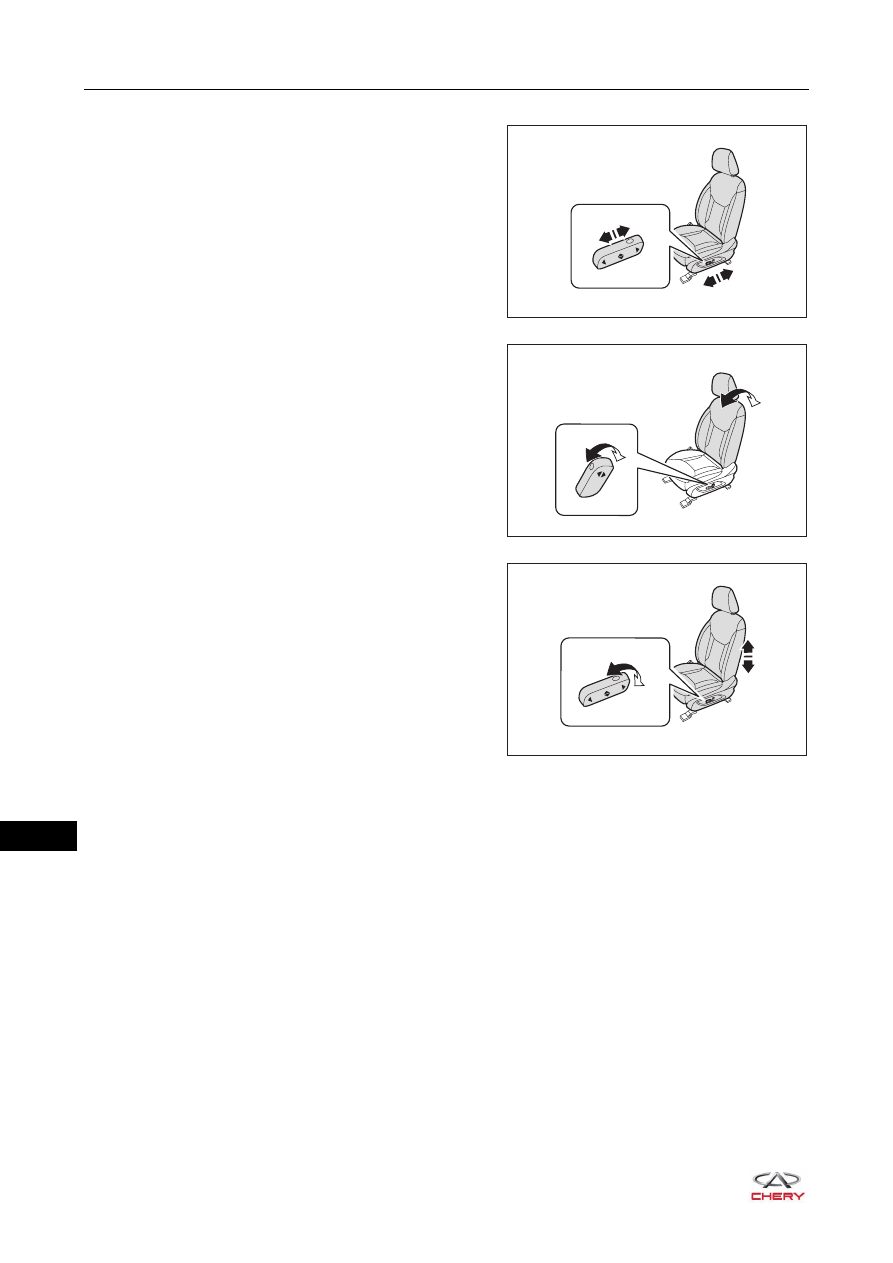

2. Power seat assembly

a. Move the seat to the foremost and rearmost positions

by moving the seat position adjust switch back and
forth, and check if the seat is difficult to move, stuck,
has high sliding resistance, makes noise, etc. If the
above conditions occur, repair or replace in time.

b. Adjust the seatback reclining to the maximum and

minimum angle by pulling the seatback reclining
adjust switch, and check if the seatback is difficult to
move, stuck, etc. If the above conditions occur, repair
or replace in time.

c. Adjust the seat height to the highest and lowest

position by pulling the seat cushion height adjust
switch, and check if the seat is difficult to move, stuck,
etc. If the above conditions occur, repair or replace in
time.

RT21460590

RT21460600

RT21460610

46–

25

46

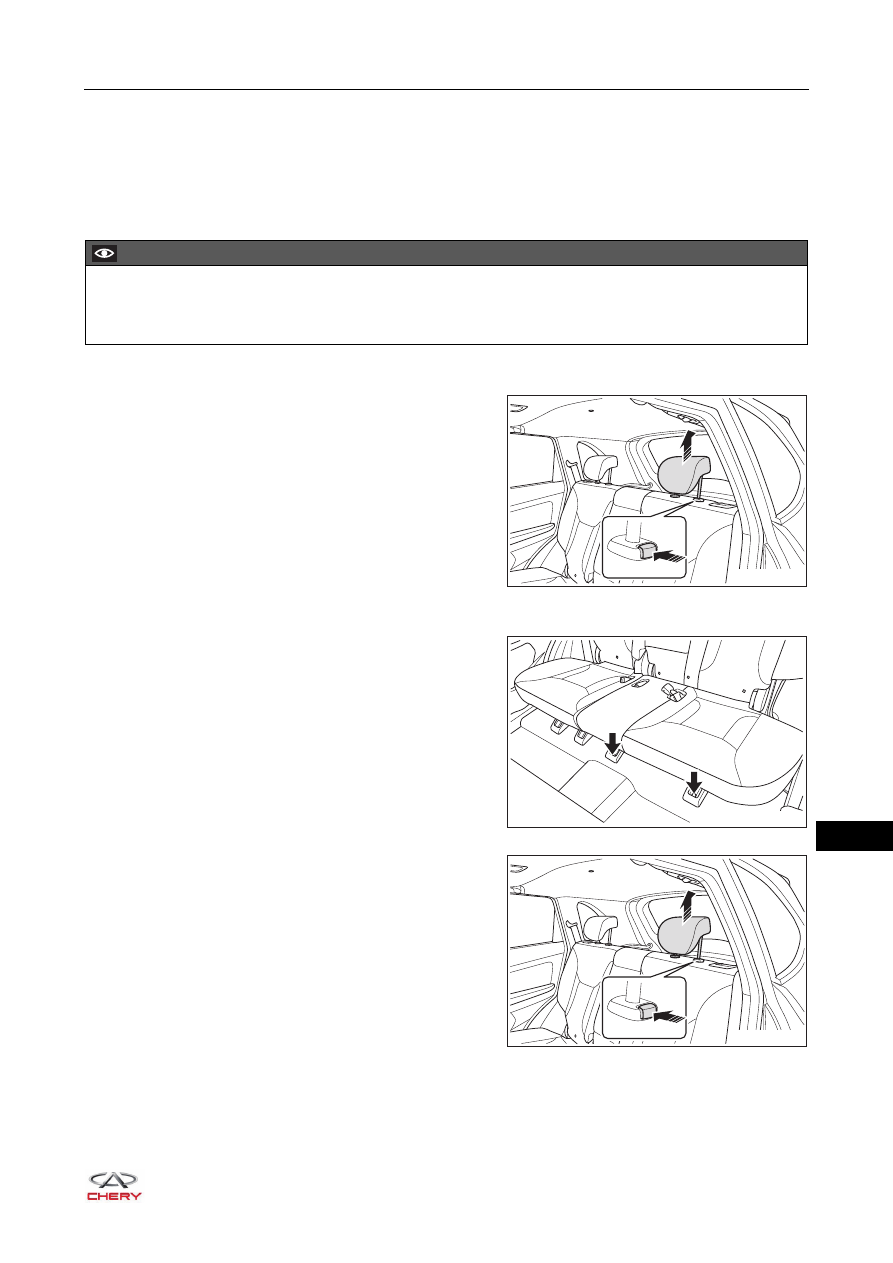

Rear Seat Assembly

Removal

HINT:

 Use the same procedures for the rear right seat assembly and rear left seat assembly.

 Procedures listed below are for the rear left seat assembly.

1. Remove the rear left seat headrest assembly.

a. As shown in the illustration, press the left seat

headrest guide w/ button and remove the rear left seat
headrest assembly.

2. Remove the rear left seat assembly.

a. Remove 2 fixing bolts (arrow) from the front part of

rear left seat assembly.



(Tightening torque: 50 ± 5 N·m)

b. Put down the rear left seatback in the direction of

arrow as shown in the illustration.

CAUTION

 Be sure to wear safety equipment to prevent accidents when removing rear seat assembly.
 Avoid scratch or damage to the body paint surface and carpet when removing rear seat assembly.

RT21460280

RT21460290

RT21460280
