Chery Tiggo 5 (T21). Manual - part 492

46–

18

46

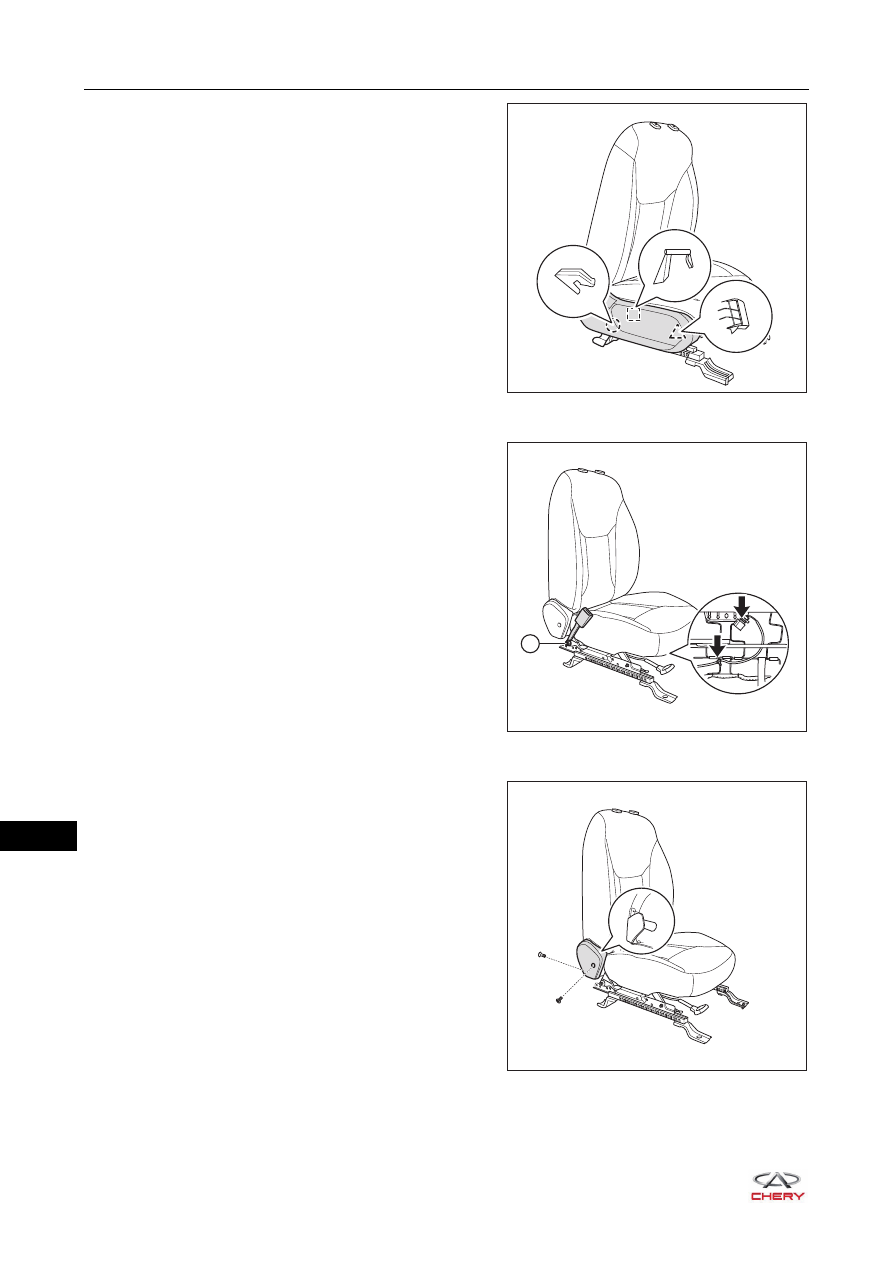

b. Using a screwdriver wrapped with protective tape, pry

up the claws on the seat outer shield assembly, and
remove the seat outer shield assembly.

10.Remove the driver seat belt buckle assembly.

a. Remove the fixing nut (1) from the seat belt buckle

assembly.



(Tightening torque: 50 ± 5 N·m)

b. Remove the clips (arrow) from the seat belt buckle

assembly, and remove the driver seat belt buckle
assembly.

11.Remove the driver seat inner shield assembly.

a. Remove 2 fixing screws from the seat inner shield

assembly.



(Tightening torque: 4.8 ± 0.5 N·m)

b. Using a screwdriver wrapped with protective tape, pry

up the claws on the seat inner shield assembly, and
remove the driver seat inner shield assembly.

RT21460151

1

RT21460160

RT21460170

46–

19

46

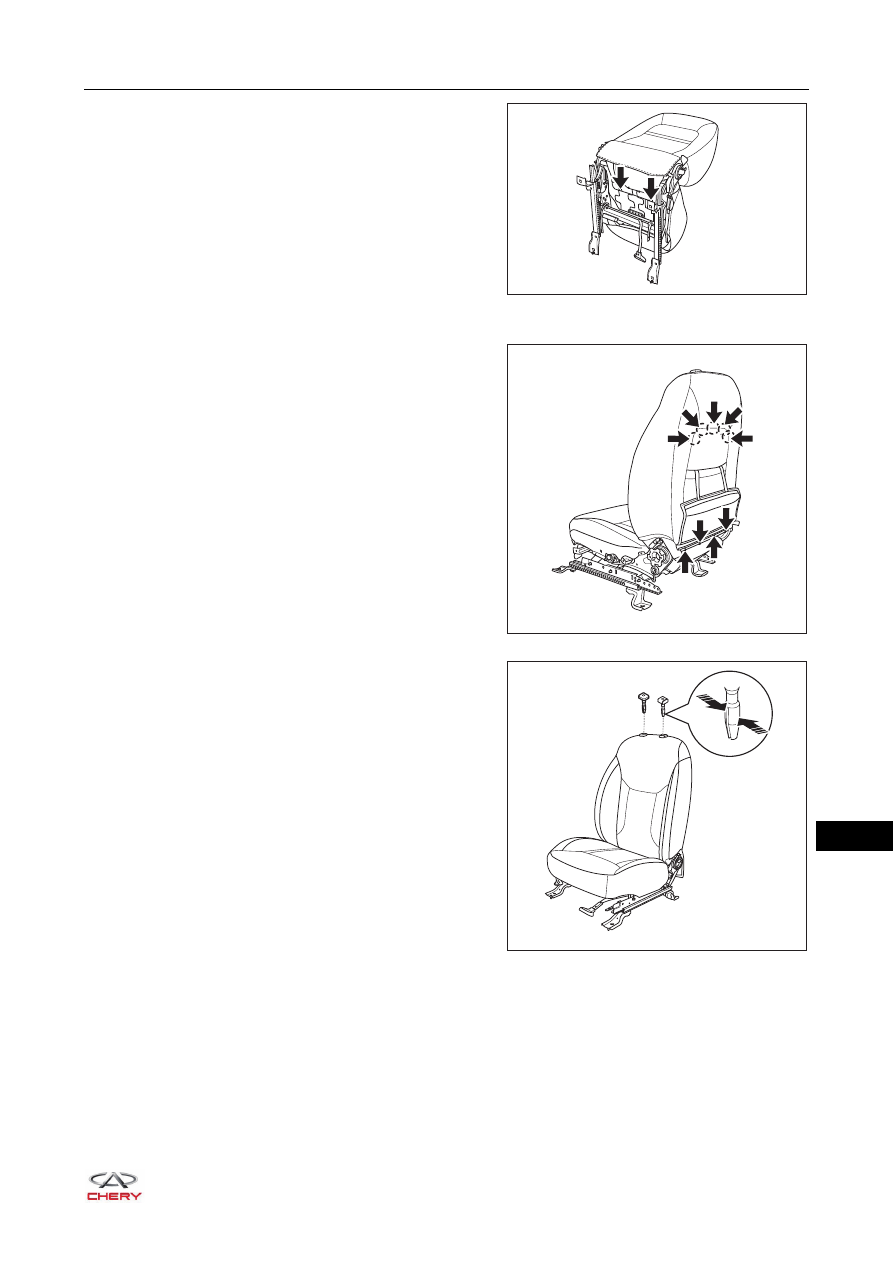

12.Remove the hooks (arrow) connecting the driver

seatback assembly and seat cushion assembly.

13.Remove the driver seat headrest guide.

a. Remove 9 hog rings (arrow) from the seatback

assembly.

b. Press and hold the lower part of seat headrest guide

in the direction of arrow as shown in the illustration,
and remove the driver seat headrest guide.

RT21460180

RT21460190

RT21460200

46–

20

46

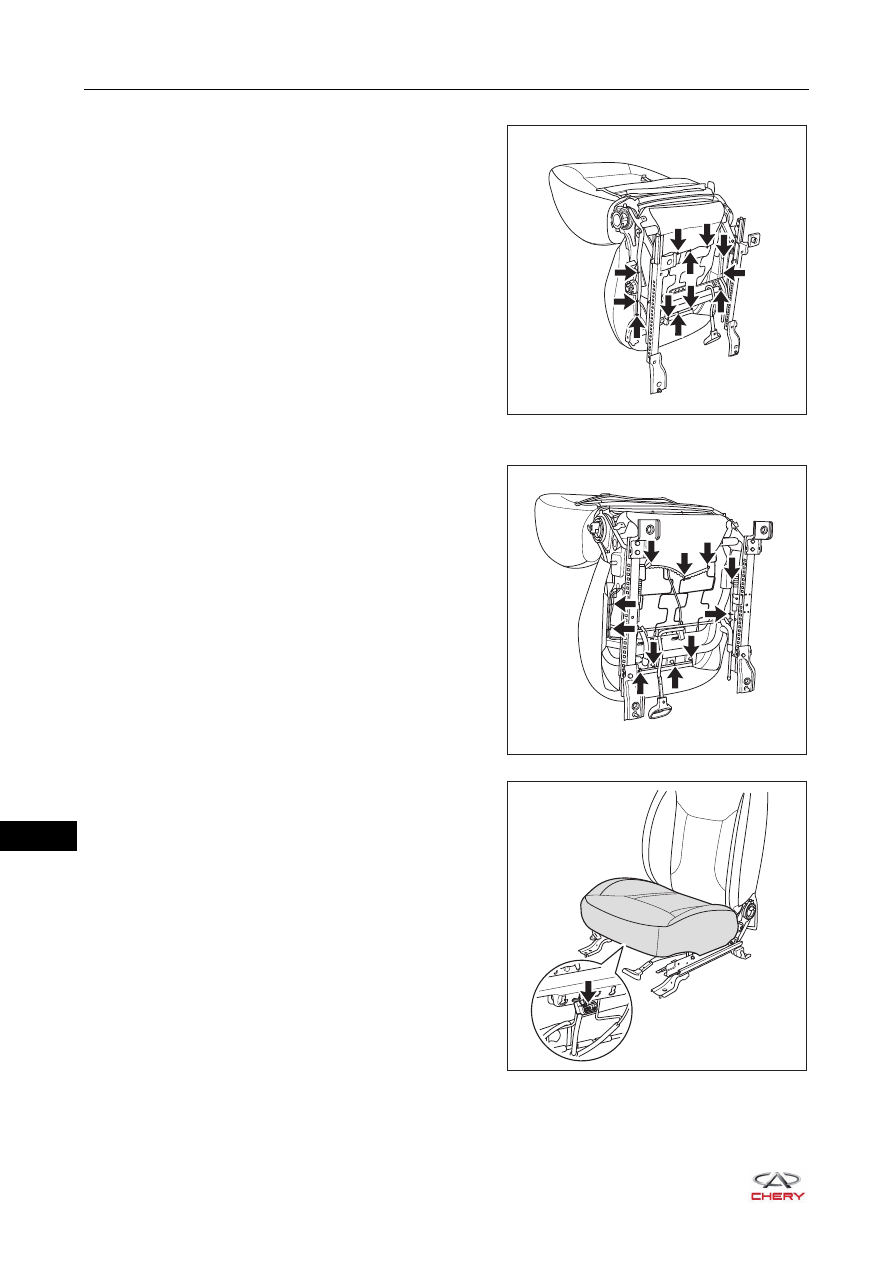

14.Remove the seat cushion assembly (for driver side).

a. Remove 12 hog rings (arrow) from the seat cushion

assembly.

b. Remove the driver seat cushion assembly.

15.Remove the seat cushion assembly (for front passenger side).

a. Remove 11 hog rings (arrow) from the seat cushion

assembly.

b. Disengage the clip (arrow) from the passenger side

seat belt reminder connector.

c. Remove the front passenger seat cushion assembly.

RT21460210

RT21460220

RT21460230

46–

21

46

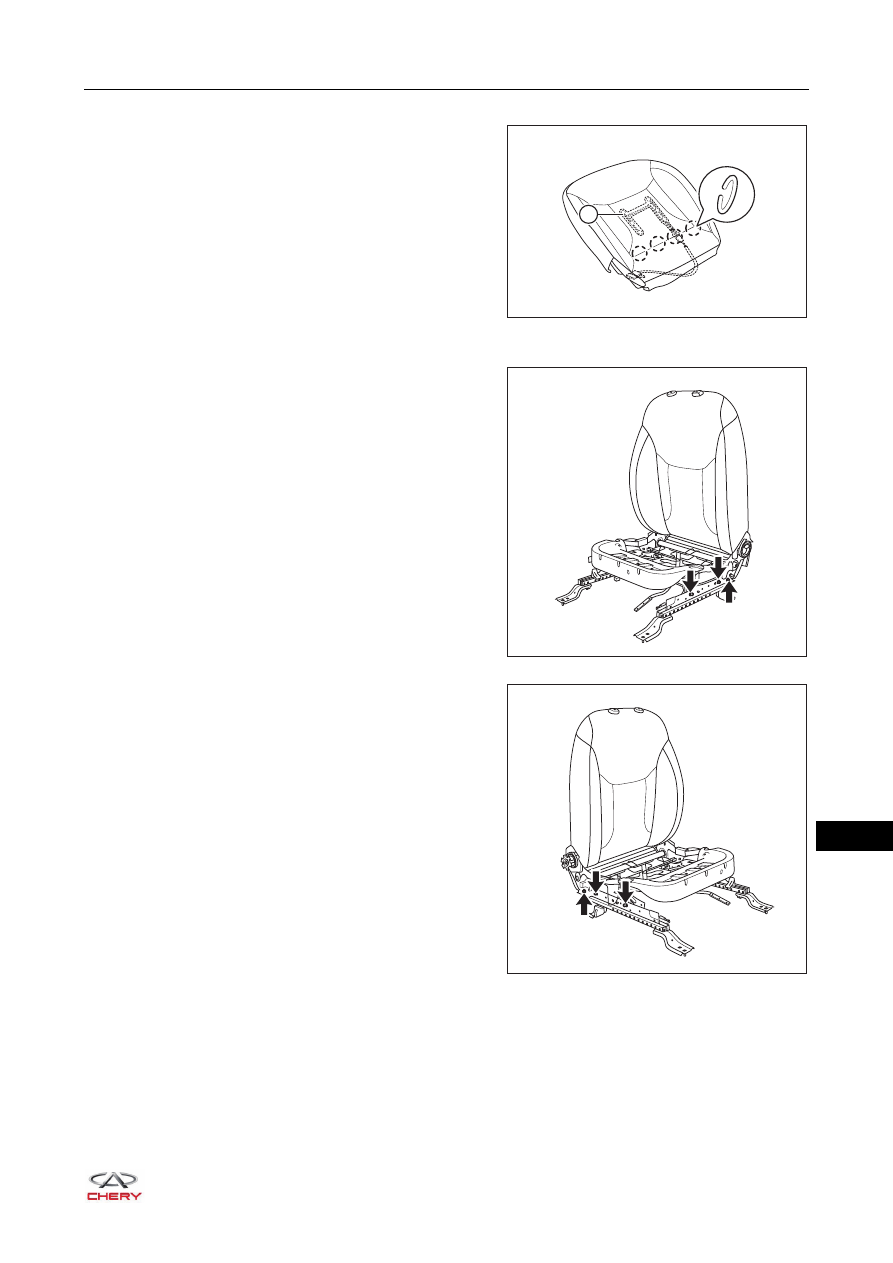

16.Remove the passenger side seat belt reminder (for front passenger side).

a. Remove 4 hog rings from the seat cushion assembly.
b. Remove the passenger side seat belt reminder (1).

17.Remove the seat track assembly (for front passenger side).

a. Remove 3 fixing bolts (arrow) from the left seat track

assembly.



(Tightening torque: 24 ± 2.4 N·m)

b. Remove 3 fixing bolts (arrow) from the right seat track

assembly, and remove the front passenger seat track
assembly.



(Tightening torque: 24 ± 2.4 N·m)

RT21460231

1

RT21460232

RT21460233
