Chery Tiggo 5 (T21). Manual - part 495

46–

30

46

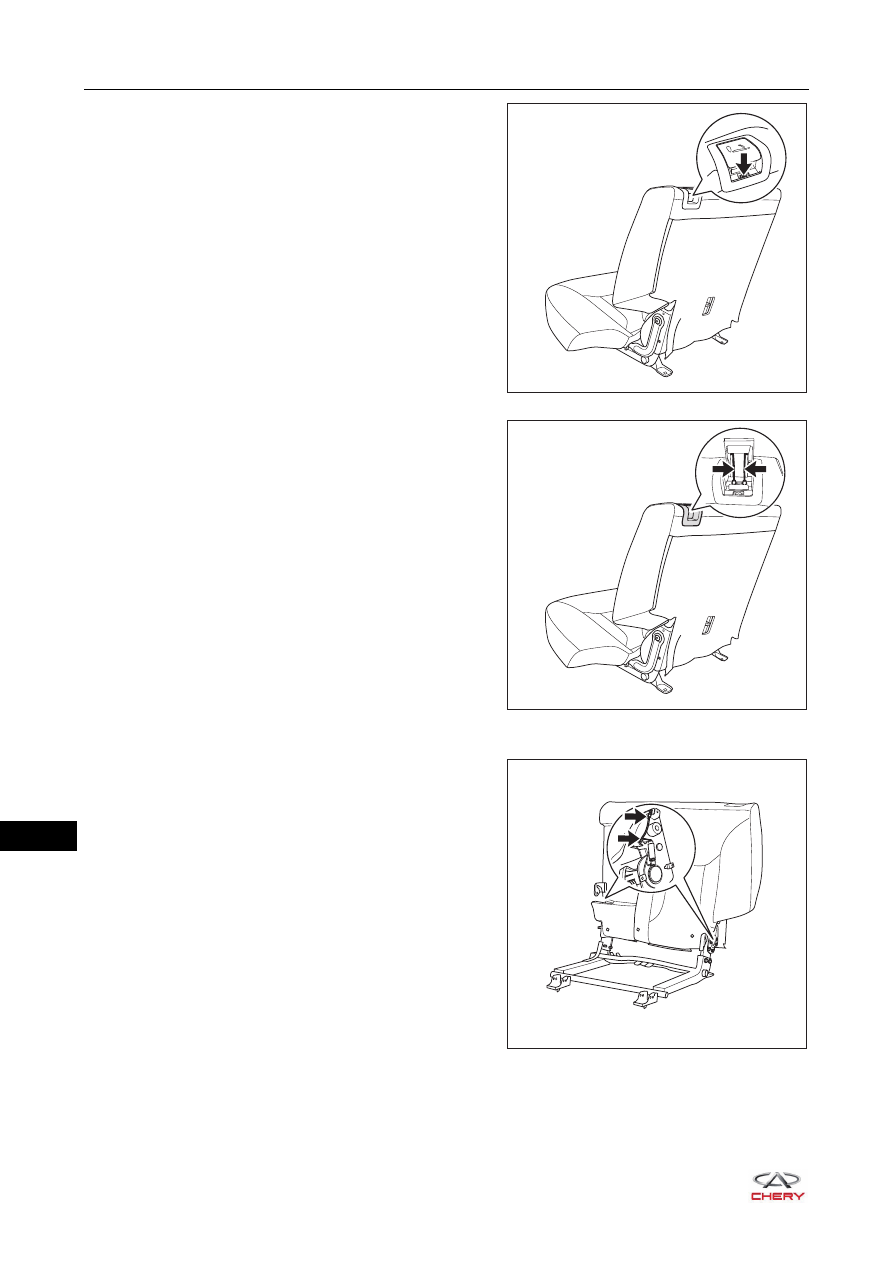

b. Remove the fixing screw (arrow) from the rear

seatback unlock mechanism assembly.



(Tightening torque: 4.8 ± 0.5 N·m)

c. Disconnect the rear seatback unlock mechanism

cables (arrow), and remove the rear seatback unlock
mechanism assembly.

6. Remove the rear seatback unlock mechanism cable.

a. Remove the rear seatback unlock mechanism cables

(arrow) from the groove as shown in the illustration.

RT21460430

RT21460440

RT21460431

46–

31

46

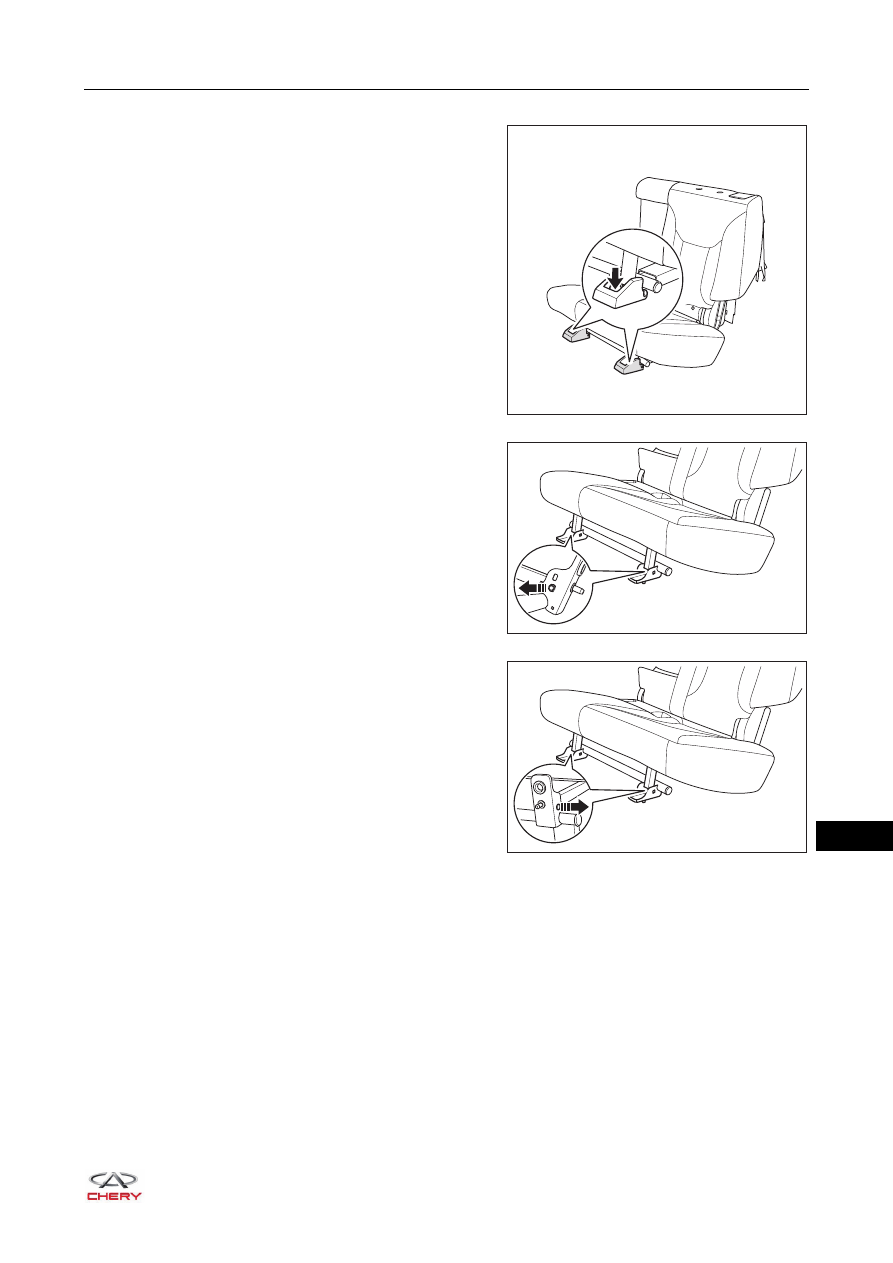

7. Separate the rear seat cushion assembly and seatback assembly.

a. Remove 2 fixing screws (arrow) from the rear seat

mounting foot cover assembly, and remove the rear
seat mounting foot cover assembly.



(Tightening torque: 4.8 ± 0.5 N·m)

b. Remove the snap ring in the direction of arrow as

shown in the illustration.

c. Pull out the coupling shaft in the direction of arrow as

shown in the illustration.

RT21460450

RT21460460

RT21460470

46–

32

46

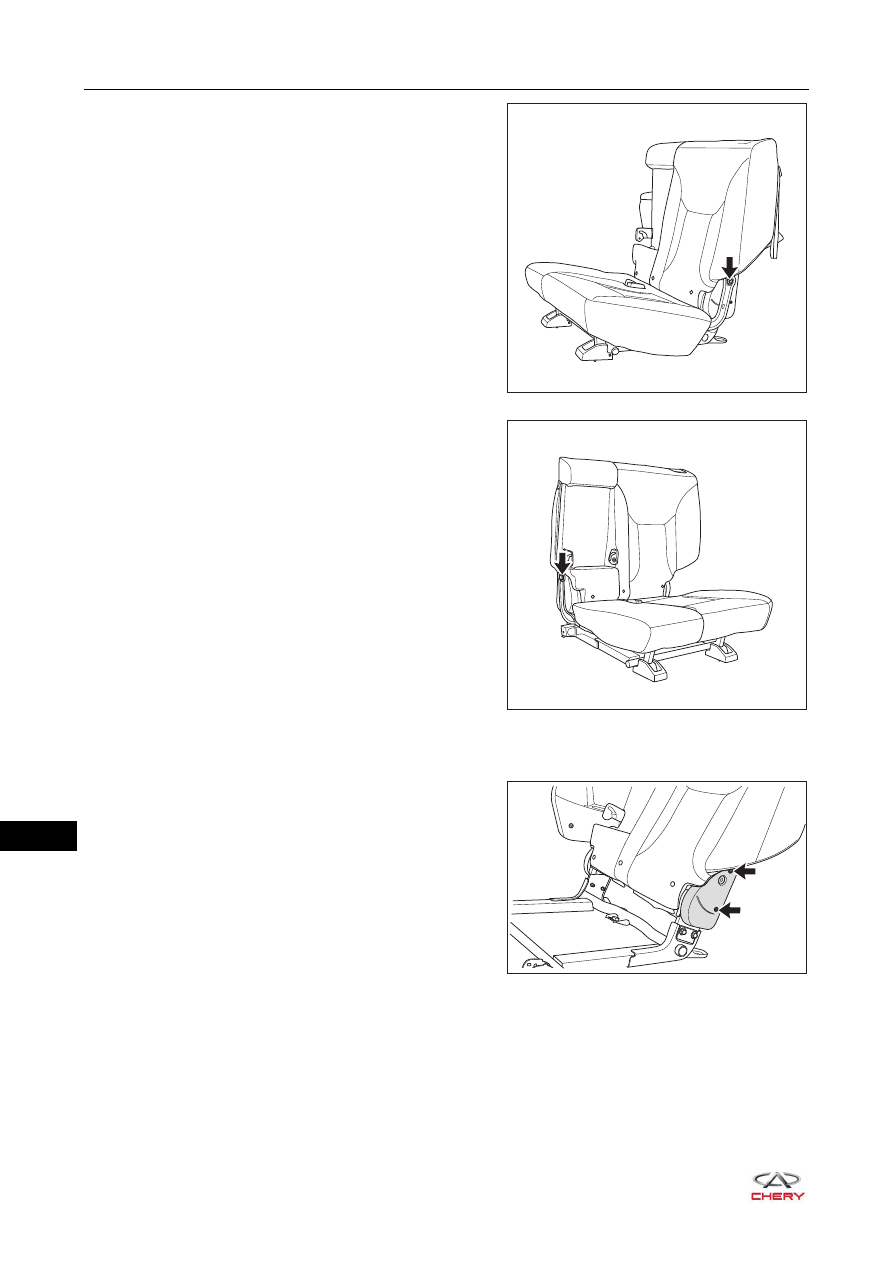

d. Remove the fixing bolt (arrow) between rear seat

cushion assembly and left side of seatback assembly.



(Tightening torque: 48 ± 4.8 N·m)

e. Remove the fixing bolt (arrow) between rear seat

cushion assembly and right side of seatback
assembly.



(Tightening torque: 48 ± 4.8 N·m)

f. Separate the rear seat cushion assembly and seatback assembly.

8. Remove the rear left seat folder mechanism assembly outer cover (take left side as an example).

a. Remove 2 fixing screws (arrow) from the rear left seat

folder mechanism assembly outer cover.



(Tightening torque: 4.8 ± 0.5 N·m)

b. Remove the rear left seat folder mechanism assembly

outer cover.

RT21460441

RT21460442

RT21460480

46–

33

46

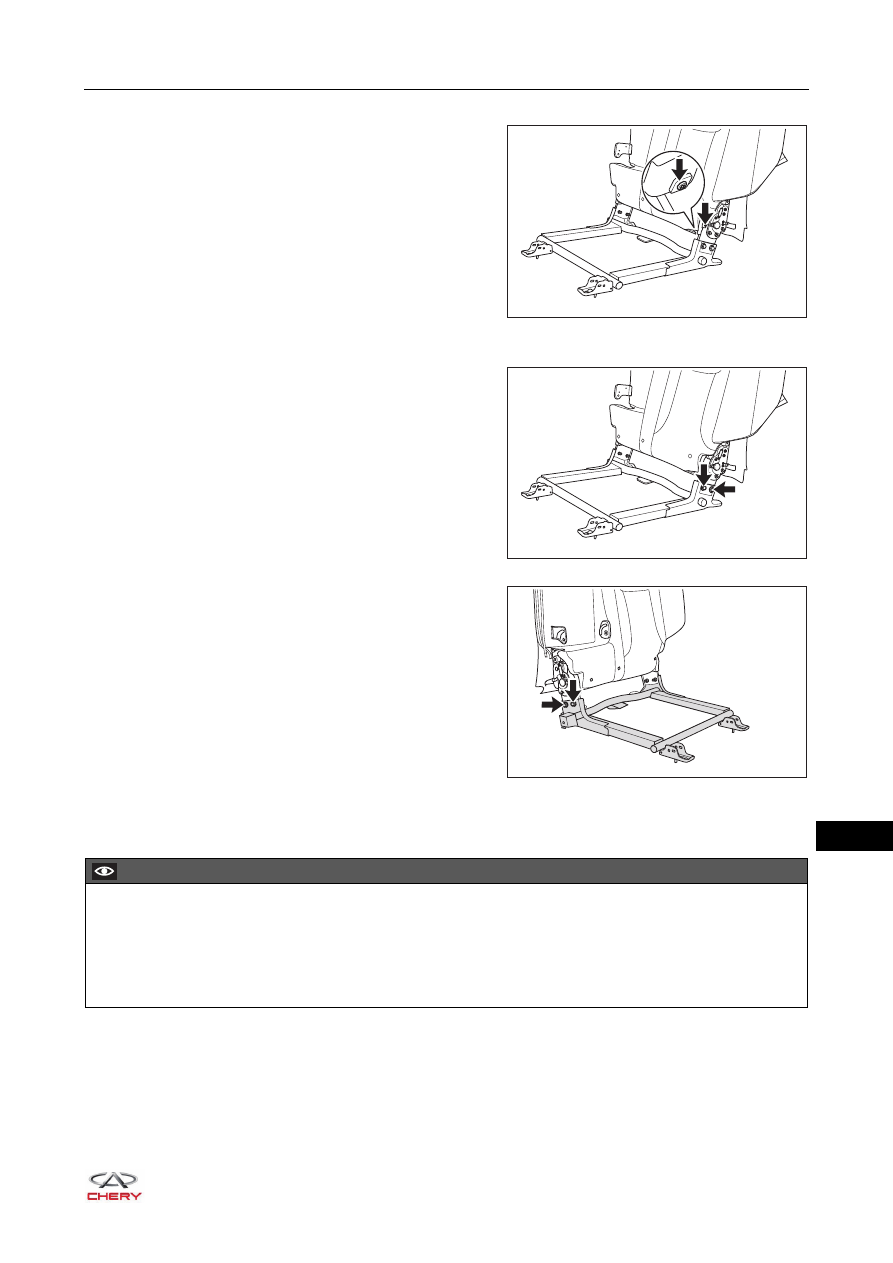

9. Remove the rear left seat reclining adjuster inner cover (take left side as an example).

a. Remove 2 fixing screws (arrow) from the rear left seat

reclining adjuster inner cover.



(Tightening torque: 4.8 ± 0.5 N·m)

b. Remove the rear left seat reclining adjuster inner

cover.

10.Remove the rear seat bracket assembly.

a. Remove 2 fixing bolts (arrow) from the left side of rear

seat bracket assembly.



(Tightening torque: 48 ± 4.8 N·m)

b. Remove 2 fixing bolts (arrow) from the right side of

rear seat bracket assembly.



(Tightening torque: 48 ± 4.8 N·m)

c. Remove the rear seat bracket assembly.

Assembly

Assembly is in the reverse order of disassembly.

RT21460500

RT21460520

RT21460530

CAUTION

 Be sure to wear safety equipment to prevent accidents when assembling rear seat assembly.
 Be careful not to damage the seat cover during assembly.
 Replace the damaged hog rings during assembly.
 Keep the seat cover clean and tidy, and try to prevent wrinkles during assembly.
