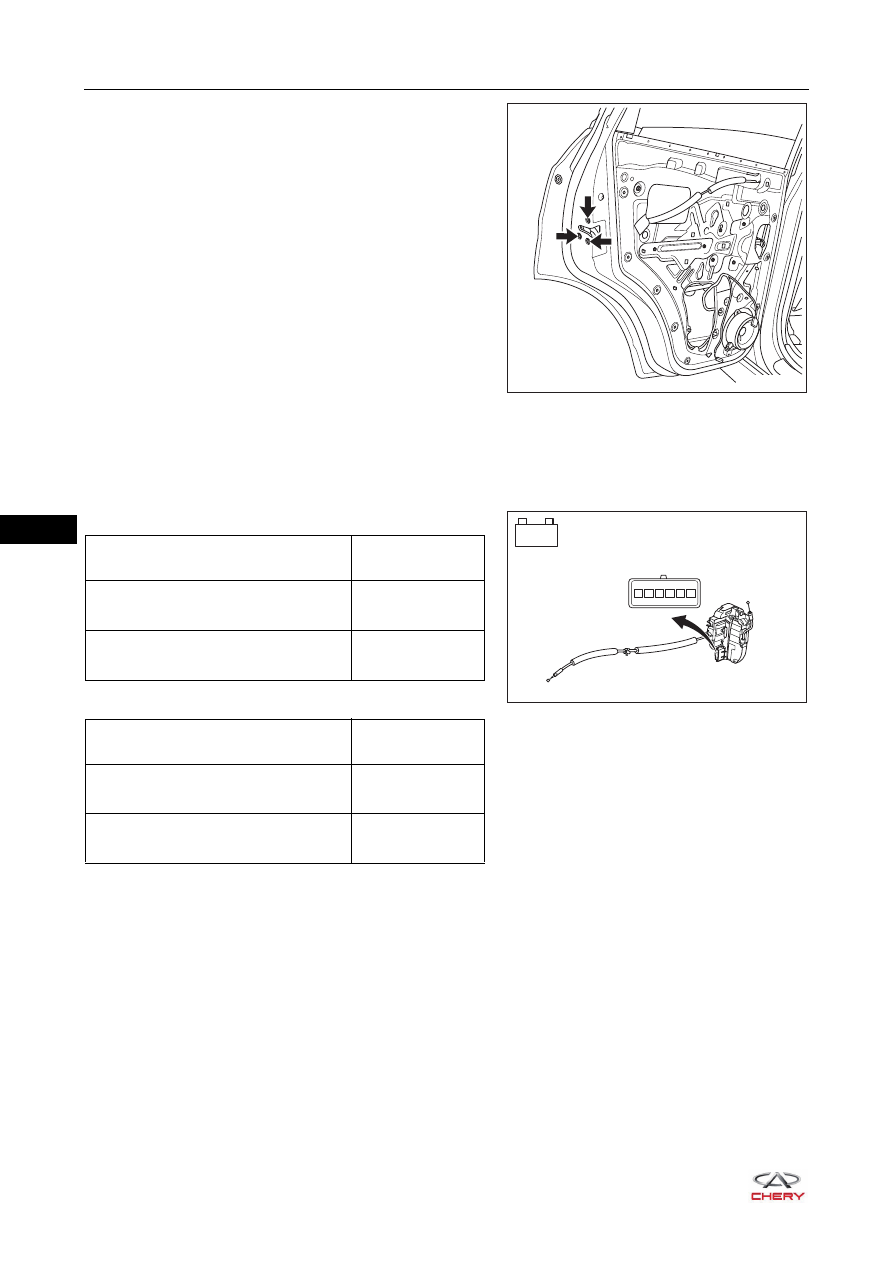

c. Remove 3 fixing screws (arrow) from rear door lock

assembly, and remove the rear door lock assembly.



(Tightening torque: 5.8 ± 0.7 N·m)

Inspection

1. Check rear door lock assembly (fastener assembly).

a. Apply battery voltage to terminals of rear door lock assembly (fastener assembly) connector and check

if rear door lock assembly works properly according to the table below.
Rear Left Door Lock Assembly

Rear Right Door Lock Assembly

If result is not as specified, replace rear door lock
assembly.

RT21370190

RT21370200

-

+

1 2 3 4 5 6

Measurement Condition

Specified

Condition

Battery positive (+) → Terminal 3

Battery negative (-) → Terminal 2

Lock

Battery positive (+) → Terminal 2

Battery negative (-) → Terminal 3

Unlock

Measurement Condition

Specified

Condition

Battery positive (+) → Terminal 4

Battery negative (-) → Terminal 5

Lock

Battery positive (+) → Terminal 5

Battery negative (-) → Terminal 4

Unlock

37–

49

37

Installation

Installation is in the reverse order of removal.

CAUTION

 Check if connector is installed correctly when installing rear door lock assembly.
 Install the cable in place when installing rear door lock assembly.
 Check if rear door lock operates properly after installing rear door lock assembly.

37–

50

37

Rear Door Lock Striker Assembly

Removal

HINT:

 Use the same procedures for the right side and left side.

 Procedures listed below are for the left side.

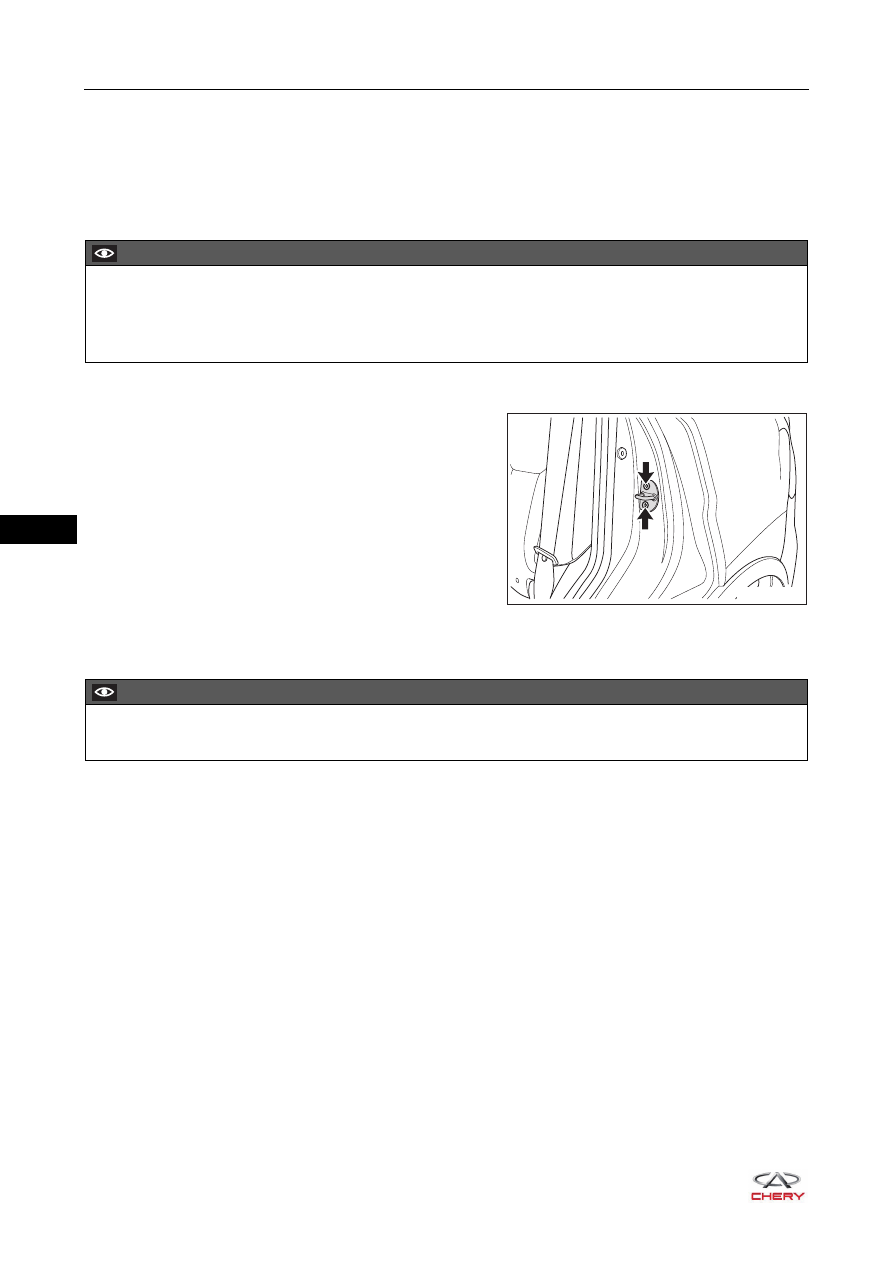

1. Remove the rear left door lock striker assembly.

a. Remove 2 fixing crews (arrow) from rear left door lock

striker assembly.



(Tightening torque: 10 ± 1 N·m)

b. Remove the rear left door lock striker assembly.

Installation

Installation is in the reverse order of removal.

CAUTION

 Be sure to the wear safety equipment to prevent accidents when removing rear door lock striker

assembly.

 Try to prevent body paint surface from being scratched when removing rear door lock striker assembly.

RT21370210

CAUTION

 Try to prevent body paint surface from being scratched when installing rear door lock striker assembly.

37–

51

37

Back Door Lock Assembly

Removal

1. Turn off all the electrical equipment and ignition switch.
2. Disconnect the negative battery cable.
3. Remove the back door protector assembly (

See page 47-47

).

4. Remove the back door lock assembly.

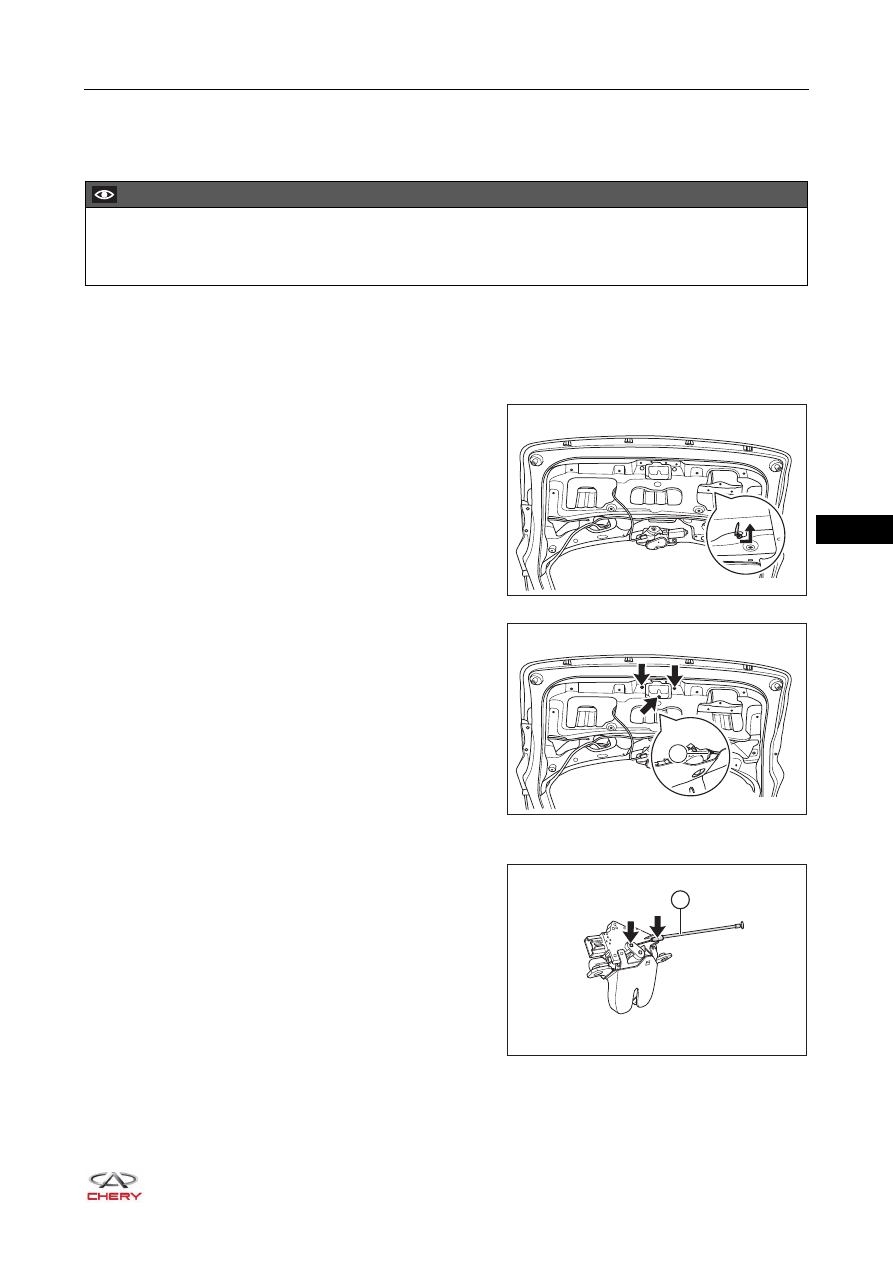

a. Disengage the back door lock mechanical opener

cable assembly from the slot in the direction of arrow
as shown in the illustration.

b. Disconnect the connector (1) from back door lock

assembly.

c. Remove 3 fixing bolts (arrow) from back door lock

assembly, and remove the back door lock assembly.



(Tightening torque: 10 ± 1 N·m)

5. Remove the back door lock mechanical opener cable assembly.

a. Disengage the back door lock mechanical opener

cable assembly (arrow) from the slot.

b. Remove the back door lock mechanical opener cable

assembly (1).

CAUTION

 Be sure to the wear safety equipment to prevent accidents when removing back door lock assembly.
 Try to prevent interior and body paint from being scratched when removing back door lock assembly.

RT21370220

RT21370230

1

RT21370240

1
