11–

19

11

Installation

Installation is in the reverse order of removal.

CAUTION

 If sphere flange grommet is damaged, replace it, and remove foreign matter on joints and threads.
 If there are cracks or leaks, replace the damaged parts.
 During installation, make sure that clearance between tailpipe of muffler pipe and bumper on the rear

body is more than 30 mm.

 Check for exhaust gas leaks. If gas leaks, tighten defective area to prevent leaking. Replace damaged

parts as necessary.

12–

3

12

SQR484F COOLING SYSTEM

GENERAL INFORMATION

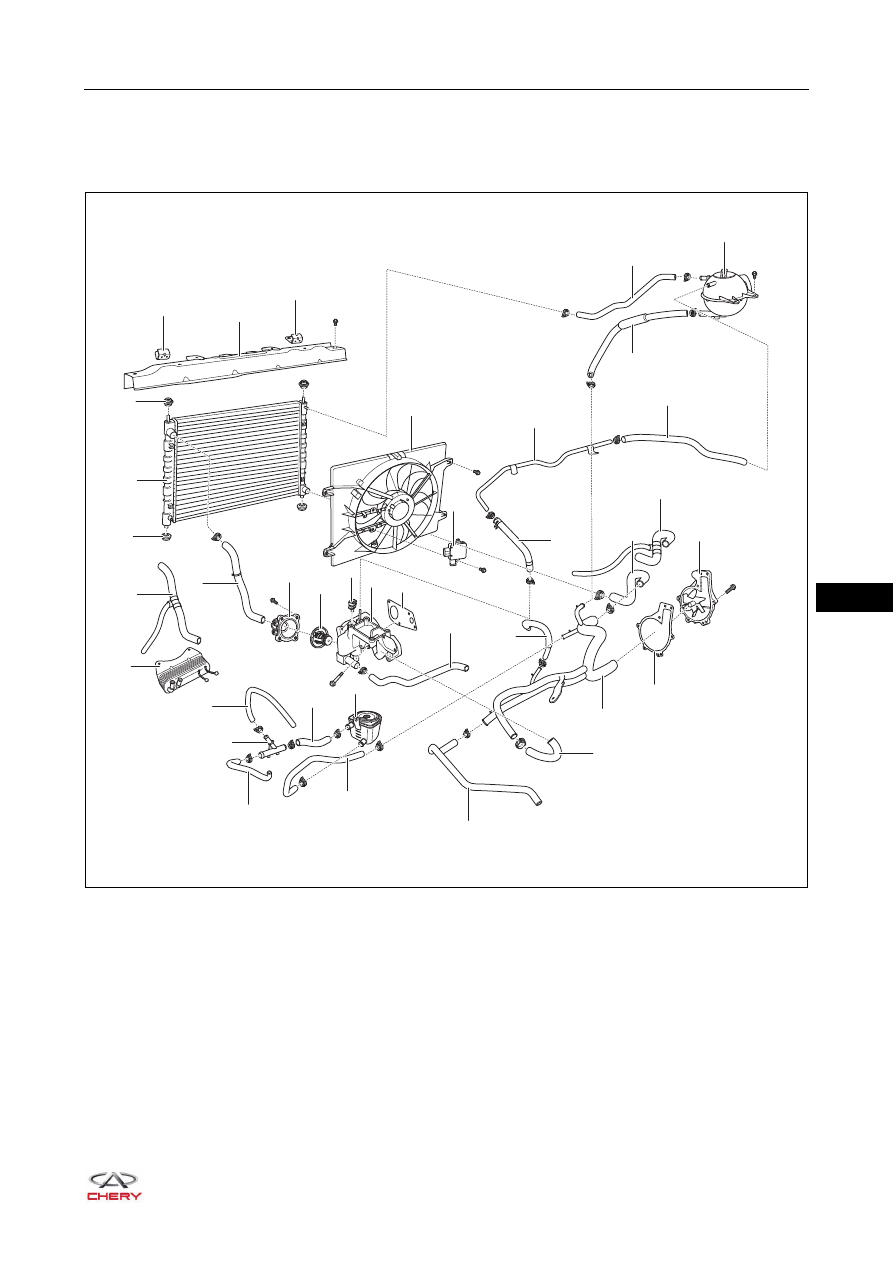

Description

RT21120010

33

34

35

36

37

21

25

26

23

22

24

18

17

6

3

1

2

4

5

8

7

10

9

13

14

15

16

11

12

27

28

29

30

31

32

19

20

×6

×4

×2

×2

×4

×4

×4

12–

4

12

Engine cooling system adjusts the engine operating temperature by the flow of coolant and makes engine
operate normally under various operating conditions.
Engine cooling system is a forced circulation system, which supplies circulation pressure for the system by
water pump and forces the coolant to circulate in the engine cylinder block, and distributes excessive heat to
the radiator by the flow of coolant, and radiates it to the air by the cooling fan. Also, the engine cooling system
provides heat to the heater core in the cabin to improve driving comfort.

1 - Expansion Tank

2 - Radiator Discharge Hose

3 - Expansion Tank Outlet Hose

4 - Discharge Pipe I

5 - Discharge Steel Pipe

6 - Engine Discharge Hose

7 - Engine Inlet Pipe

8 - Engine Inlet Pipe (for CVT Model)

9 - Throttle Body Glow Outlet Hose

10 - Water Pump Assembly

11 - Water Pump Assembly Gasket

12 - Small Circulation Metal Tube

13 - Small Circulation Outlet Hose

14 - Heater Outlet Pipe

15 - Oil Cooler Outlet Hose

16 - Oil Cooler Inlet Hose I

17 - Oil Cooler

18 - Oil Cooler Inlet Hose II

19 - T-joint

20 - Throttle Body Glow Inlet Hose

21 - Heater Inlet Pipe

22 - Thermostat Seat Gasket

23 - Thermostat Seat

24 - Coolant Temperature Sensor

25 - Thermostat

26 - Thermostat Housing

27 - Engine Outlet Hose

28 - Engine Outlet Hose (for CVT Model)

29 - Oil Cooler Assembly (for CVT Model)

30 - Rubber Cushion

31 - Radiator Assembly

32 - Bush Rubber

33 - Radiator Left Tension Plate

34 - Tank Upper Crossmember Assembly

35 - Radiator Right Tension Plate

36 - Cooling Fan Assembly

37 - Fan Controller
