11–

11

11

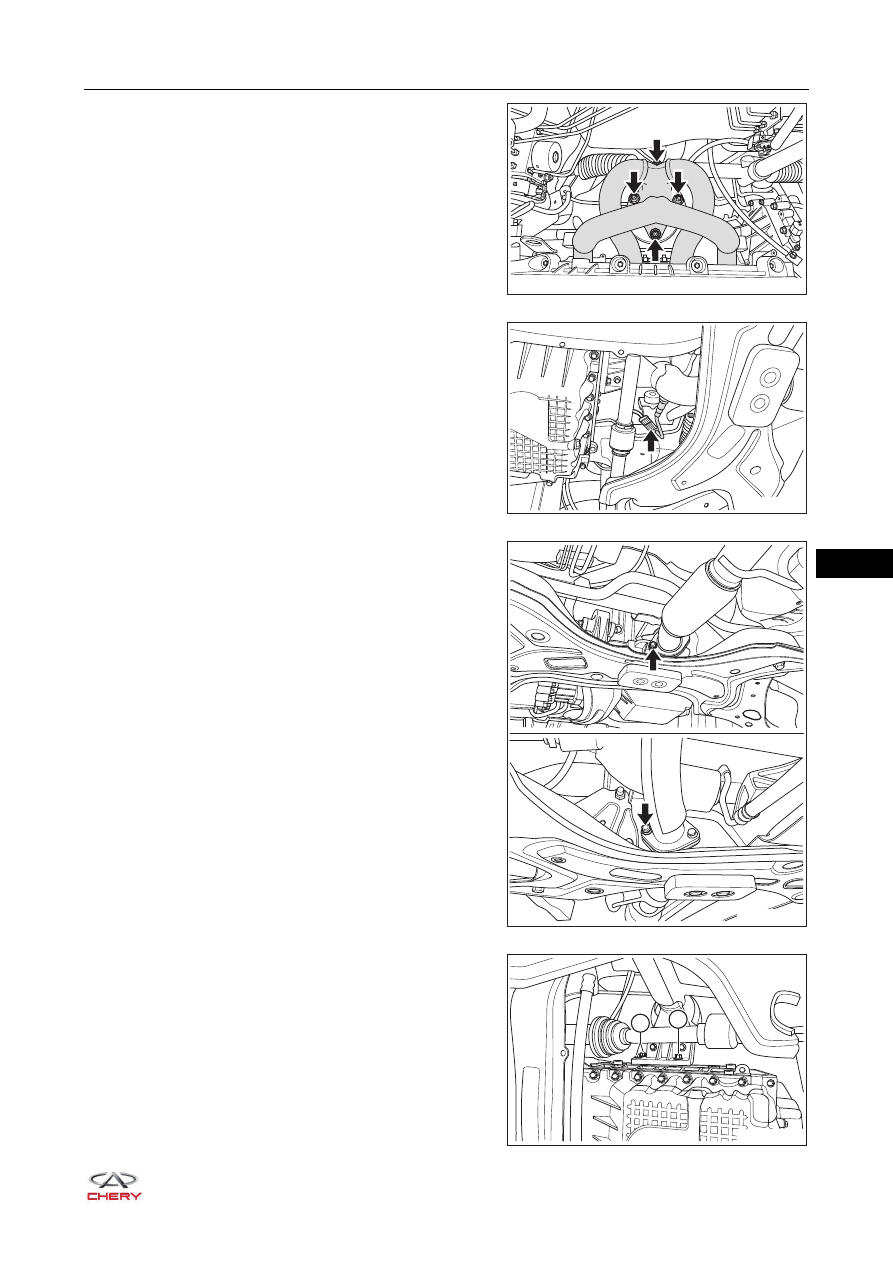

c. Remove 4 coupling nuts (arrow), disconnect the

connection between exhaust manifold assembly and
precatalytic converter assembly, and take off the
gasket in the connecting part.



(Tightening torque: 50 ± 5 N·m)

d. Take off and disconnect the downstream oxygen

sensor connector (arrow) from the bracket.

e. Remove 2 coupling nuts (arrow) between precatalytic

converter upper body assembly and precatalytic
converter lower body assembly.



(Tightening torque: 50 ± 5 N·m)

f. Remove 2 left coupling bolts (1) and right coupling

bolt (2) between precatalytic converter assembly
bracket and cylinder block.



(Tightening torque for left coupling bolt: 23 ± 2 N·m)



(Tightening torque for right coupling bolt: 50 ± 5 N·m)

RT21110030

RT21110031

RT21110090

RT21110100

2

1

11–

12

11

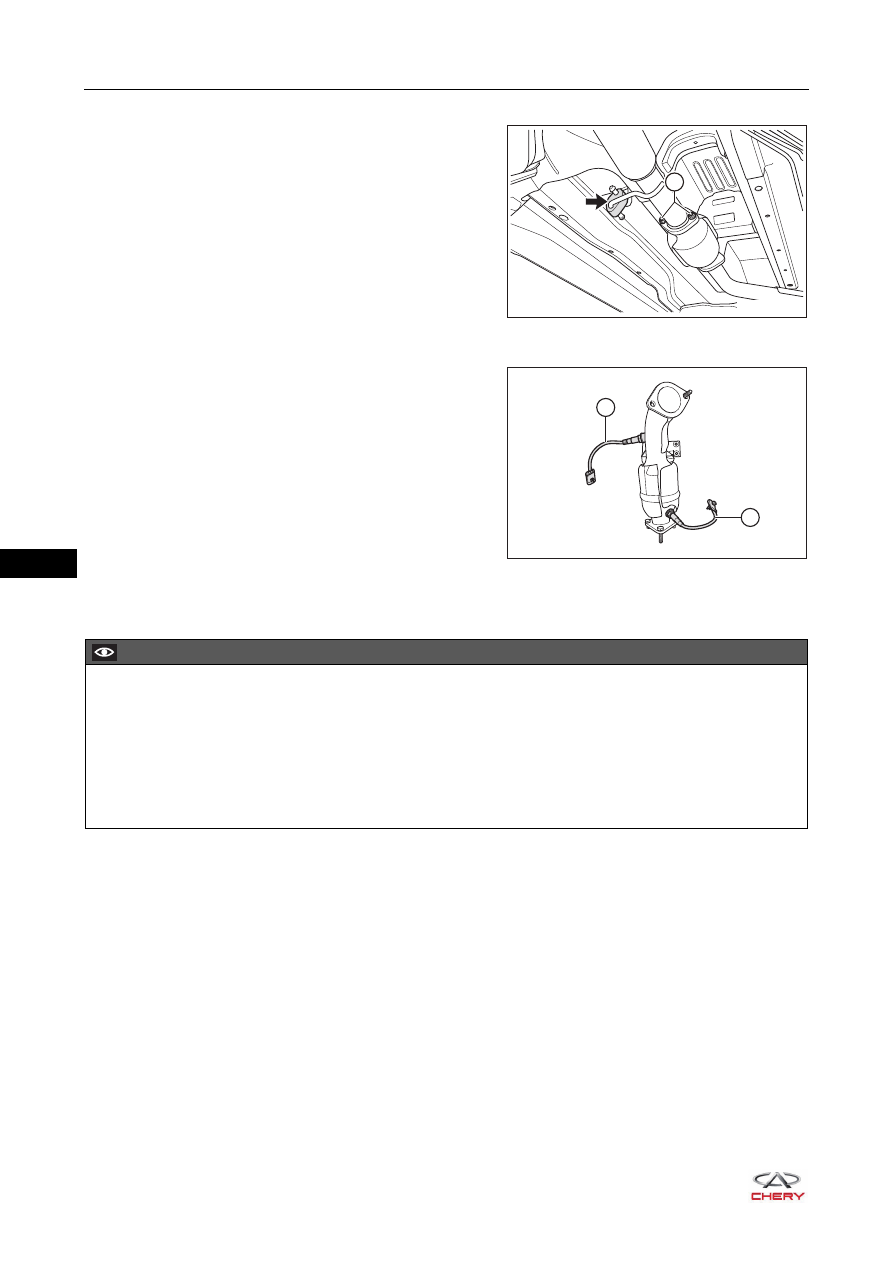

g. Remove the precatalytic converter upper body assembly.
h. Remove 2 coupling nuts (1) between precatalytic

converter lower body assembly and main catalytic
converter assembly.



(Tightening torque: 50 ± 5 N·m)

i. Remove the diamond shaped hanger block (arrow)

between precatalytic converter lower body assembly
and body hook.

j. Remove the precatalytic converter lower body assembly.

5. Remove the upstream oxygen sensor (1) and downstream

oxygen sensor (2) from the precatalytic converter upper
body assembly.



(Tightening torque: 40 - 60 N·m)

Installation

Installation is in the reverse order of removal.

RT21110110

1

2

1

RT21110120

CAUTION

 If gasket is damaged, replace it, and remove foreign matter on joints and threads.
 If there are any cracks or leakage in precatalytic converter assembly, replace as necessary.
 Check for exhaust gas leaks. If gas leaks, tighten defective area to prevent leaking. Replace damaged

parts as necessary.

 Check that there is no exhaust gas leakage in upstream oxygen sensor connection.
 Check that there is no exhaust gas leakage in downstream oxygen sensor connection.

11–

13

11

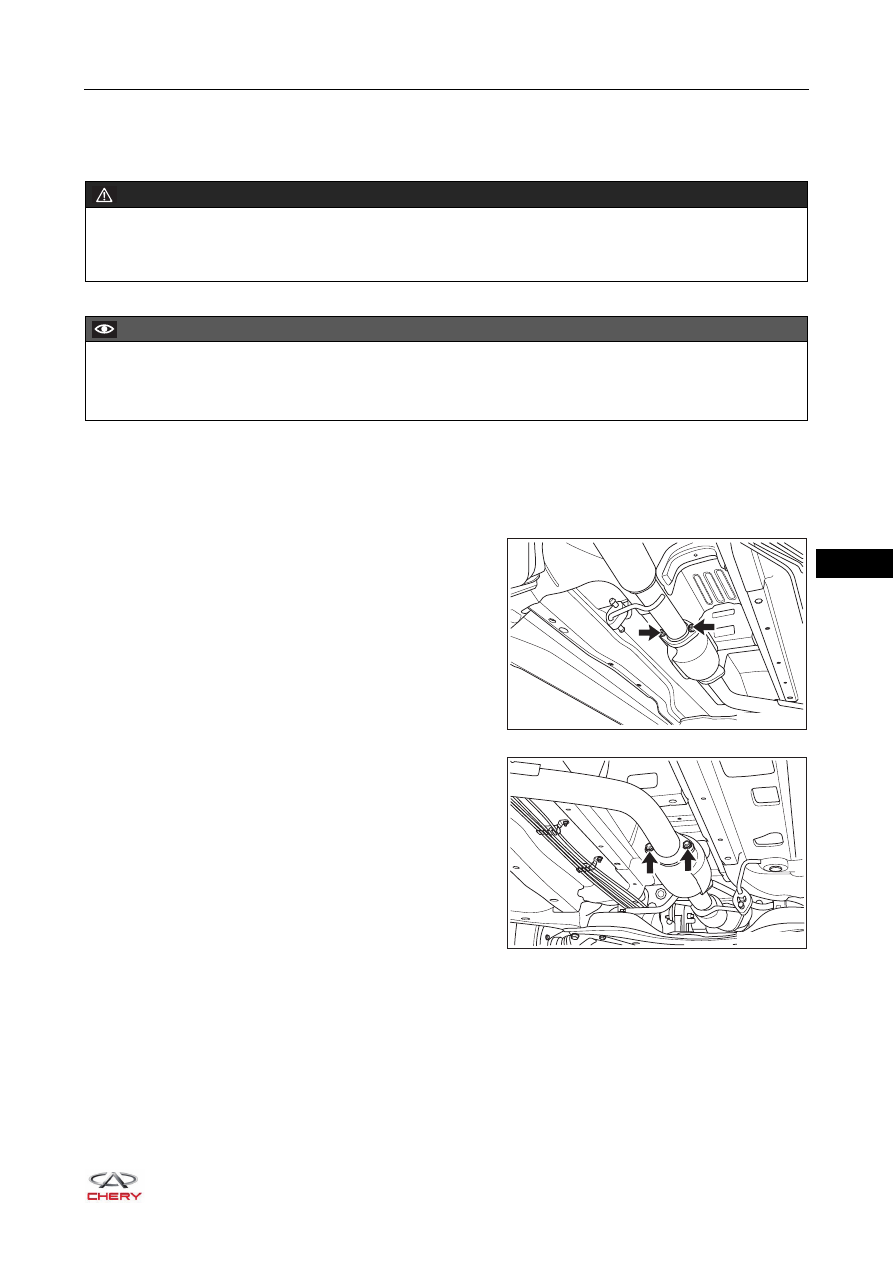

Main Catalytic Converter Assembly

Removal

1. Turn off all the electrical equipment and ignition switch.
2. Disconnect the negative battery cable.
3. Raise the vehicle to a proper height.
4. Remove the main catalytic converter assembly.

a. Remove 2 coupling nuts (arrow), disconnect the

connection between main catalytic converter assembly
and precatalytic converter lower body assembly, and
take off the gasket in the connecting part.



(Tightening torque: 50 ± 5 N·m)

b. Remove 2 coupling nuts (arrow), disconnect the

connection between main catalytic converter assembly
and center pipe assembly, and take off the gasket in
the connecting part.



(Tightening torque: 50 ± 5 N·m)

c. Remove the main catalytic converter assembly.

WARNING

 The temperature of exhaust system is very high when engine is running. Before removal, make sure that

engine has stopped running, otherwise, there is a risk of scald injury.

CAUTION

 Be sure to wear necessary safety equipment to prevent accidents when repairing.
 Try to prevent body paint surface from being scratched during removal and installation.

RT21110130

RT21110140

11–

14

11

Installation

Installation is in the reverse order of removal.

CAUTION

 If gasket is damaged, replace it, and remove foreign matter on joints and threads.
 If there are any cracks or leakage in main catalytic converter assembly, replace as necessary.
 Keep sufficient distance between main catalytic converter assembly and body during installation.
 Check for exhaust gas leaks. If gas leaks, tighten defective area to prevent leaking. Replace damaged

parts as necessary.
