Chery Tiggo 5 (T21). Manual - part 151

12–

5

12

Specifications

Torque Specifications

Coolant Capacity

Coolant Concentration

Coolant Freezing Point

Cooling System Test Pressure

Description

Torque (N·m)

Coupling Bolt Between Air Induction Pipe Assembly
and Tank Upper Crossmember Assembly

7 ± 1

Radiator Left Tension Plate Fixing Bolt

7 ± 1

Radiator Right Tension Plate Fixing Bolt

7 ± 1

Tank Upper Crossmember Assembly Fixing Bolt

7 ± 1

Expansion Tank Fixing Bolt

7 ± 1

Activated Charcoal Canister Solenoid Valve Bracket
Fixing Bolt

7 ± 1

Thermostat Housing Fixing Bolt

8 ± 3

Engine Ground Wire Fixing Bolt

7 ± 1

Engine Speed Sensor Bracket Fixing Bolt

7 ± 1

Thermostat Seat Fixing Bolt

8 + 3

Coolant Temperature Sensor

11 - 16

Fan Controller Fixing Bolt

7 ± 1.5

Cooling Fan Assembly Fixing Bolt

7 ± 1

Timing Belt Idler Pulley Fixing Bolt

40 + 5

Water Pump Assembly Fixing Bolt

8 + 3

Item

Capacity (L)

Cooling System

7.5

G11 Additive

Soft Water

50%

50%

Item

Freezing Point Value (°C)

Coolant

-35

Item

Test Pressure (bar)

Cooling System (Test Pressure)

1.3 ± 0.2

12–

6

12

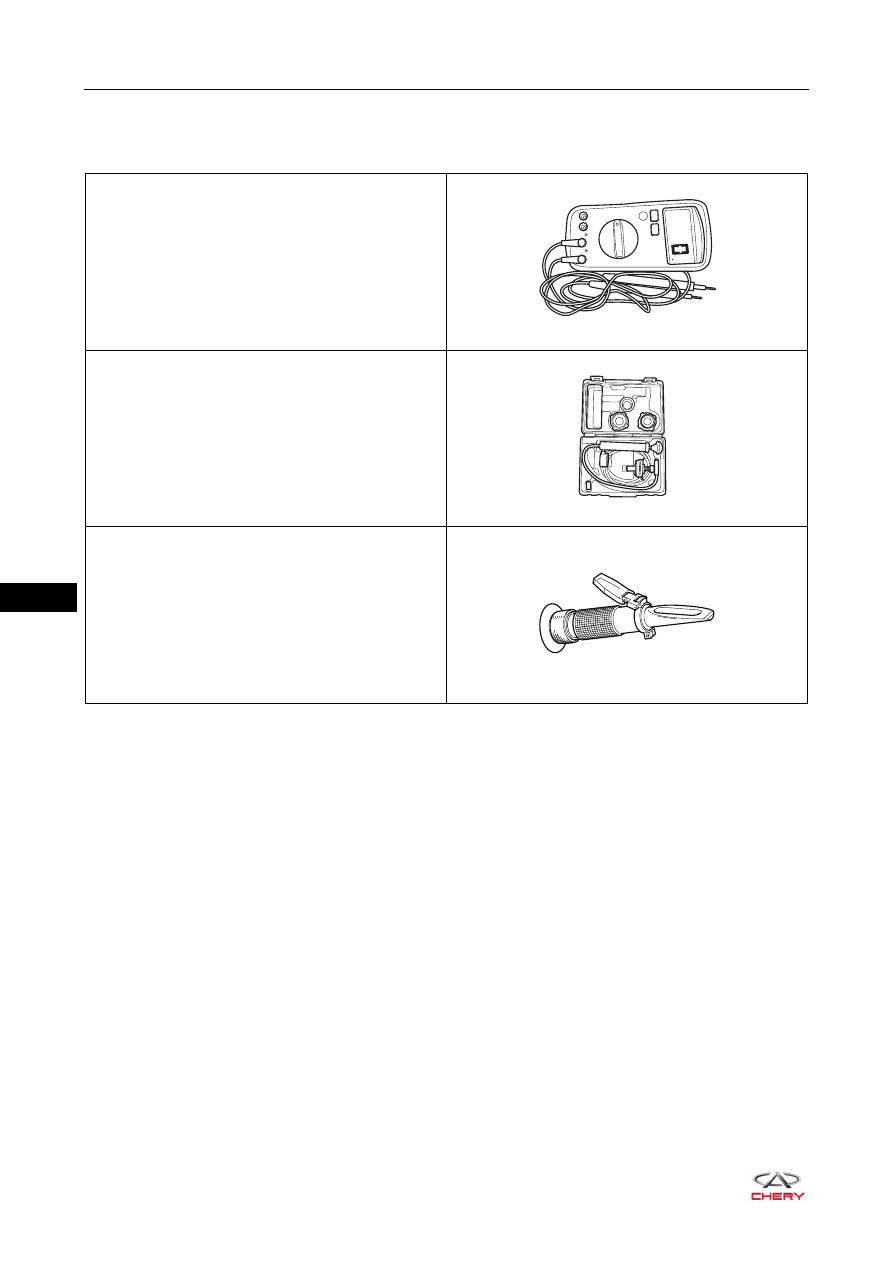

Tools

General Tools

Digital Multimeter

Cooling System Pressure Tester

Freezing Point Tester

RCH0000002

RCH0000055

RCH0000007

12–

7

12

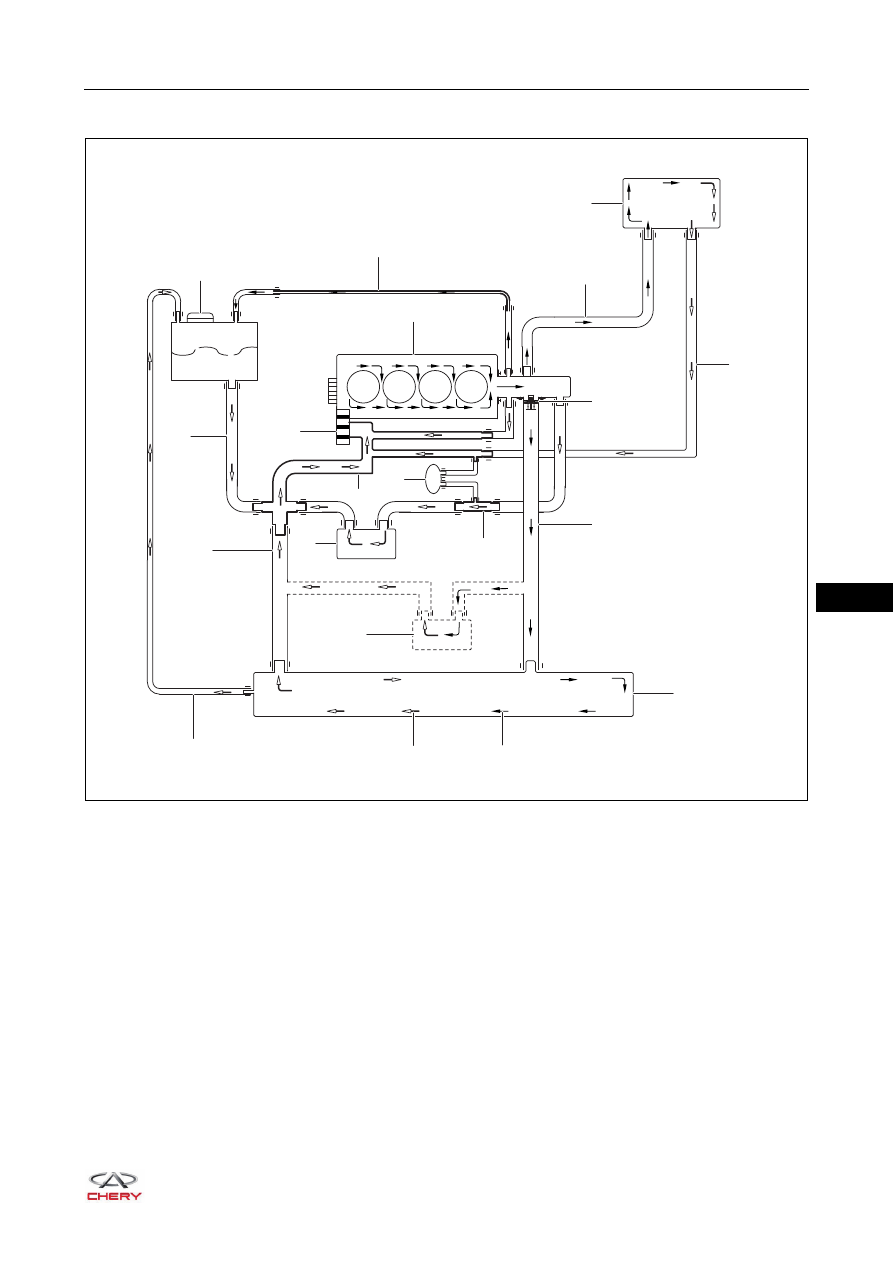

Cooling System Operation Flowchart

RT21120020

13

20

14

15

19

17

6

7

8

9

4

1

2

3

5

10

11

16

18

12

12–

8

12

Small circulation: when coolant temperature is below 82 ± 2°C, the thermostat closes. Coolant only circulates
inside the cylinder block, and warms up other engine parts where need heat. Water pump assembly circulates
the engine coolant through cylinder block, electronic throttle assembly, oil cooler assembly and cylinder head.
The coolant does not radiate heat through the radiator.
Large circulation: when coolant temperature is higher than 103 ± 1°C, the thermostat opens fully, and all the
coolant, which flows out of cylinder block, enters the radiator where coolant heat is lost. The heat-radiated
coolant returns to the cylinder block for circulation by water pump. Due to the heat lost in radiator, the engine
coolant temperature drops quickly to prevent engine from overheating.
For CVT model, coolant will enter the transmission oil cooler assembly under the large circulation, so that the
temperature of transmission oil in transmission decreases.
When engine operates properly, the cooling fan operates under the following conditions:
a. If engine coolant temperature sensor malfunctions, the cooling fan remains rotate when engine operates

properly;

b. When A/C compressor is operating, the cooling fan operates at low speed.
c. When A/C compressor is operating and receives request signal from the A/C pressure switch, the cooling

fan operates at high speed.

d. When coolant temperature is higher than 96°C, the cooling fan starts to operate at low speed;
e. When coolant temperature is higher than 102°C, the cooling fan starts to operate at high speed;
f. When coolant temperature is below 99°C, the cooling fan stops at high speed;
g. When coolant temperature is below 93°C, the cooling fan stops at low speed.

1 - Expansion Tank

2 - Engine Discharge Hose

3 - Cylinder Block

4 - Heater Core

5 - Heating Inlet Pipe

6 - Heating Outlet Pipe

7 - Thermostat

8 - Engine Outlet Pipe

9 - Radiator

10 - Black Solid Arrow (Indicates High Temperature

Coolant)

11 - Hollow Arrow (Indicates Low Temperature

Coolant)

12 - Radiator Discharge Hose

13 - Engine Inlet Pipe

14 - Expansion Tank Outlet Hose

15 - Water Pump

16 - Small Circulation Metal Tube

17 - Electronic Throttle

18 - T-Tube

19 - Oil Cooler

20 - Transmission Oil Cooler Assembly (for CVT

Model)
