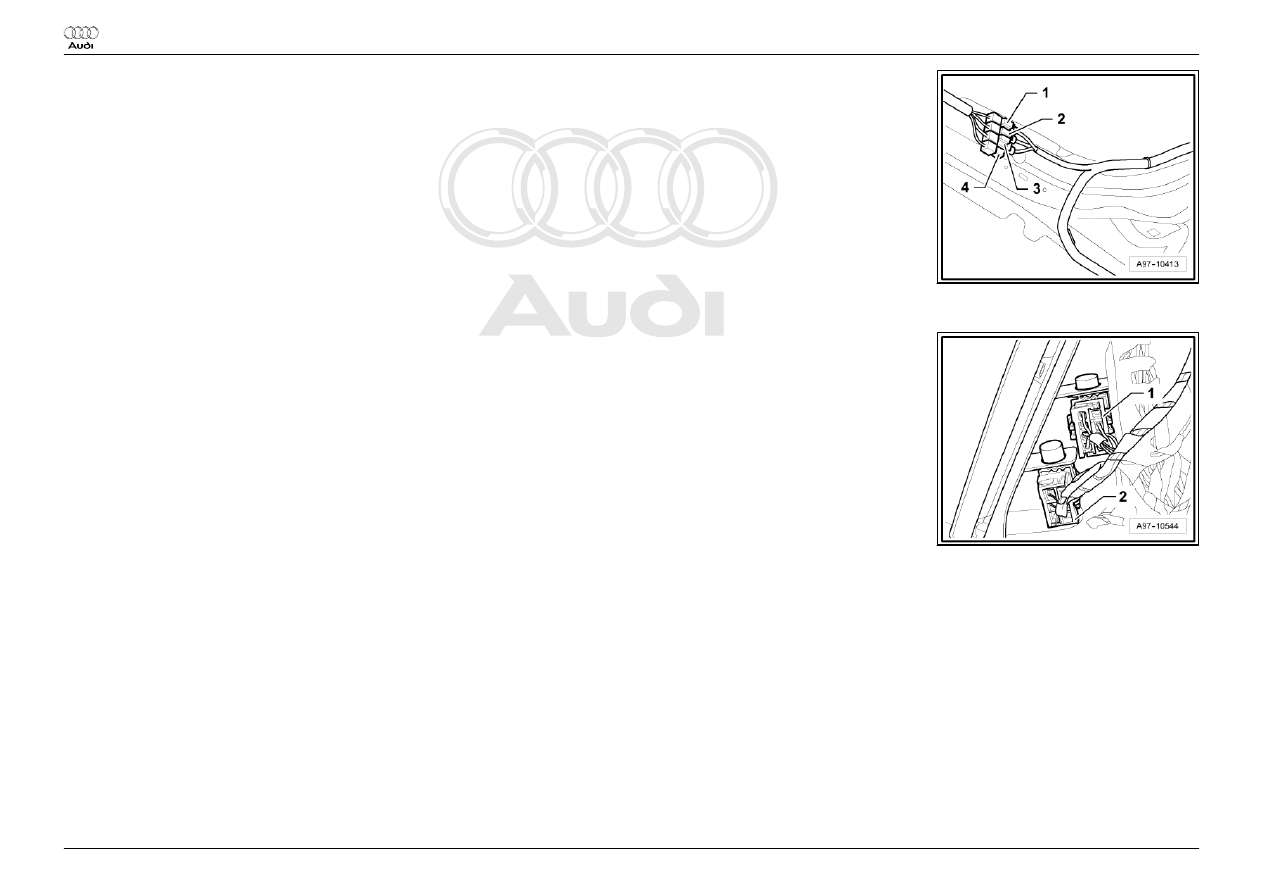

1.4

Coupling station right rear lid, in rear

right roof frame

1 - Aerial connection blue -T2f-, GPS
2 - Aerial connection yellow -T2e-, ZF/HF2
3 - Aerial connection white -T2d-, HF1
4 - Aerial connection black -T2c-, DAB

1.5

Coupling station left rear lid (Roadster)

Left rear lid (Roadster)
1 - -T8e-, brown
2 - -T6f-, black

 Audi TT

Fitting Locations

No.  802 / 4

Edition  04.2008

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

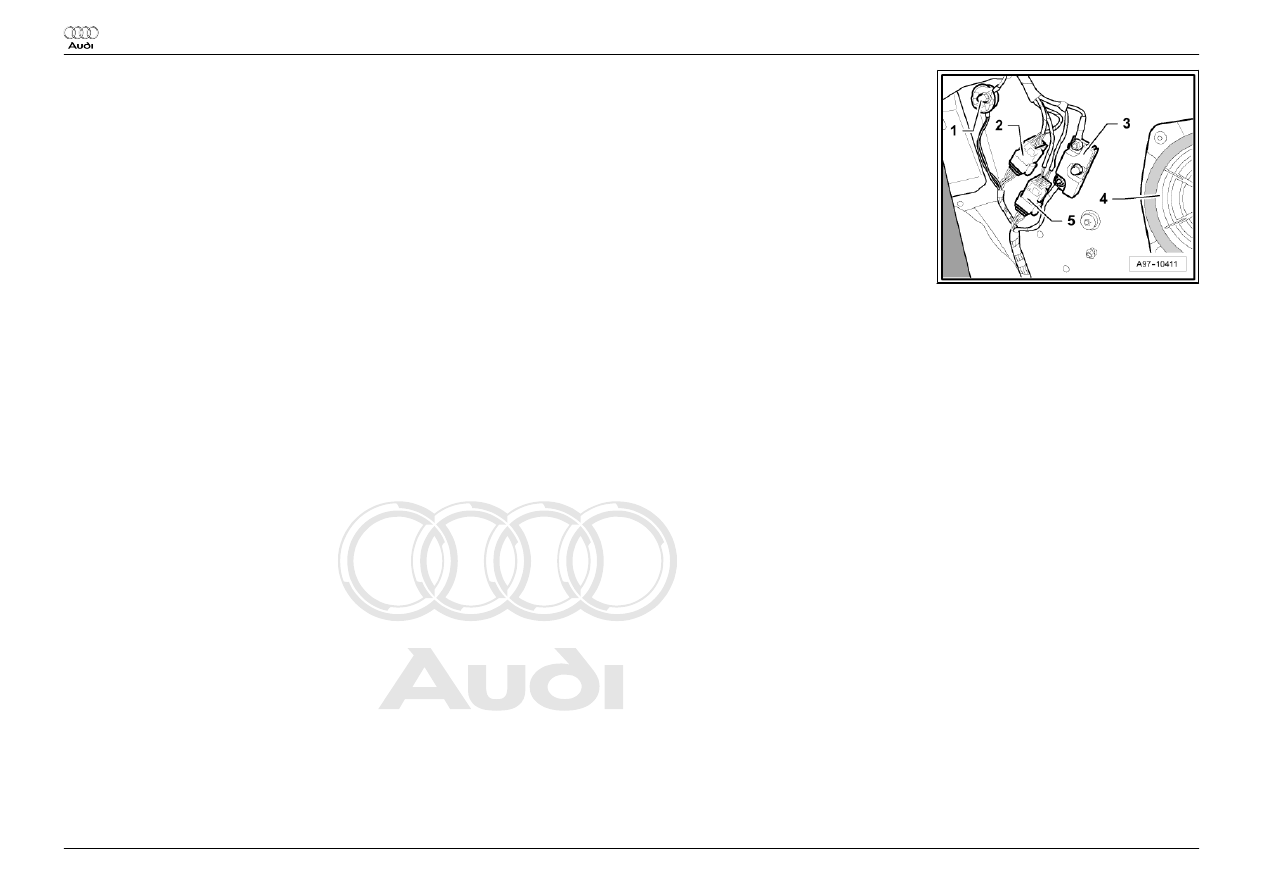

1.6

Coupling station left rear lid behind side

panel

1 - Earth point, rear left side panel -662-
2 - 6-pin connector -T6f-, black
3 - Window aerial suppression filter -C18-
4 - Rear left mid-range and bass loudspeaker -R159-
5 - 8-pin connector -T8e-, brown

 Audi TT

Fitting Locations

No.  802 / 5

Edition  04.2008

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

1

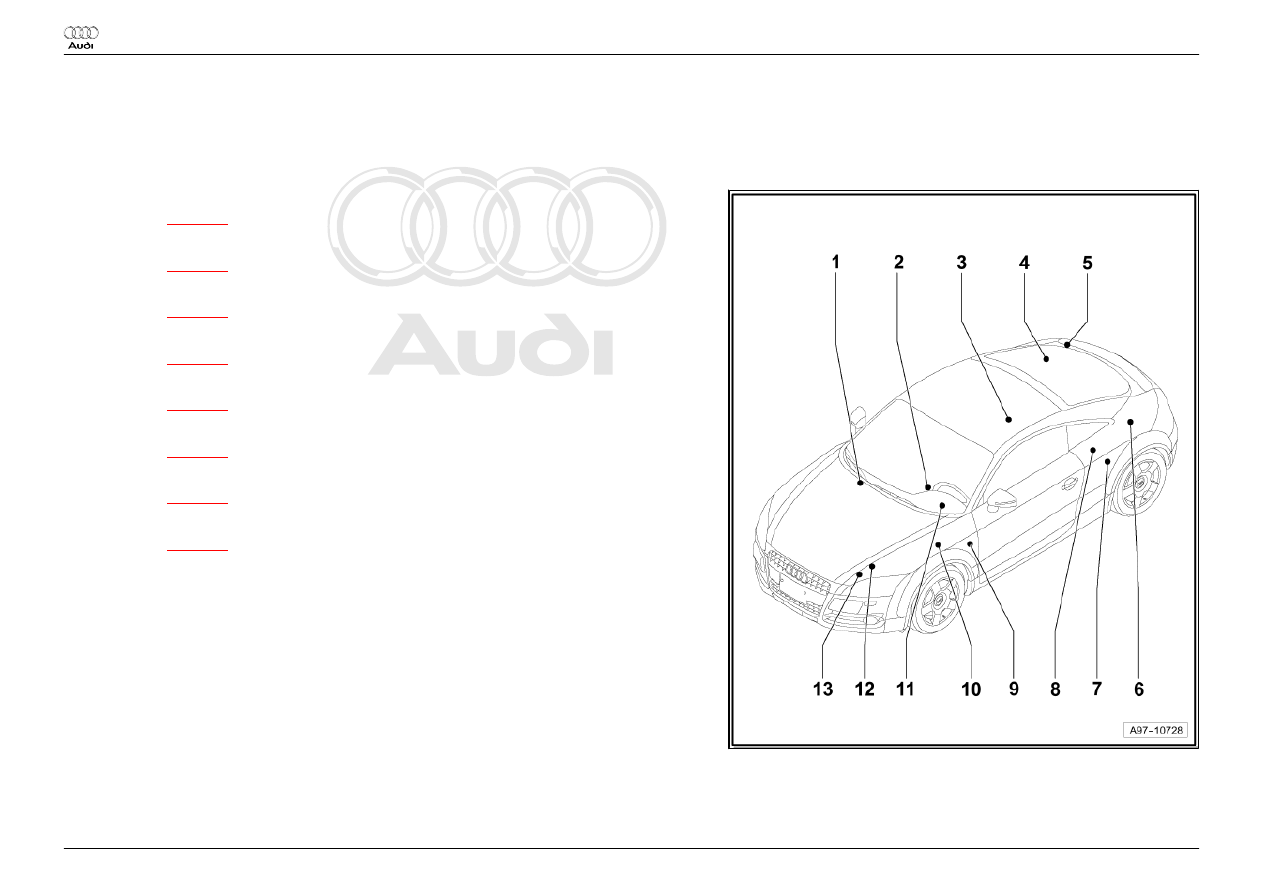

Earth points

1.1

Overview of earth points

1 - Earth point, lower part of right A-pillar -43-

❑ Location

⇒ page 4

2 - Earth point, airbag control unit -637-

❑ Location

⇒ page 7

3 - Earth point, under rear right seat -40-

❑ Location

⇒ page 3

4 - Earth point, on right in luggage compartment -51-

❑ Location

⇒ page 5

5 - Earth point, on right in rear lid -53-

❑ Location

⇒ page 6

6 - Earth point, on left in luggage compartment -50-

❑ Location

⇒ page 5

7 - Earth point 2, on left in luggage compartment (Roadster) -676-

❑ Location

⇒ page 9

8 - Earth point, rear left side panel (Coupé) -662-

❑ Location

⇒ page 7

 Audi TT

Fitting Locations

No.  803 / 1

Edition  08.2008

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

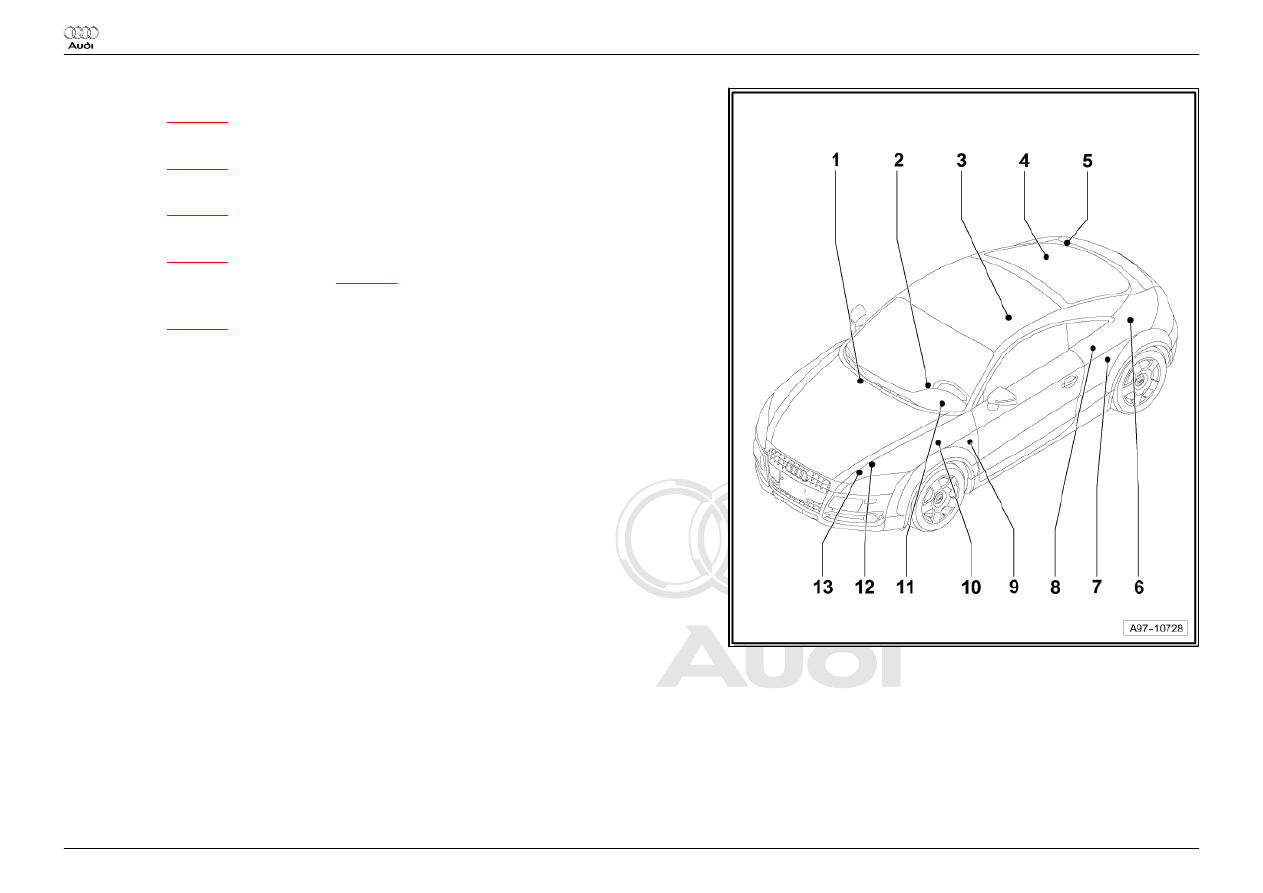

9 - Earth point, lower part of left A-pillar -44-

❑ Location

⇒ page 4

10 - Earth point (audio), under centre console, front -610-

❑ Location

⇒ page 6

11 - Earth point, next to steering column -42-

❑ Location

⇒ page 3

12 - Earth point 1, on front of left longitudinal member -671-

❑ Location

⇒ page 8

❑ Routing earth cable gearbox-body

⇒ page 8

13 - Earth point 2, on front of left longitudinal member -672-

❑ Location

⇒ page 8
