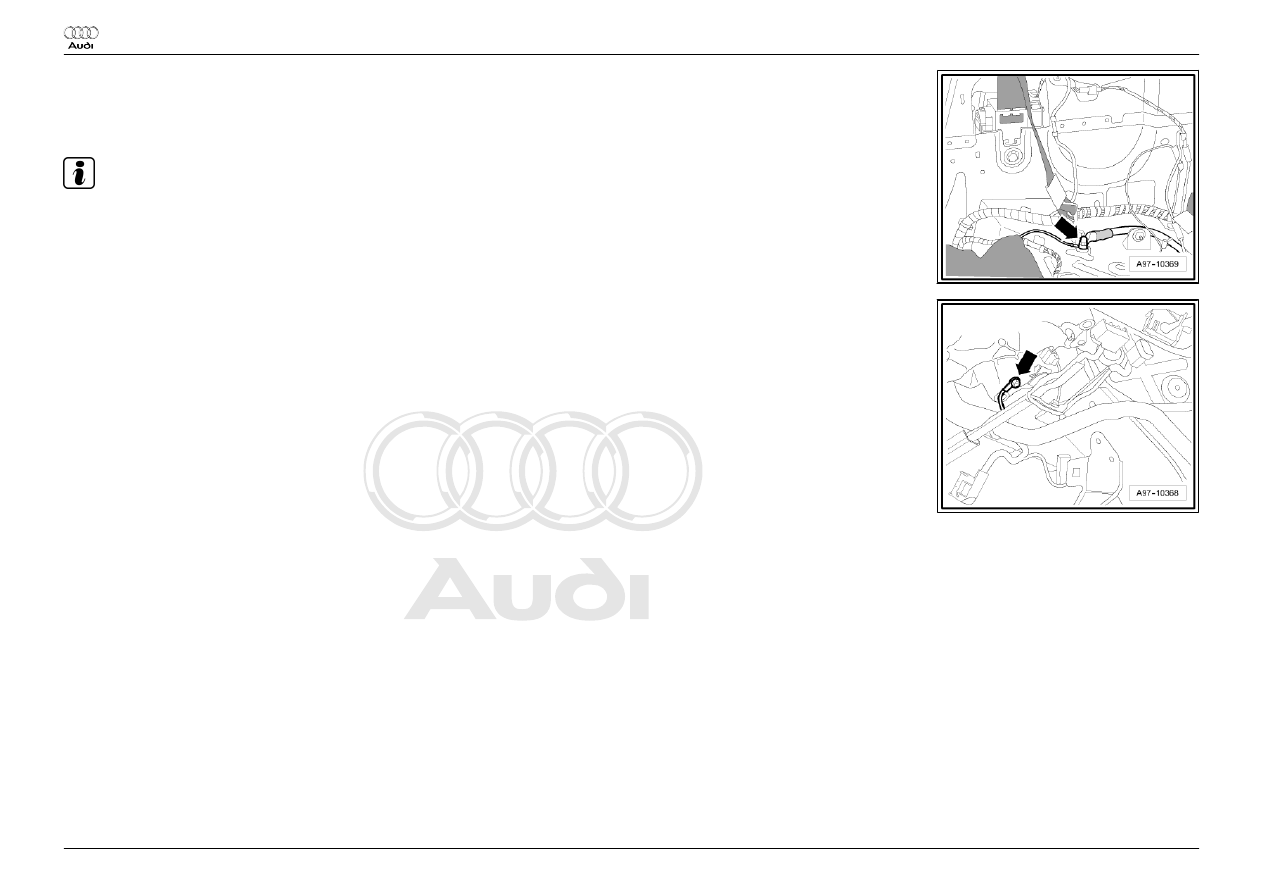

40 - Earth point in vehicle interior, under rear right seat -arrow-
♦ Torque: 9 Nm

Notes:

♦

Note(s):

♦

For Roadster, the earth point is located under the convertible

roof box.

42 - Earth point, next to steering column -arrow-
♦ Torque: 9 Nm

 Audi TT

Fitting Locations

No.  803 / 3

Edition  08.2008

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

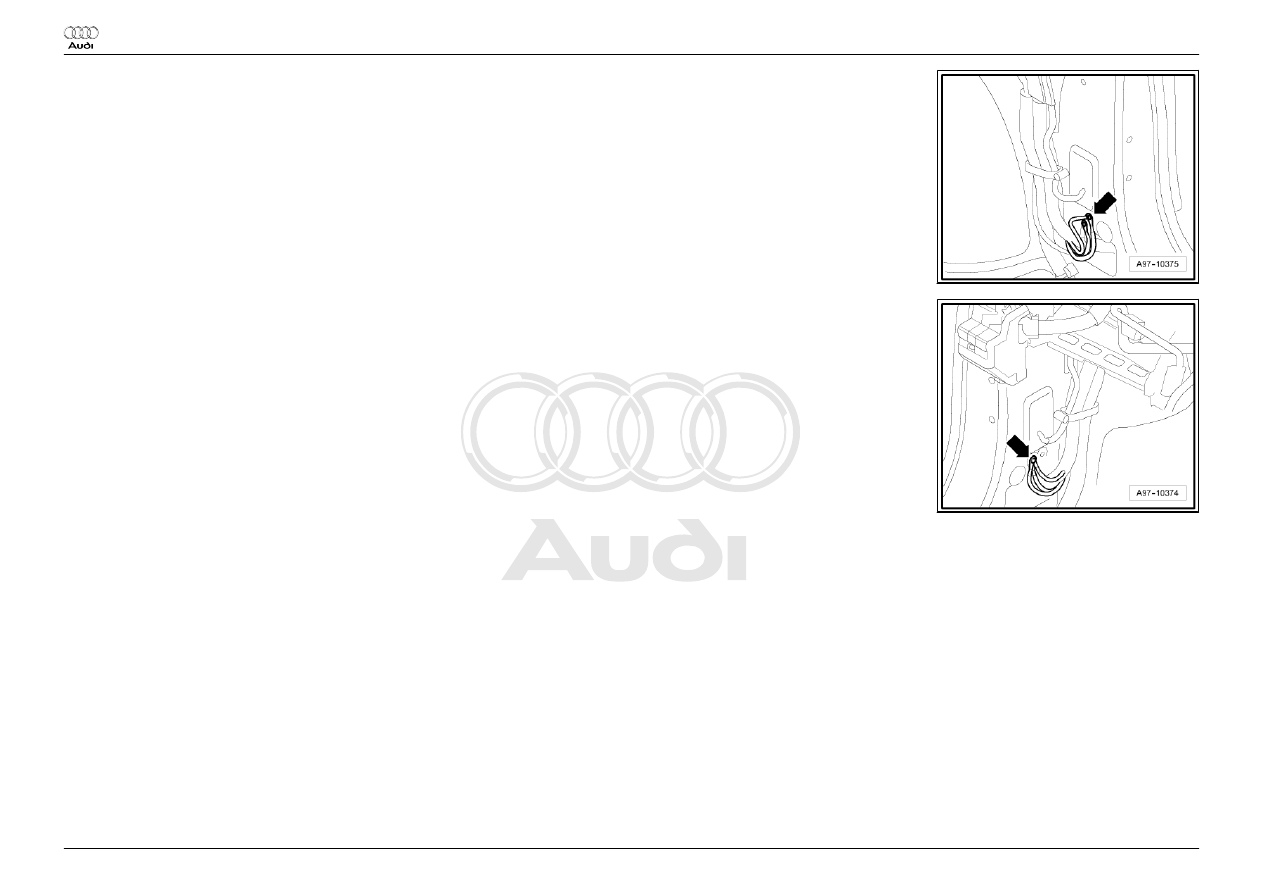

43 - Earth point in vehicle interior, lower part of right A-pillar -

arrow-
♦ Torque: 9 Nm

44 - Earth point in vehicle interior, lower part of left A-pillar -arrow-
♦ Torque: 9 Nm

 Audi TT

Fitting Locations

No.  803 / 4

Edition  08.2008

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

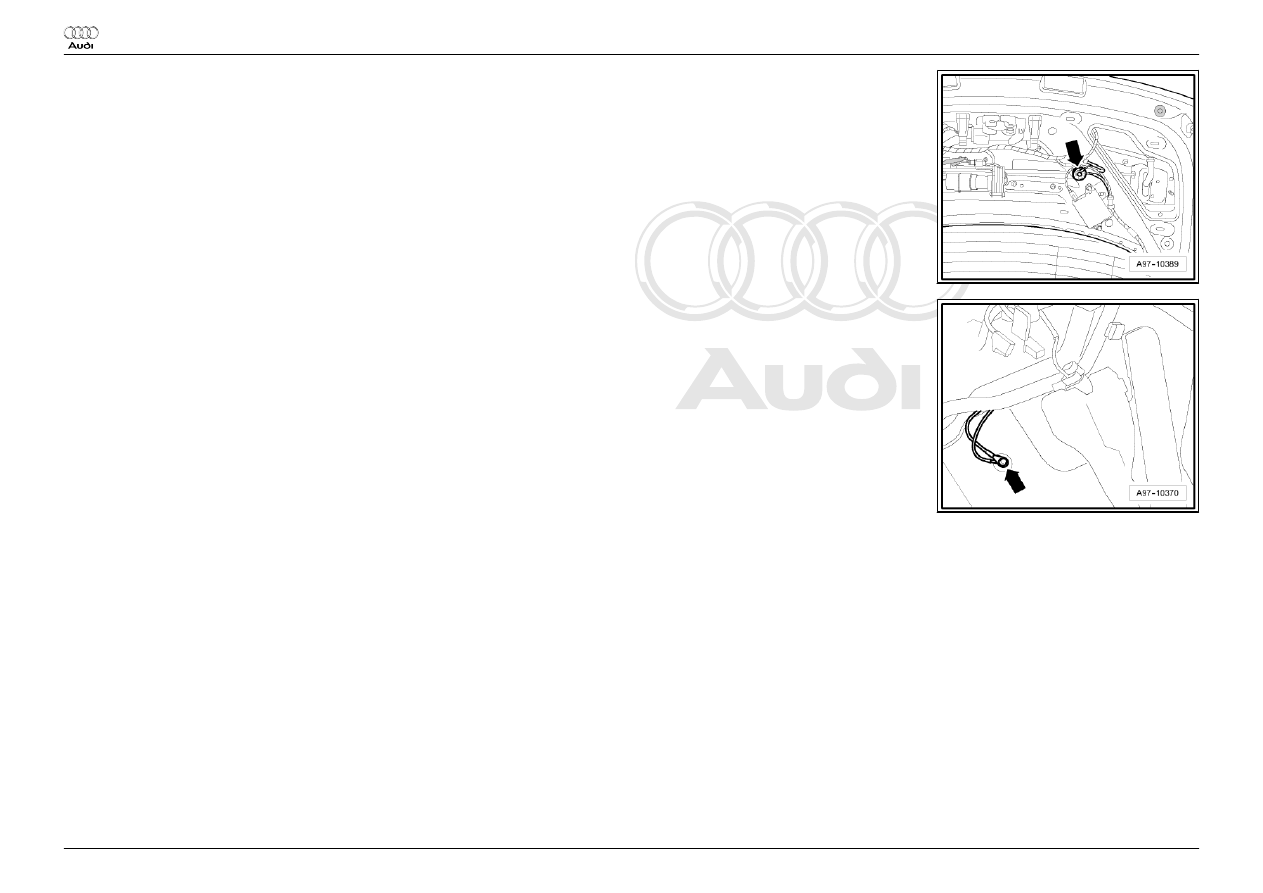

50 - Earth point, on left in luggage compartment -arrow-
♦ Torque: 9 Nm

51 - Earth point, on right in luggage compartment -arrow-
♦ Torque: 9 Nm

 Audi TT

Fitting Locations

No.  803 / 5

Edition  08.2008

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

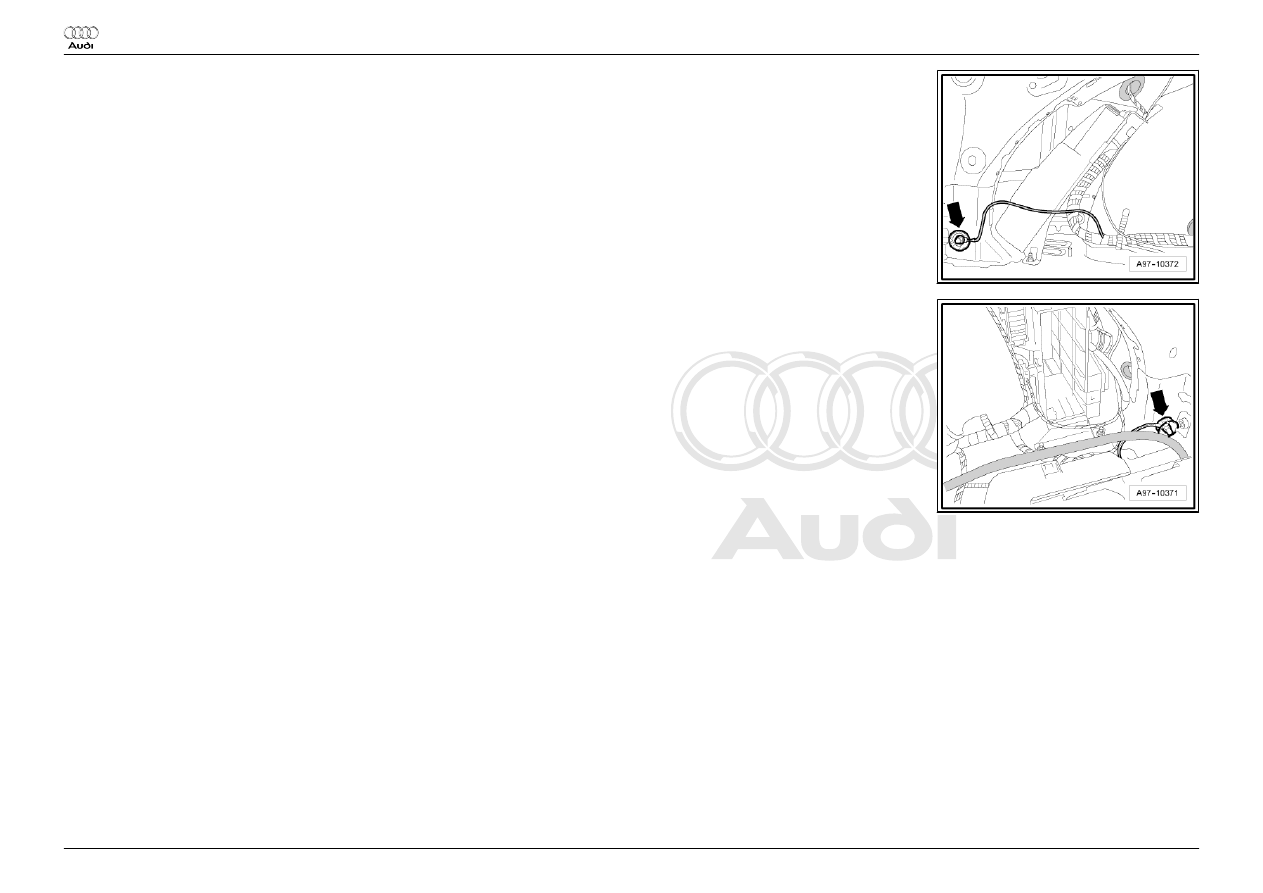

53 - Earth point, on right in rear lid -arrow-
♦ Torque: 9 Nm

610 - Earth point (audio) in vehicle interior, under centre console,

front -arrow-
♦ Torque: 9 Nm

 Audi TT

Fitting Locations

No.  803 / 6

Edition  08.2008
