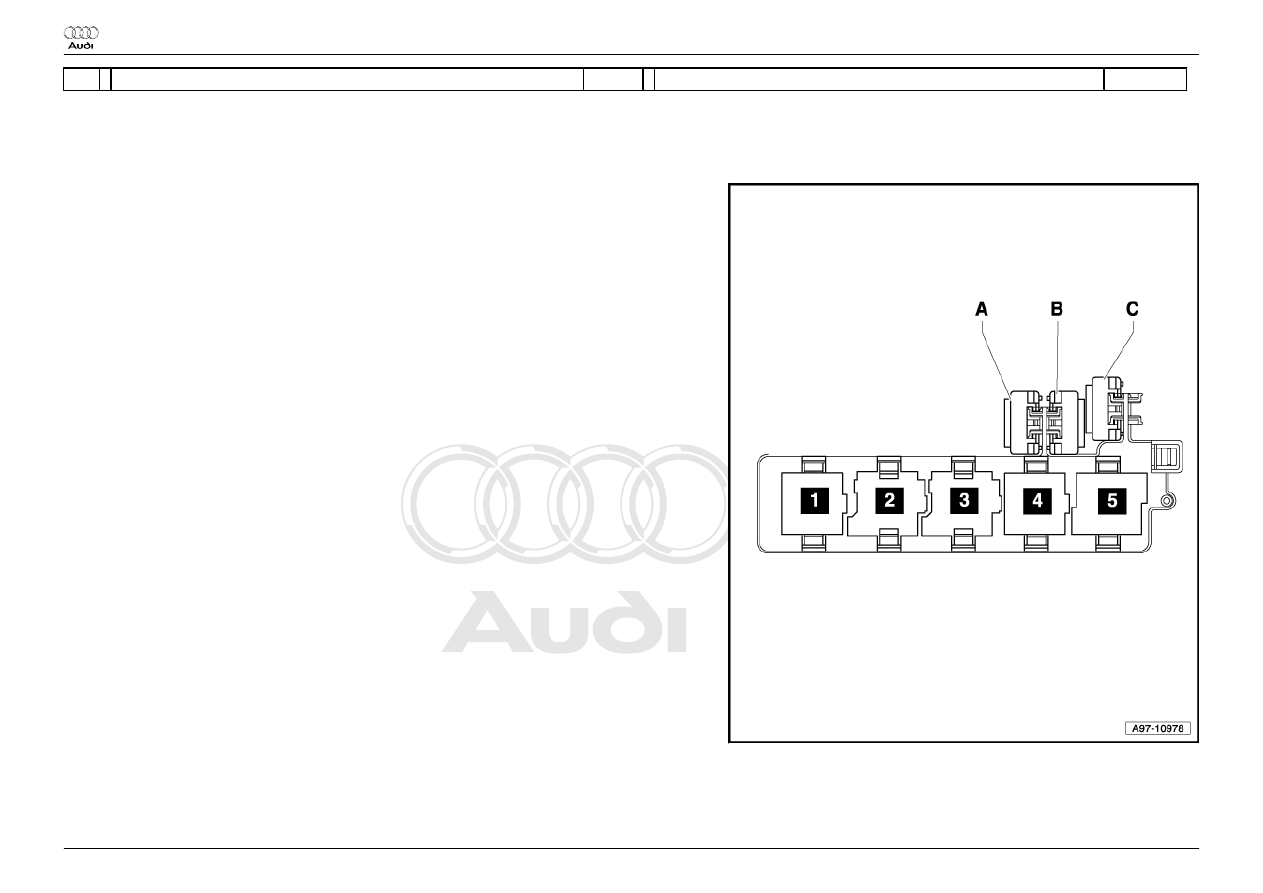

3 - Fuse 3 on fuse holder D -SD3-

110 A - Supply for fuse holder on left of dash panel

30

1.7

Safety cutout, on left under dash panel

A - Vacant
B - Vacant
C - Driver seat adjustment thermal fuse 1 -S44- , 20 A

 Audi TT

Fitting Locations

No.  801 / 1

Edition  04.2010

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

1

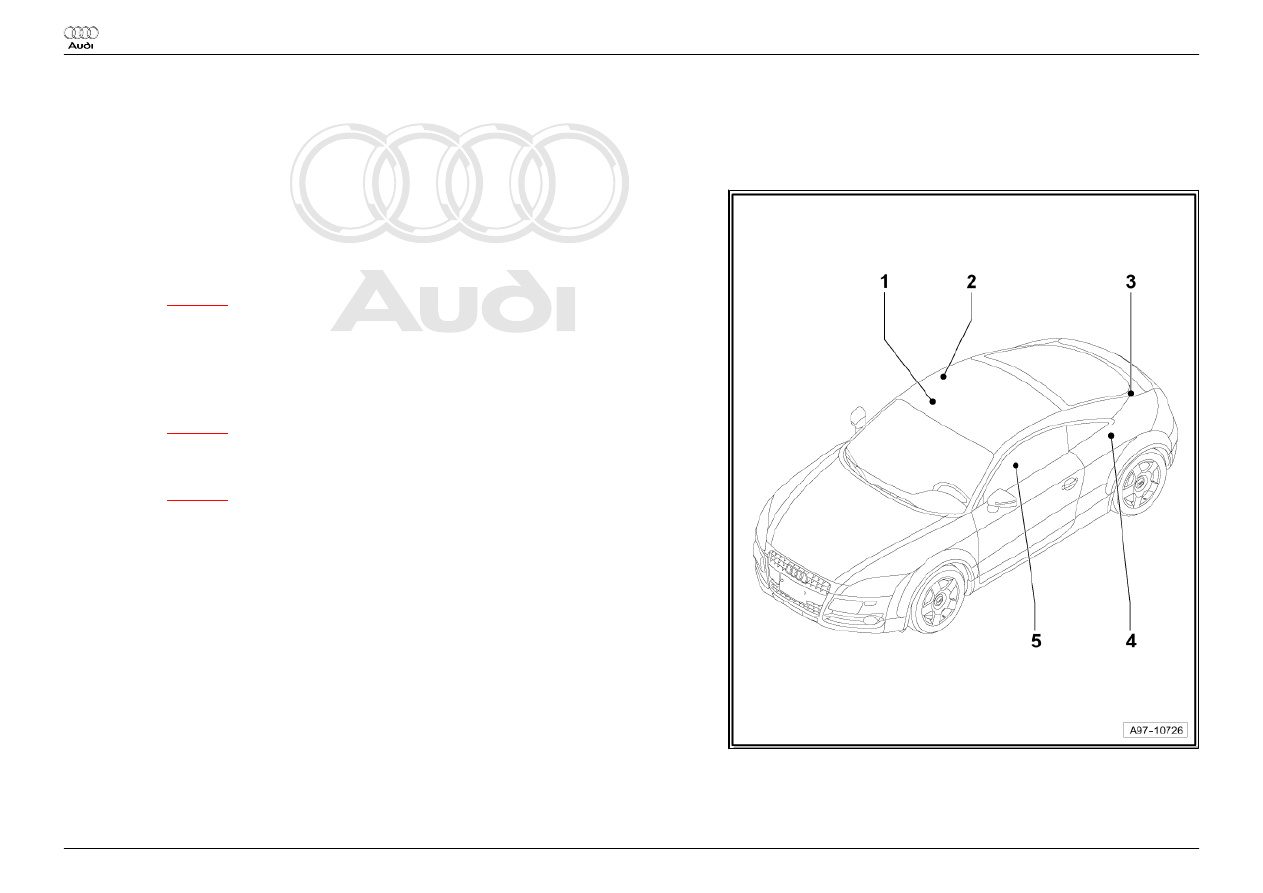

Coupling stations and pin connectors from wiring harness set

1.1

Overview of coupling stations and pin connectors

1 - Coupling station under right front seat

❑ With pin connectors

-T10i-,

-T3d-,

-T6e-,

-T10g-

❑ Location

⇒ page 3

2 - Coupling station right rear lid, in rear right roof frame

❑ With pin connectors

-T2f-,

-T2e-,

-T2d-,

-T2c-, for aerial pin connector

❑ Location

⇒ page 4

3 - Coupling station left rear lid (Roadster)

❑ With pin connectors -T6f-, -T8e-
❑ Location

⇒ page 4

 Audi TT

Fitting Locations

No.  802 / 1

Edition  04.2008

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

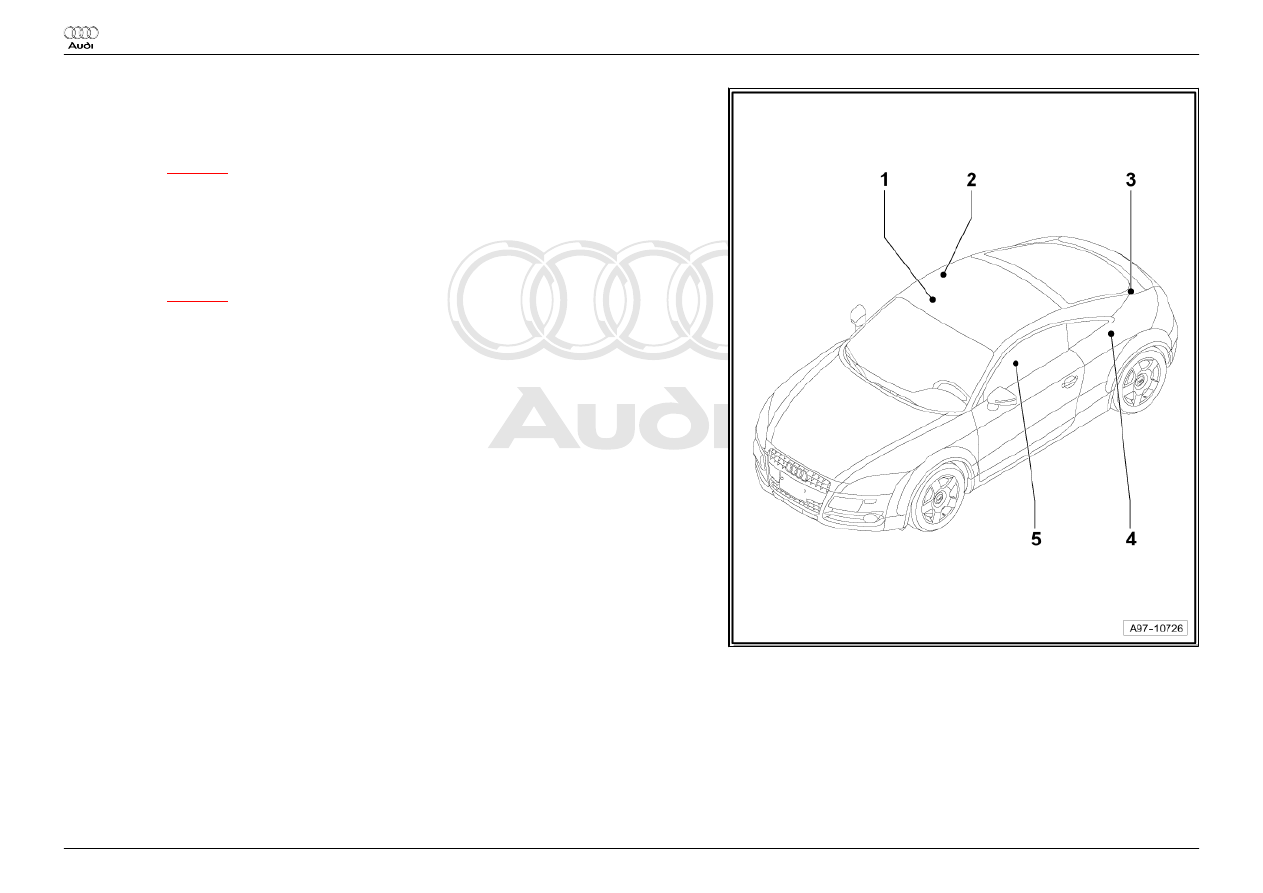

4 - Coupling station left rear lid behind side panel

❑ With pin connectors

-T6f-,

-T8e-

❑ Location

⇒ page 5

5 - Coupling station under left front seat

❑ With pin connectors

-T10f-,

-T10h-,

-T3c-,

-T6d-

❑ Location

⇒ page 3

 Audi TT

Fitting Locations

No.  802 / 2

Edition  04.2008

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

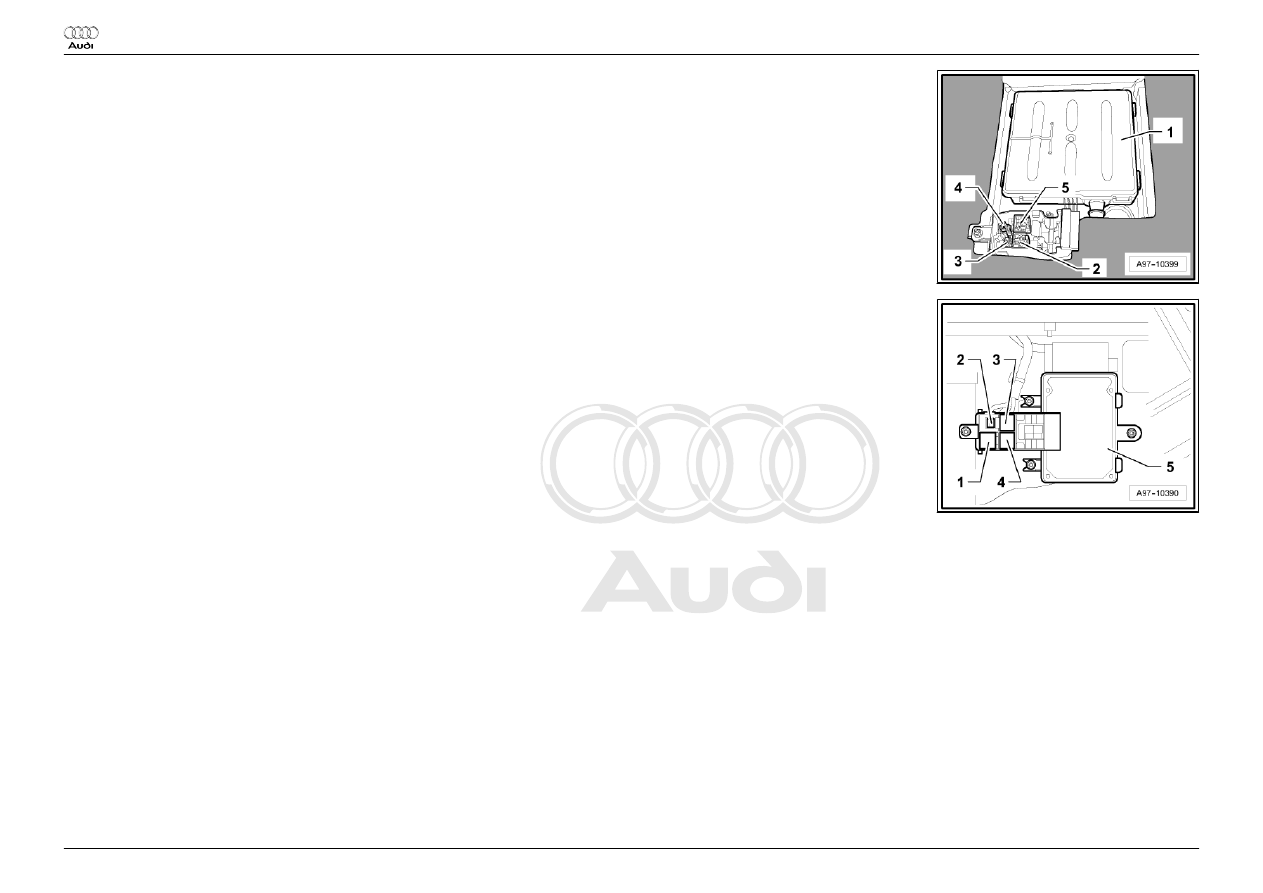

1.2

Coupling station under left front seat

1 - Telephone transmitter and receiver unit -R36-
2 - 10-pin connector -T10f-, red
3 - 10-pin connector -T10h-, black
4 - 3-pin connector -T3c-, yellow
5 - 6-pin connector -T6d-, green

1.3

Coupling station under right front seat

1 - 10-pin connector -T10i-, black
2 - 3-pin connector -T3d-, yellow
3 - 6-pin connector, -T6e-, green
4 - 10-pin connector -T10g-, red
5 - Electronically controlled damping control unit -J250-
