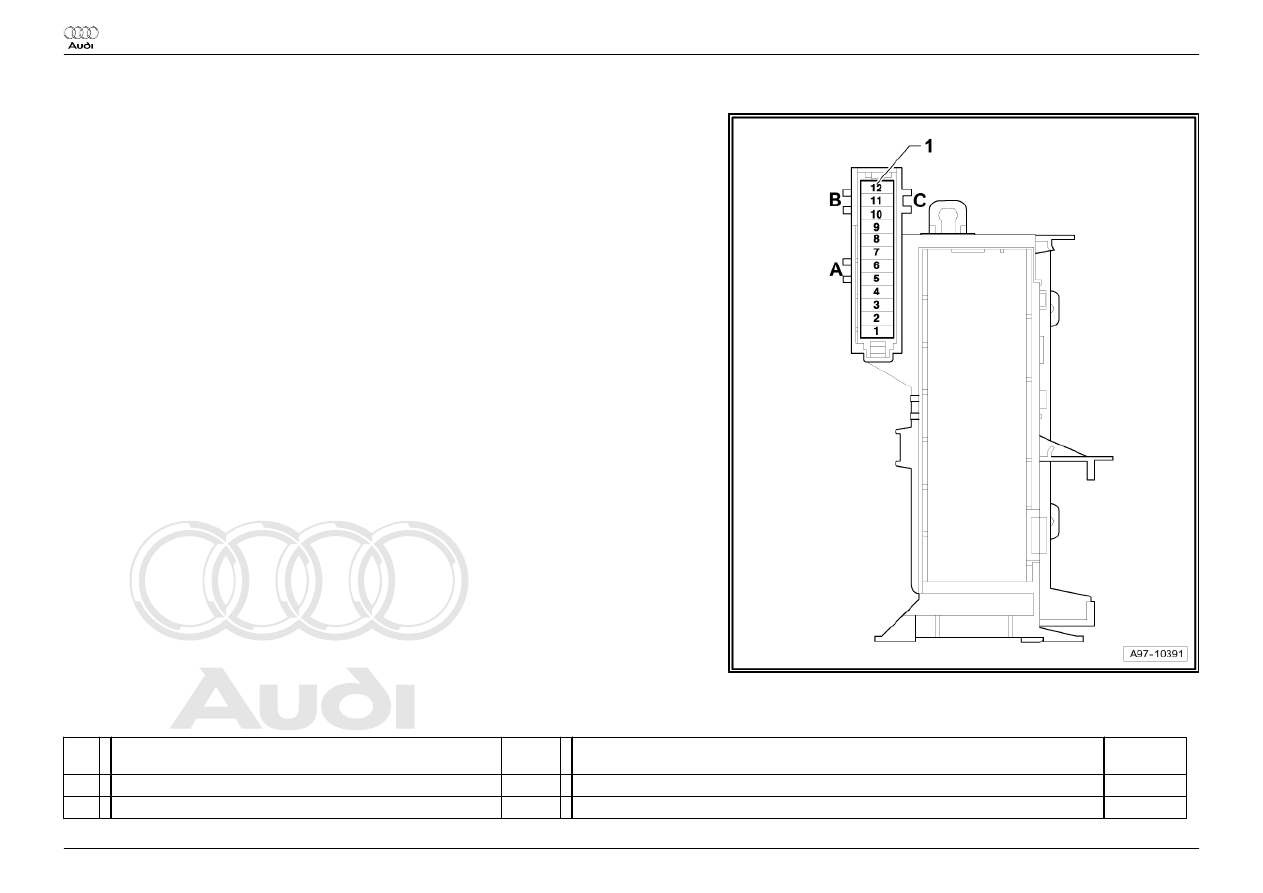

5 A - beige

A - Vacant
B - Vacant
C - Vacant
1 - Fuse holder SF

1.5.1

Position of fuses in fuse holder F, right in luggage compartment

No.   Current Flow Diagram designation

Nomina

l value

  Function/component

Terminal

1 - Fuse 1 on fuse holder F -SF1-

5 A

- Onboard supply control unit -J519- (reference voltage)

30

2 - Fuse 2 on fuse holder F -SF2-

40 A - Onboard supply control unit -J519-

30

 Audi TT

Fitting Locations

No.  801 / 1

Edition  04.2010

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

3 - Vacant







4 - Fuse 4 on fuse holder F -SF4-

30 A - Convertible roof actuation control unit -J256-

1)

Convertible roof actuation hydraulic pump -V118-

1)

30

5 - Fuse 5 on fuse holder F -SF5-

5 A

- Parking aid control unit -J446-

Interface for special functions

2)

30

6 - Fuse 6 on fuse holder F -SF6-

15 A - Fuel pump control unit -J538-

3)4)

Fuel system pressurisation pump -G6-

5)

30

7 - Fuse 7 on fuse holder F -SF7-

40 A - Onboard supply control unit -J519-

30

8 - Fuse 8 on fuse holder F -SF8-

20 A - ABS control unit -J104- (ABS valves)

30

9 - Fuse 9 on fuse holder F -SF9-

30 A - Electronically controlled damping control unit -J250-

30

10 - Fuse 10 on fuse holder F -SF10-

20 A

6)

10 A

7)

- Convenience system central control unit -J393-

6)

Onboard supply control unit -J519-

7)

30

11 - Fuse 11 on fuse holder F -SF11-

25 A - Convertible roof actuation control unit -J256-

1)

30

12 - Fuse 12 on fuse holder F -SF12-

5 A

6)

- Convenience system central control unit -J393-

6)

30

Note

♦

1)

 Roadster

♦

2)

 from June 2007

♦

3)

 for engine code CDAA, CCZA, CCTA only

♦

4)

 for engine code BWA, BPY, CDMA, CDLB only

♦

5)

 for engine code CBBB, CFGB only

♦

6)

 up to May 2009

♦

7)

 from June 2009

1.6

Location of fuses (SD) on fuse holder D

Torque settings
⇒ Electrical system, Repair Group 97, removing and installing fuse holders

 Audi TT

Fitting Locations

No.  801 / 1

Edition  04.2010

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

Fuse colours
40 A - orange
30 A - green
25 A - white
20 A - yellow
15 A - blue
10 A - red
7,5 A - brown

 Audi TT

Fitting Locations

No.  801 / 1

Edition  04.2010

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

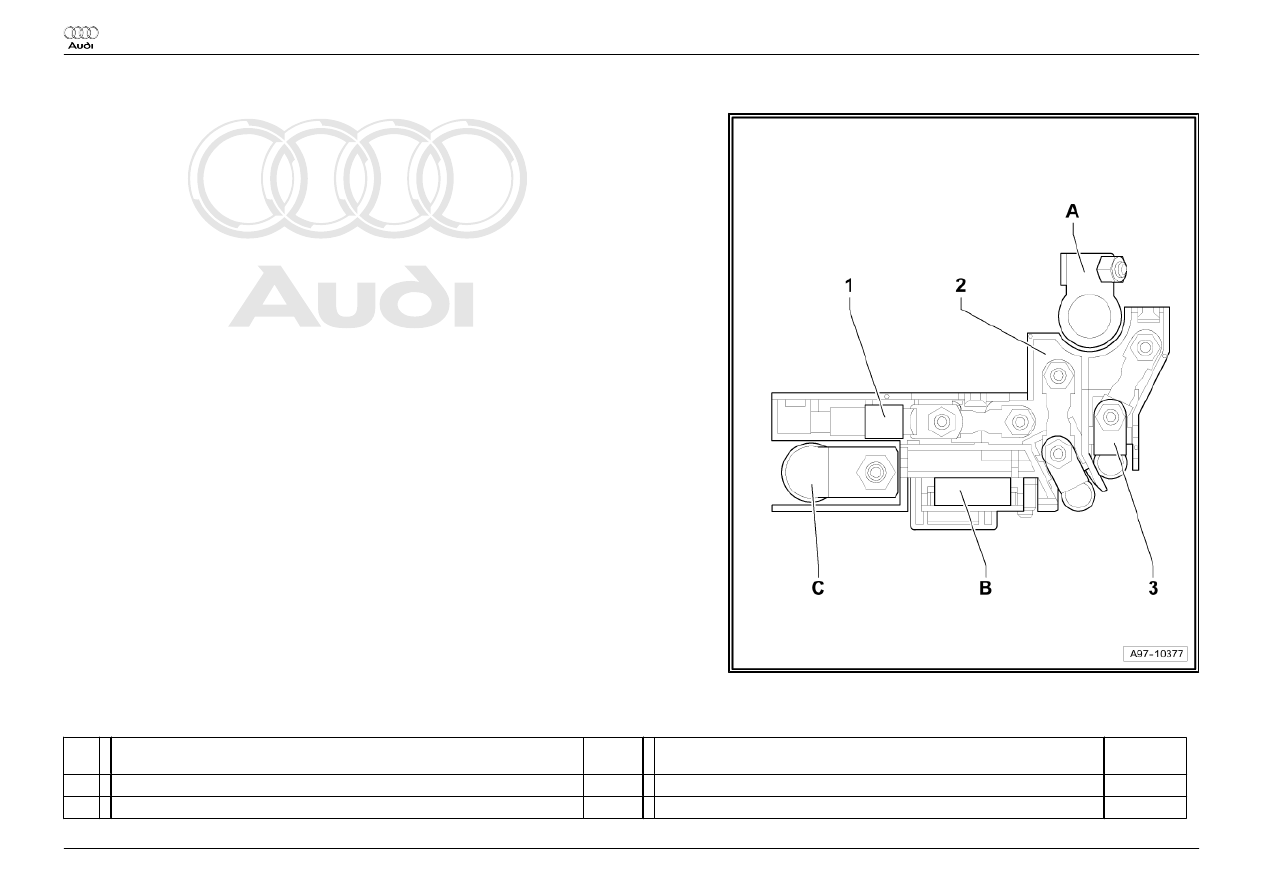

5 A - beige

A - Connection battery positive
B - Battery isolation igniter -N253-
C - Main fuse holder supply, electronics box
C - Cable to starter -B-

1.6.1

Position of fuses on main fuse holder D, in luggage compartment, rear right, on the battery

No.   Current Flow Diagram designation

Nomina

l value

  Function/component

Terminal

1 - Fuse 1 on fuse holder D -SD1-

40 A - ABS hydraulic pump -V64-

30

2 - Fuse 2 on fuse holder D -SD2-

110 A - Supply for fuse holder right in luggage compartment

30
