Porshe 911 (997). Manual - part 674

Tools

Removal tool, universal NR.21

Removing airbag sensor

Removing sensor for front airbag

Installation Location:

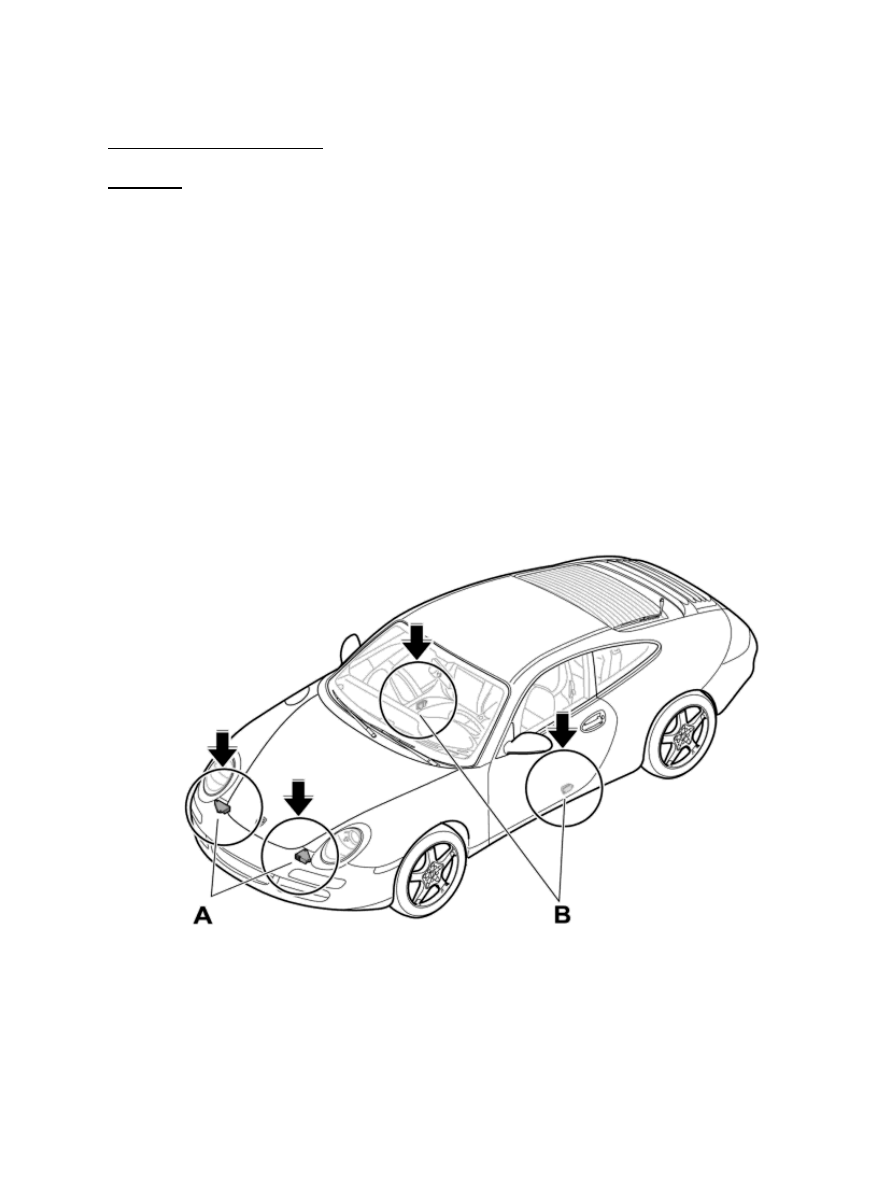

Installation locations

Diagnostic system: reading out fault memory and activating systems

Tools

2853

A

- Sensors for front airbag

B

- Sensors for centre airbag

Disconnecting plug connection

1. Unlock electrical connector -1- -A- and remove from

sensor.

Mounting for removal of sensor

2. Unscrew the two fastening nuts -2- and remove the sensor.

Removing sensor for centre airbag

1. Disengage floor covering at the support and lay it in the vehicle

interior.

Unlocking locating peg using the removal tool

2. Unlock locating peg -1- using the removal tool

Diagnostic system: reading out fault memory and activating systems

Removing sensor for front airbag

2854

Removing support

3. Unscrew fastening screws -2- and nuts -3- and carefully pull the support up and out of the retaining points.

Incorrect triggering of airbag modules. → 695119 Removing and installing airbag sensor - general warnings

Removing airbag sensor

4. Unscrew the two fastening nuts -2- .

Removing connector for airbag sensor

5. Unlock electrical connector -A- and remove sensor.

Installing airbag sensor

Installing sensor for front airbag

Diagnostic system: reading out fault memory and activating systems

Removing sensor for centre airbag

2855

Mounting for installation of sensor

1. Position sensor on retaining bracket and screw it down with the fastening nuts -2- . → M6: 8 ftlb.

+/-1 Nm(ftlb.)

Installing the sensor plug connection

2. Push on the electrical connector -1- and lock.

Installing sensor for centre airbag

Incorrect triggering of airbag modules. → 695119 Removing and installing airbag sensor - general warnings

Mounting for installation of sensor

1. Position sensor on the body and screw it down with the fastening nuts -2- . → M6: 8 (6) ftlb. +/-1

(0.5) ftlb.

Diagnostic system: reading out fault memory and activating systems

Installing sensor for front airbag

2856
