correspondan con el contenido de la imagen de la pantalla.

Diagnostic system: reading out fault memory and activating systems

Subsequent work

2261

- Preliminary work
- Removing rear side section flap
- Installing rear side section flap
- Subsequent work

Tools

Designation

Type

Number

Explanation

PIWIS tester

special tool

9718

Preliminary work

Preliminary work

Removing hardtop mount → 611719 Removing and installing hardtop mount - chapter on "Removing"

Removing rear side section flap

Removing rear side panel flap

Installation Location:

2262

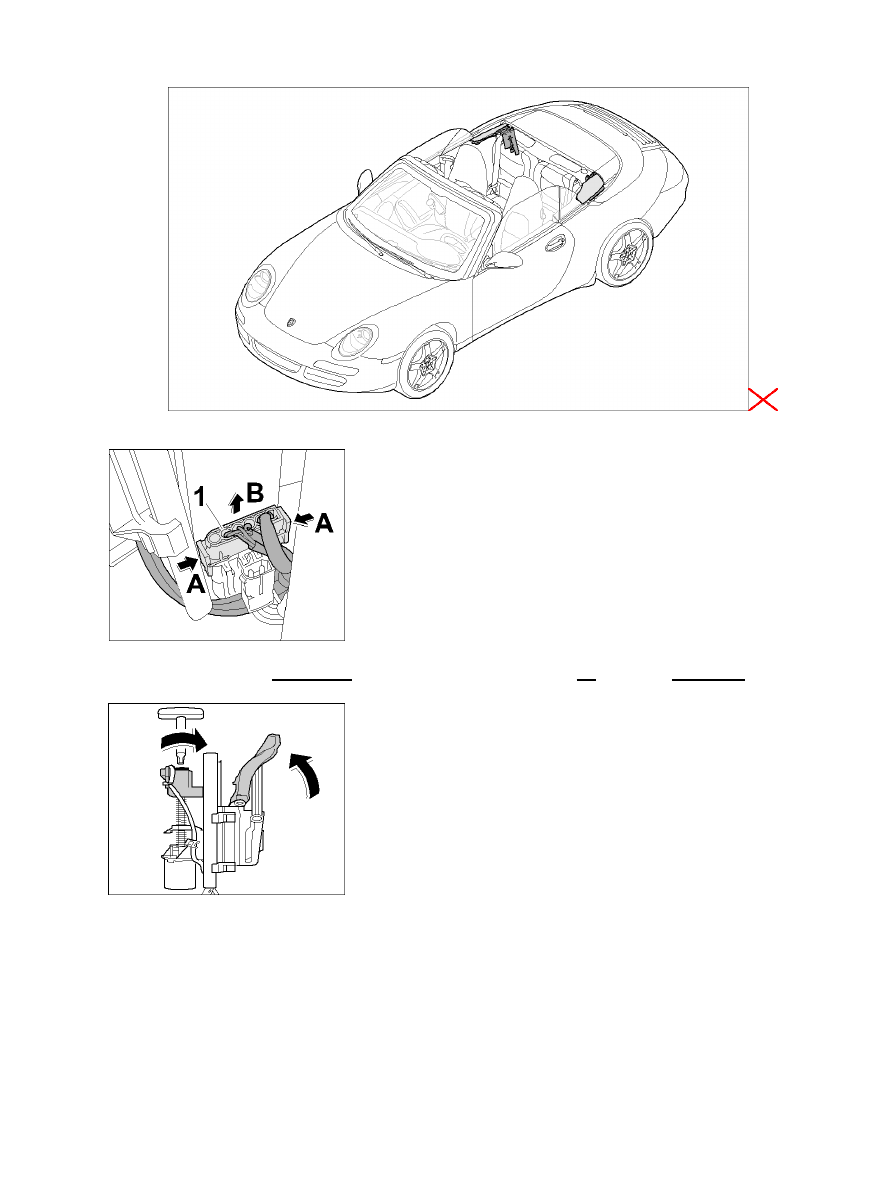

Installation position of rear side panel flap

Releasing electric plug connection

1. Press in locking tabs -Arrows A- and pull electric plug connection -1- up and off -Arrow B- .

Lid top in service position

2. Insert Allen key into the emergency operation mechanism and turn it counterclockwise (in

direction of arrow) until the flap lid starts to move vertically.

Diagnostic system: reading out fault memory and activating systems

Removing rear side panel flap

2263

Removing rear side panel flap

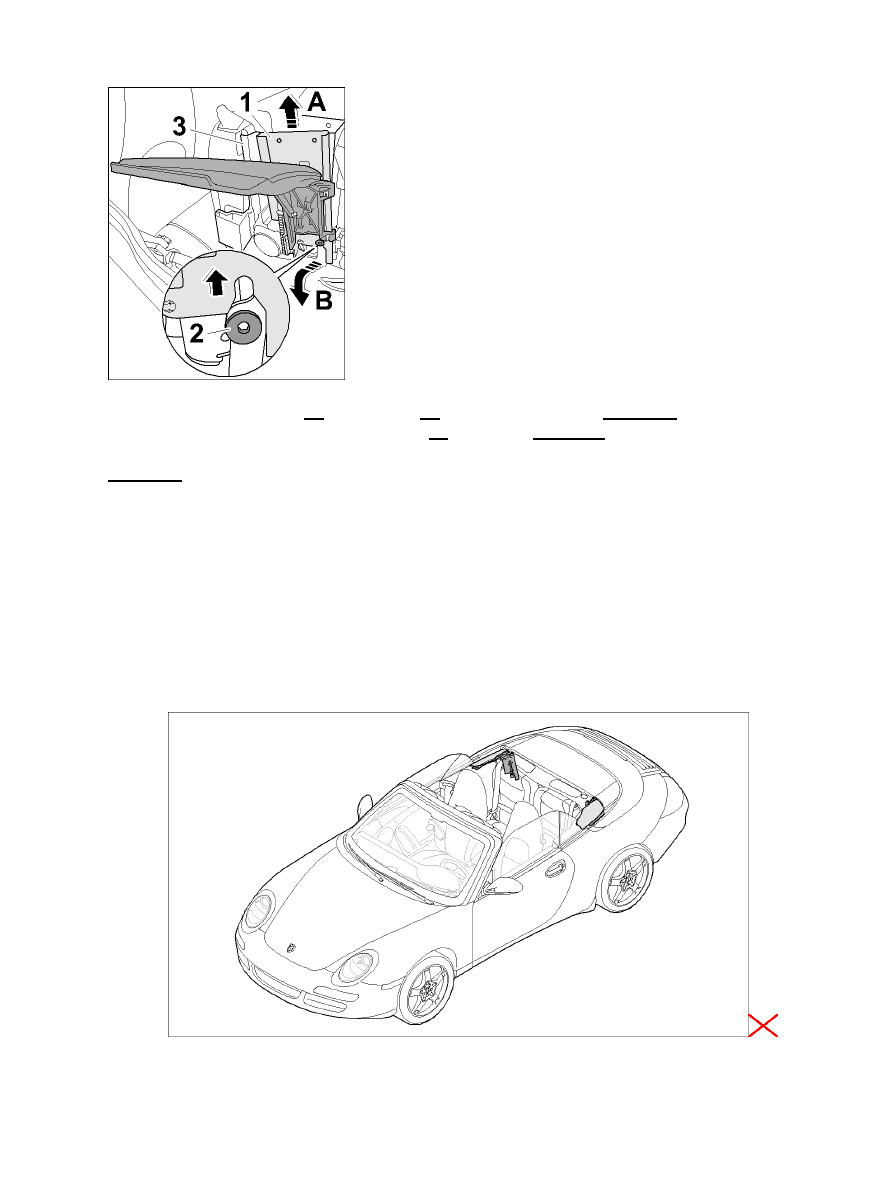

3. Move rear side panel flap -1- out of the pin -2- in an upwards direction -Arrow A- and guide out of

the frame for the roll-over protection system -3- downwards -Arrow B- .

Installing rear side section flap

Installing rear side section flap

Installation Location:

Installation position of rear side panel flap

Diagnostic system: reading out fault memory and activating systems

 Installing rear side section flap

2264
