Porshe 911 (997). Manual - part 511





ADVERTENCIA

Al imprimir se corre el riesgo de perder la correcta asignación de las figuras al texto.

Por motivos técnicos, por el momento no se puede descartar que, aun siendo
correcta la imagen que aparezca en la pantalla, al imprimir se pierda la
correlación entre el texto y la figura correspondiente.

•

Si este error pasara desapercibido, existe el riesgo de que los trabajos no se
ejecuten de forma correcta y, por tanto, se produzcan daños personales y
materiales.

•

→ Por ello le rogamos que tras el proceso de impresión compare siempre las copias impresas con
la imagen de la pantalla. En caso de error, corrija las copias impresas de forma que se
correspondan con el contenido de la imagen de la pantalla.

Diagnostic system: reading out fault memory and activating systems

Subsequent work

2201

61 14 19 Removing and installing water drip pan - as
of MY 2005

- Preliminary work
- Removing water drip pan
- Installing water drip pan
- Subsequent work

Preliminary work

Preliminary work

Remove convertible top. → 610119 Removing and installing convertible top - section on "Removing"

Removing water drip pan

Removing water drip pan

Installation Location:

Installation position of water drip pan

2202

1. Pull seal for convertible-top compartment lid up slightly close to the water drip pan.

Removing water drip pan

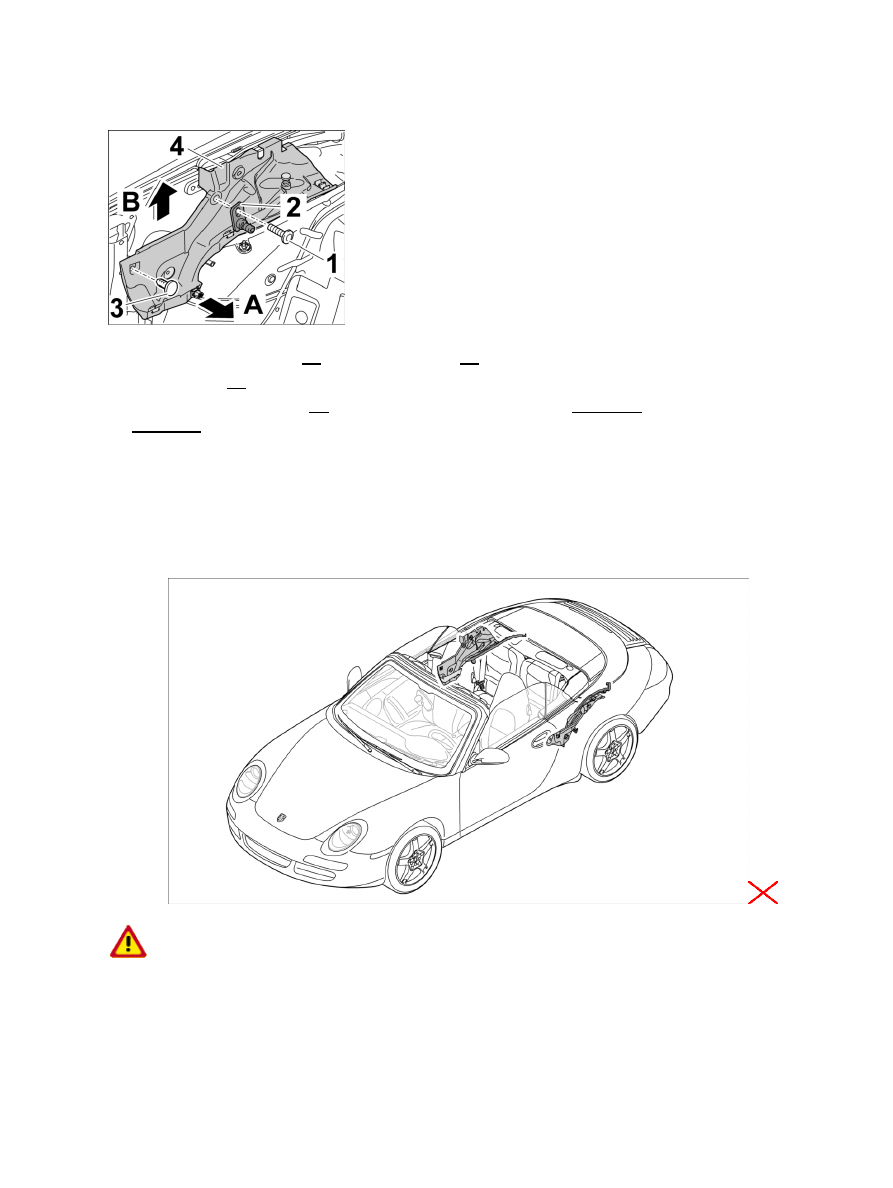

2. Unscrew fastening screw -1- and remove support -2- .

3. Push out plug -3- .

4. Disconnect water drip pan -4- at the bottom from water drain tube -arrow A- and remove upwards

-arrow B-

 .

Removing water channel

Installation Location:

Installation position of water drip pan

ATTENTION

Danger of injury! Sharp-edge burrs on body and unit parts!

Danger of injury from sharp edges on body and unit parts!

•

→ Wear protective gloves when working in the area of sharp-edged body and unit parts!

Diagnostic system: reading out fault memory and activating systems

Removing water drip pan

2203

Loosening sound absorber

1. Remove cable holder -1- ( -arrow A- ) and loosen sound absorber -2- to the side -arrow B-

.

Loosening water channel

2. Press out clamp -1- and screw off fastening nut -2- .

Removing water channel

3. Cut out water channel -1- with a knife -2- .

4. Remove residual adhesive -3- and clean sealing surface.

Diagnostic system: reading out fault memory and activating systems

Removing water channel

2204
