Porshe 911 (997). Manual - part 503

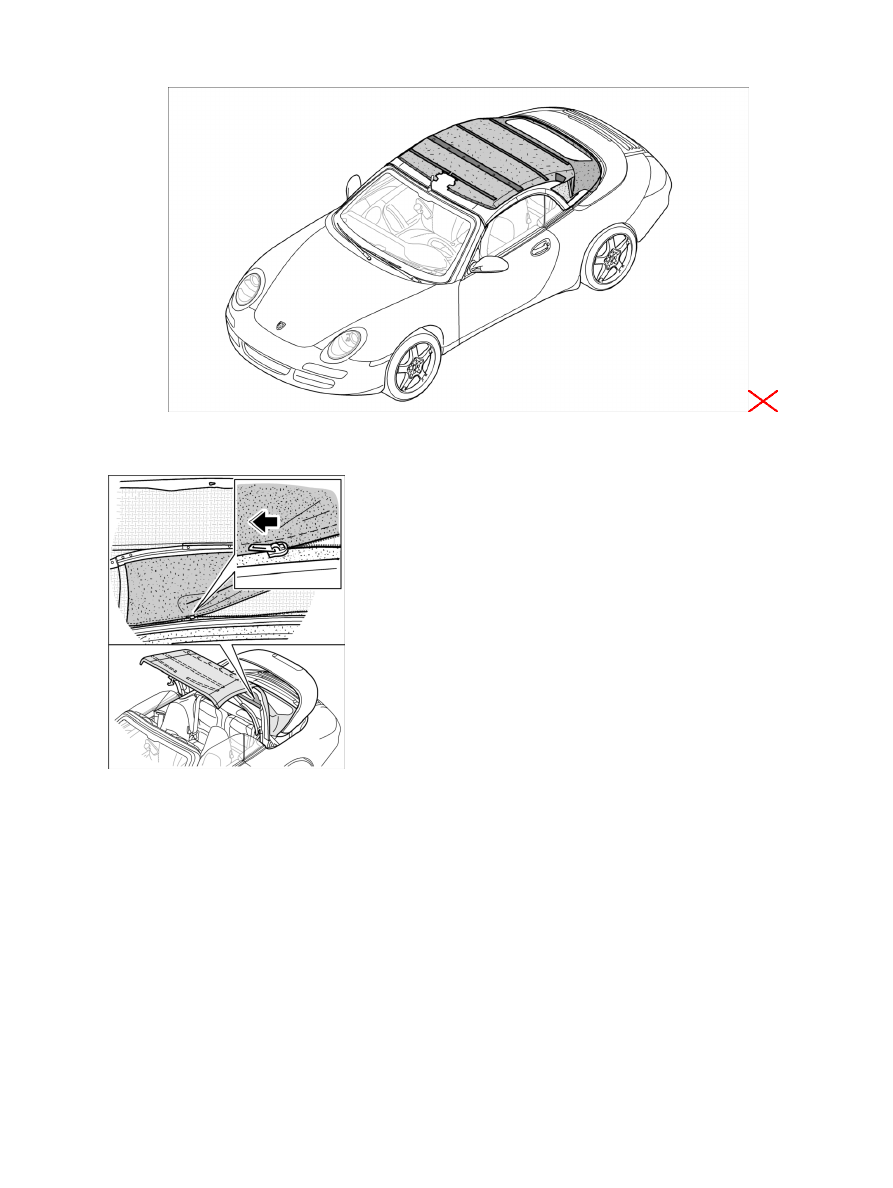

Installation position of convertible-top inner lining

1. Open Velcro fastener of convertible-top inner lining on left and right.

Separating inner lining from convertible top covering

2. Separate rear inner lining from convertible-top covering by opening the zip fastener zip.

Diagnostic system: reading out fault memory and activating systems

Removing inner lining of convertible top at rear

2169

Release snap fastener

3. Release snap fastener.

Loosening bracing strap.

4. Unscrew fastening screw -1- left and right from bracing strap -2- and rear of convertible-top inner lining

-3-

 .

Diagnostic system: reading out fault memory and activating systems

Removing inner lining of convertible top at rear

2170

Removing brace

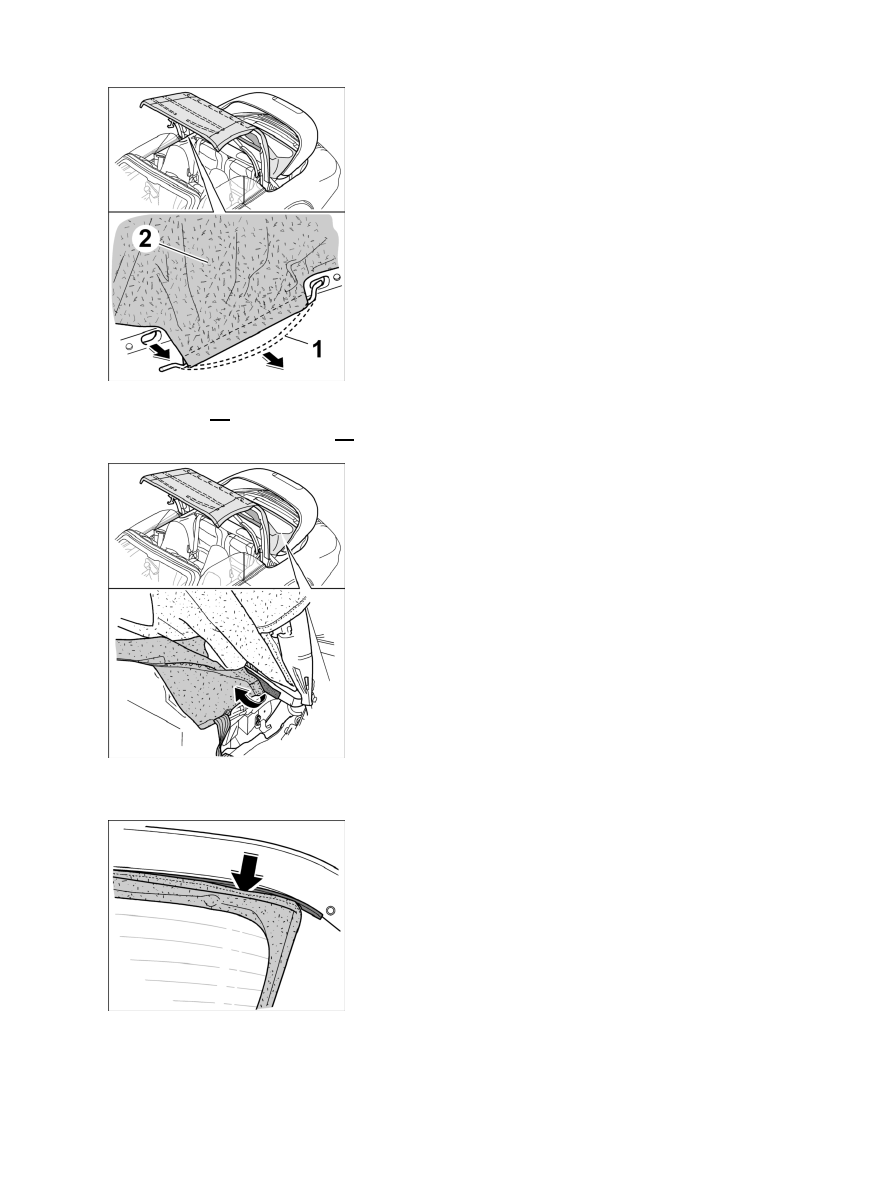

5. Bend brace -1- and remove to the front out of the tension bow. Remove brace from fabric pocket

of convertible-top inner lining -2- .

Opening Velcro fastener

6. Open Velcro fastener of tension bow.

Loosening connection on tension bow

7. Press connection out of groove on tension bow.

Diagnostic system: reading out fault memory and activating systems

Removing inner lining of convertible top at rear

2171

Loosening connection at rear window

8. Carefully pull connection out of groove at rear window.

Removing convertible-top inner lining at sides

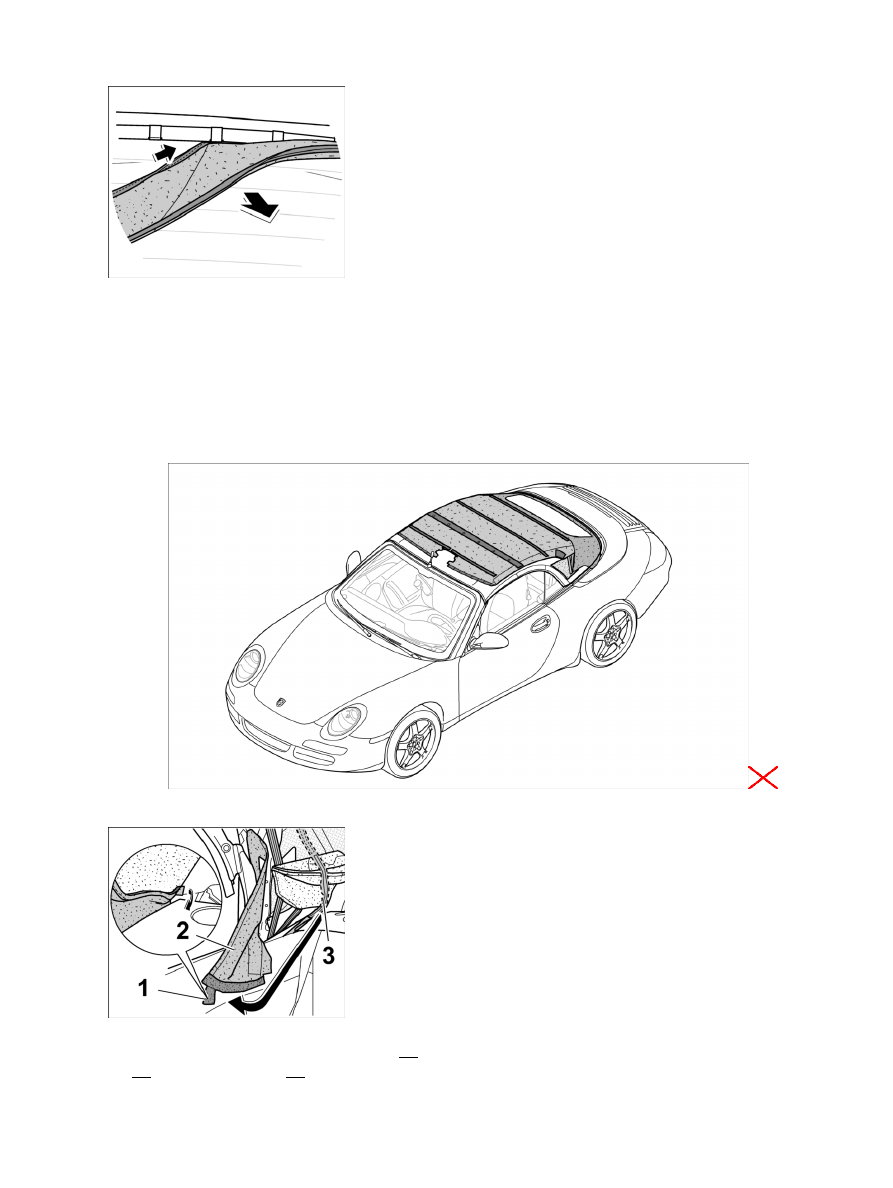

Installation Location:

Installation position of convertible-top inner lining

Loosening Velcro fastener

1. Separate the Velcro fastener connection -1- between the sides of the convertible-top inner lining

-2-

 and the corner bow -3- .

Diagnostic system: reading out fault memory and activating systems

Removing convertible-top inner lining at sides

2172
