Porshe 911 (997). Manual - part 504

Removing convertible-top inner lining at sides

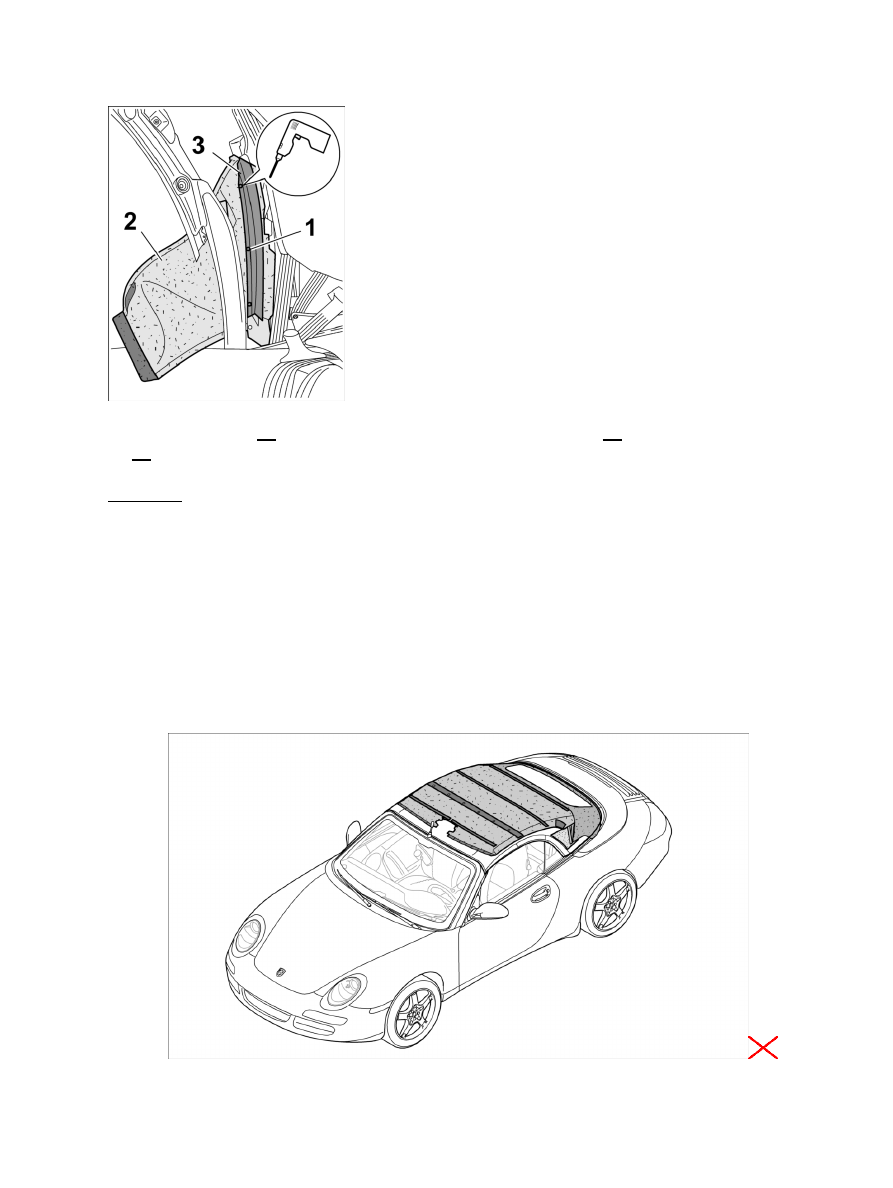

2. Drill out the rivets -1- Remove convertible-top inner lining at the sides -2- and the plastic insert

-3-

 .

Installing convertible-top inner lining

Installing convertible-top inner lining at front

Installation Location:

Installation position of convertible-top inner lining

Diagnostic system: reading out fault memory and activating systems

 Installing convertible-top inner lining

2173

Installing corner bow connection

1. Insert convertible-top inner lining connection -1- into the front groove of the corner bow and

centralise. Insert connecting strip -2- into the rear groove.

Pulling in bracing strap

2. Pull the bracing strap -1- into the plastic connection of the convertible-top inner lining -2- .

Closing Velcro fastener

3. Press Velcro fastener of convertible-top inner lining onto the

corner bow.

Diagnostic system: reading out fault memory and activating systems

Installing convertible-top inner lining at front

2174

Installing bracing straps

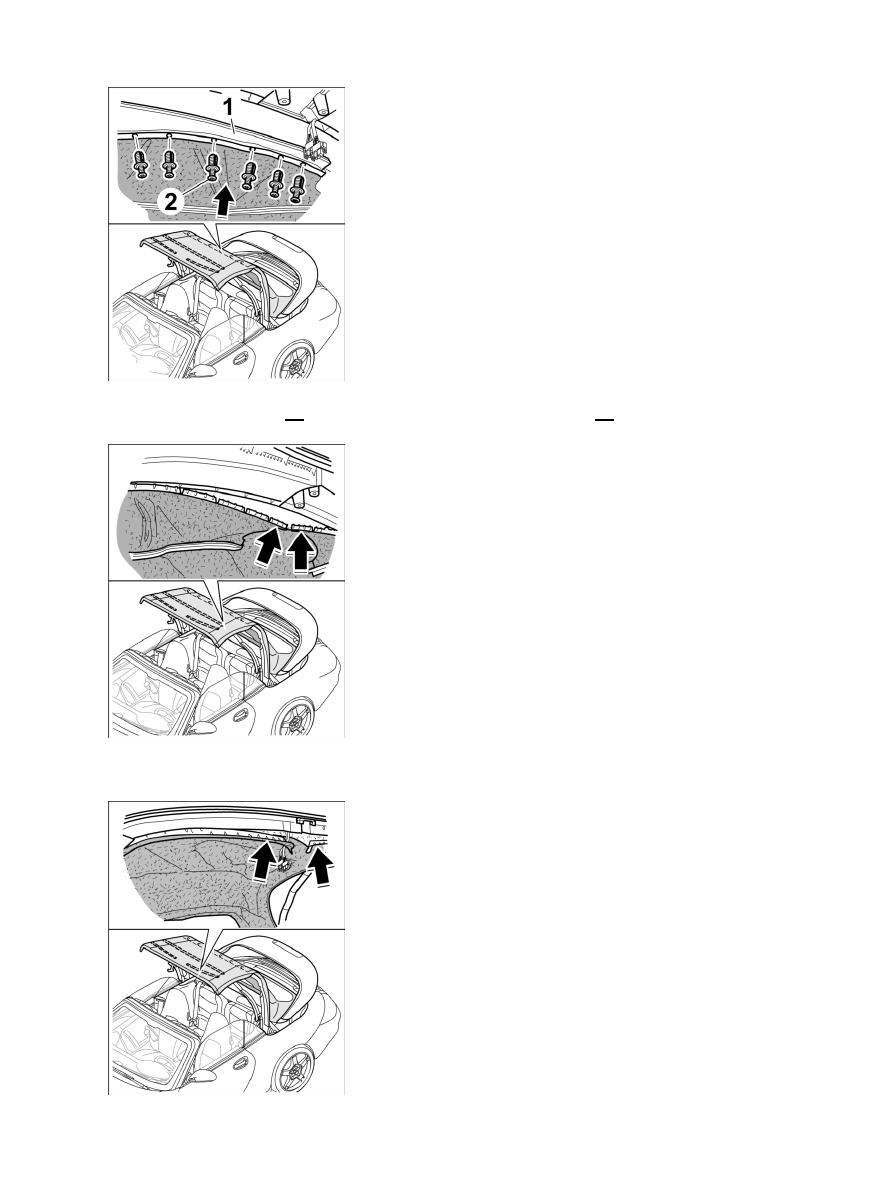

4. Position bracing strap -2- under the bracing strap -1- . Follow the sequence as shown in the illustrated.

Tighten fastening screw -3- with the bracing straps on the main folding top bow.

5. Close Velcro fastener of convertible-top inner lining on left and right sides.

Fitting clamping rail to main folding top bow

6. Fit clamping rail connection -1- to the main folding top bow. Tighten the connection on the left and right

with -2- .

Diagnostic system: reading out fault memory and activating systems

Installing convertible-top inner lining at front

2175

Fit connection of convertible-top inner lining to roof frame

7. Position covering strip -1- on roof frame 2 and press in expander nuts -2- .

Fitting clamping rail at rear

8. Fit sewn-on clamping rail of convertible-top inner lining at rear left and right of roof frame 1.

Diagnostic system: reading out fault memory and activating systems

Installing convertible-top inner lining at front

2176
