Snowmobile Arctic Cat (2008 year). Manual - part 111





7-4

ADJUSTING FRONT SHOCKS
(Fox Air Shocks)

The air shocks are individually adjustable for the terrain

conditions and driving style of the operator. The ski

shocks are initially preset at 4.6 kg/cm

(65 psi) on the

Crossfire Sno Pro/F-Series Sno Pro and 4.2 kg/cm

(60

psi) on the M-Series Sno Pro. The rear arm shock on the

M-Series Sno Pro is preset at 9.8 kg/cm

2

 (140 psi).

However, it is possible to “fine tune” the shocks to

match the operator’s weight, riding style, and terrain

conditions.

„NOTE: Care should be taken to have equal pres-
sure in the shocks before operating the snowmo-
bile.

To increase or decrease air pressure, use the following

procedure.

„NOTE: Adding air pressure will increase the air
spring force; reducing air pressure will decrease
air spring force.

1. Remove the air valve cap from the shock.

2. Thread the valve of Air Shock Pump onto the

shock air valve approximately six rotations.

„NOTE: As the pump is being attached to the
shock, the hose will fill with air. This will result in a
lower gauge pressure 0.14-3.52 kg/cm

2

 (2-5 psi).

3. To decrease air pressure in the shock, press the

black bleed valve button half way down and hold

until desired pressure is attained.

„NOTE: Pressing the button fully down and
releasing it will allow only a small amount of air to
escape (micro-adjust).

4. To increase air pressure in the shock, pump until

desired pressure is attained.

5. Remove the pump valve from the shock air valve.

„NOTE: As the pump valve is being removed
from the shock, the sound of air loss is from the
pump hose, not from the shock.

6. Install the air valve cap onto the shock.

FRONT ARM SPRING TENSION
TOO STIFF

1. Slows machine down in loose snow.

2. Causes the snowmobile to dart and dive as a result

of less track on the ground on deceleration.

„NOTE: A tight front arm works well under only
two conditions: sticky snow conditions in the
spring of the year and in hill climbing on hard
packed snow.

With the front arm adjusted too soft, the spring may

come off the roller.

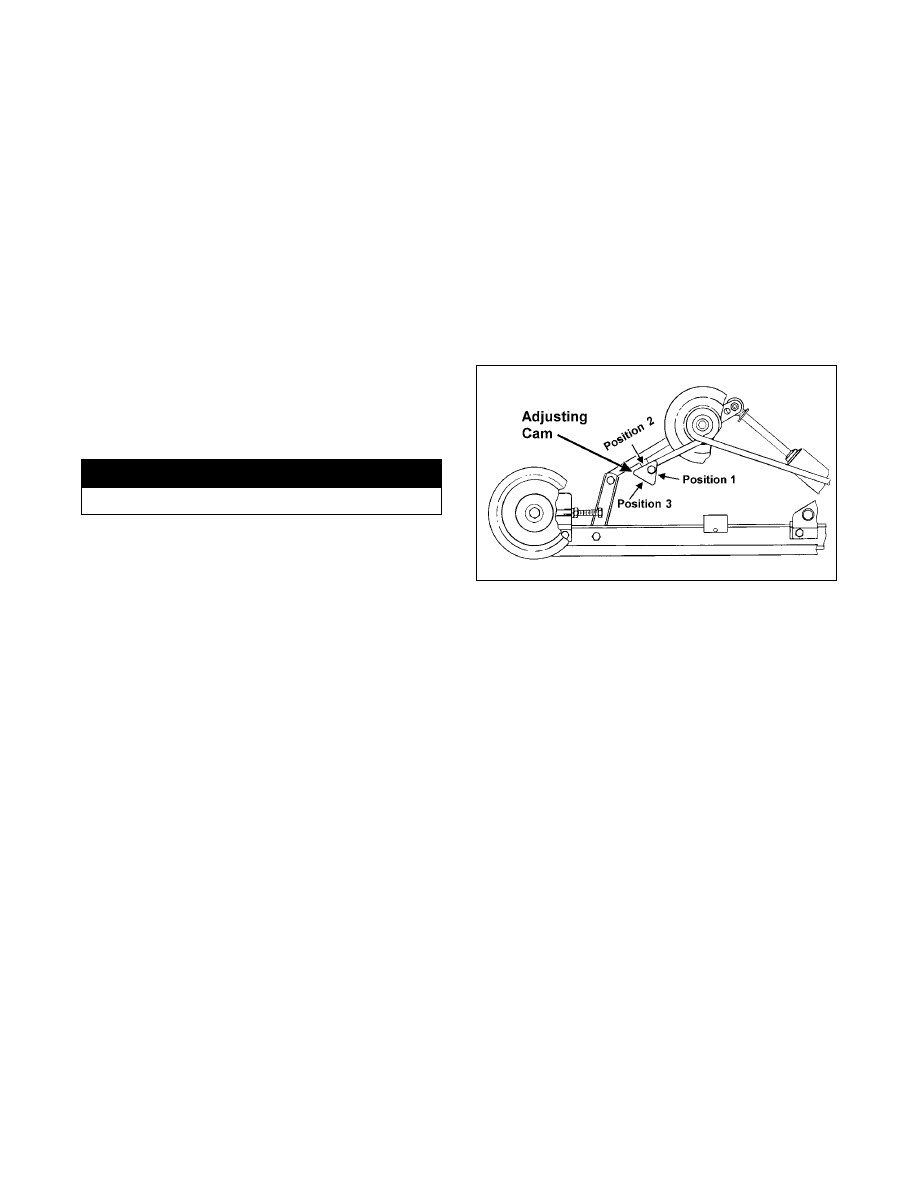

REAR ARM SPRING TENSION

The rear spring tension is adjusted for the weight of

the driver. There are three possible adjustments.

1st block position - set for up to 150 lb

2nd block position - set for 150 to 200 lb

3rd block position - set for over 200 lb

727-720A

„NOTE: When making any changes to the front
or rear suspension, the change should be made at
both ends to keep the suspension balanced. For
example, installing stiffer springs in front may
require installing the next step stiffer spring in
back to keep everything in balance.

ADJUSTING REAR ARM COUPLER
(Groove Style)

„NOTE: The couplers are installed in the 2-
groove position at production.

The rear arm coupler provides advantages over the

standard suspension.

First, with the coupler system, ski lift under accelera-

tion is greatly reduced which provides improved han-

dling. Second, when riding through rough terrain, the

rear suspension arm receives some needed assistance

from the front arm shock and spring. This happens as

the rear arm is fully collapsed and locked up by the

coupler blocks. The front arm then starts to collapse

the shocks and spring which assist the rear springs.

The result is a smoother ride for the operator.

Each of the coupler blocks has four positions (notched

grooves on the outside surface of the block). When

changing the block position, change both to the same

groove number. To make coupler adjustment, follow

the procedure below.

! WARNING

Do not exceed 105 kg/cm

2

 (150 psi) in the shock.

7-5

7

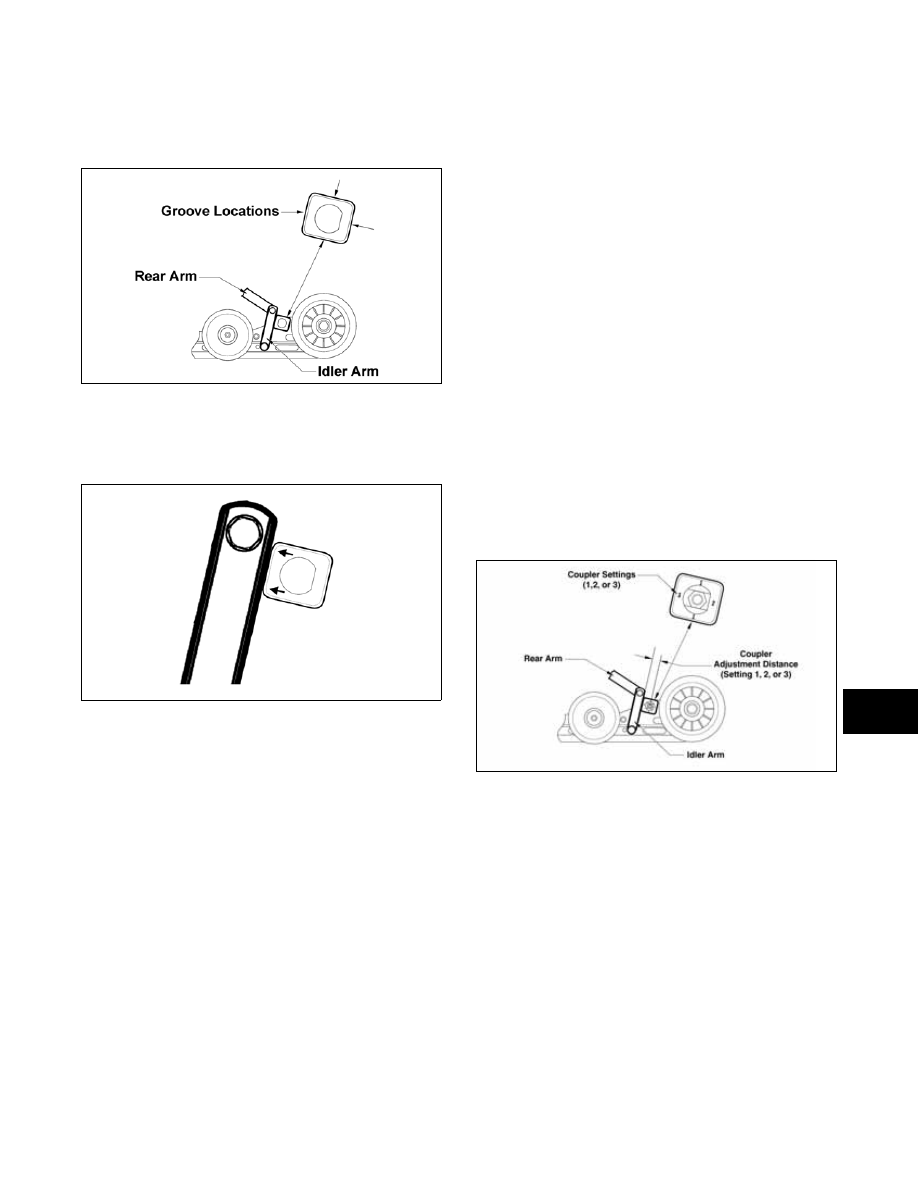

1. Using a 9/16-in. wrench, loosen the two cap

screws that secure the coupler blocks to the inside

of the suspension rails.

2. Rotate the coupler blocks to the desired position

making sure both are set the same.

738-230B

„NOTE: When setting the block, the chosen
groove position must be directed toward the idler
arm.

738-230C

3. Place a 4-in. block of wood under the rear of the

suspension just in front of the rear idler wheels.

This will assist in collapsing the suspension.

4. Collapse the rear suspension until the rear arm is

firmly against the coupler blocks. This will align

the two blocks squarely with the arm. While in this

position, tighten the two cap screws securing the

blocks.

ADJUSTING REAR ARM COUPLER
(Number Style)

The rear arm coupler provides advantages over the

standard suspension.

First, with the coupler system, ski lift under acceleration

is greatly reduced which provides improved handling.

Second, when riding through rough terrain, the rear sus-

pension arm receives some needed assistance from the

front arm shock and spring. This happens as the rear

arm is fully collapsed and locked up by the coupler

blocks. The front arm then starts to collapse the shocks

and spring which assist the rear springs. The result is a

smoother ride for the operator.

If additional coupler action is desired, the coupler

blocks can be set to the number 2 or 3 position. Each

of the coupler blocks has three positions numbered on

the inside surface of the block. When changing the

block position, change both to the same number. To

make the coupler adjustment, follow the procedure

below.

1. Using an 8 mm Allen-wrench, loosen the two cap

screws that secure the coupler blocks to the inside

of the suspension rails.

2. Rotate the coupler blocks to the desired position

making sure both are set the same.

738-230A

3. Place a 4-in. block of wood under the rear of the

suspension just in front of the rear idler wheels.

This will assist in collapsing the suspension.

4. Collapse the rear suspension until the rear arm is

firmly against the coupler blocks. This will align

the two blocks squarely with the arm. While in this

position, tighten the two cap screws securely.

7-6

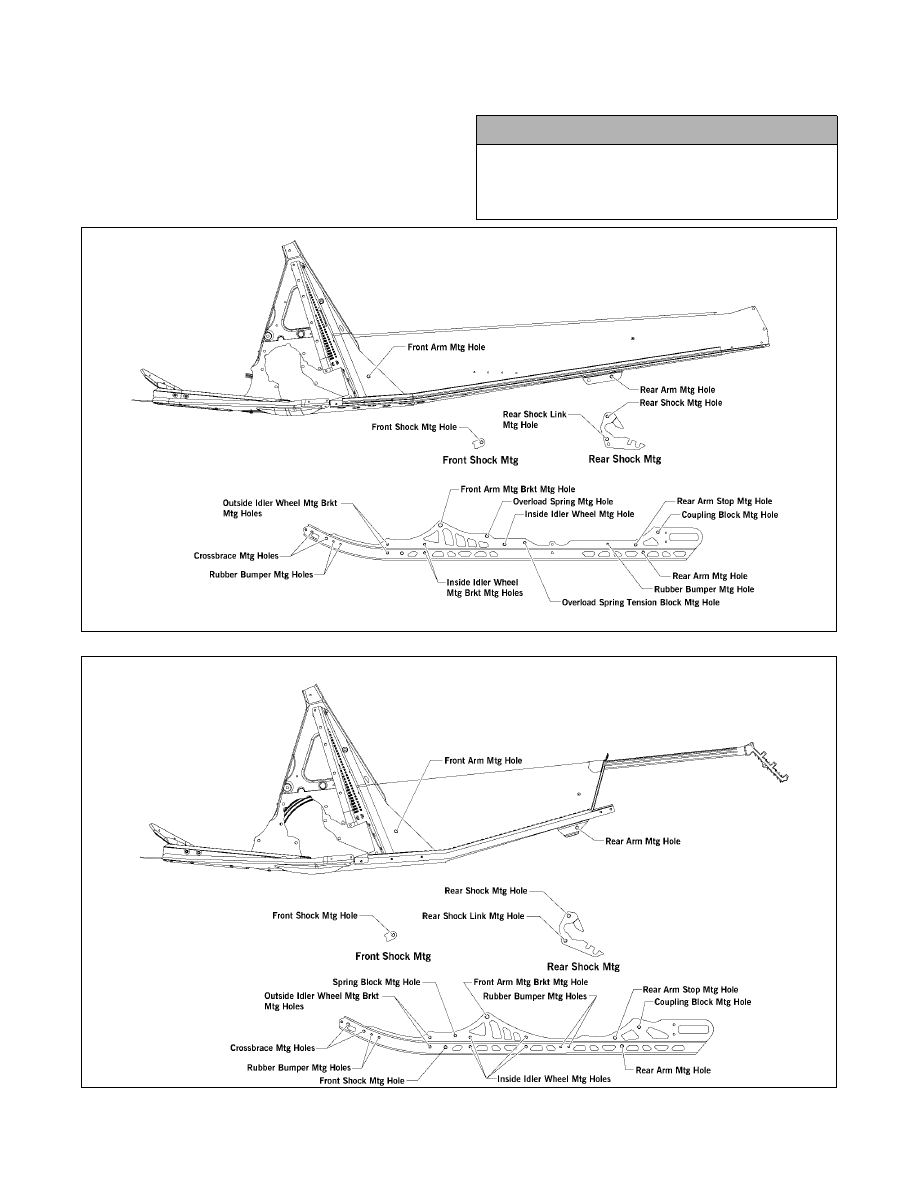

Chassis and Skid Frame Mounting Locations

The suspensions have several possible mounting loca-

tions in the slide rails and tunnel. However, it is rec-

ommended by Arctic Cat Inc. that when disassembling

and assembling the suspension, all stock mounting

locations be used as shown in the following illustra-

tions.

0742-845

0742-846

! CAUTION

It is extremely important that all stock mounting
locations be used. If any alterations to the skid
frame are made, shock absorber and suspension
damage may occur.

T-Series Models

F-Series Models

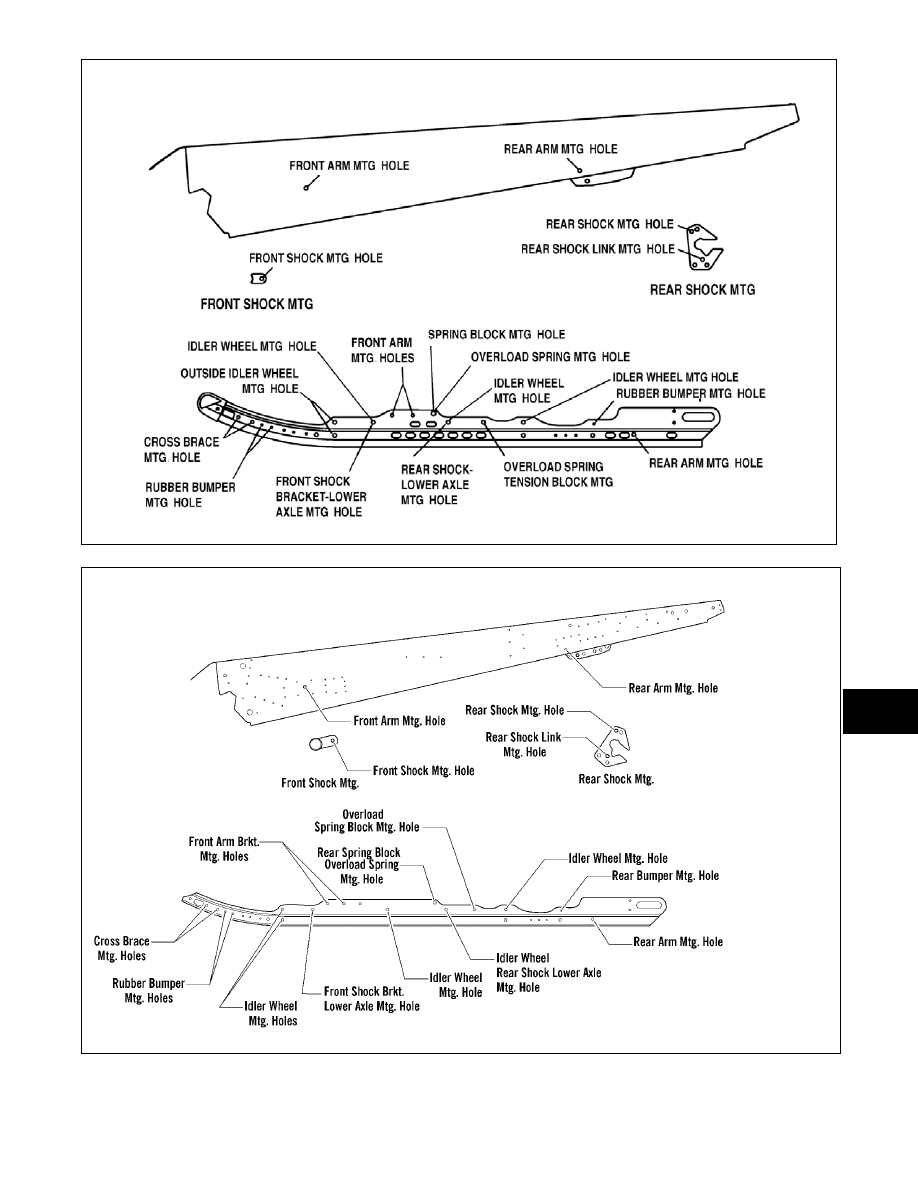

7-7

7

735-315A

0739-989

Panther 370

Bearcat 570
