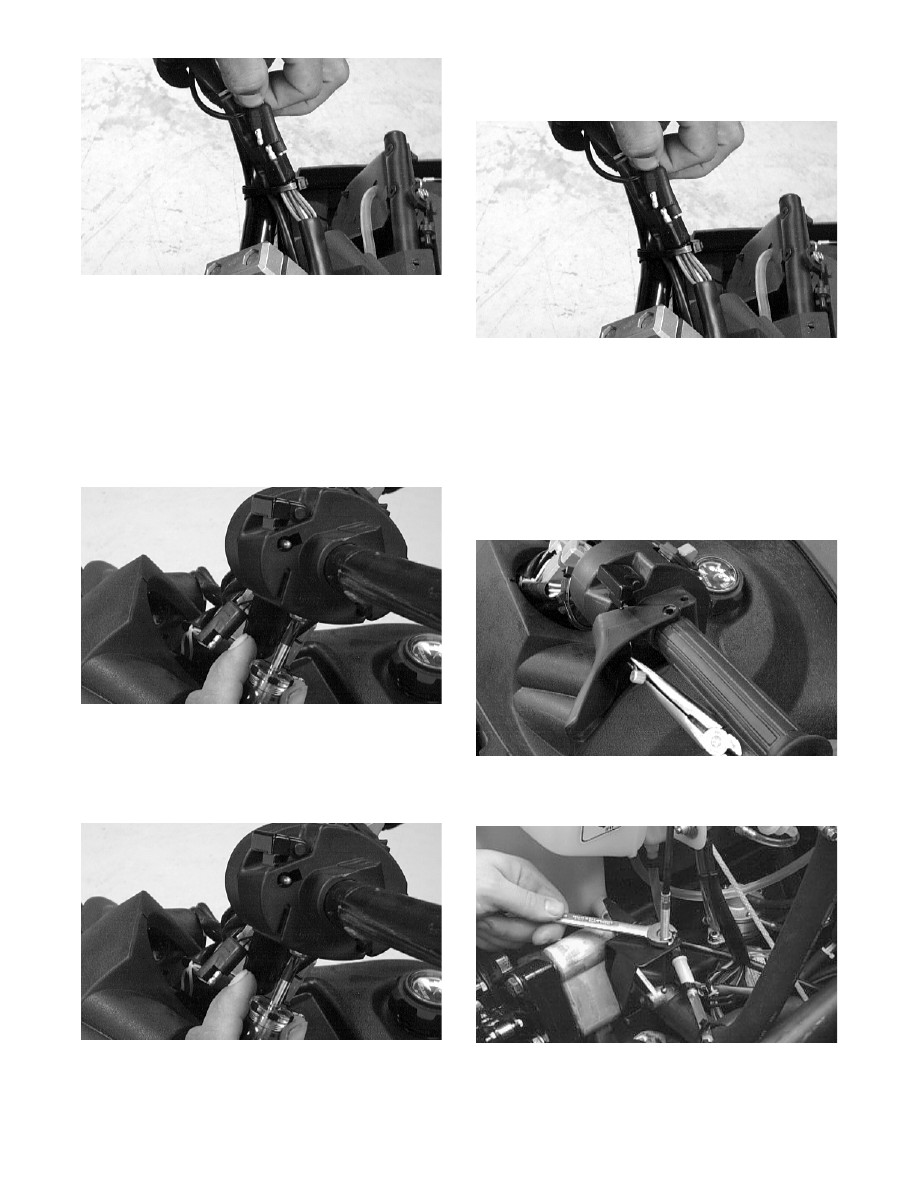

8. Cut the cable ties holding the wiring harnesses and
cables to the steering post noting their locations
for installing purposes.
9. Using a sharp knife, cut the grip off the handlebar;
then using a solvent, clean adhesive from the han-
dlebar.
10. Remove the machine screw securing the brake
control to the handlebar; then slide the brake con-
trol off the handlebar.
AL143D
ASSEMBLING AND INSTALLING
1. Slide the brake control onto the handlebar and
secure with the machine screw.
AL143D
2. Connect the wiring harness at the console.
3. Connect the brake control wiring harness to the
main wiring harness; then secure the harnesses
with cable ties.
AL141D
4. Place the console into position and secure with
four screws making sure all wiring harnesses are
positioned under the console.
NOTE: Secure wiring harnesses and cables to
the steering post with cable ties as noted in remov-
ing.

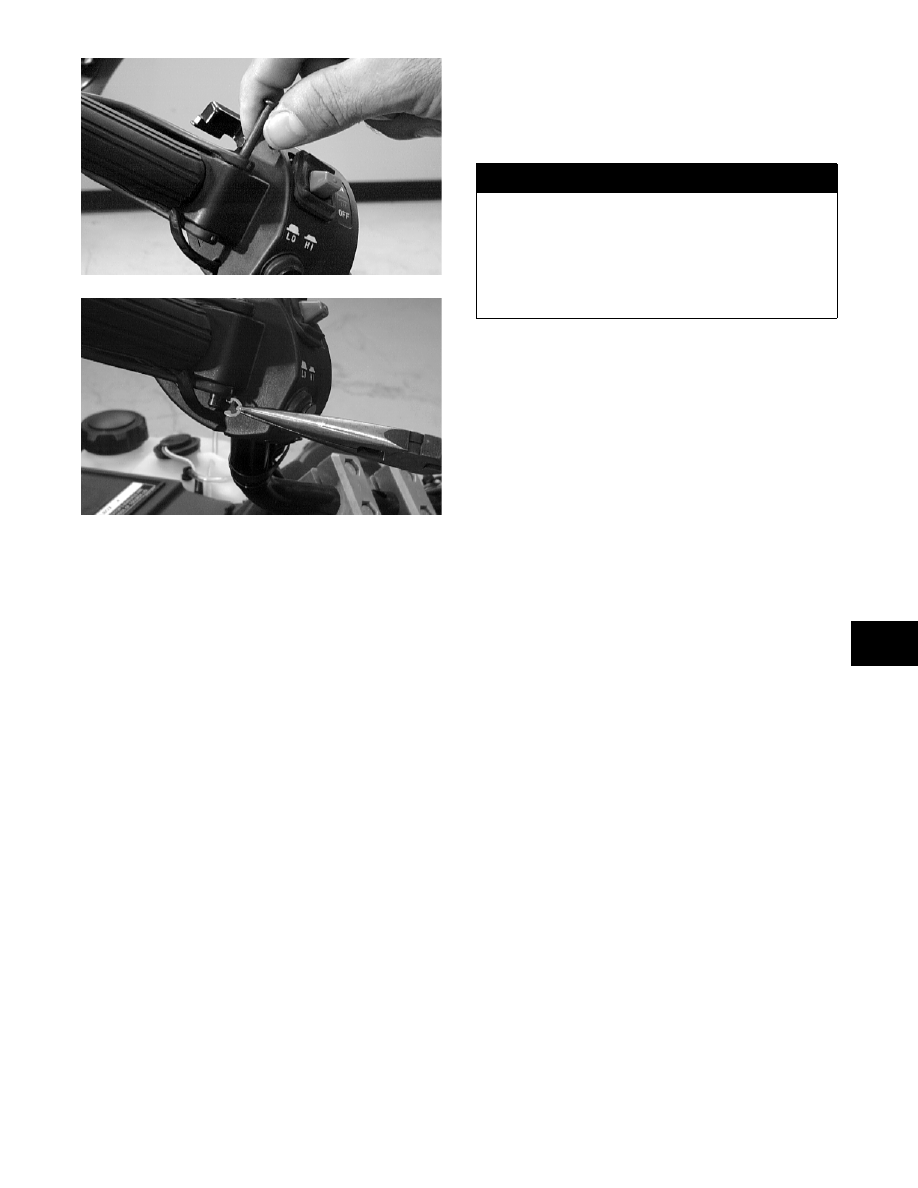

5. Connect the end of the brake cable to the seat of
the brake lever.
AL140D
6. Secure the brake cable to the bracket by tightening
the jam nut.
AF462D
7. Secure the brake lever with the pin, washer, and
retaining ring.
