02 Locks and alarm

Locks

on removing the key blade from the remote
key.

Insert the key blade in the glove compart-
ment lock.

Turn the key blade 90 degrees clockwise.

Remove the key blade from the lock.

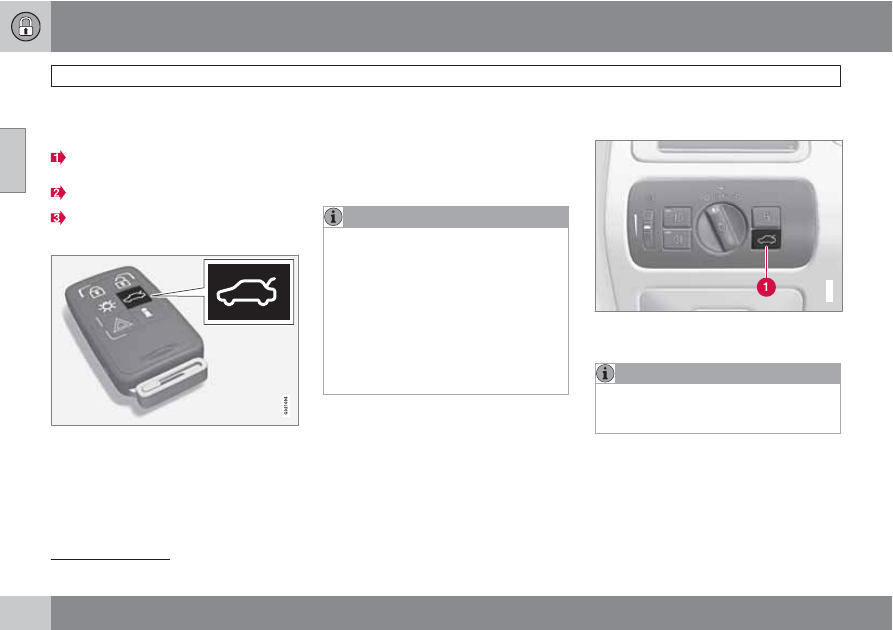

Locking/unlocking the tailgate

Tailgate unlock button on the remote key

Unlocking the tailgate with the remote
key

Press the tailgate unlock button on the
remote key to unlock (but not open

) the

tailgate. See also page 54.

> The alarm indicator light on the dash-

board will go out to indicate that the
alarm is not monitoring the entire vehi-
cle. The accessory movement and incli-
nation sensors will be automatically dis-
connected.

NOTE

•

If the doors are locked while the tailgate
is open, the tailgate will remain
unlocked until the vehicle is relocked by
pressing the Lock button on the remote
key.

•

On keyless drive vehicles, the gear
selector must be in the Park (P) position,
all doors and the tailgate must be
closed and the ignition must be
switched off before the vehicle can be
locked.

Locking the tailgate with the remote key

Press the lock button on the remote. See
also page 54.

Unlocking the tailgate from the
passenger compartment

G022853

Press the button on the lighting panel (1) to
unlock (but not open

) the tailgate.

NOTE

The taillights will illuminate automatically for
a short period when the tailgate has been
opened.

This button also opens, but does not close, the tailgate on models equipped with the optional power tailgate (see page 200).

02 Locks and alarm

Alarm

The alarm system

The alarm is automatically armed whenever the
vehicle is locked with the remote key or
optional Personal Car Communicator.

When armed, the alarm continuously monitors
a number of points on the vehicle. The follow-
ing conditions will trigger the alarm:

•

The hood is forced open.

•

The tailgate is forced open.

•

A door is forced open.

•

The ignition slot is tampered with.

•

An attempt is made to start the vehicle with
a non-approved key (a key not coded to
the car's ignition).

•

If there is movement in the passenger com-
partment (if the vehicle is equipped with
the accessory movement sensor).

•

The vehicle is lifted or towed (if the vehicle
is equipped with the accessory inclination
sensor).

•

The battery is disconnected (while the
alarm is armed).

•

The siren is disconnected when the alarm
is disarmed.

A message will appear in the information dis-
play if a fault should occur in the alarm system.
Contact an authorized Volvo service techni-
cian.

NOTE

Do not attempt to repair any of the compo-
nents in the alarm system yourself. This
could affect the insurance policy on the
vehicle.

The alarm indicator light

The status of the alarm system is indicated by
the indicator light on the dashboard (see illus-
tration):

•

Indicator light off – the alarm is not armed

•

The indicator light flashes at one-second
intervals – the alarm is armed

•

The indicator light flashes rapidly before
the remote key is inserted in the ignition
slot – the alarm has been triggered.

Arming the alarm

Press the Lock button on the remote key.
One long flash of the turn signals will con-
firm that the alarm is armed.

Alarm confirmation settings can be changed
under

Car settings

Lock settings

Keyless entry

. See page 120 for a description

of the menu system.

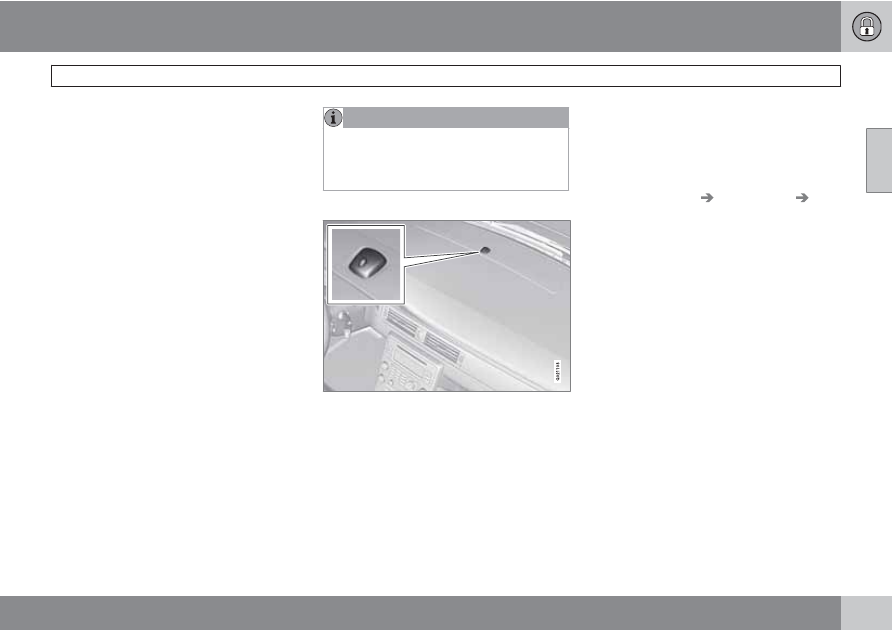

USA FCC ID: MAYDA 5823(3)

This device complies with part 15 of the FCC
rules. Operation is subject to the following con-
ditions: (1) This device may not cause harmful
interference, and (2) this device must accept
any interference received, including interfer-
ence that may cause undesired operation.

Canada IC: 4405A-DA 5823(3)

Movement sensor DA5823 by Dynex Operation
is subject to the following conditions: (1) this
device may not cause interference, and (2) this
device must accept any interference, including
interference that may cause undesired opera-
tion of the device.

02 Locks and alarm

Alarm

Disarming the alarm

Press the Unlock button on the remote key.

> Two short flashes from the car's direc-

tion indicators confirm that the alarm
has been deactivated and that all doors
are unlocked.

Turning off (stopping) the alarm

If the alarm is sounding, it can be stopped by
pressing the Unlock button on the remote key
or by inserting the remote key in the ignition
slot. Two short flashes from the car's direction
indicators confirm that the alarm has been
turned off.

Other alarm-related functions

Automatic re-arming

If the doors are unlocked, the locks will auto-
matically reengage (re-lock) and the alarm will
re-arm after 2 minutes unless a door or the tail-
gate has been opened.

Audible/visual alarm signal

•

An audible alarm signal is given by a bat-
tery powered siren. The alarm cycle lasts
for 30 seconds.

•

The visual alarm signal is given by flashing
all turn signals for approximately 5 minutes
or until the alarm is turned off.

Remote key not functioning

If the remote key is not functioning properly,
the alarm can be turned off and the vehicle can
be started as follows:

Open the driver's door with the key blade.

> This will trigger the alarm.

Insert the remote key into the ignition slot.
This will turn off the alarm.

Reduced alarm function

Turning off the accessory alarm sensors

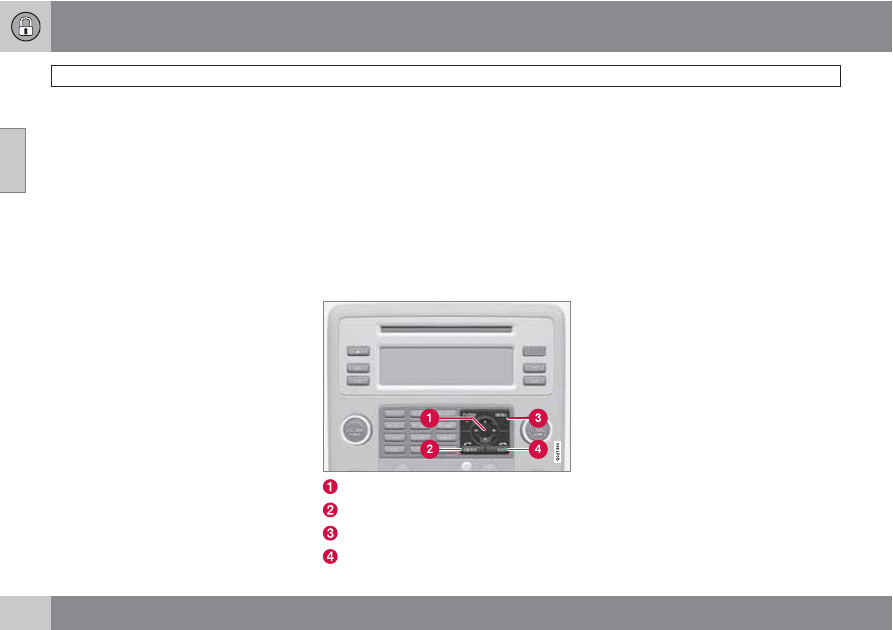

Navigation (left/rght/up/down) buttons

ENTER

MENU

EXIT

In certain situations it may be desirable to turn
off the accessory inclination and movement
alarm sensors if, for example, you drive your
vehicle onto a ferry where the rocking of the
boat could trigger the alarm or if a pet is left in
the vehicle with the doors locked.

The vehicle's menu system is used for turning
off these sensors (see page 120 for a descrip-
tion of the menu system).

Go into the menu under

Car settings

Select

Reduced guard

(Press Enter to

choose).

Two alternatives are now available:

•

Activate once

. If this alternative is

selected,

Reduced guard–see

manual

will appear in the instrument

panel display and the accessory incli-
nation and movement alarm sensors will
be deactivated when the vehicle is
locked.

•

Ask on exit

. If this alternative is

selected, the message

Press ENTER

to reduce guard until engine is
started—Press EXIT to cancel

will

appear in the center console display
each time the engine is turned off and
the accessory inclination and move-
ment alarm sensors will be deactivated
when the vehicle is locked.

02 Locks and alarm

Alarm

Press ENTER and lock the vehicle.

The next time the engine is started, the alarm
system will be reset and

Full guard

will appear

in the instrument panel display. The accessory
inclination and movement alarm sensors will be
reactivated.

In either of the alternatives, if you prefer not to
deactivate the accessory inclination and move-
ment alarm sensors, do not make a choice in
the menu or press EXIT and lock the vehicle.

Y O U R D R I V I N G E N V I R O N M E N T

03 Your driving environment

Instruments and controls

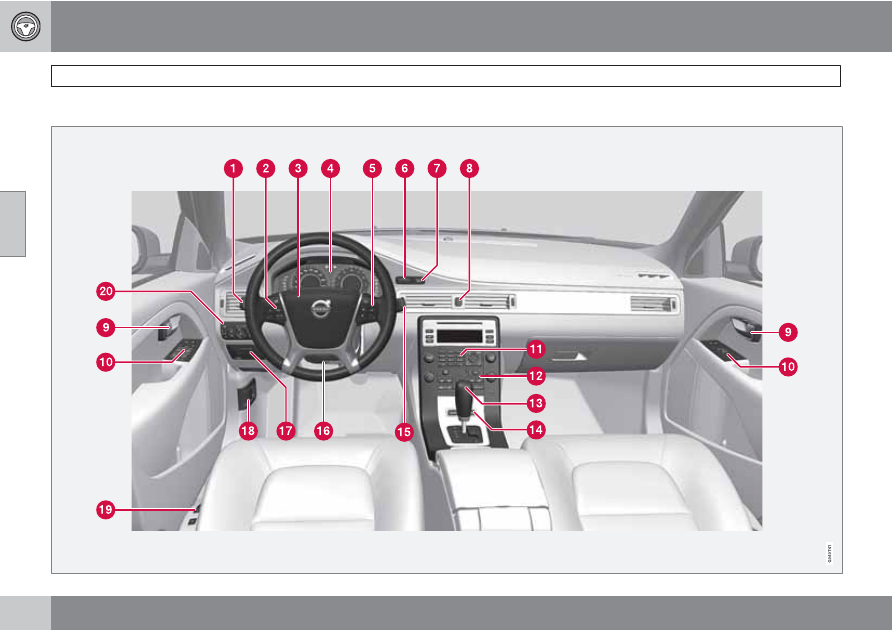

Instrument overview

03 Your driving environment

Instruments and controls

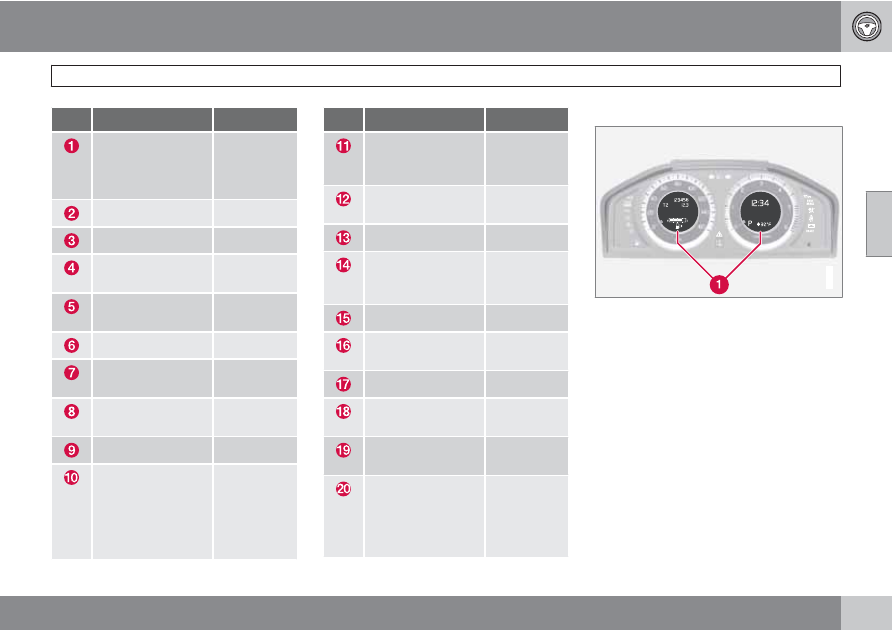

Option/accessory, for more information, see Introduction.

Function

Page

Menus and mes-
sages, turn signals,
high/low beams,
trip computer

120, 88,
85, 151

Cruise control

157

Horn, airbag

84, 20

Main instrument
panel

Menu system, audio
controls

131

Ignition slot

START/STOP
ENGINE button

Hazard warning
flashers

Door handle

–

In-door control pan-
els (power win-
dows, mirrors,
power child safety
locks, central lock-
ing button)

94, 96,
49, 63

Function

Page

Menu controls,
audio and climate
control systems

120, 132,
126

Center console but-
tons

120

Gear selector

107

Controls for active
chassis (Four-C) -
certain models only

156

Wipers and washers

91, 92

Steering wheel
adjustment

Parking brake

114

Hood opening con-
trol

217

Power seat* adjust-
ment controls

Lighting panel, but-
tons for opening
fuel filler door and
unlocking the tail-
gate

85, 198,
64

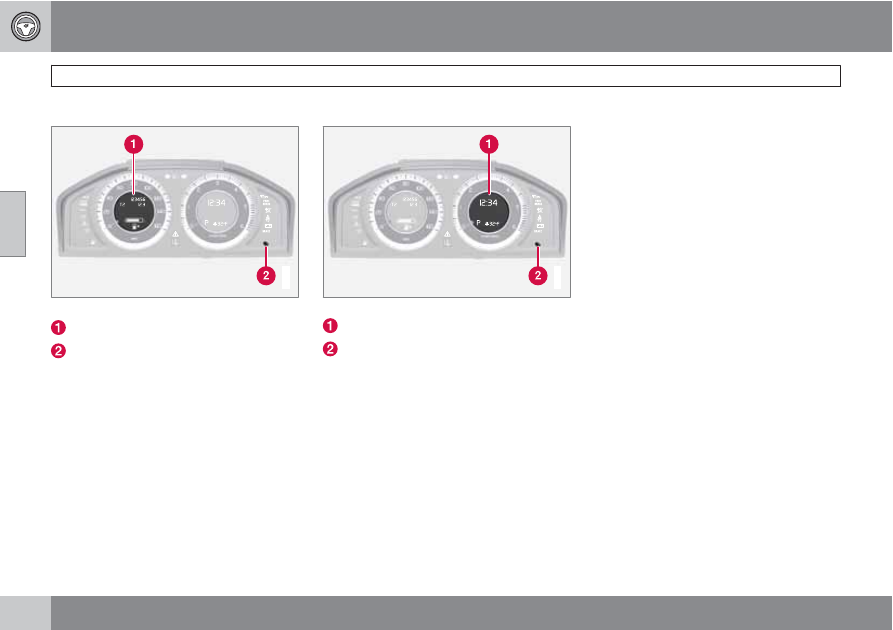

Information displays

G010604

Information displays in the instrument panel

The information displays (1) show information
on some of the vehicle's functions, such as
cruise control, the trip computer and mes-
sages. The information is shown with text and
symbols.

More detailed information can be found in the
descriptions of the functions that use the infor-
mation displays.

03 Your driving environment

Instruments and controls

Option/accessory, for more information, see Introduction.

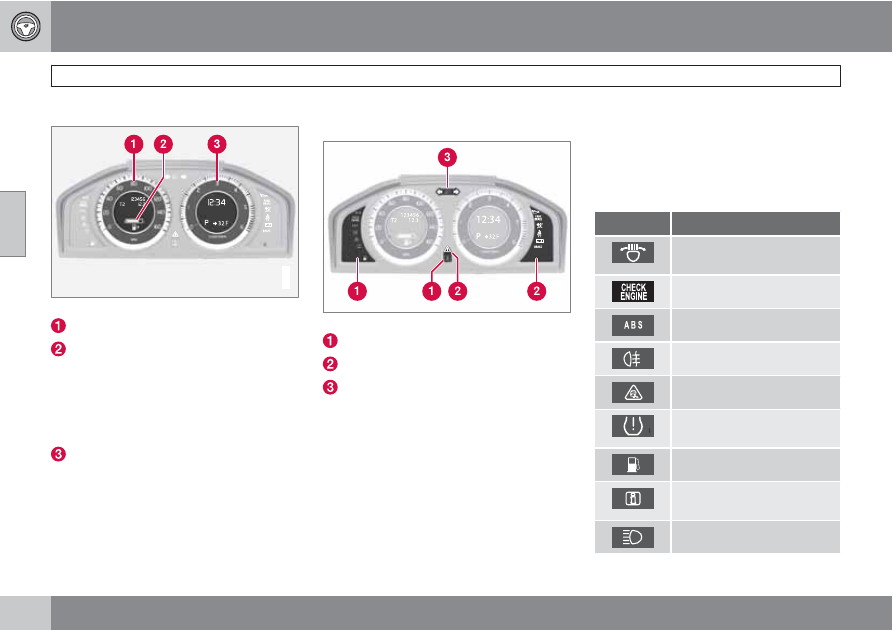

Gauges

G010605

Gauges in the instrument panel

Speedometer

Fuel gauge. Please note that the fuel level
indicator in the gauge moves from right to
left as the amount of fuel in the tank
decreases. See also the section on refuel-
ing beginning on page 196. See page
151 for more information on fuel level and
consumption.

The tachometer shows engine speed in
thousands of revolutions per minute (rpm).
Do not drive continuously with the needle
in the red area of the gauge. The engine
management system will automatically
prevent excessively high engines speeds.
This will be noticeable as a pronounced
unevenness in engine speed.

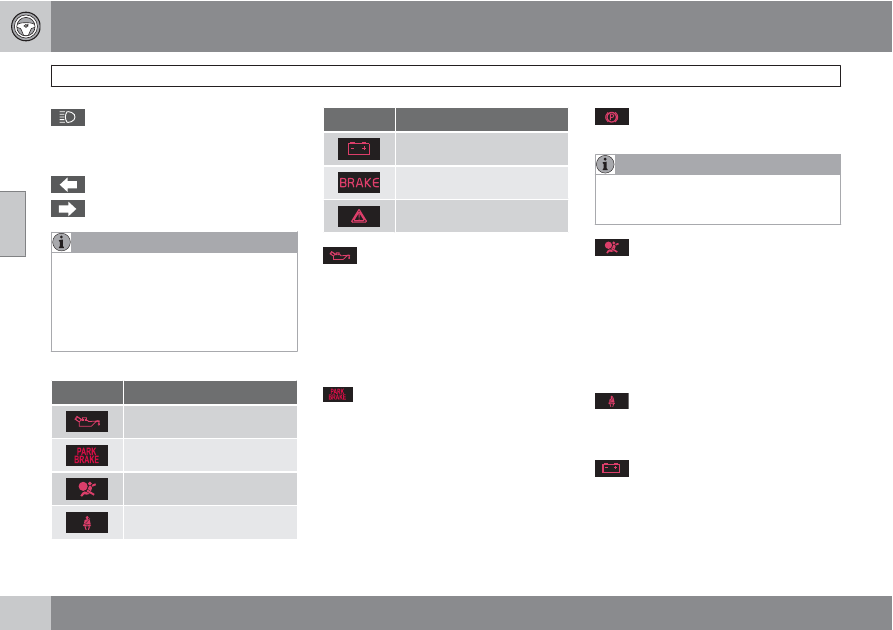

Indicator, information, and warning
symbols

G010604

Indicator and warning symbols

Indicator and information symbols

Indicator and warning symbols

High beam and turn signal indicators

Function check

All indicator and warning symbols light up in
ignition mode II or when the engine is started.
When the engine has started, all the symbols
should go out except the parking brake sym-
bol, which only goes out when the brake is dis-
engaged.

If the engine does not start or if the function
check is carried out in ignition mode II, all sym-
bols go out after 5 seconds except the symbol

for faults in the vehicle's emissions system and
the symbol for low oil pressure.

Certain symbols may not have their functions
illustrated, depending on the vehicle's equip-
ment.

Indicator and information symbols

Symbol

Description

Fault in the Active Bending
Light (ABL)*system

Malfunction indicator light

Anti-lock brake system (ABS)

Rear fog light on

Stability system

Tire pressure monitoring sen-
sor (TPMS)

Low fuel level

Information symbol, see text
in information display

High beam indicator

03 Your driving environment

Instruments and controls

Option/accessory, for more information, see Introduction.

Symbol

Description

Left turn signal indicator

Right turn signal indicator

Fault in the Active Bending Light

(ABL) system

This symbol will illuminate if the there is a fault
in the ABL system.

Malfunction Indicator Light

As you drive, a computer called On-Board
Diagnostics II (OBDII) monitors your vehicle's
engine, transmission, electrical and emission
systems.

The malfunction indicator (CHECK ENGINE)
light will illuminate if the computer senses a
condition that potentially may need correcting.
When this happens, please have your vehicle
checked by a trained and qualified Volvo serv-
ice technician as soon as possible.

A malfunction indicator (CHECK ENGINE) light
may have many causes. Sometimes, you may
not notice a change in your car's behavior.
Even so, an uncorrected condition could hurt
fuel economy, emission controls, and drivabil-
ity. Extended driving without correcting the

cause could even damage other components
in your vehicle.

This light may illuminate if the fuel filler cap is
not closed tightly or if the engine was running
while the vehicle was refueled.

Canadian models are equipped with this

symbol.

Anti-lock Brake System (ABS)

warning light

If the warning light comes on, there may be a
malfunction in the ABS system (the standard
braking system will still function). Check the
system by:

Stopping in a safe place and switching off
the ignition.

Restart the engine.

If the warning light goes off, no further
action is required.

If the warning light remains on, the vehicle
should be driven to a trained and qualified
Volvo service technician for inspection, see
page 110 for additional information.

Canadian models are equipped with this

symbol.

Rear fog light

This symbol indicates that the rear fog light
(located in the driver's side tail light cluster) is
on.

Stability system

This indicator symbol flashes when the DSTC
(Dynamic Stability and Traction Control sys-
tem) is actively working to stabilize the vehicle,
see page 154 for more detailed information.

Tire pressure monitoring system

(TPMS)*

This symbol illuminates to indicate that tire
pressure in one or more tires is low, see
page 260 for detailed information.

Low fuel level

When this light comes on, the vehicle should
be refueled as soon as possible.

Information symbol

The information symbol illuminates and a text
message is displayed if a fault is detected in
one of the vehicle's systems. The message can
be erased and the symbol can be turned off by
pressing the READ button (see page 122 for
information) or this will take place automatically
after a short time (the length of time varies,
depending on the function affected).

The information symbol may also illuminate
together with other symbols.

03 Your driving environment

Instruments and controls

High beam indicator

This symbol illuminates when the high beam
headlights are on, or if the high beam flash
function is used.

Left turn signal indicator

Right turn signal indicator

NOTE

•

Both turn signal indicators will flash
when the hazard warning flashers are
used.

•

If either of these indicators flash faster
than normal, the direction indicators are
not functioning properly.

Indicator and warning symbols

Symbol

Description

Low oil pressure

Parking brake applied

SRS airbags

Seat belt reminder

Symbol

Description

Generator not charging

Fault in the brake system

Warning symbol

Low oil pressure

If the light comes on while driving, stop the
vehicle, stop the engine immediately, and
check the engine oil level. If the oil level is nor-
mal and the light stays on after restart, have the
vehicle towed to the nearest trained and quali-
fied Volvo service technician. This is normal,
provided it goes off when the engine speed is
increased.

Parking brake applied

This symbol illuminates when the parking
brake is applied. On models equipped with the
electric parking brake, this symbol flashes
while the brake is being applied and then glows
steadily.

A flashing symbol means that a fault has been
detected. See the message in the information
display.

Canadian models are equipped with this

symbol.

NOTE

This symbol also comes on when the
mechanical parking brake is only slightly
applied.

Airbags – SRS

If this light comes on while the vehicle is being
driven, or remains on for longer than approxi-
mately 10 seconds after the vehicle has been
started, the SRS system's diagnostic functions
have detected a fault in a seat belt lock or pre-
tensioner, a front airbag, side impact airbag,
and/or an inflatable curtain. Have the system(s)
inspected by a trained and qualified Volvo
service technician as soon as possible.

Seat belt reminder

This symbol comes on for approximately 6 sec-
onds if the driver has not fastened his or her
seat belt.

Generator not charging

This symbol comes on during driving if a fault
has occurred in the electrical system. Contact
an authorized Volvo workshop.

Engine temperature

Engine overheating can result from low oil or
coolant levels, towing or hard driving at high

03 Your driving environment

Instruments and controls

heat and altitude, or mechanical malfunction.
Engine overheating will be signaled with text
and a red warning triangle in the middle of the
instrument display. The exact text will depend
on the degree of overheating. It may range
from "

HIGH ENGINE TEMP – SLOW

DOWN

" to "

HIGH ENGINE TEMP – STOP

ENGINE

." If appropriate, other messages,

such as "

COOLANT LEVEL LOW

" will also be

displayed. If your engine does overheat so that
you must stop the engine, always allow the
engine to cool before attempting to check oil
and coolant levels.

Fault in brake system

If this symbol lights, the brake fluid level may
be too low. Stop the vehicle in a safe place and
check the level in the brake fluid reservoir, see
page 220. If the level in the reservoir is below
MIN, the vehicle should be transported to an
authorized Volvo workshop to have the brake
system checked.

Canadian models are equipped with this

symbol.

If the

and

symbols come on at the

same time, there may be a fault in the brake
force distribution system.

Stop the vehicle in a safe place and turn off
the engine.

Restart the engine.

•

If both symbols extinguish, continue driv-
ing.

•

If the symbols remain on, check the level in
the brake fluid reservoir, see page 220. If
the brake fluid level is normal but the sym-
bols are still lit, the vehicle can be driven,
with great care, to an authorized Volvo
workshop to have the brake system
checked.

•

If the level in the reservoir is below MIN, the
vehicle should be transported to an author-
ized Volvo workshop to have the brake
system checked.

WARNING

•

If the fluid level is below the MIN mark
in the reservoir or if a warning message
is displayed in the text window:

NOT DRIVE

. Have the vehicle towed to

a trained and qualified Volvo service
technician and have the brake system
inspected.

•

If the ABS and Brake system lights are
on at the same time, there is a risk of
reduced vehicle stability.

Warning symbol

The red warning symbol comes on when a fault
has been indicated which could affect the
safety and/or drivability of the vehicle. An

explanatory text is shown on the information
display at the same time. The symbol remains
visible until the fault has been rectified but the
text message can be cleared with the READ
button, see page 122. The warning symbol can
also come on in conjunction with other sym-
bols.

Action:

Stop in a safe place. Do not drive the vehi-
cle further.

Read the information on the information
display. Implement the action in accord-
ance with the message in the display. Clear
the message using READ.

Reminder – doors not closed

If one of the doors, the hood or tailgate is not
closed properly, the information or warning
symbol comes on together with an explanatory
text message in the instrument panel. Stop the
vehicle in a safe place as soon as possible and
close the door, hood or tailgate.

If the vehicle is driven at a speed
lower than approximately 5 mph

(7 km/h), the information symbol comes on.

If the vehicle is driven at a speed
higher than approximately 5 mph

(7 km/h), the warning symbol comes on.

03 Your driving environment

Instruments and controls

Trip odometers

G010608

Trip odometers and reset button

Odometer display

Button for toggling between

and

and for resetting the odometer

The trip odometers are used to measure short
distances. A short press the button toggles
between the two trip odometers

and

. A

long press (more than 2 seconds) resets an
active trip odometer to zero. The distance is
shown in the display.

Clock

G010609

Clock and setting control

Display

Control for setting the clock

Turn the control clockwise/counterclockwise
to set the time. The set time is shown in the
information display.

The clock may be temporarily replaced by a
symbol in conjunction with a message, see
page 122.

03 Your driving environment

Ignition modes

Option/accessory, for more information, see Introduction.

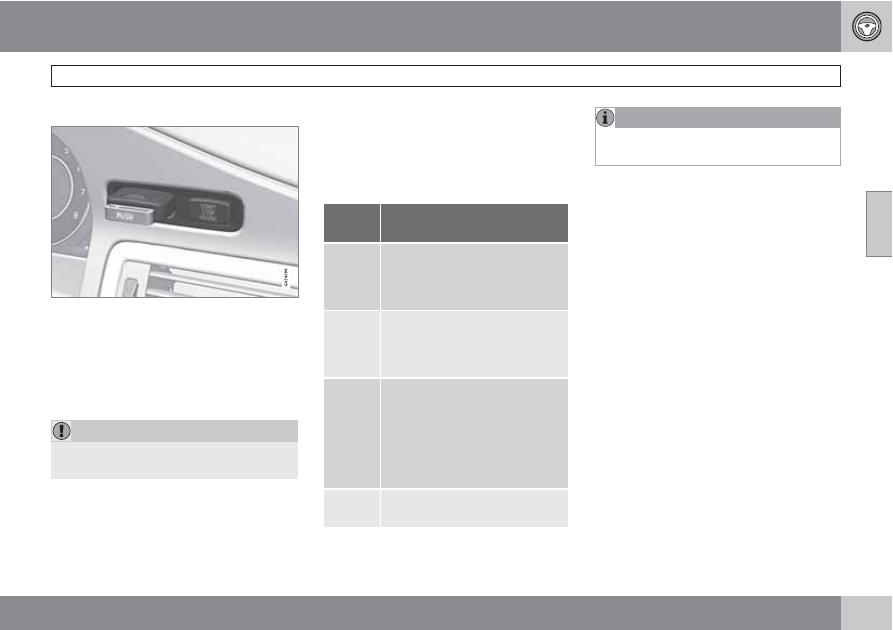

Inserting and removing the remote key

Ignition slot with remote key and

START/STOP

ENGINE button.

Inserting the remote key

Holding the end of the remote key with the
base of the key blade, insert the remote key
into the ignition slot, with the buttons facing up,
as shown in the illustration.

CAUTION

Foreign objects in the ignition slot can
impair function or damage the lock.

Removing the remote key

The remote key can be removed from the igni-
tion slot by pressing the key in lightly. It will
then be ejected slightly and can be removed

from the slot. The gear selector must be in
position P (Park).

Ignition modes

The various ignition modes are accessed with
the remote key in the ignition slot.

Posi-

tion

Function

Odometer, clock and tempera-
ture gauge are illuminated. Steer-
ing lock is deactivated. The audio
system can be used.

Moonroof*, power windows,12-
volt sockets, navigation system*,
climate system blower, ECC,
windshield wipers can be used.

The headlights come on. Warn-
ing/indicator lights come on for
5 seconds. All equipment oper-
ates apart from heated seats and
rear window defroster, which
only work when the engine is run-
ning.

III

The starter motor will operate
until the engine has started.

NOTE

The brake pedal must not be depressed
when accessing ignition modes I or II.

Ignition mode 0

Insert the remote key in the ignition slot and
press it lightly. It will be drawn into the slot.

Ignition mode I

Press the remote key into the ignition slot
and press START/STOP ENGINE.

Ignition mode II

Press the remote key into the ignition slot
and press START/STOP ENGINE for
approx. 2 seconds.

Ignition mode III (engine start)

Start the engine, see page 103.

Stopping the engine

Press START/STOP ENGINE. (If the
engine is running and the vehicle is mov-
ing, keep the button depressed until the
engine stops).

Return to ignition mode 0

Press START/STOP ENGINE to return
from I, II, or III to ignition mode 0.

03 Your driving environment

Seats

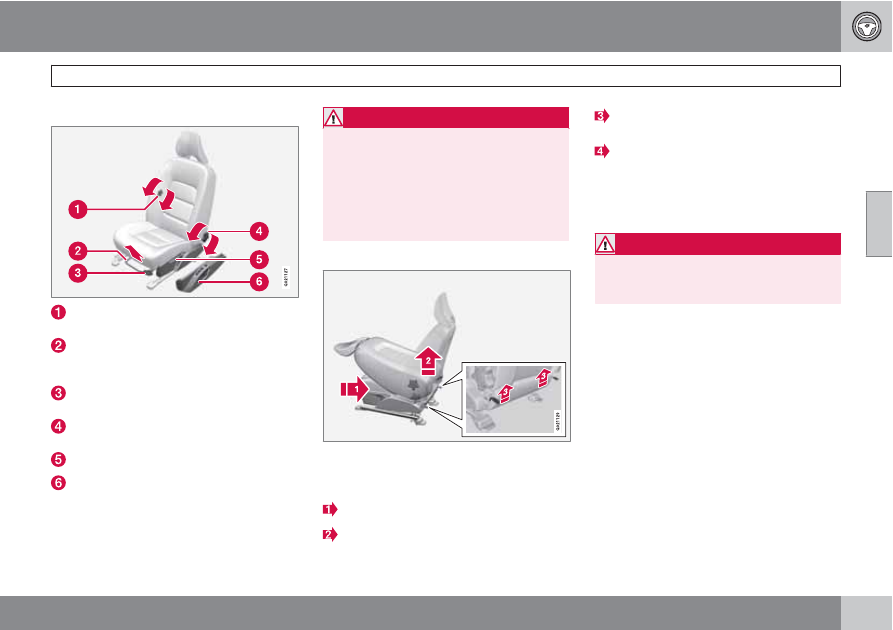

Front seats

Lumbar support: turn the control for firmer
or softer lumbar support.

Front-rear adjustment: lift the bar and
move the seat to the position of your
choice.

Raise/lower front edge of seat cushion,
pump up/down.

Backrest tilt: turn the control to adjust the
angle of the backrest.

Raise/lower the seat, pump up/down.

Control panel for power seat.

WARNING

•

Do not adjust the seat while driving. The
seat should be adjusted so that the
brake pedal can be depressed fully. In
addition, position the seat as far rear-
ward as comfort and control allow.

•

Check that the seat is securely locked
into position after adjusting.

Folding the front seat backrest

The front passenger seat backrest can be
folded to a horizontal position to make room for
a long load. Fold the backrest as follows:

Move the seat as far back as possible.

Adjust the backrest to an upright position.

Lift the catches (3 in the inset illustration)
on the rear of the backrest.

Without releasing the catches, push the
backrest forward.

Move the seat as far forward as possible
so that the head restraint slides under the
glove compartment.

WARNING

Cover sharp edges on the load to help pre-
vent injury to occupants. Secure the load to
help prevent shifting during sudden stops.

Operation

The seats can be adjusted for a short period
after unlocking the door with the remote con-
trol without the key in the ignition slot. Seat
adjustment is normally made when the ignition
is on and can always be made when the engine
is running.

03 Your driving environment

Seats

Option/accessory, for more information, see Introduction.

NOTE

•

Only one of the power seat's controls
can be used at the same time.

•

The power seats have an overload pro-
tector that activates if a seat is blocked
by any object. If this occurs, switch off
the ignition (key in position 0) and wait
for a short period before operating the
seat again.

Seat with memory function*

Stored seat position

Memory button

Programming the memory

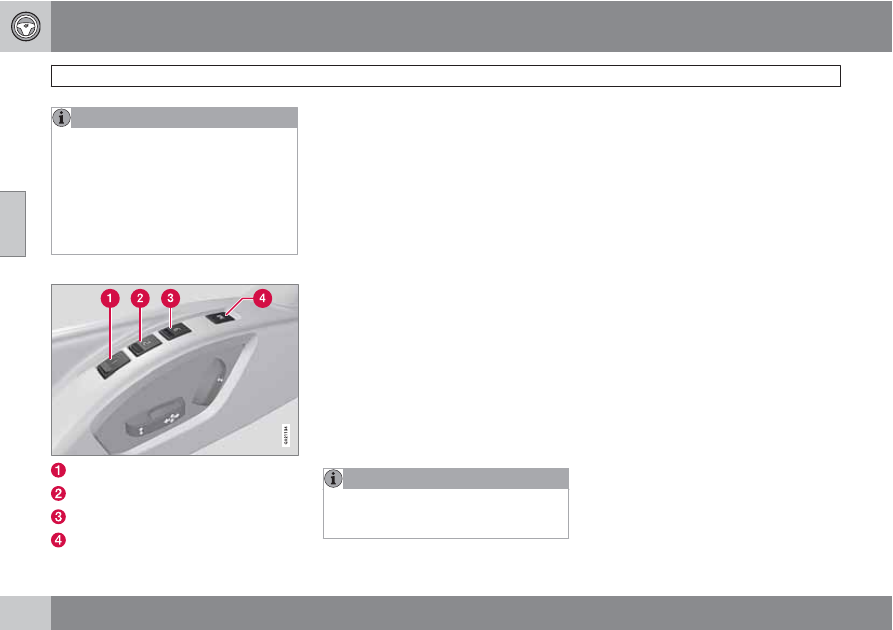

Three different seating and door mirror posi-
tions can be stored in the driver seat's memory.

The following example explains how button (1)
can be programmed. Buttons (2) and (3) can be
programmed in the same way.

To program (store) a seat position and door
mirror position in button (1):

Move the seat (and door mirrors) to the
desired position using the seat and mirror
adjustment controls.

Press and hold down the memory button
(4).

With the memory button depressed, press
button (1) briefly to store the current posi-
tion for the seat/mirrors.

To move the seat and mirrors to the position
that they were in when a button was pro-
grammed:

Press and hold down button (1) until the
seat and mirrors stop moving.

NOTE

As a safety precaution, the seat will stop
automatically if the button is released before
the seat has reached the preset position.

Remote keyless entry system and the
driver's seat

The remote control transmitter also controls
the position of the power driver's seat in the
following way:

Adjust the seat to your preferences.

When you leave your vehicle, lock it using
the remote control.

The position of the driver's seat is now stored
in the remote control's memory.

Automatic seat adjustment

To move the seat to the position in which you
left it:

Unlock the driver's door with the same
remote control (the one used to lock the
doors)

Open the driver's door within 2 minutes.

The driver's seat will automatically move to the
position in which you left it.

03 Your driving environment

Seats

Option/accessory, for more information, see Introduction.

NOTE

•

The key memory is independent of the
seat memory.

•

The seat will move to this position even
if someone else has moved it to a dif-
ferent seating position and locked the
vehicle with a different remote control.

•

This feature will work in the same way
with all of the remote control transmit-
ters that you use with your vehicle.

The function can be activated/deactivated
under

Car key memory

Seat & mirror

positions

. For a description of the menu sys-

tem, see the information beginning on page
120.

Emergency stop

If the seat accidentally begins to move, press
one of the buttons to stop the seat.

WARNING

•

Because the driver's seat can be
adjusted with the ignition off, children
should never be left unattended in the
vehicle.

•

Movement of the seat can be STOPPED
at any time by pressing any button on
the power seat control panel.

•

Do not adjust the seat while driving. The
seat should be adjusted so that the
brake pedal can be depressed fully. In
addition, position the seat as far rear-
ward as comfort and control allow.

•

The seat rails on the floor must not be
obstructed in any way when the seat is
in motion.

Heated/ventilated seats*

See page 126.

Rear seats

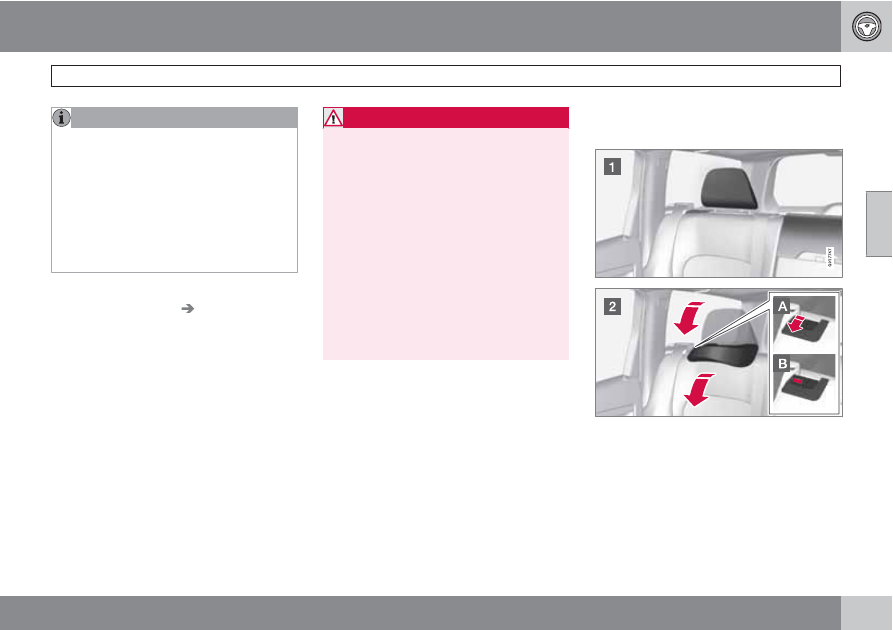

Folding down the rear seat backrests

G017903

The three sections of the rear seat backrest can
be folded down in different combinations to
make it easier to transport long objects.

•

The left (driver's side) section can be folded
down separately.

•

The center section can be folded down
separately.

Content .. 2 3 4 5 ..
