Volvo V40 Cross Country (2018 year). Instruction - part 19





WHEELS AND TYRES

* Option/accessory.

327

Warning triangle

The warning triangle is used to warn other road
users of a stationary vehicle.

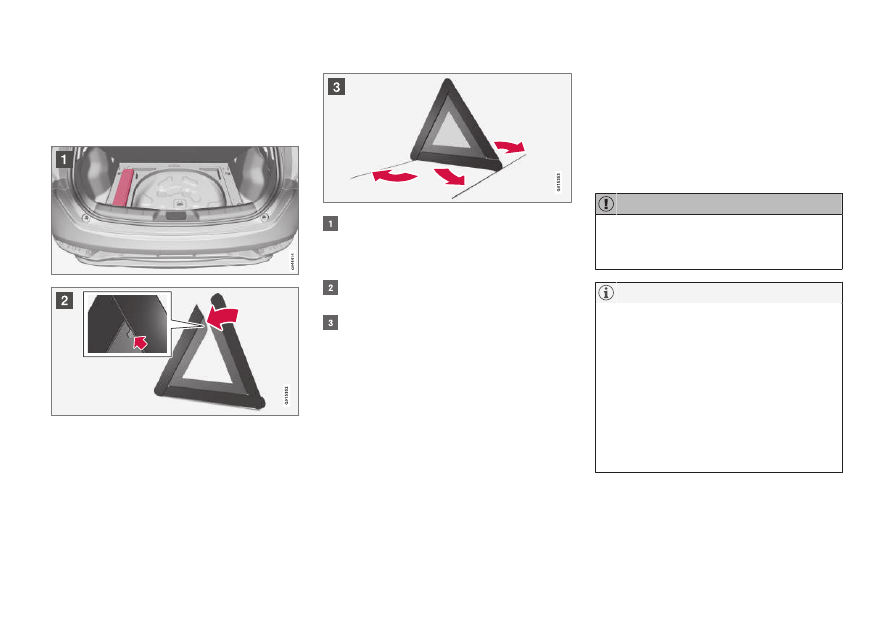

Storage and folding up

Lift the floor hatch (or push the rear part of
the luggage compartment floor forwards in
models with a jointed floor and then lift the
lower floor) and remove the warning triangle.

Take the warning triangle from the case, fold
out and assemble the two loose sides.

Fold out the warning triangle's support legs.

Follow the regulations for the use of a warning
triangle. Position the warning triangle in a suita-
ble place with regard to traffic.

Ensure the warning triangle and its case are
properly secured in the cargo area after use.

Related information

Spare wheel

* (p. 322)

Jack*

Use the jack to raise the car when changing a
wheel.

Only use the original jack when fitting a spare
wheel or when changing between summer and
winter wheels. The jack's thread must always be
well greased.

IMPORTANT

The tools and jack

* must be stored in the

intended location in the car's cargo area
when not in use.

NOTE

The normal car jack is only designed for occa-
sional, short-term use, such as when chang-
ing a wheel after a puncture, changing to win-
ter/summer wheels, etc. Only the jack for the
specific car model may be used to raise the
car. If the car is to be jacked up more often, or
for a longer time than is required just to
change a wheel, use of a garage jack is rec-
ommended. In this instance, follow the
instructions for use that come with the equip-
ment.

Related information

Warning triangle (p. 327)

Emergency puncture repair

* (p. 330)

WHEELS AND TYRES

* Option/accessory.

328

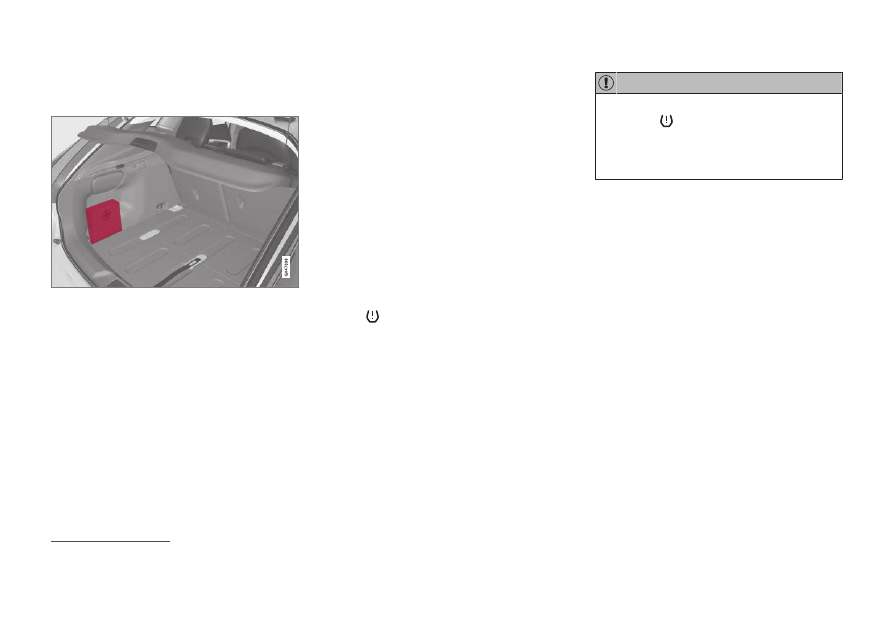

First aid kit*

The first aid box contains first aid equipment.

A case containing first aid equipment is located
on the left-hand side of the cargo area.

Tyre monitoring (TM)*

1

The TM (Tyre Monitor) system senses the rota-
tion speed of the tyres in order to determine
whether they have the correct tyre pressure.

System description

If the tyre pressure is too low, the tyre's diameter
is changed and, as a result, so is its rotation
speed. By comparing the tyres with each other
the system can determine whether one or more
tyres have pressure that is too low.

The system does not replace normal tyre mainte-
nance.

Messages

If the tyre pressure is too low then an indicator
symbol (

) illuminates in the combined instru-

ment panel and one of the following messages is
shown:

Tyre pressure low Check, adjust and
calibrate

Tyre pressure system Service required

Tyre pressure system Currently
unavailable

IMPORTANT

If a fault occurs in the TM system the indica-
tor symbol

 in the combined instrument

panel will flash for approx. 1 minute and then
illuminate with a constant glow. A message is
also shown in the combined instrument panel.

1

Standard in certain markets.

WHEELS AND TYRES

}}

329

Deleting the messages

1. Check the tyre pressure in all tyres with a

tyre pressure gauge.

2. Inflate the tyre/tyres to the correct pressure

in accordance with the tyre pressure label on
the driver's side door pillar (between front
and rear doors).

3. Recalibrate the TM system in MY CAR.

NOTE

To avoid incorrect tyre pressure, the pressure
should be checked on cold tyres. "Cold tyres"
means the tyres are the same temperature as
the ambient temperature (approx. 3 hours
after the car has been driven). After a few kil-
ometres of driving, the tyres warm up and the
pressure increases.

WARNING

Incorrect tyre pressure may lead to tyre
failure, which could result in the driver
losing control of the car.

The system cannot indicate sudden tyre
damage in advance.

TM calibration

In order for TM system to work correctly, a refer-
ence value for the tyre pressure must be deter-
mined. This must be done each time the tyres are

changed or the tyre pressure is adjusted by reca-
librating the system in MY CAR.

For example, the tyre pressure should be
adjusted when driving with a heavy load or for
high-speed driving (above 160 km/h (100 mph)).
Following which, the system must be recalibrated.

Recalibration

Settings are made using the centre console's
controls, see MY CAR (p. 113).

1. Stop the engine.

2. Inflate all tyres to the desired pressure in

accordance with the tyre pressure label on
the driver's side door pillar (between front
and rear doors).

Or see the tyre pressure table.

3. Start the engine and let the car stand still.

4. Open the menu system MY CAR and select

the menu

Tyre monitor

.

5. Select

Start calibration

 and press OK.

6. Press OK after all tyres have been checked

and adjusted in order to start calibration.

7. Drive the car.

> Calibration is performed when the car is

driven at a speed above 35 km/h
(22 mph). Calibration is interrupted tem-
porarily if the engine is switched off, but is
resumed automatically in the background
when the car is driven again. The system
provides no confirmation when the cali-
bration is complete.

The new reference value applies until steps 1-7
are repeated.

NOTE

Remember that the TM system must be reca-
librated at each tyre change or if the tyre
pressure is adjusted. If new reference values
are not stored then the system cannot func-
tion properly.

NOTE

After a tyre has been inflated, always refit
the dust cap in order to avoid damage to
the valve from gravel, dirt, etc.

Only use plastic dust caps. Metal dust
caps can rust and become difficult to
unscrew.

||

WHEELS AND TYRES

* Option/accessory.

330

System and tyre status

The current status of the system and the tyres
can be checked in the centre console's screen.

1. Open the menu system MY CAR.

2. Select the

Tyre monitor

 menu.

> Status for tyre pressures is shown with a

colour code.

The status is colour-coded for each tyre in
accordance with the following:

All-green: the system is operating normally
and the tyre pressure in all tyres is slightly
above the recommended level.

Yellow wheel: corresponding tyre's pressure
is too low.

All wheels yellow: two or more tyres have
pressure that is too low.

All wheels grey and the message

Tyre

pressure system Currently unavailable

:

the tyre pressure system is temporarily deac-
tivated. It may be necessary to drive the car
for a short time above 35 km/h (22 mph)
before the system becomes active again.

All wheels grey and the message

Tyre

pressure system Service required

: an

error has occurred in the system. Contact a
Volvo dealer or workshop.

Related information

Tyres - air pressure (p. 318)

Emergency puncture repair*

The emergency puncture repair kit, Temporary
Mobility Kit (TMK), is used to seal a puncture
and check and adjust the air pressure.

The emergency puncture repair kit consists of a
compressor and a bottle of sealant. The sealing
works as a temporary repair. The sealing fluid
effectively seals tyres punctured in the tread.

The emergency puncture repair kit has limited
capacity to seal tyres which have punctures in the
wall. Do not use the puncture repair kit on tyres
that have larger slits, cracks or similar damage.

NOTE

The emergency puncture repair kit is only
intended for sealing tyres with a puncture in
the tread.

NOTE

The compressor for temporary emergency
puncture repair has been tested and
approved by Volvo.

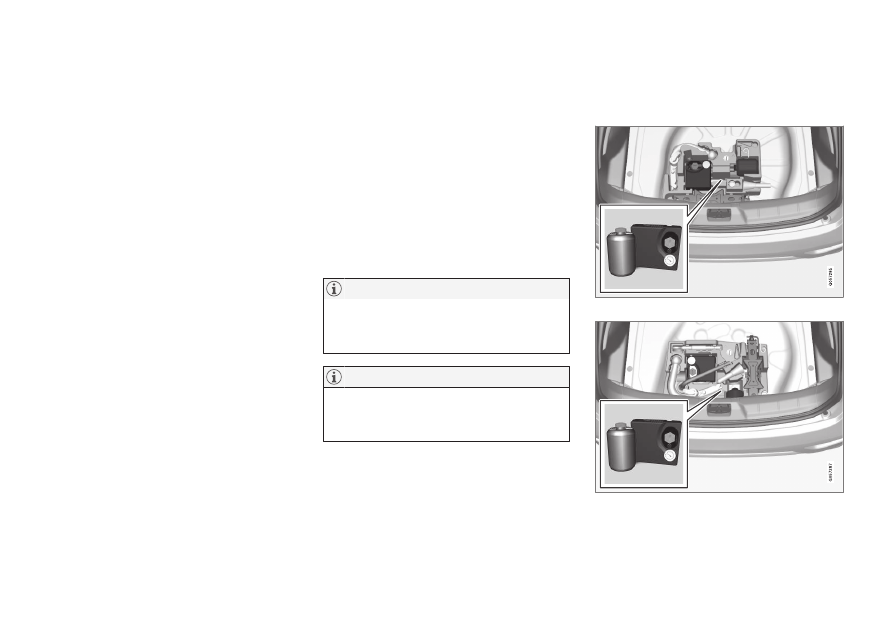

Location

The puncture repair kit is located in the foam
block

2

 under the floor in the cargo area.

Version 1.

Version 2.

WHEELS AND TYRES

}}

* Option/accessory.

331

Related information

Emergency puncture repair

* - operation

(p. 332)

Emergency puncture repair

* - rechecking

(p. 334)

Emergency puncture repair kit

* - overview

(p. 331)

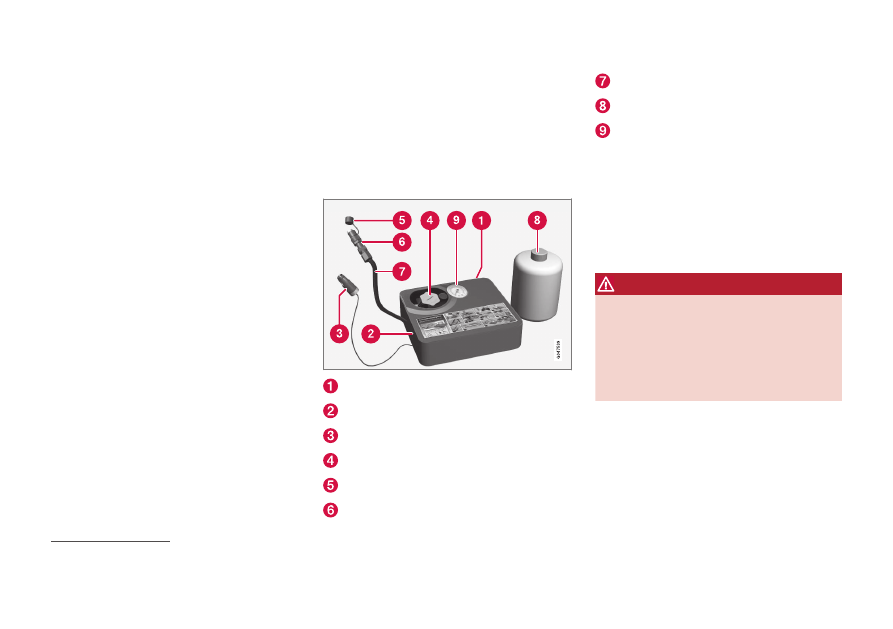

Emergency puncture repair kit* -

overview

Overview of the component parts of the emer-
gency puncture repair kit, Temporary Mobility Kit
(TMK).

The parts are stored under the floor in the cargo
area.

Label, maximum permitted speed

Switch

Electrical cable

Bottle holder (orange cap)

Protective cap

Pressure reducing valve

Air hose

Sealing fluid bottle

Pressure gauge

Sealing fluid bottle

Replace the sealing fluid bottle before the expira-
tion date has passed. Treat the old bottle as envi-
ronmentally hazardous waste.

The sealing fluid bottle must be replaced after
use. Volvo recommends that the replacement is
performed by an authorised Volvo workshop.

WARNING

The bottle with sealing fluid contains 1.2-

Ethanol and natural rubber-latex.
Harmful if ingested. Could result in allergic

reaction in the event of skin contact.
Avoid contact with the skin and eyes.
Store out of the reach of children.

2

The foam block may have different appearances depending on the car's equipment.

||

WHEELS AND TYRES

* Option/accessory.

332

WARNING

In the event of skin contact with the seal-
ing fluid, it must be washed off immedi-
ately with soap and plenty of water.

Sealing fluid that makes contact with an
eye must be rinsed away immediately with
eye wash fluid or with plenty of water. If
the discomfort persists then the eye
should be examined by a doctor.

Related information

Emergency puncture repair

* (p. 330)

Emergency puncture repair* -

operation

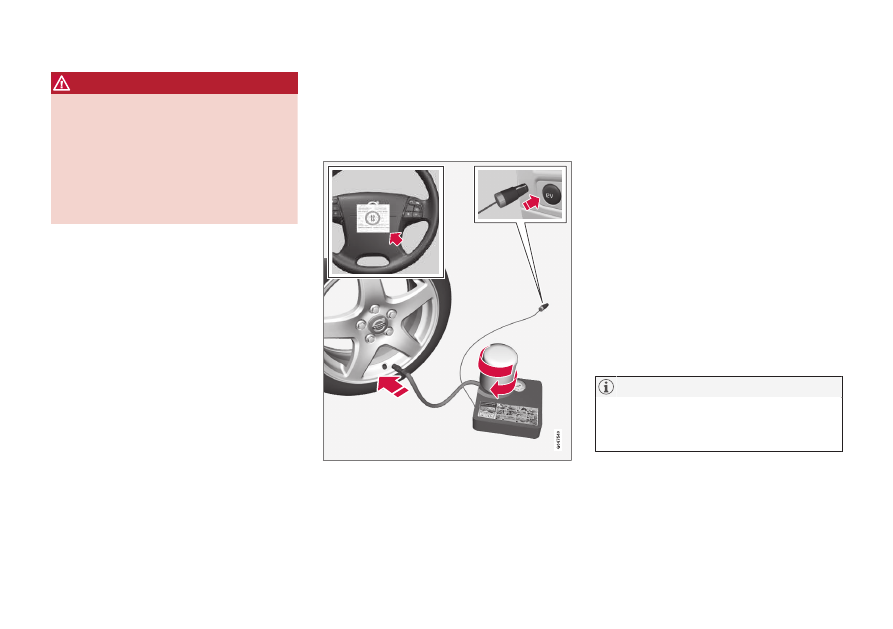

Sealing a puncture with the emergency puncture
repair kit, Temporary Mobility Kit (TMK).

Emergency puncture repair

For information on the function of the parts, see Emer-
gency puncture repair kit

* - overview (p. 331).

1. Set up the warning triangle and activate the

hazard warning lights if a tyre is being sealed
in a trafficked location.

If the puncture was caused by a nail or simi-
lar, allow this to remain in the tyre. It helps to
seal the hole.

2. Detach the label for maximum permitted

speed (which is fitted on one side of the
compressor) and affix it to the steering
wheel. You should not drive faster than
80 km/h (50 mph) after the emergency tyre
repair kit has been used.

3. Check that the switch is in position 0 (Off),

and locate the electrical cable and the air
hose.

4. Unscrew the orange-coloured cap from the

compressor, and unscrew the cork from the
sealing fluid bottle.

NOTE

Do not break the bottle's seal before use. The
seal is broken automatically when the bottle is
screwed in.

WHEELS AND TYRES

}}

333

5. Screw in the bottle to the bottom of the bot-

tle holder.
> The bottle and the bottle holder are

equipped with a reverse catch to prevent
sealant leakage. When the bottle is
screwed in it cannot be unscrewed from
the bottle holder again. Bottle removal
must be performed at a workshop, Volvo
recommends an authorised Volvo work-
shop.

WARNING

In the event of skin contact with the seal-
ing fluid, it must be washed off immediately
with soap and plenty of water.

Sealing fluid that makes contact with an
eye must be rinsed away immediately with
eye wash fluid or with plenty of water. If the
discomfort persists then the eye should be
examined by a doctor.

WARNING

Do not unscrew the bottle, it is equipped with

a reverse catch to prevent leakage.

6. Unscrew the tyre's dust cap.

Check that the pressure reducing valve on
the air hose is fully screwed on, and screw in
the air hose's valve connection to the bottom
of the thread on the tyre's air valve.

7. Plug the electrical cable into the closest

12 V socket and start the car.

NOTE

Make sure that none of the other 12 V sock-
ets is in use when the compressor is operat-
ing.

WARNING

Do not leave children in the car without

supervision when the engine is running.

8. Start the compressor by flicking the switch to

position I (On).

WARNING

Never stand next to the tyre when the com-

pressor is running. If cracks or unevenness

arise then the compressor must be switched

off immediately. The journey should not be

continued. Call roadside assistance for recov-

ery to a tyre centre. Volvo recommends an

authorised tyre centre.

NOTE

When the compressor starts, the pressure
can increase up to 6 bar but the pressure
drops after approximately 30 seconds.

9. Inflate the tyre for 7 minutes.

IMPORTANT

The compressor must not be operated for
longer than 10 minutes - risk of overheating.

10. Switch off the compressor to check the pres-

sure on the pressure gauge. Minimum pres-
sure is 1.8 bar and maximum 3.5 bar.
(Release air with the pressure reducing valve
if the tyre pressure is too high.)

WARNING

If the pressure is below 1.8 bar (22 psi) then

the hole in the tyre is too big. The journey

should not be continued. Call roadside assis-

tance for recovery to a tyre centre. Volvo rec-

ommends an authorised tyre centre.

11. Switch off the compressor and unplug the

electrical cable.

12. Unscrew the air hose from the tyre's air valve

and refit the dust cap on the tyre.

13. Fit the protective cap on the air hose in order

to avoid leakage of the remaining sealing
fluid.

||

WHEELS AND TYRES

* Option/accessory.

334

14. As soon as possible, drive at least 3 km at a

maximum speed of 80 km/h (50 mph) so
that the sealing fluid can seal the tyre and
then perform a follow-up check.

NOTE

Sealant will spurt out of the puncture during
the first few rotations of the tyre.

WARNING

Make sure that nobody is standing near the

car and gets the sealing fluid splashed onto

them when the car is driven away. The dis-

tance should be at least 2 metres (7 feet).

15. Follow-up inspection:

Connect the air hose on the tyre's air valve
again and check the tyre pressure with the
pressure gauge, see Emergency puncture
repair

* - rechecking (p. 334).

Related information

Emergency puncture repair

* (p. 330)

Emergency puncture repair

* - rechecking

(p. 334)

Emergency puncture repair kit

* - overview

(p. 331)

Emergency puncture repair* -

rechecking

When a tyre has been sealed with the emer-
gency puncture repair kit, Temporary Mobility Kit
(TMK), a subsequent check must be made after
approx. 3 kilometres of driving.

Check tyre pressure

Take out the tyre sealing equipment. The com-
pressor must be switched off.

1. Unscrew the tyre's dust cap.

Take out the air hose and screw in the
valve connection to the bottom of the thread
on the tyre's air valve.

2. Read the tyre pressure on the pressure

gauge.

If the tyre pressure is below 1.3 bar then
the tyre is insufficiently sealed. The jour-
ney should not be continued. Call road-
side assistance for recovery.

If the tyre pressure is higher than 1.3 bar,
the tyre must be inflated to the pressure
specified in accordance with the tyre
pressure label on the driver side door pil-
lar (1 bar = 100 kPa).

Release air using the pressure reducing
valve if the tyre pressure is too high.

3. If the tyre needs to be inflated:

1. Plug the electrical cable into the closest

12 V socket and start the car.

2. Start the compressor and inflate the tyre

to the pressure specified on the tyre pres-
sure label on the driver side door pillar.

3. Switch off the compressor.

4. Remove the tyre sealing equipment.

Fit the protective cap on the air hose in order
to avoid leakage of the remaining sealing
fluid.

WARNING

Do not unscrew the bottle, it is equipped with

a reverse catch to prevent leakage.

5. Refit the dust cap on the tyre.

NOTE

After a tyre has been inflated, always refit
the dust cap in order to avoid damage to
the valve from gravel, dirt, etc.

Only use plastic dust caps. Metal dust
caps can rust and become difficult to
unscrew.

WHEELS AND TYRES

* Option/accessory.

335

NOTE

The sealing fluid bottle and the hose must be
replaced after use. Volvo recommends that
this replacement is performed by an author-
ised Volvo workshop.

WARNING

Check the tyre pressure regularly.

Volvo recommends that the car is driven to the
nearest authorised Volvo workshop for the
replacement/repair of the damaged tyre. Advise
the workshop that the tyre contains sealing fluid.

WARNING

You should not drive faster than 80 km/h

(50 mph) after the emergency tyre repair kit

has been used. Volvo recommends a visit to

an authorised Volvo workshop for inspection

of the sealed tyre (maximum driving distance

is 200 km). The staff there can determine

whether or not the tyre can be repaired or if it

needs to be replaced.

Related information

Emergency puncture repair

* - operation

(p. 332)

Inflating tyres with compressor from

the emergency puncture repair kit*

The car's original tyres can be inflated using the
compressor in the emergency puncture repair kit
(p. 331).

1. The compressor must be switched off. Make

sure that the switch is in position 0 (Off), and
take out the electrical cable and the air hose.

2. Unscrew the tyre's dust cap and screw in the

air hose's valve connection to the bottom of
the thread on the tyre's air valve.

3. Plug the electrical cable into the closest

12 V socket and start the car.

WARNING

Inhaling car exhaust fumes could result in

danger to life. Never leave the engine running

in sealed areas or areas that lack sufficient

ventilation.

WARNING

Do not leave children in the car without

supervision when the engine is running.

4. Start the compressor by flicking the switch to

position I (On).

IMPORTANT

The compressor must not be operated for
longer than 10 minutes - risk of overheating.

5. Inflate the tyre to the pressure specified on

the tyre pressure label on the driver side
door pillar. Release air using the pressure
reducing valve if the tyre pressure is too high.

6. Switch off the compressor. Detach the air

hose and the electrical cable.

7. Refit the dust cap on the tyre.

Related information

Emergency puncture repair

* (p. 330)

Emergency puncture repair kit

* - overview

(p. 331)

MAINTENANCE AND SERVICE

* Option/accessory.

338

Volvo service programme

To keep the car as safe and reliable as possible,
follow the Volvo service programme as specified
in the Service and Warranty Booklet.

Volvo recommends engaging an authorised Volvo
workshop to perform the service and mainte-
nance work. Volvo workshops have the personnel,
special tools and service literature to guarantee
the highest quality of service.

IMPORTANT

For the Volvo warranty to apply, check and
follow the instructions in the Service and
Warranty Booklet.

Related information

Climate control system - fault tracing and
repair (p. 349)

Book service and repair*

1

Manage service, repair and booking information
directly in your Internet-connected car.

This service

1

 provides a convenient way to book a

service and workshop visit directly in the car. Car
information is sent to your dealer, who can pre-
pare the workshop visit. The dealer will contact
you to schedule an appointment time. For certain
markets, the system reminds you of a scheduled
appointment time as it approaches and the navi-
gation system

2

 can also guide you to the work-

shop when the time comes.

Before the service can be used

Volvo ID and my profile

Register a Volvo ID. For more information
and how to create a Volvo ID, see Volvo ID
(p. 20).

Go to www.volvocars.com, log in and proceed
as follows:

1. Check that the car is connected to your pro-

file.

2. Check that your contact information is cor-

rect.

3. Select the Volvo dealer you want to contact

for service and repair.

4. Choose preferred communication channel

(phone). Booking information is always sent
to the car and to you via email.

Prerequisite for booking from car

To send and receive booking information
from and to the car, the car must be con-
nected to the Internet, see the Sensus Info-
tainment supplement for information about
how to connect the car to the Internet.

Since the booking information is sent over
your private phone subscription, you will be
asked whether you want to send the informa-
tion. The question is asked once and then
applies to the selected connection for a lim-
ited time.

For the service to work and for the system to
communicate via the car's screen, notifica-
tions/pop-up messages must be accepted.
In the normal view for the MY CAR source,
press OK/MENU and then

Service & repair

Display notifications

.

Using the service

All menus and settings are accessed from the
normal view in MY CAR by pressing OK/MENU
and then

Service & repair

.

When it is time for service, and in some cases
when the car is in need of repair, this is notified

1

Applies to certain markets.

2

Applies to Sensus Navigation.

MAINTENANCE AND SERVICE

}}

339

in the combined instrument panel (p. 66) and via
a pop-up menu in the screen.

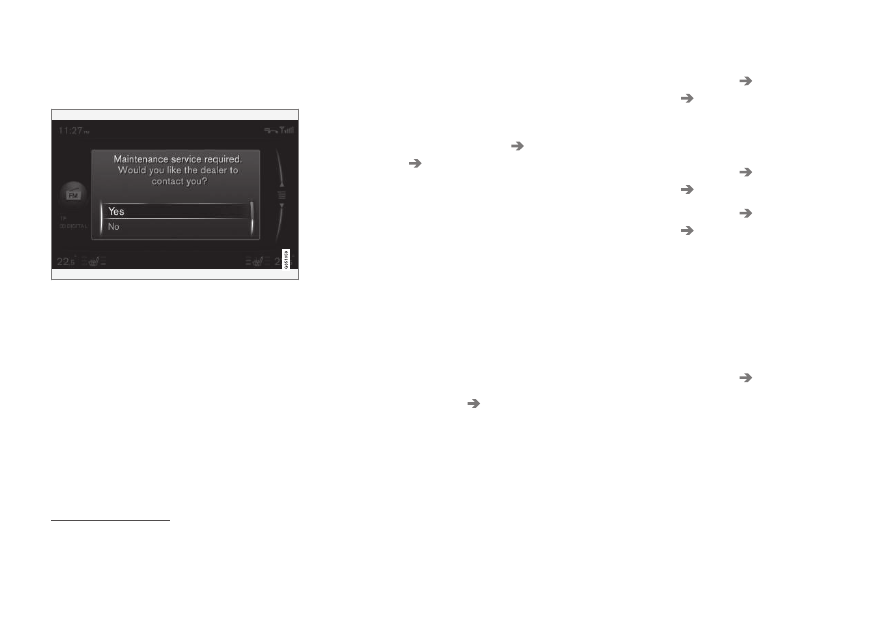

Service message in the screen.

Meaning of the answer options in the screen's
pop-up menu:

Yes

 - A booking enquiry is sent to your

dealer who then comes back with a booking
proposal. The service lamp and service mes-
sage in the combined instrument panel are
extinguished.

No

 - No more pop-up messages will be

shown in the screen. The message in the
combined instrument panel remains. After
this option has been selected, it is possible
to start the manual booking in the car, see
below.

Postpone

 - The pop-up menu is shown the

next time the car is started.

Book a service or repair manually

1

1. Press the MY CAR button in the centre con-

sole and select

Service & repair

Dealer

information

Request service or repair

.

> Vehicle data is sent automatically to your

dealer.

2. The dealer sends a booking proposal to the

car.

3. Accept or request a new booking proposal.

After the booking has been accepted the book-
ing information is stored in the car, see My book-
ings. The car will automatically communicate with
you via the screen by means of reminders about
the booking and guide you to the workshop visit.

My bookings

1

Show booking information in the car's screen.
Accept or request a new booking proposal.

Select

Service & repair

My bookings

.

Call the dealer

1

With a phone connected to the car via
Bluetooth

®

, you can call your dealer. For connect-

ing the phone, see the Sensus Infotainment sup-
plement.

Select

Service & repair

Dealer

information

Call dealer

.

Using the navigation system

1,



2

Enter your workshop as destination or waypoint
in the navigation system.

Select

Service & repair

Dealer

information

Set single destination

.

Select

Service & repair

Dealer

information

Add as waypoint

.

Sending vehicle data

1

Vehicle data are sent to a central Volvo database
(not your dealer) from which Volvo dealers can
retrieve vehicle information using the car's identi-
fication number (VIN

3

). The number is printed in

the car's service and warranty booklet, alterna-
tively inside the windscreen's bottom left-hand
corner.

Select

Service & repair

Send car data

.

Booking information and vehicle data

When you decide to book a service from your car,
the booking information and vehicle data will be
sent. Vehicle data information consists of infor-
mation within the following areas:

1

Applies to certain markets.

2

Applies to Sensus Navigation.

3

Vehicle Identification Number

||

MAINTENANCE AND SERVICE

340

service requirement

function status

fluid levels

meter reading

the car's vehicle identification number (VIN

3

)

the car's software version.

Related information

Volvo ID (p. 20)

3

Vehicle Identification Number

||

MAINTENANCE AND SERVICE

342

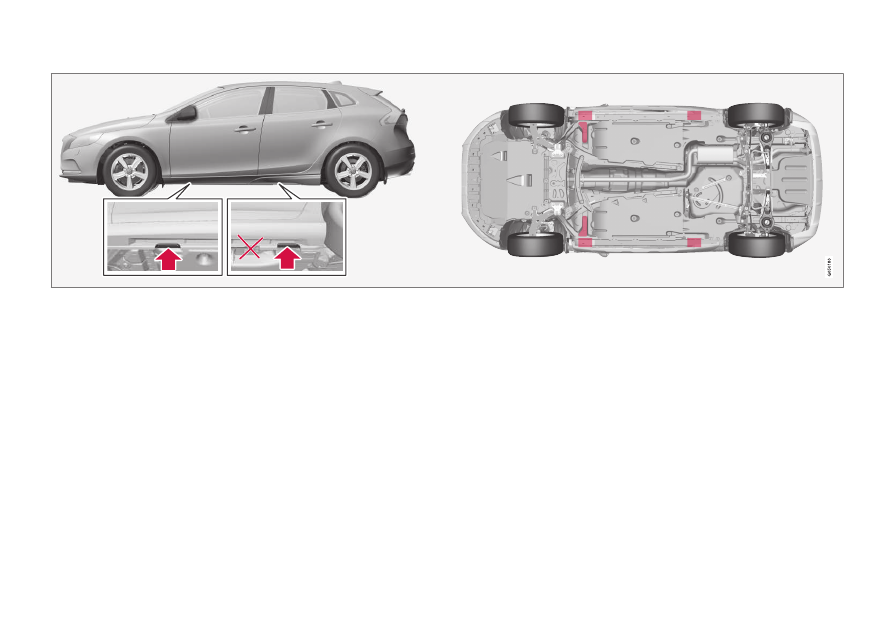

Jacking points (arrows) for the jack that belongs to the car and lifting points (marked in red).

If the car is raised with a front workshop jack
then this must be positioned under one of the
two lifting points furthest in under the car. If the
car is raised with a rear workshop jack then it
must be positioned under one of the lifting
points. Ensure that the workshop jack is posi-
tioned so that the car cannot slide off the jack.
Always use axle stands or similar.

If the car is raised with a two-pillar workshop lift
then the front and rear lifting arms can be posi-
tioned under the outer lifting points (jacking
points). Alternatively, the inner lifting points can
be used at the front.

Related information

Changing wheels - removing wheels (p. 323)

MAINTENANCE AND SERVICE

}}

343

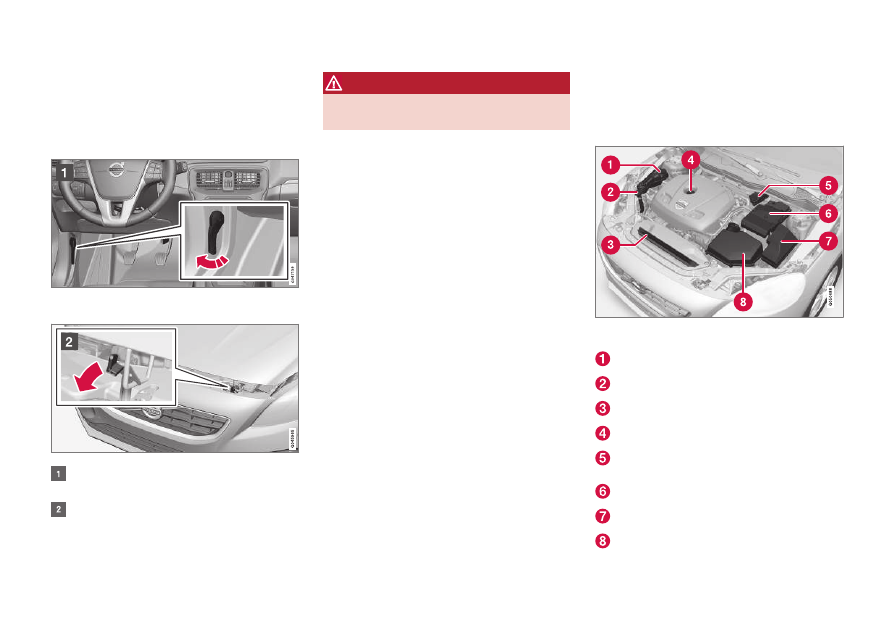

Bonnet - opening and closing

The bonnet can be opened when the handle in
the passenger compartment has been turned
clockwise and the lock by the radiator grille has
been moved to the left.

The handle for bonnet opening is always on the left-

hand side.

Turn the handle about 20-25 degrees clock-
wise. You will hear when the catch releases.

Move the catch to the left and open the bon-
net. (The catch hook is located between the
headlamp and radiator grille, see illustration.)

WARNING

Check that the bonnet locks properly when

closed.

Related information

Engine compartment - checking (p. 344)

Engine compartment - overview (p. 343)

Engine compartment - overview

The overview shows some service-related com-
ponents.

Engine compartment

The appearance of the engine compartment may differ

depending on model and engine variant.

Coolant expansion tank

Washer fluid filler pipe

Radiator

Engine oil filler pipe

Reservoir for brake and clutch fluid (located
on the driver's side)
Starter battery

Relay and fuse box

Air filter

||

MAINTENANCE AND SERVICE

344

WARNING

The ignition system has very high voltage and

output. The voltage in the ignition system is

highly dangerous. The car's electrical system

must always be in key position 0 when work is

being performed in the engine compartment;

see Key positions - functions at different lev-

els (p. 81).
Do not touch the spark plugs or ignition coil

when the car's electrical system is in key

position II or when the engine is hot.

Related information

Bonnet - opening and closing (p. 343)

Engine compartment - checking (p. 344)

Engine compartment - checking

Some oils and fluids should be checked at regu-
lar intervals.

Regular checking

Check the following oils and fluids at regular
intervals, e.g. when refuelling:

Coolant

Engine oil

Washer fluid

WARNING

Remember that the radiator fan (located at

the front of the engine compartment, behind

the radiator) may start automatically some

after the engine has been switched off.
Always have the engine cleaned by a work-

shop - an authorised Volvo workshop is rec-

ommended. There is a risk of fire if the engine

is hot.

Related information

Bonnet - opening and closing (p. 343)

Engine compartment - overview (p. 343)

Coolant - level (p. 347)

Engine oil - checking and filling (p. 345)

Washer fluid - filling (p. 359)

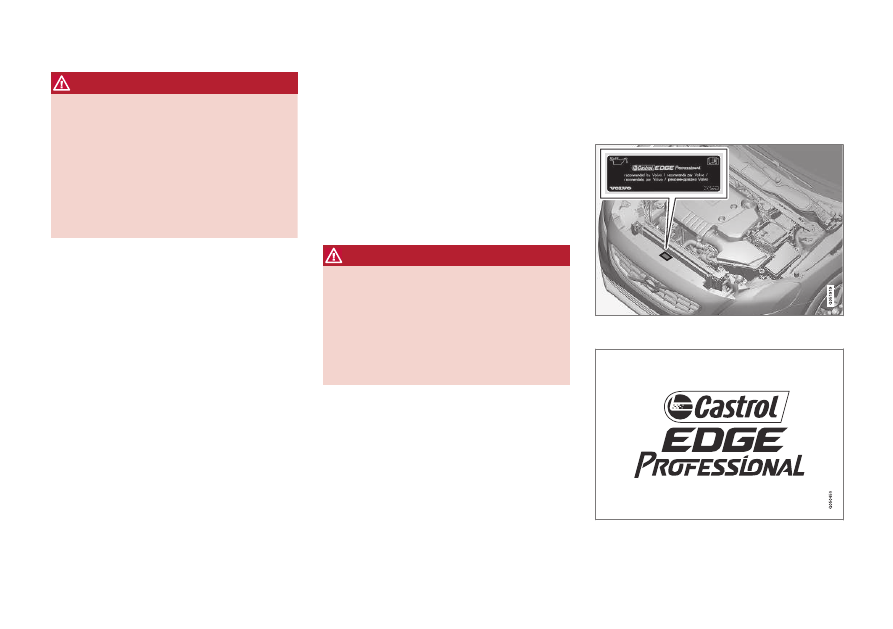

Engine oil - general

An approved engine oil must be used in order
that the recommended service intervals can be
applied.

Volvo recommends:

MAINTENANCE AND SERVICE

}}

345

When driving under adverse conditions, see
Engine oil - adverse driving conditions (p. 390).

IMPORTANT

In order to fulfil the requirements for the
engine's service intervals all engines are filled
with a specially adapted synthetic engine oil
at the factory. The choice of oil has been
made very carefully with regard to service life,
starting characteristics, fuel consumption and
environmental impact.

An approved engine oil must be used in order
that the recommended service intervals can
be applied. Only use a prescribed grade of oil
for both filling and oil change, otherwise you
will risk affecting service life, starting charac-
teristics, fuel consumption and environmental
impact.

Volvo Car Corporation disclaims all warranty
liability if engine oil of the prescribed grade
and viscosity is not used.

Volvo recommends that oil changes are car-
ried out at an authorised Volvo workshop.

Volvo uses different systems for warning of low/
high oil level or low oil pressure. Certain engine
variants have an oil pressure sensor, and then the
combined instrument panel's warning symbol for
low oil pressure is used

. Other variants

have an oil level sensor, when the driver is

informed via the instrument's warning symbol

 and display texts. Certain variants have

both systems. Contact a Volvo dealer for more
information.

Change the engine oil and oil filter in accordance
with the intervals specified in the Service and
Warranty Booklet.

Using oil of a higher than specified grade is per-
mitted. If the car is driven in adverse conditions,
Volvo recommends using an oil of a higher grade
than the one specified, see Engine oil - adverse
driving conditions (p. 390).

For filling capacities, see Engine oil - grade and
volume (p. 391).

Related information

Engine oil - checking and filling (p. 345)

Engine oil - checking and filling

The oil level is detected with the electronic oil
level sensor.















Content   ..  17  18  19  20   ..
