4

Tail Lamps

⇒ “4.1 Overview - Body Tail Lamps”, page 133
⇒ “4.2 Overview - Rear Lid Tail Lamps”, page 137
⇒ “4.3 Rear Lid Tail Lamp, Removing and Installing”, page 140
⇒ “4.4 Tail Lamp, Correcting Installed Position”, page 142
⇒ “4.5 Tail Lamp, Removing and Installing”, page 144
⇒ “4.6 Right and Left Tail Lamp Bulb M2 / M4 , Removing and

Installing”, page 145
⇒ “4.7 Left/Right Rear Fog Lamp Bulb L46 / L47 , Removing and

Installing”, page 148
⇒ “4.8 Left/Right Brake/Tail Lamp Bulb M21 / M22 , Removing

and Installing”, page 150
⇒ “4.9 Back-Up Lamp, Removing and Installing”, page 152
⇒ “4.10 Turn Signal Bulb, Removing and Installing”, page 154

4.1

Overview - Body Tail Lamps

⇒ “4.1.1 Overview - Body Tail Lamps, Sedan, with Bulbs”,

page 133
⇒ “4.1.2 Overview - Body Tail Lamps, Sedan, with LED”,

page 135
⇒ “4.1.3 Overview - Body Tail Lamps, Wagon”, page 136

4.1.1

Overview - Body Tail Lamps, Sedan, with Bulbs

1 - Tail Lamp

❑ Left Tail Lamp - MX3-
❑ Right Tail Lamp - MX4-
❑ Body Tail Lamps
❑ Removing and instal‐

ling. Refer to

⇒ “4.5 Tail Lamp, Re‐

moving and Installing”,

page 144

 .

2 - Brake and Tail Lamp Bulb

❑ Left Brake/Tail Lamp

Bulb - M21-

❑ Right Brake/Tail Lamp

Bulb - M22-

❑ Removing and instal‐

ling. Refer to

⇒ “4.8 Left/Right Brake/

Tail Lamp Bulb M21 /

M22 , Removing and In‐

stalling”, page 150

 .

3 - Bulb Socket
4 - Cover with Seal
5 - Fastening Element

❑ 2 Nm

6 - Bulb Socket
7 - Rear Turn Signal Bulb

❑ Left Rear Turn Signal

Bulb - M6-

❑ Right Rear Turn Signal

Bulb - M8-

❑ Removing and instal‐

ling. Refer to

⇒ “4.10 Turn Signal

Bulb, Removing and Installing”, page 154

 .

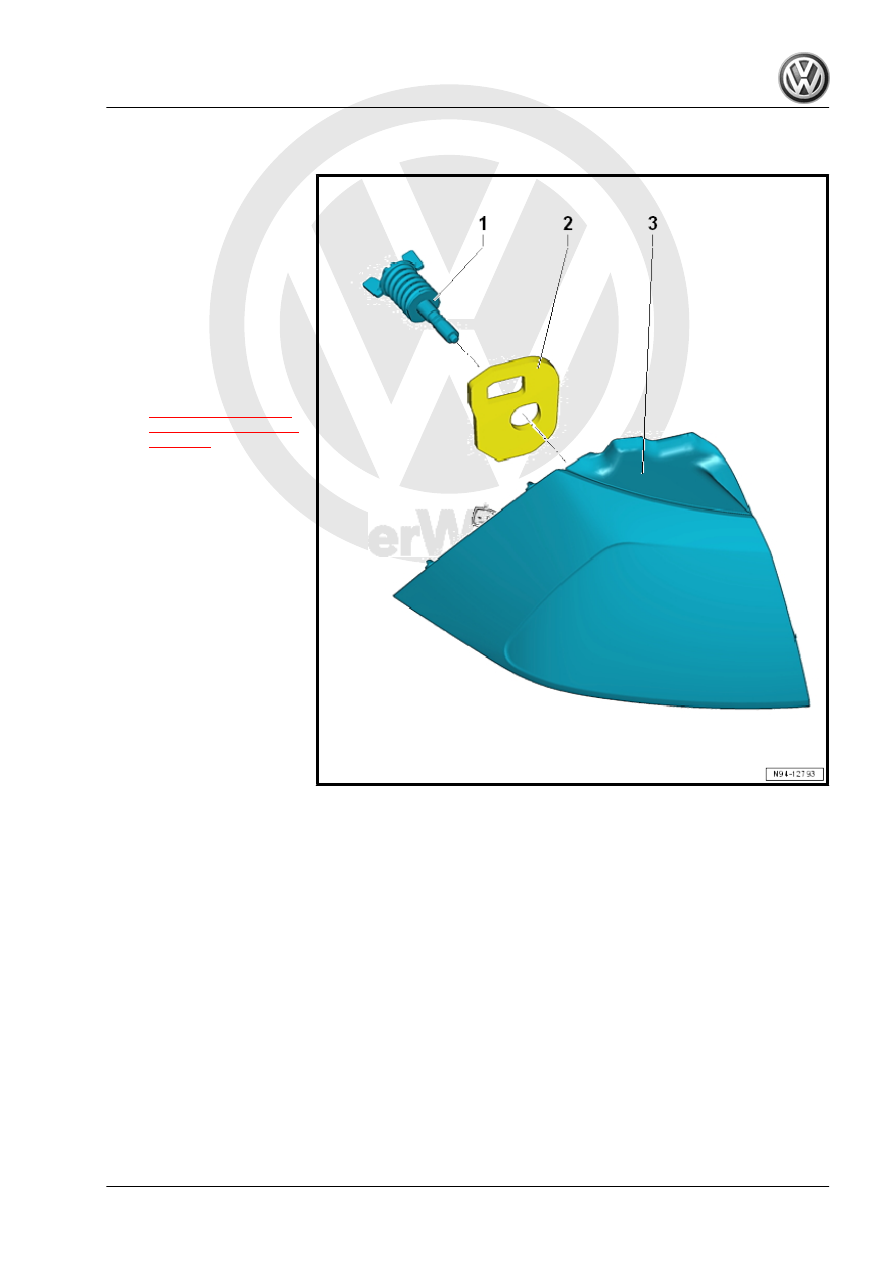

4.1.2

Overview - Body Tail Lamps, Sedan, with LED

1 - Fastening Element

❑ 2 Nm

2 - Seal

❑ Self-adhesive
❑ Replace if damaged.

3 - Tail Lamp

❑ Left Tail Lamp - MX3-
❑ Right Tail Lamp - MX4-
❑ Body tail lamps
❑ Removing and instal‐

ling. Refer to

⇒ “4.5 Tail Lamp, Re‐

moving and Installing”,

page 144

 .

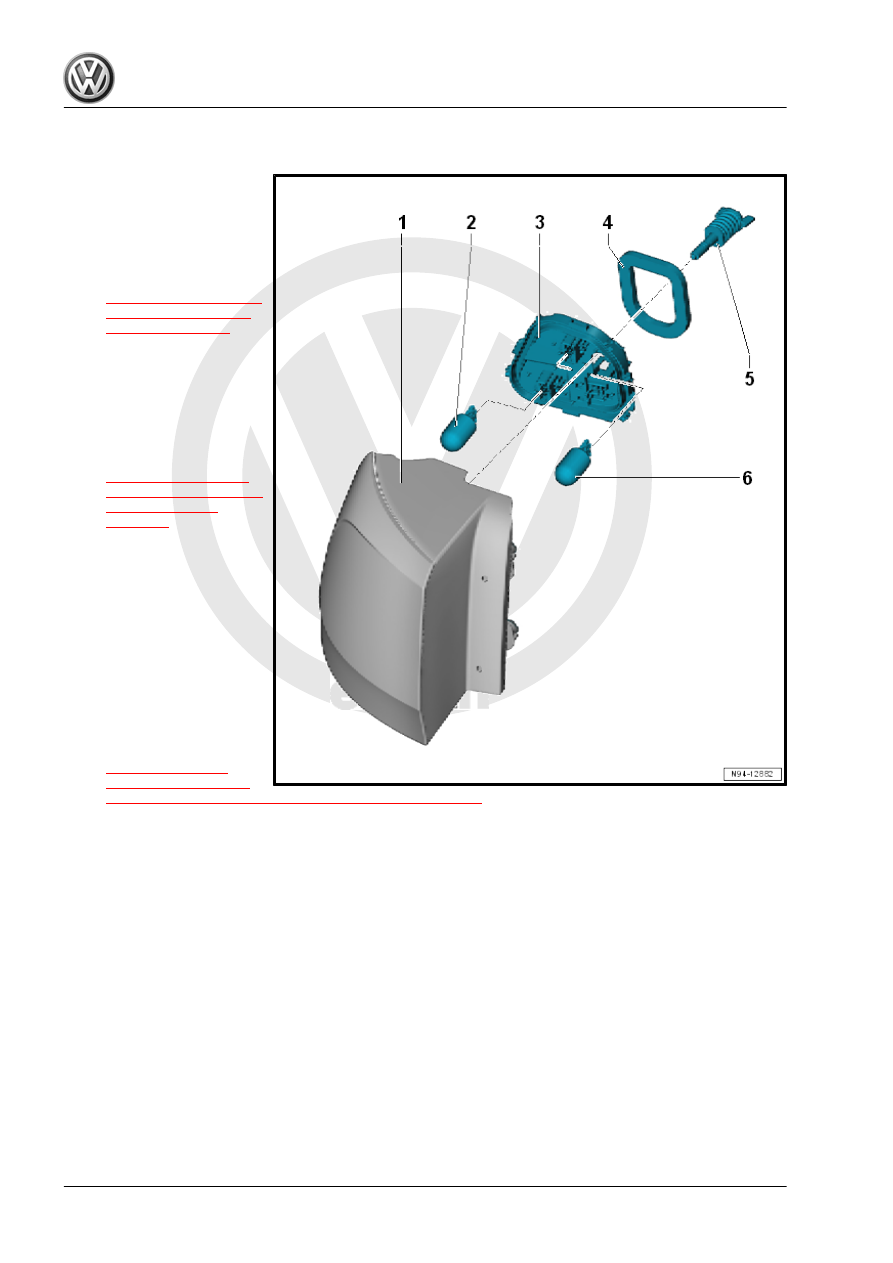

4.1.3

Overview - Body Tail Lamps, Wagon

1 - Tail Lamp

❑ Left Tail Lamp - MX3-
❑ Right Tail Lamp - MX4-
❑ Body tail lamps
❑ Removing and instal‐

ling. Refer to

⇒ “4.5.2 Tail Lamp, Re‐

moving and Installing,

Wagon”, page 145

 .

2 - Rear Turn Signal Bulb

❑ Left Rear Turn Signal

Bulb - M6-

❑ Right Rear Turn Signal

Bulb - M8-

❑ Removing and instal‐

ling. Refer to

⇒ “4.10.2 Turn Signal

Bulb, Removing and In‐

stalling, Wagon”,

page 155

 .

3 - Bulb Holder
4 - Seal
5 - Fastening Element

❑ 2 Nm

6 - Brake and Tail Lamp Bulb

❑ Left Brake/Tail Lamp

Bulb - M21-

❑ Right Brake/Tail Lamp

Bulb - M22-

❑ Removing and instal‐

ling. Refer to

⇒ “4.8.2 Left/Right

Brake/Tail Lamp Bulb

M21 / M22 , Removing and Installing, Wagon”, page 151

 .
