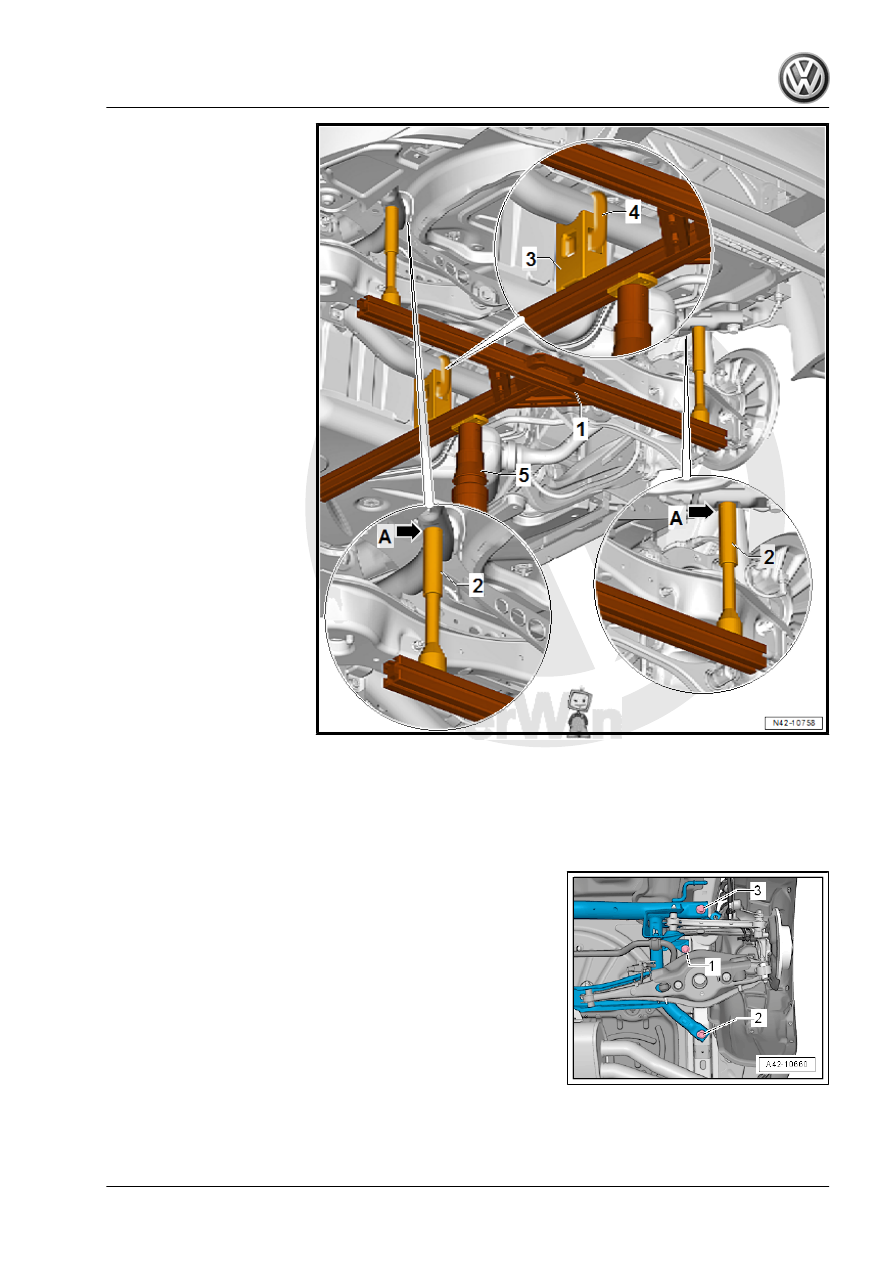

– Insert the -T10552/1- -2- into the holes on the rear axle

-A arrows-.

– Secure the -T10552/2- -3- to the rear axle using a Tensioning

Strap -4-.

-T10096- , Installing

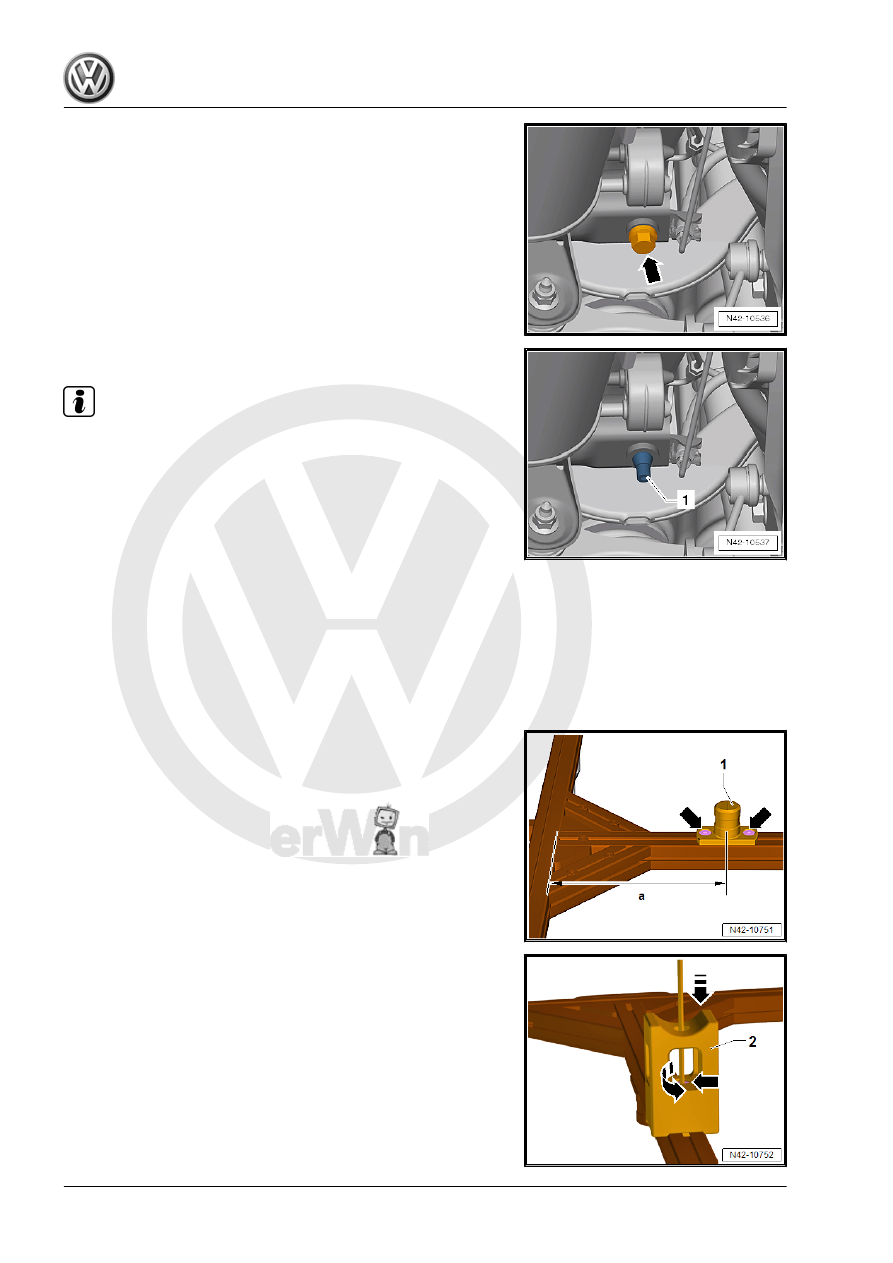

– Remove the left and right bolt -1-.
• To secure the subframe, the -T10096- must be installed at the

positions -2 and 3- one after the other on both sides of the

vehicle.

– Unscrew one of the front bolts of the subframe -arrow-.

– Install the - T10096- -1-.

Note

The -T10096- may only be tightened to a maximum of 20 Nm,

otherwise the threads of the locating pins will be damaged.

– The same procedure must be performed for the second front

bolt and the rear bolts of the subframe.

The subframe position is now secured.

3.2.2

Subframe, Securing, Multi-Link Suspen‐

sion, AWD

Special tools and workshop equipment required
♦ Locating Pins - T10096-
♦ Engine and Gearbox Jack - VAS6931-
♦ Rear Axle Support - T10552-
-T10552- , Preparing
– Loosen the bolts -arrows- and adjust the dimension -a-.
a - 250 mm
Tighten the bolts -arrows-.

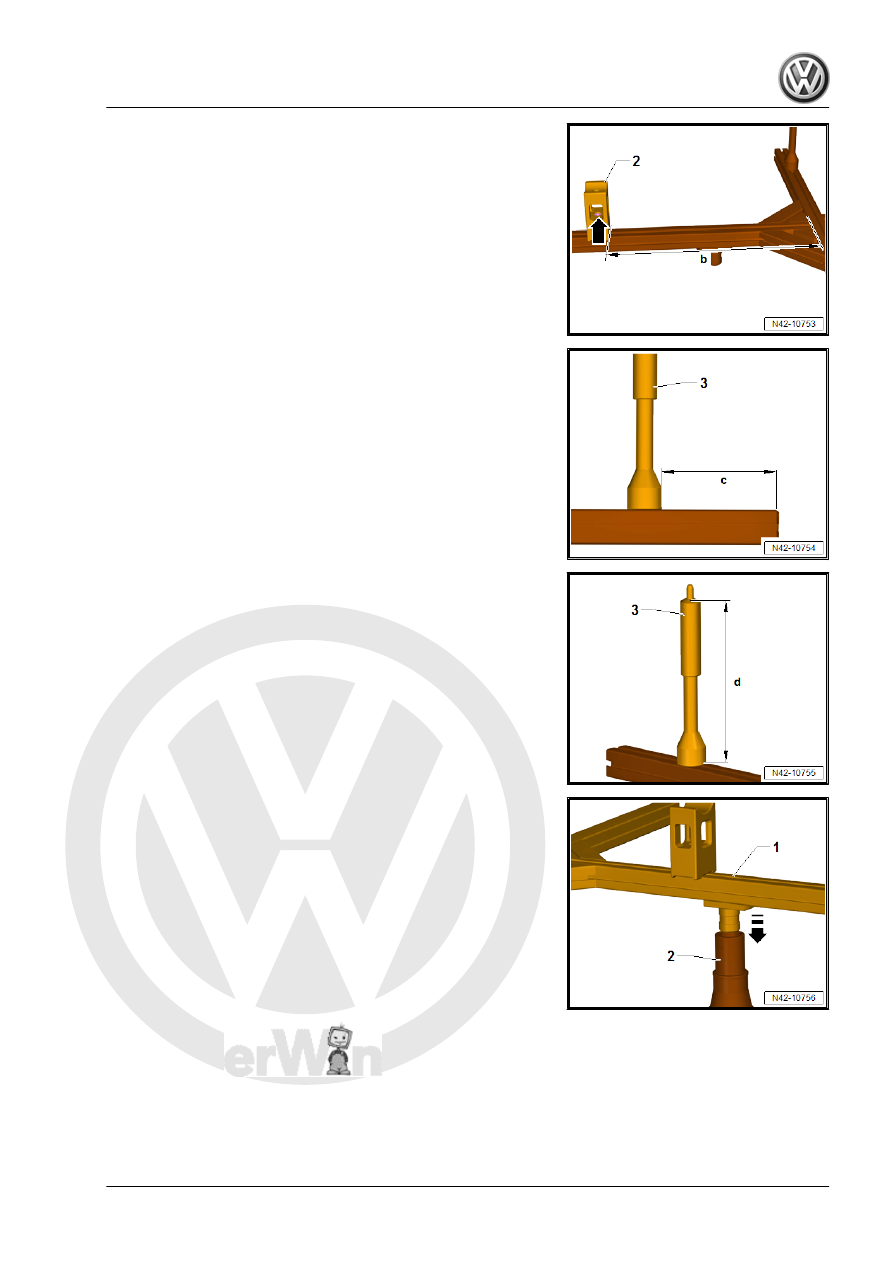

– Loosen the bolt -arrow- for the -T10552/2- -2-.

– Turn the -T10552/2- -2- so that the profile is in the direction of

travel.

– Adjust the dimension -b-.
b - 410 mm
Tighten the bolt -arrow- to 30 Nm.

– Loosen the -T10552/1- -3- on both sides at the bottom.
– Adjust the dimension -c-.
c - 47 mm

– Turn the -T10552/1- -3- on both sides until the dimension -d-

is set.

d - 215 mm

– Place the Rear Axle Support - T10552- -1- on the -VAG1383A-

or -VAS6931- .

– Tighten the bolt -arrow- to 30 Nm.

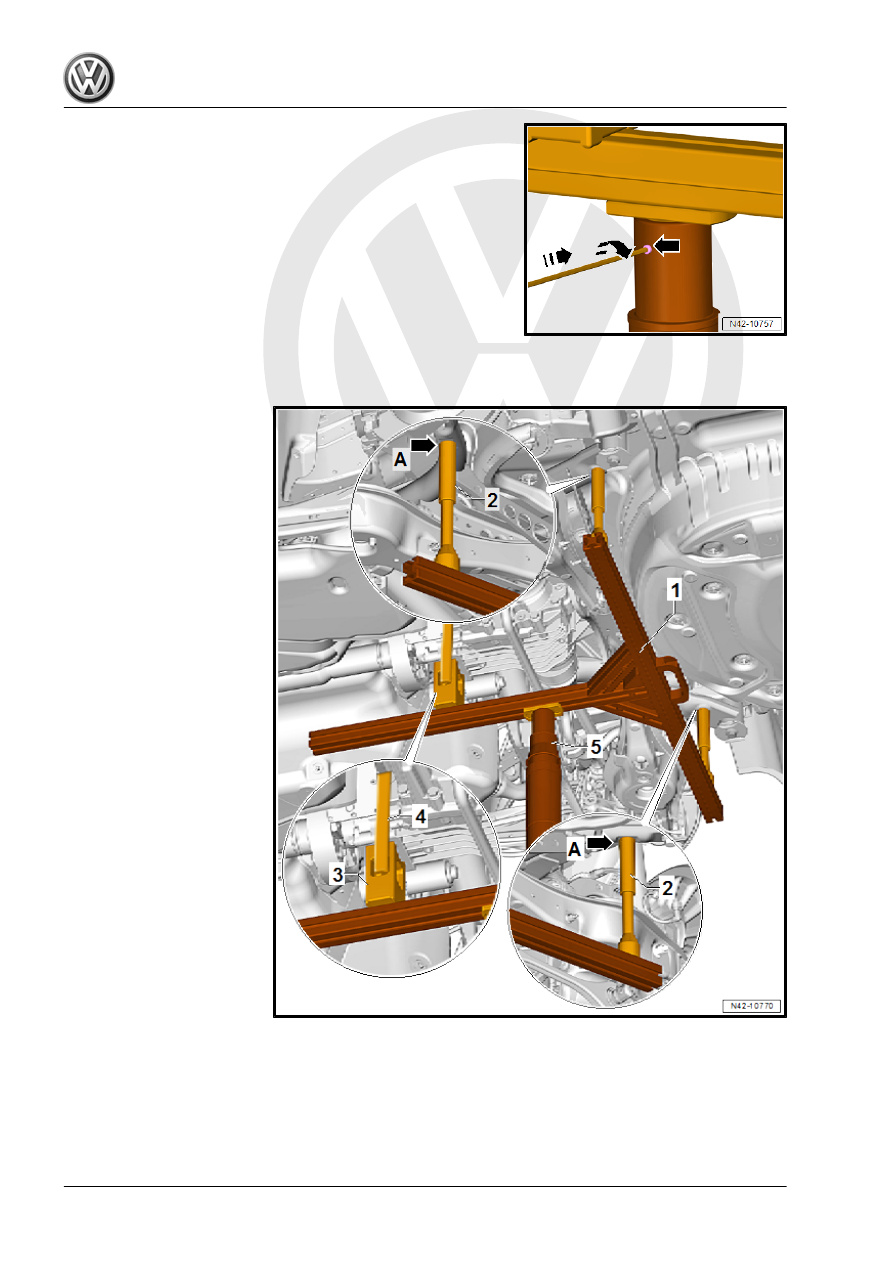

– Position the -T10552- -1- with the -VAG1383A- or -VAS6931-

-1- under the rear axle and move it upward.

– Insert the -T10552/1- -2- into the holes on the rear axle

-A arrows-.

– Secure the -T10552/2- -3- to the rear axle using a Tensioning

Strap -4-.
