3

Subframe

⇒ “3.1 Overview - Subframe”, page 157
⇒ “3.2 Subframe, Securing”, page 158
⇒ “3.3 Subframe, Servicing”, page 165

3.1

Overview - Subframe

⇒ “3.1.1 Overview - Subframe, Multi-Link Suspension”,

page 157
⇒ “3.1.2 Overview - Subframe, Multi-Link Suspension, AWD”,

page 158

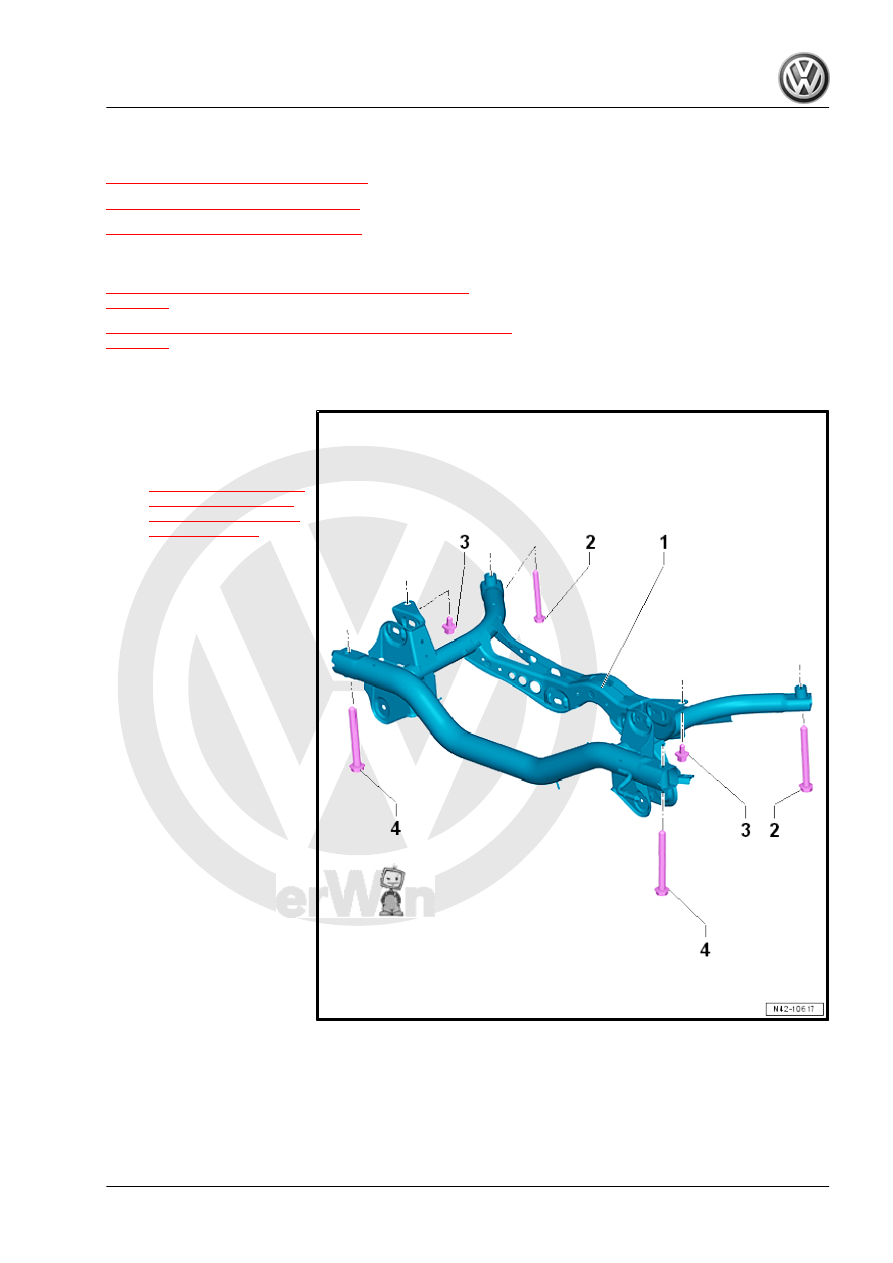

3.1.1

Overview - Subframe, Multi-Link Suspension

1 - Subframe

❑ Subframe with attach‐

ments, removing and in‐

stalling. Refer to

⇒ “1.3.2 Rear Axle, Re‐

moving and Installing,

Multi-Link Suspension,

FWD”, page 144

 .

2 - Bolt

❑ 70 Nm + 180°
❑ Replace after removal

3 - Bolt

❑ 50 Nm + 45°
❑ Replace after removal

4 - Bolt

❑ 70 Nm + 180°
❑ Replace after removal

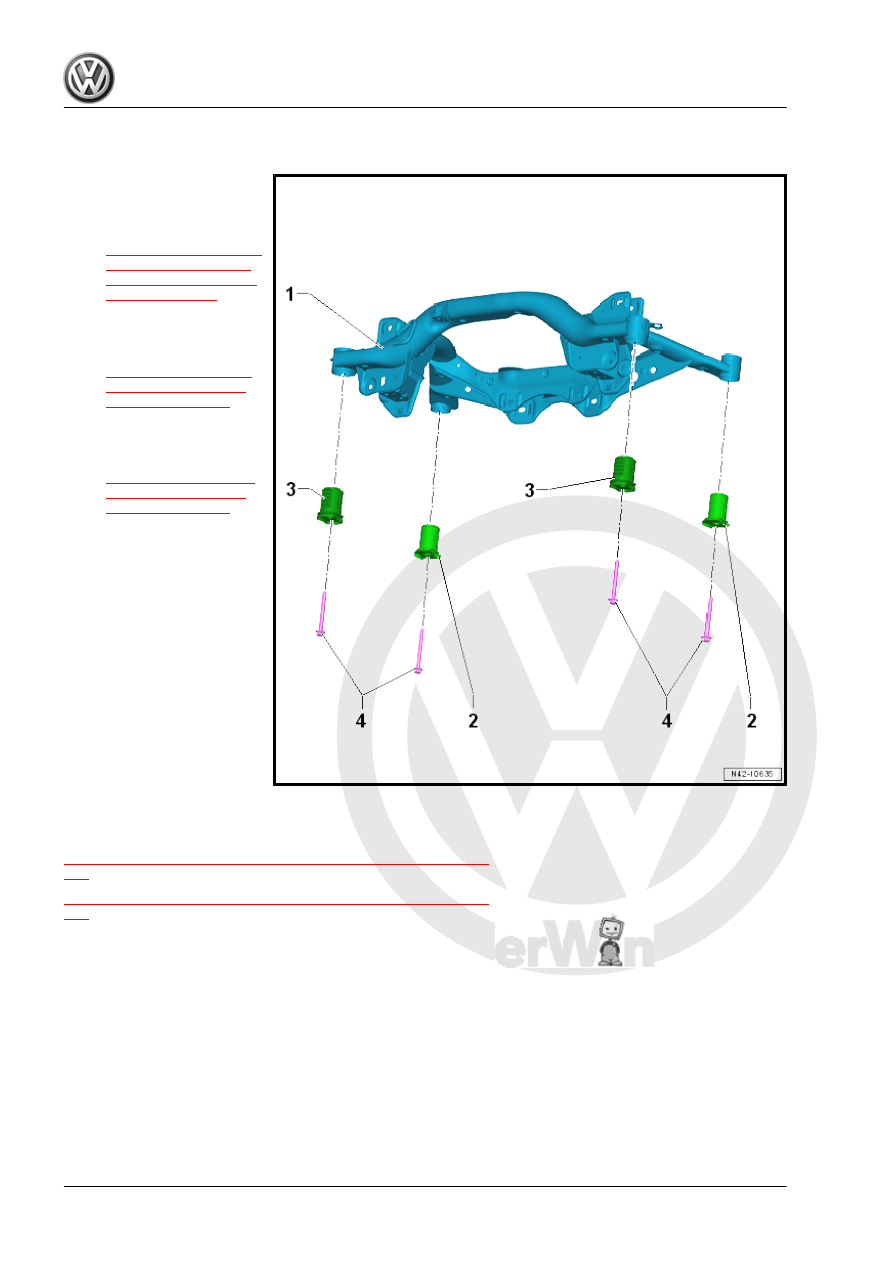

3.1.2

Overview - Subframe, Multi-Link Suspension, AWD

1 - Subframe

❑ Subframe with attach‐

ments, removing and in‐

stalling. Refer to

⇒ “1.3.3 Rear Axle, Re‐

moving and Installing,

Multi-Link Suspension,

AWD”, page 147

 .

2 - Rear Bonded Rubber Bush‐

ing

❑ Replacing. Refer to

⇒ “3.3.2 Rear Bonded

Rubber Bushing, Re‐

placing”, page 171

 .

3 - Front Bonded Rubber

Bushing

❑ Replacing. Refer to

⇒ “3.3.1 Front Bonded

Rubber Bushing, Re‐

placing”, page 165

 .

4 - Bolt

❑ 70 Nm +180°
❑ Replace after removal

3.2

Subframe, Securing

⇒ “3.2.1 Subframe, Securing, Multi-Link Suspension, FWD”, page

158
⇒ “3.2.2 Subframe, Securing, Multi-Link Suspension, AWD”, page

162

3.2.1

Subframe, Securing, Multi-Link Suspen‐

sion, FWD

Special tools and workshop equipment required
♦ Locating Pins - T10096-
♦ Engine and Gearbox Jack - VAS6931-
♦ Rear Axle Support - T10552-

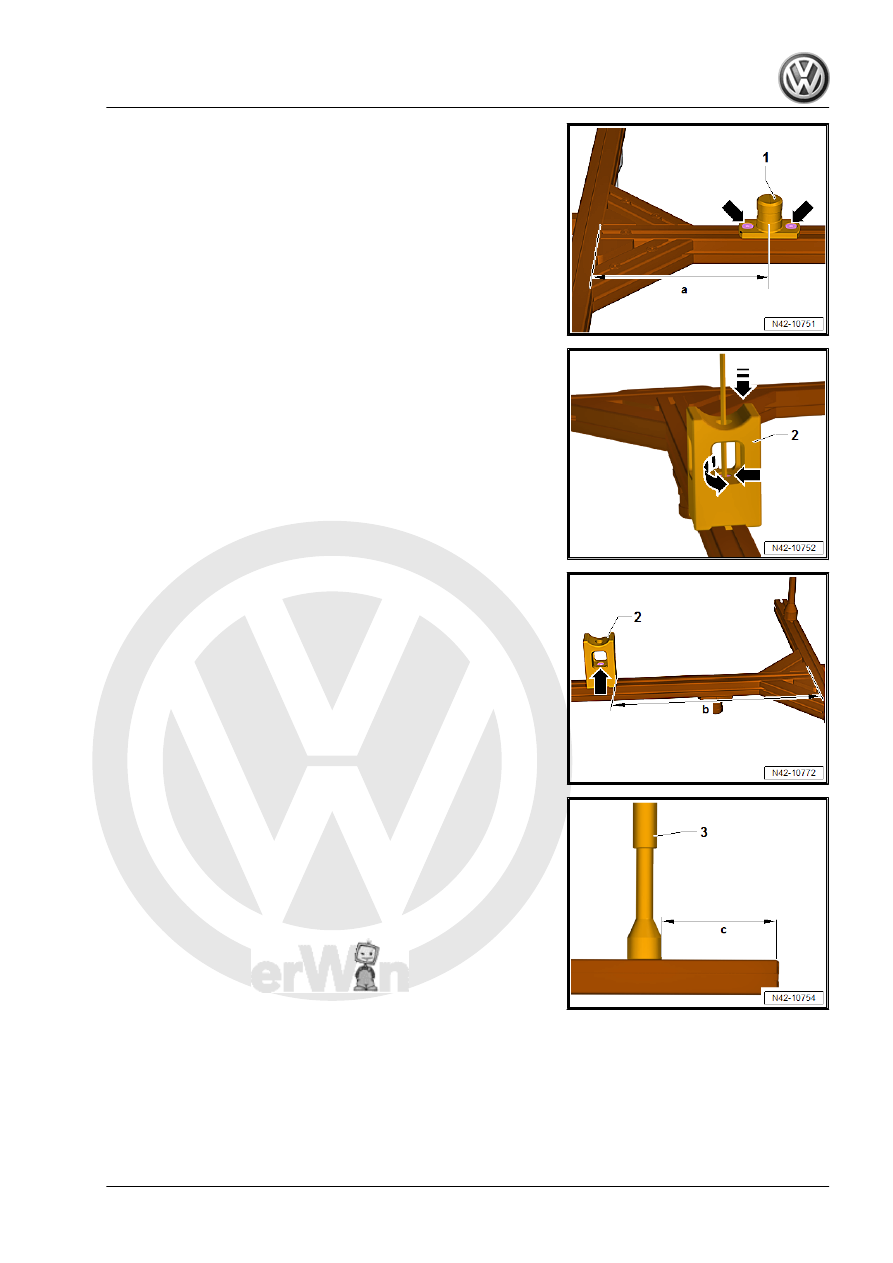

-T10552- , Preparing
– Loosen the bolts -arrows- and adjust the dimension -a-.
a - 250 mm
Tighten the bolts -arrows-.

– Loosen the bolt -arrow- for the -T10552/2- -2-.

– Turn the -T10552/2- -2- so that the profile is perpendicular to

the direction of travel.

– Adjust the dimension -b-.
b - 330 mm
Tighten the bolt -arrow- to 30 Nm.

– Loosen the -T10552/1- -3- on both sides at the bottom.
– Adjust the dimension -c-.
c - 47 mm

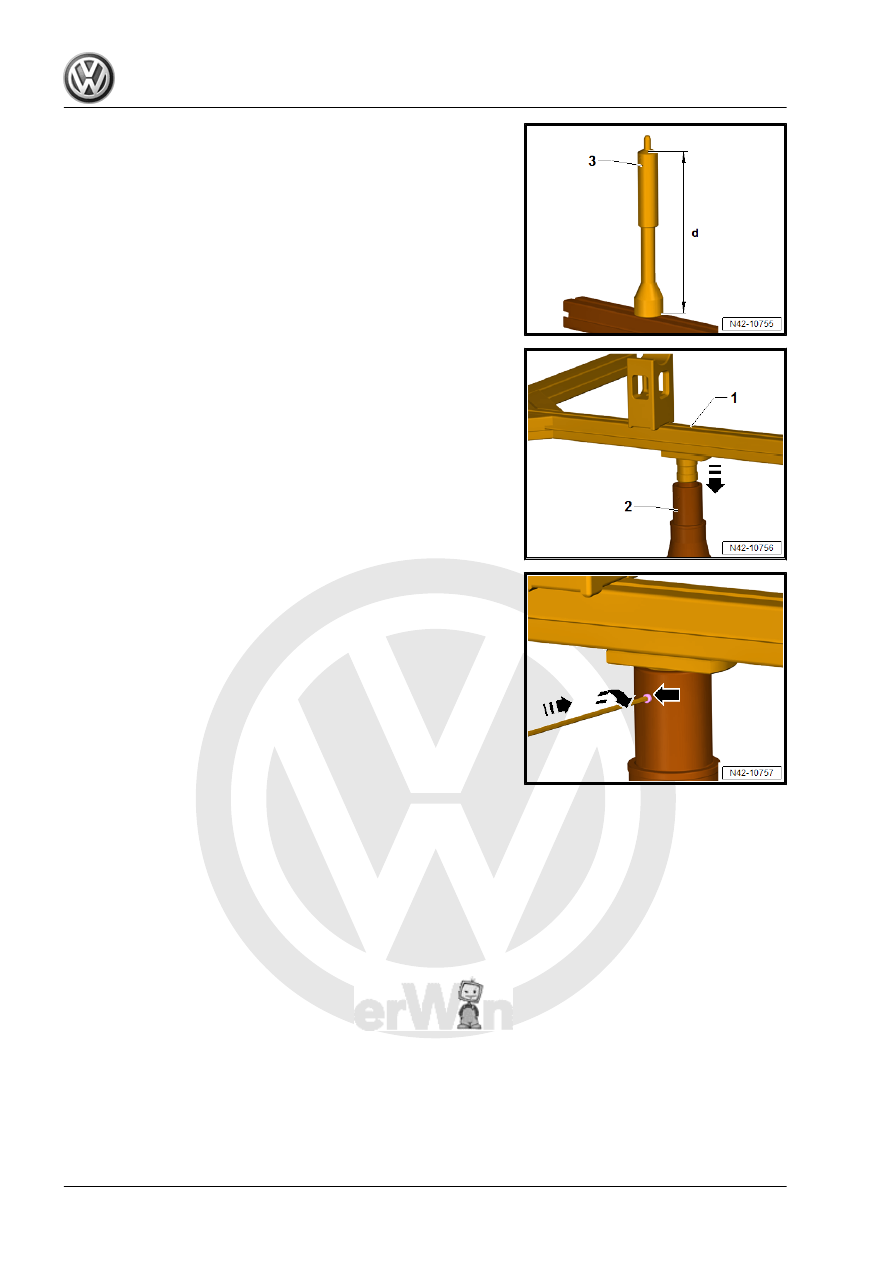

– Turn the -T10552/1- -3- on both sides until the dimension -d-

is set.

d - 230 mm

– Place the -T10552- -1- on the -VAG1383A- or -VAS6931- .

– Tighten the bolt -arrow- to 30 Nm.

– Position the -T10552- -1- with the -VAG1383A- or -VAS6931-

-5- under the rear axle and move it upward.
