28 – Ignition/Glow Plug System

1

Ignition System

⇒ “1.1 Overview - Ignition System”, page 356

 .

⇒ “1.3 Ignition Coils with Power Output Stages, Removing and

Installing”, page 357

 .

⇒ “1.4  Knock Sensor 1 G61 , Removing and Installing”,

page 359

 .

⇒ “1.5 Camshaft Position Sensor, Removing and Installing”, page

360

 .

⇒ “1.6  Engine Speed Sensor G28 , Removing and Installing”,

page 361

 .

1.1

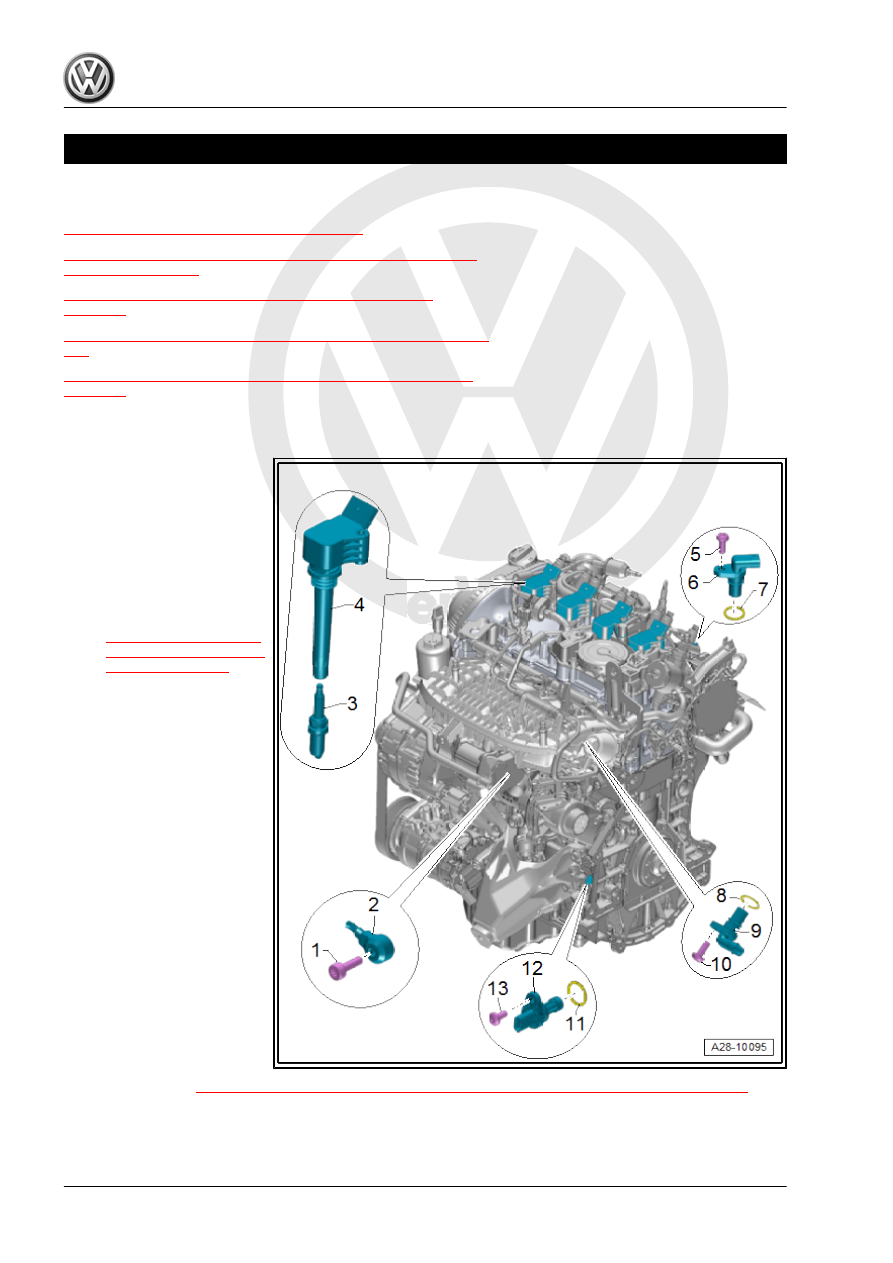

Overview - Ignition System

1 - Bolt

❑ 8 Nm + 90°
❑ Replace after removing
❑ The tightening specifi‐

cation affect how the

knock sensor functions

2 - Knock Sensor 1 - G61-

❑ Removing and instal‐

ling. Refer to

⇒ “1.4  Knock Sensor 1

G61 , Removing and In‐

stalling”, page 359

 .

3 - Spark Plug

❑ 30 Nm
❑ Remove and install us‐

ing Spark Plug Removal

Tool - 3122 B-

4 - Ignition Coil with Power

Output Stage

❑ 10 Nm
❑ Ignition Coil 1 with Pow‐

er Output Stage - N70-

❑ Ignition Coil 2 with Pow‐

er Output Stage - N127-

❑ Ignition Coil 3 with Pow‐

er Output Stage - N291-

❑ Ignition Coil 4 with Pow‐

er Output Stage - N292-

❑ Ignition coils with power

output stage and spark

plug connectors can be

obtained individually for

repairs

❑ Removing and instal‐

ling. Refer to

⇒ “1.3 Ignition Coils with Power Output Stages, Removing and Installing”, page 357

 .

5 - Bolt

❑ 9 Nm

6 - Camshaft Position Sensor 3 - G300-

❑ Removing and installing. Refer to

⇒ “1.5.2  Camshaft Position Sensor 3 G300 , Removing and Installing”, page 360

 .

7 - O-Ring

❑ Replace if damaged

8 - O-Ring

❑ Replace if damaged

9 - Camshaft Position Sensor - G40-

❑ Removing and installing. Refer to

⇒ “1.5.1  Camshaft Position Sensor G40 , Removing and Installing”, page 360

 .

10 - Bolt

❑ 9 Nm

11 - O-Ring

❑ Replace if damaged

12 - Engine Speed Sensor - G28-

❑ Check the O-ring for damage
❑ Removing and installing. Refer to

⇒ “1.6  Engine Speed Sensor G28 , Removing and Installing”, page 361

 .

13 - Bolt

❑ 9 Nm

1.2

Test Data and Spark Plugs

Ignition sequence

1-3-4-2



Spark plugs

VW part number. Refer to

1)

.

06K 905 601 B

06K 905 611 C

Electrode gap

0.7 to 0.8 mm

0.7 to 0.8 mm

Tightening Specification

-item 3-

⇒ Item 3 (page 356)

Change intervals

Change intervals. Refer to the ⇒ Maintenance ; Booklet  36.1 ; Service

Work; Service Tables .

1) Refer to the Parts Catalog for the current spark plugs.

1.3

Ignition Coils with Power Output Stages,

Removing and Installing

Special tools and workshop equipment required
♦ Puller - T10530-

Note

♦

The ignition coils are easier to remove when the engine is

warm. The grease that is used for installation helps the ignition

coils or spark plug connectors to free up more easily when the

engine is warm.

♦

Ignition coils with power output stage and spark plug connec‐

tors can be obtained individually for repairs. Refer to Parts

Catalog.

Removing:
– Remove the engine cover. Refer to

⇒ “3.1 Engine Cover, Removing and Installing”, page 38

 .

– If equipped remove the ground cable -arrows-.

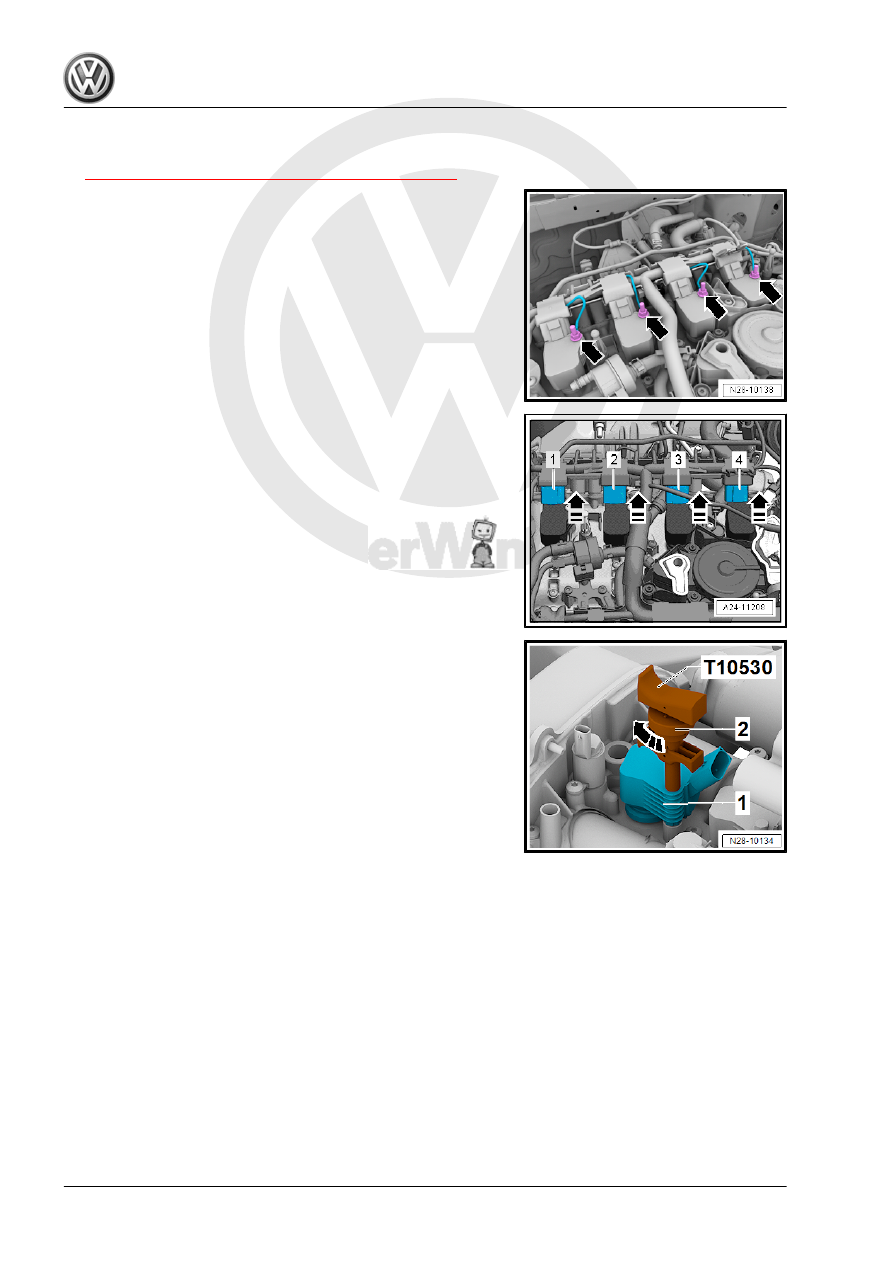

– Release the connector and disconnect all the connectors at

the same time from the ignition coils.

– Remove the bolts for the ignition coil that is being removed.

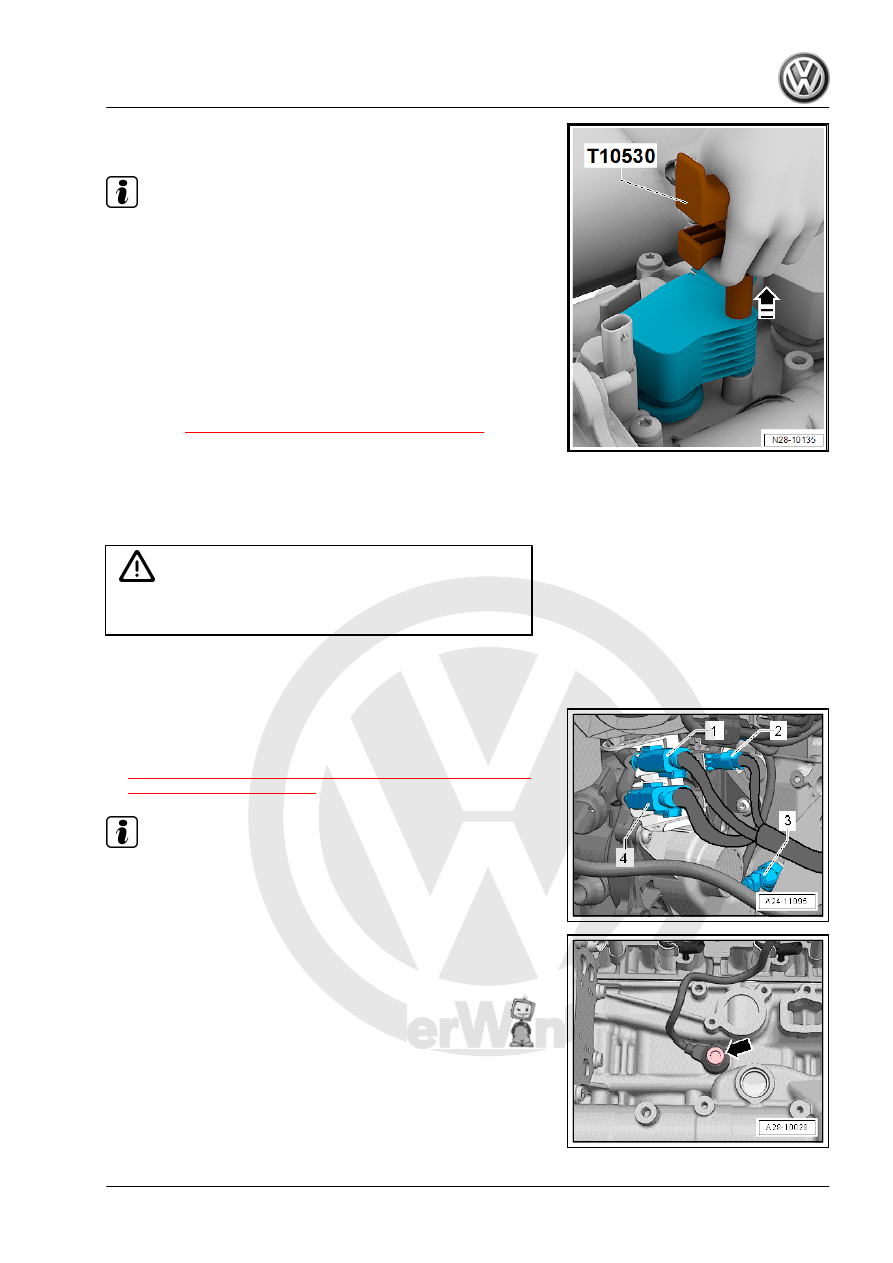

– Insert the Puller - T10530- in the ignition coil opening -1-.

– Turn the knurled nut -2- clockwise until the puller is clamped.

– Carefully remove the ignition coil vertically upward using the

Puller - T10530- .

Note

♦

Ignition coils with power output stage and spark plug connec‐

tors can be obtained individually for repairs. Refer to Parts

Catalog.

♦

The spark plug connector is removed from the ignition coil by

hand.

Installing
– Push the ignition coils evenly onto the spark plugs using your

hands (do not use any impact tools).

Tightening Specifications
♦ Refer to

⇒ “1.1 Overview - Ignition System”, page 356

1.4

Knock Sensor 1 - G61- , Removing and

Installing

Removing

Caution

This procedure contains mandatory replaceable parts. Refer

to component overview prior to starting procedure.

Mandatory Replacement Parts
♦ Bolt - Knock Sensor
– Disconnect the connector -2- from Knock Sensor 1 - G61- .
– Remove the Engine Temperature Control Actuator - N493- .

Refer to

⇒ “2.9  Engine Temperature Control Actuator N493 , Remov‐

ing and Installing”, page 237

 .

Note

The Knock Sensor 1 - G61- is under the intake manifold behind

the Engine Temperature Control Actuator - N493- .

– Remove the Knock Sensor 1 - G61- -arrow-.
