Volkswagen Golf / Golf GTI / Golf Variant. Manual - part 685

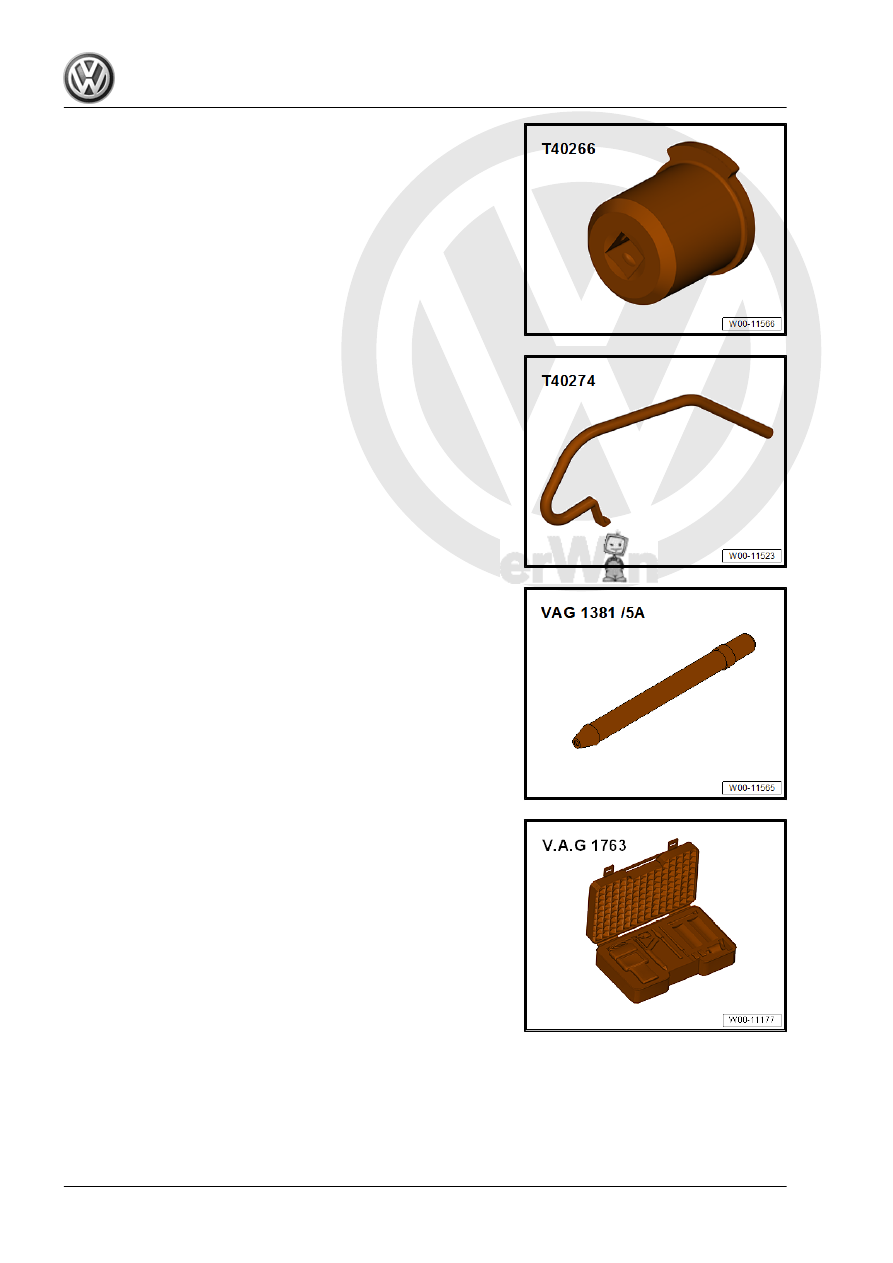

♦ Adapter - T40266-

♦ Seal Installer - Crankshaft - T40274-

♦ Compression Tester Kit - Adapter 5A - VAG1381/5A-

♦ Compression Tester Kit - VAG1763-

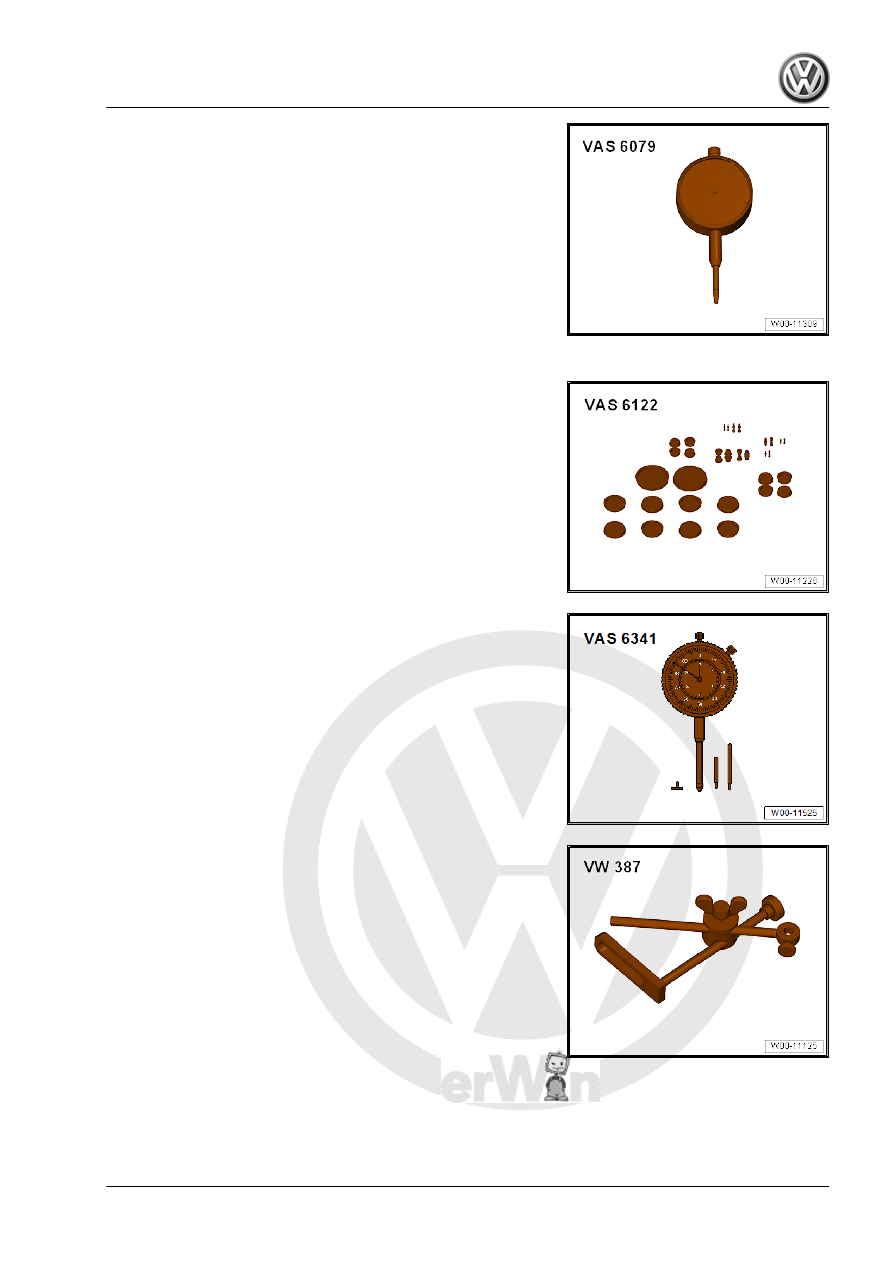

♦ Dial Gauge - 0-10mm - VAS6079-

♦ Compression Tester Kit - Adapter 1 - VAG1381/1-
♦ Engine Bung Set - VAS6122-

♦ Dial Gauge Set - VAS6341-

♦ Dial Gauge Holder - VW387-

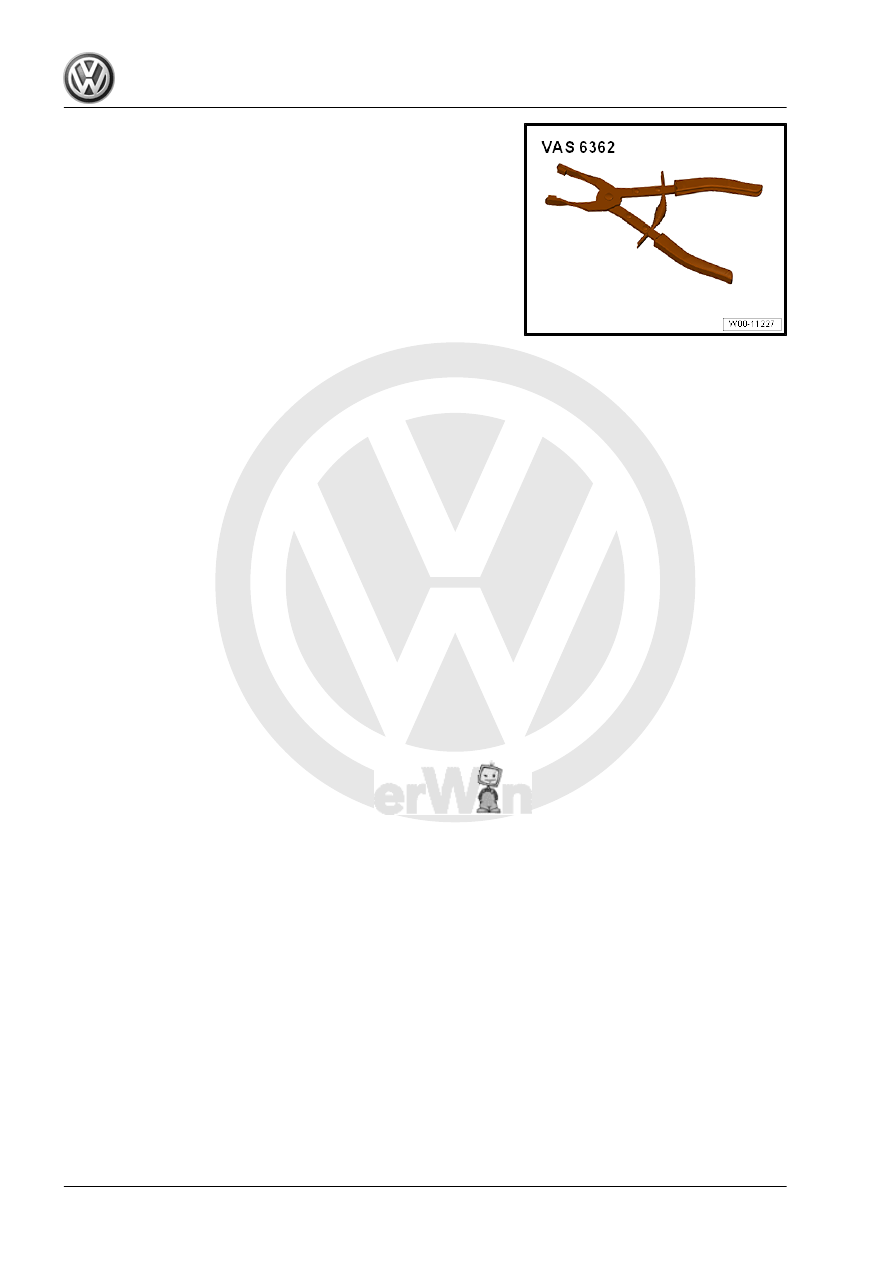

♦ Hose Clip Pliers - VAS6362-

17 – Lubrication

1

Oil Pan/Oil Pump

⇒ “1.1 Overview - Oil Pan/Oil Pump”, page 179

 .

⇒ “1.2 Engine Oil”, page 182
⇒ “1.3 Oil Pan Lower Section, Removing and Installing”,

page 182

 .

⇒ “1.4 Oil Pan Upper Section, Removing and Installing”,

page 185

 .

⇒ “1.5 Oil Pump, Removing and Installing”, page 188
⇒ “1.6  Oil Level Thermal Sensor G266 , Removing and Installing”,

page 190

1.1

Overview - Oil Pan/Oil Pump

Note

If large quantities of metal particles or other deposits such as those caused by partial seizure of the crankshaft

or connecting rod damage are found in the engine oil, clean the oil channels thoroughly and replace the engine

oil cooler to prevent further damage.
