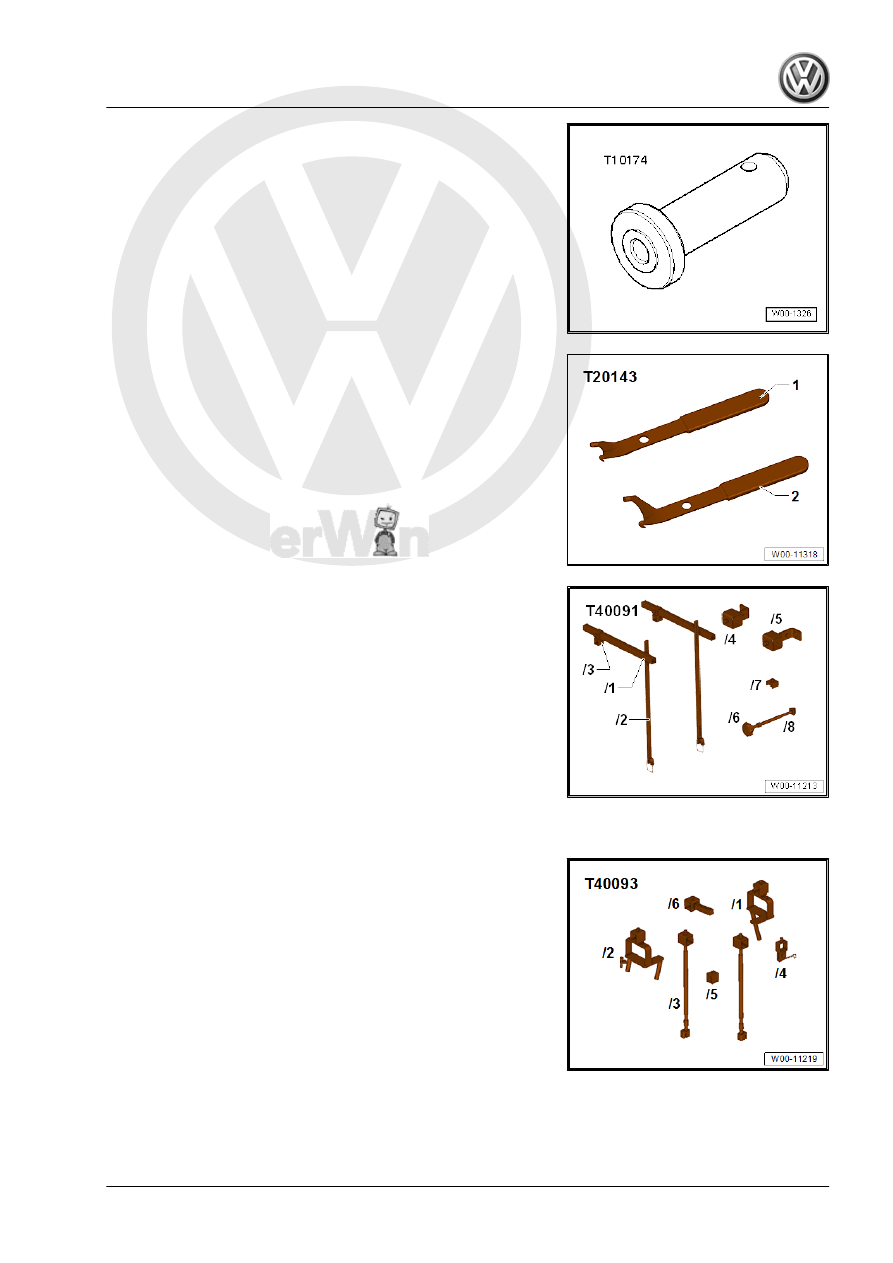

♦ Seal Installer - Selector Shaft Oil Seal - T10174-

♦ Puller - Crankshaft/Power Steering Seal - T20143/1-

♦ Engine Support - Basic Set Square Pipe - T40091/1- (quantity

2)

♦ Engine Support - Basic Set Movable Joint - T40091/3- (quan‐

tity 2)

♦ Engine Support - Supplement Kit Spindle - T40093/3- (quan‐

tity 2) from the Engine Support - Supplement Kit - T40093A-

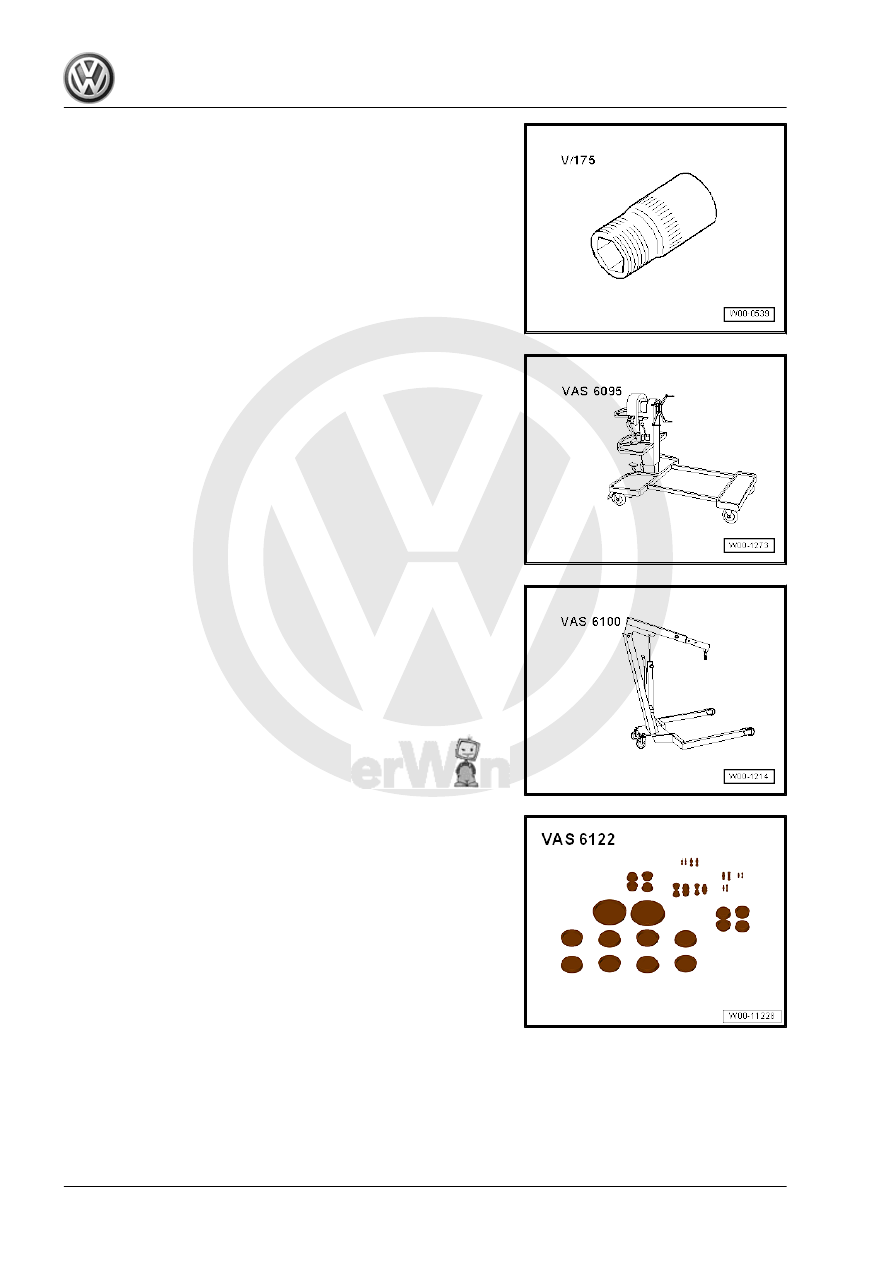

♦ Socket - Sw15 - V/175-

♦ Engine And Transmission Holder - VAS6095-

♦ Shop Crane - VAS6100-

♦ Engine Bung Set - VAS6122-

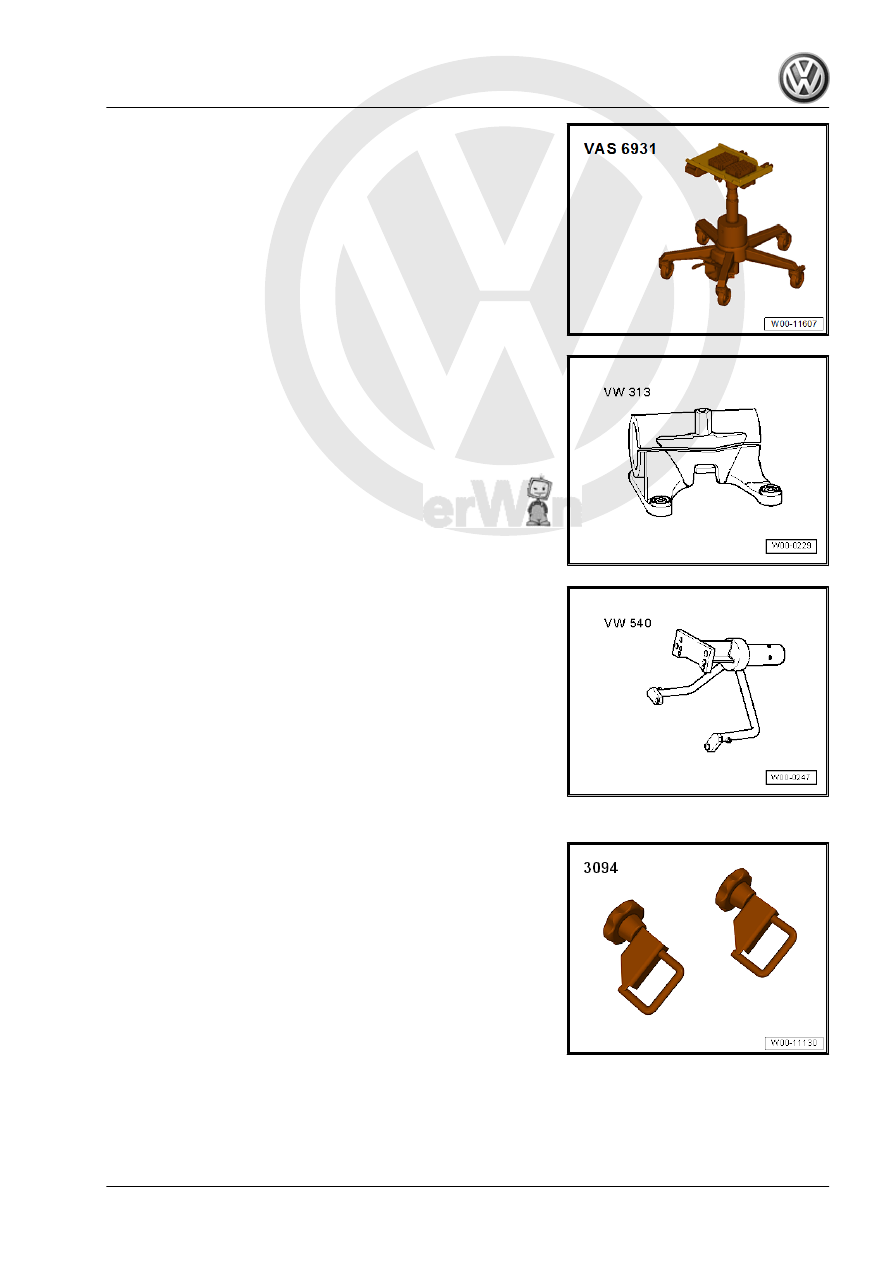

♦ Engine and Gearbox Jack - VAS6931- or Engine/Gearbox

Jack - VAG1383A-

♦ Holding Fixture - VW313-

♦ Holding Fixture - VW540-

♦ Engine Support Brackets - T40093/3-6- (quantity 2)
♦ Hose Clamps - Up To 25mm - 3094-

♦ Not Illustrated:
♦ Brake Line Tool Kit - Pipe Cutter - VAS6056/2-

38 – Gears, Hydraulic Controls

1

ATF System

⇒ “1.1 Oil Pan, Removing and Installing”, page 84
⇒ “1.2 ATF Strainer, Removing and Installing”, page 86

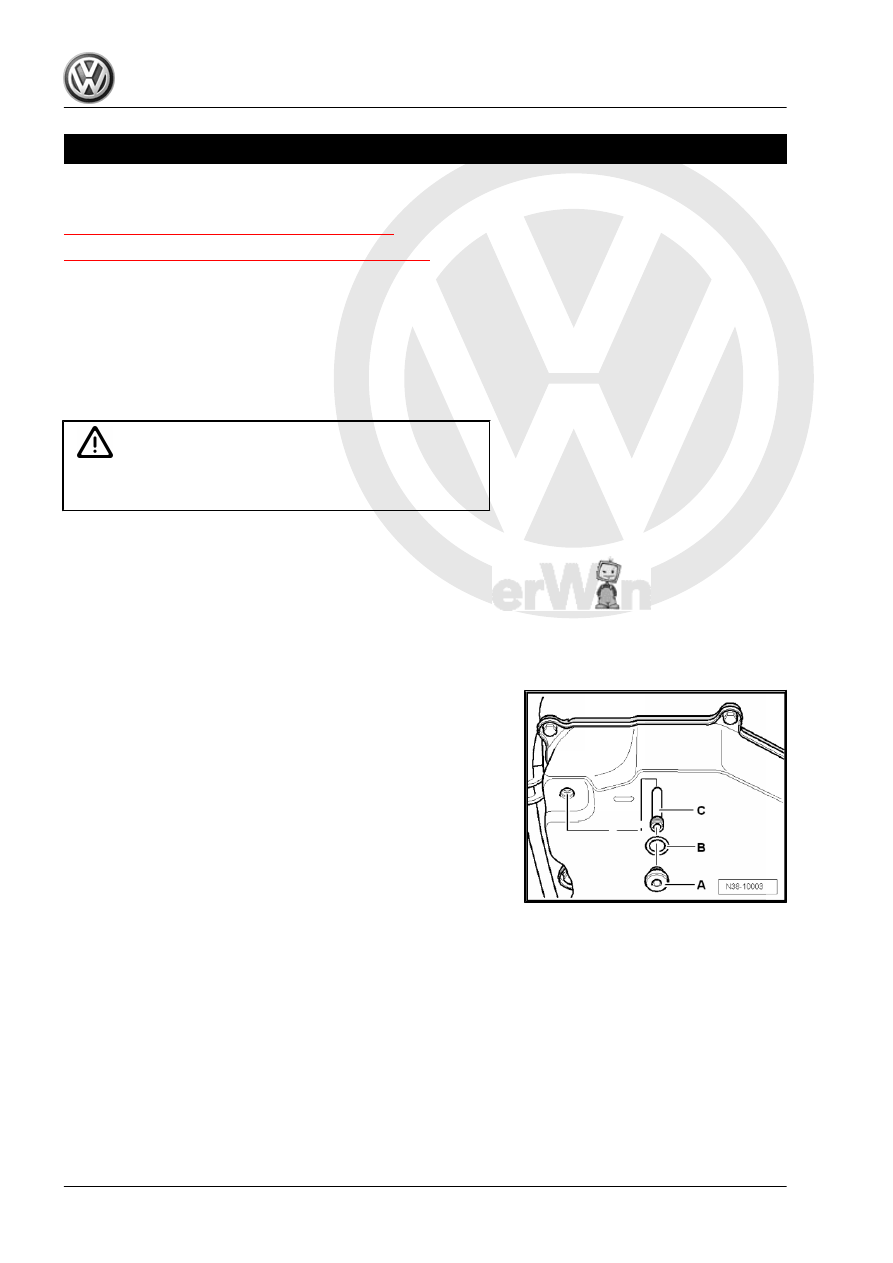

1.1

Oil Pan, Removing and Installing

Special tools and workshop equipment required
♦ Torque Wrench 1783 - 2-10Nm - VAG1783-
♦ Used Oil Collection and Extraction Unit - SMN372500-
♦ Used Oil Collection and Extraction Unit - SMN372500- or Drip

Tray - VAS6208-

Caution

This procedure contains mandatory replaceable parts. Refer

to component overview prior to starting procedure.

Mandatory Replacement Parts
♦ Gasket - ATF Check Plug
Removing
– Remove the noise insulation. Refer to ⇒  Body Exterior; Rep.

Gr.  66 ; Noise Insulation; Overview - Noise Insulation .

– Place the Used Oil Collection and Extraction Unit -

SMN372500- or Drip Tray under the transmission.

– Remove the ATF check plug -A-.
– Remove the overflow pipe -C- and drain any remaining ATF.
