– Turn off the engine.
• Place the Drip Tray or Used Oil Collection and Extraction Unit

- SMN372500- under the transmission.

– Remove the ATF check plug from the ATF pan -arrow-.

– Remove the overflow pipe -1- through check plug hole.
– Drain the ATF.
– Install the overflow pipe.
– Attach the Oil Filler - VAS6262A- to the oil bottle. Be sure to

read the instructions. Refer to

⇒ page 73

 .

– Install the Oil Filler - Adapter 2 - VAS6262/2- hand-tight in the

ATF-check hole.

– Fill with three liters of ATF. Refer to the Parts Catalog.
– Remove the Oil Filler - Adapter 2 - VAS6262/2- from the oil

pan and tighten the ATF check plug with the old seal.

– Move the selector lever into “P”.
– Start the engine.
– With brake depressed, move the selector lever through all the

different positions “P, R, N, D, S” at idle, holding it at each

position for at least 10 seconds.

– Move the selector lever into “P”.
– Check the ATF level. Refer to

⇒ “7.1 ATF Level, Checking”, page 73

 .

Tightening Specifications
♦ Refer to

⇒ “2.1 Overview - Valve Body”, page 87

8

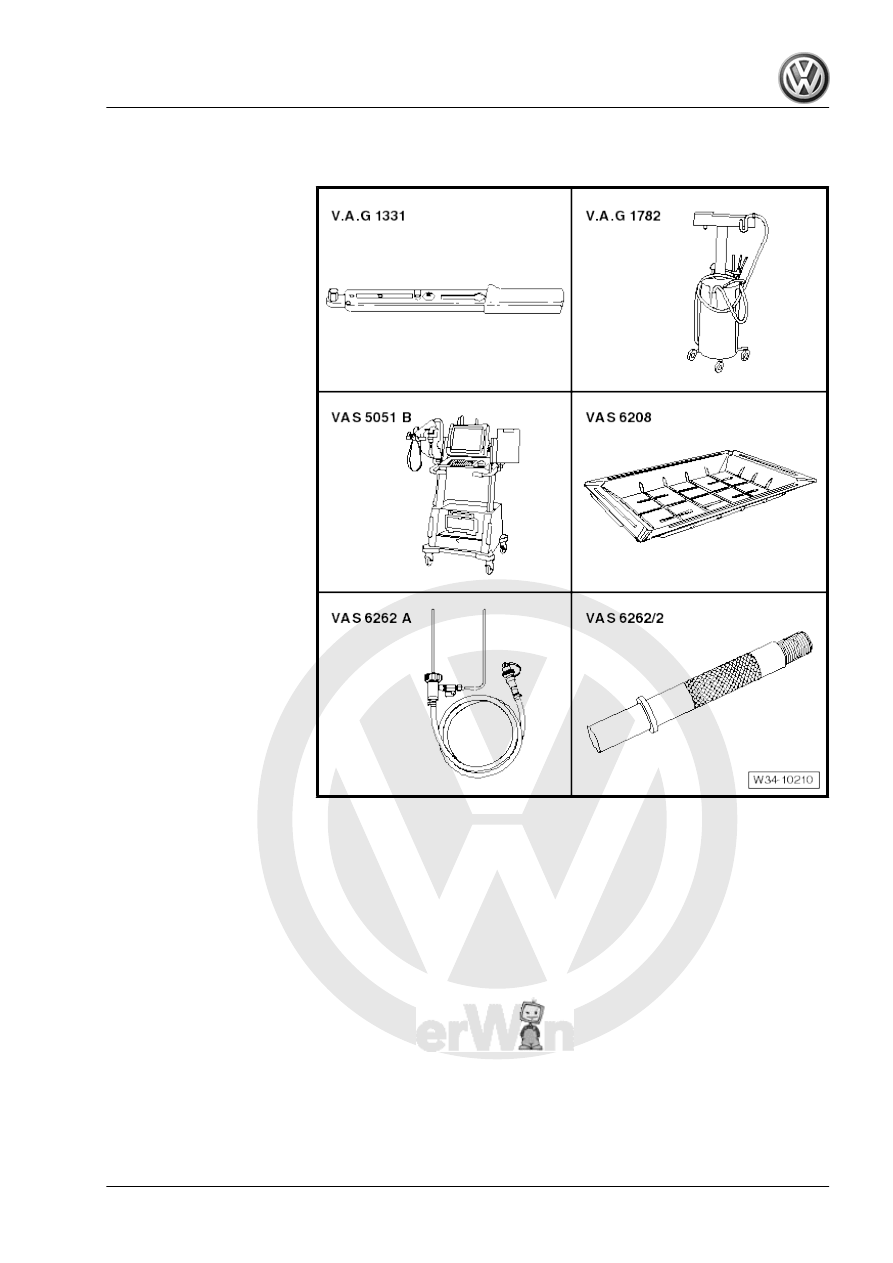

Special Tools

Special tools and workshop

equipment required
♦ Torque Wrench 5-50Nm -

VAG1331-

♦ Used Oil Collection and Ex‐

traction Unit - SMN372500-

♦ Vehicle Diagnostic Tester
♦ Shop Crane - Drip Tray -

VAS6208-

♦ Oil Filler - VAS6262A-
♦ Oil Filler - Adapter 2 -

VAS6262/2-

♦ Also for some oil containers

Oil Filler - Adapter 6 -

VAS6262/6-

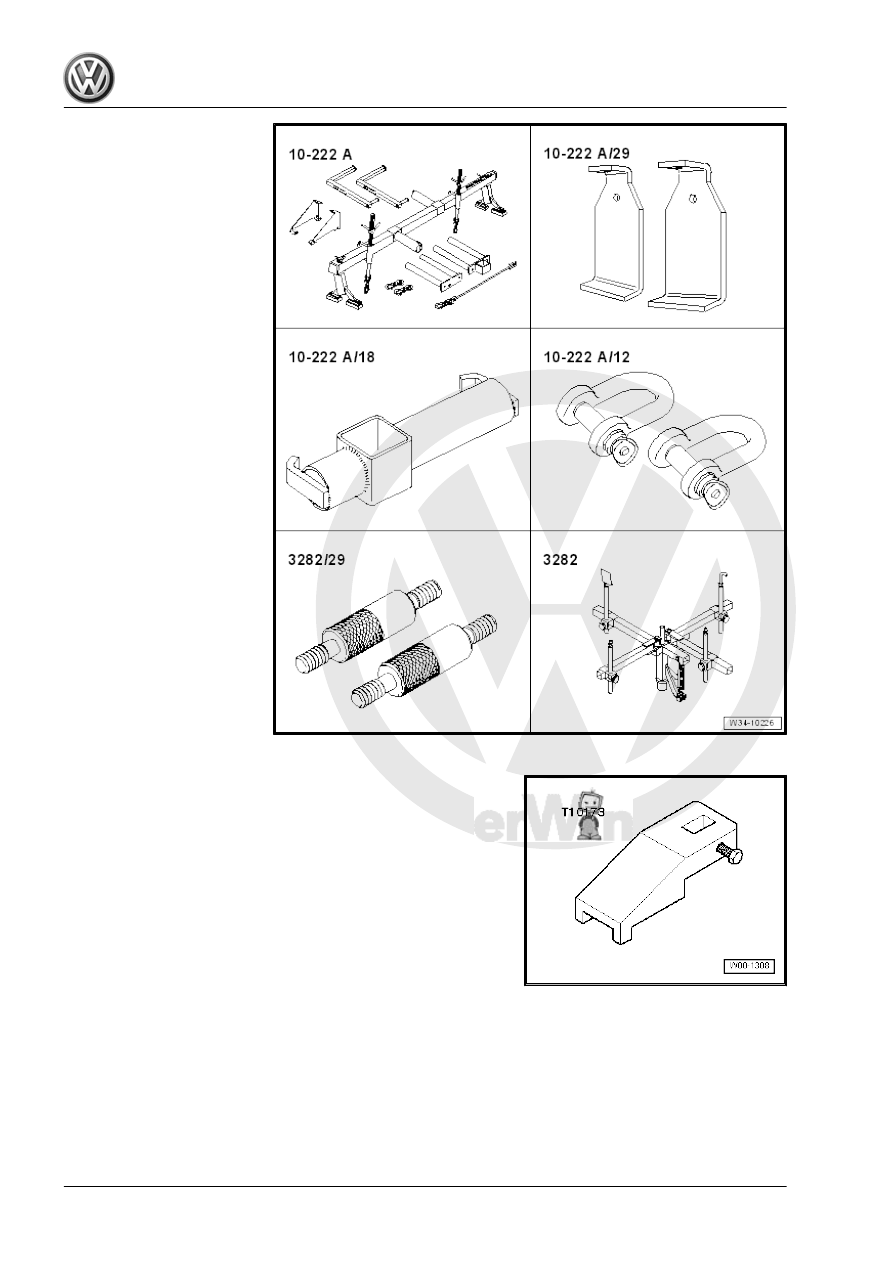

♦ Engine Support Bridge -

10-222A-

♦ Engine Support Bridge -

Engine Support 29 -

10-222A/29-

♦ Engine Support Bridge -

Engine Support 18 -

10-222A/18-

♦ Engine/Gearbox Support

Shackle (2 pc.) - 10-222A/

12- (quantity 2)

♦ Transmission Support -

Pins 29 - 3282/29-

♦ Transmission Support -

3282-

♦ Gauge - Multi Function Switch - T10173-
