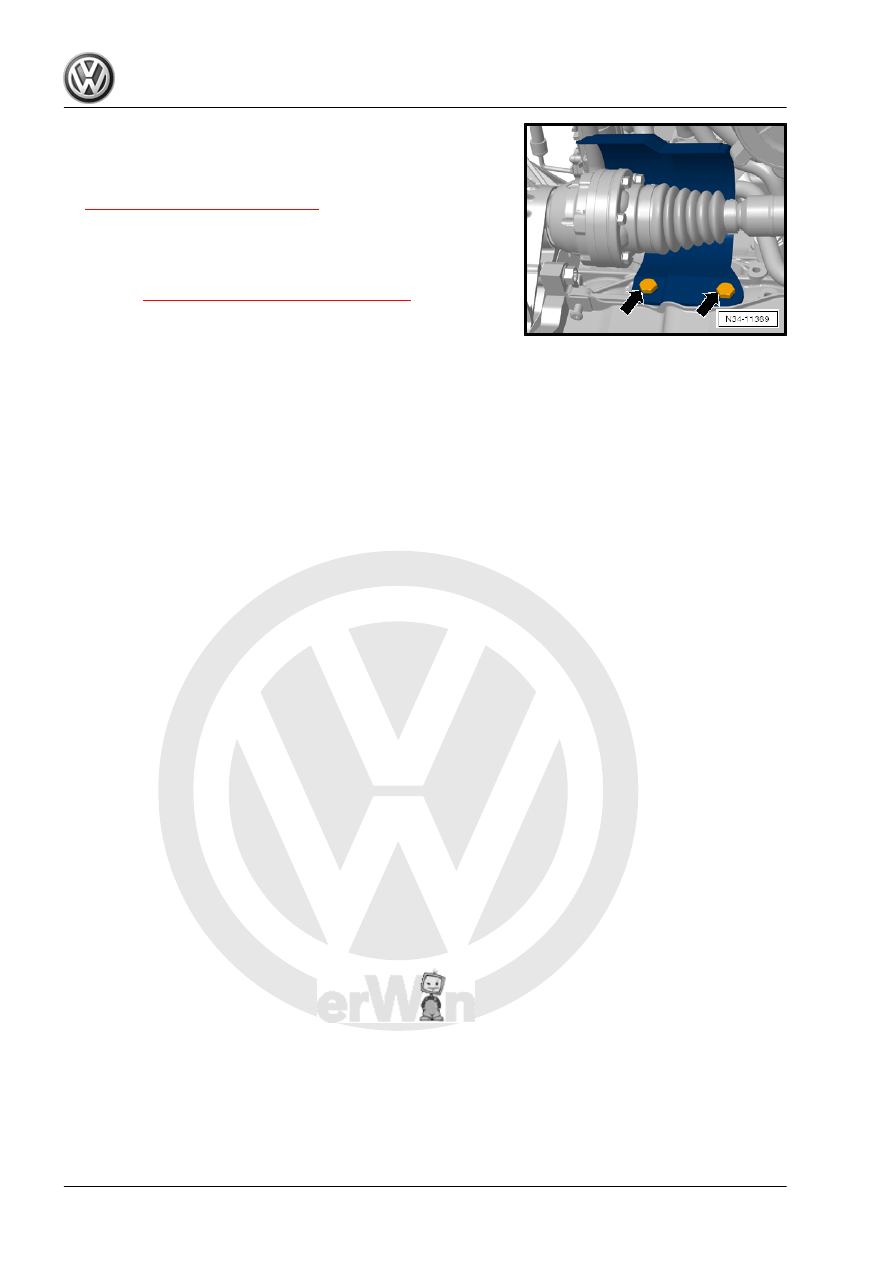

– Attach the drive axle heat shield -arrows- (if equipped). Refer

to ⇒  Suspension, Wheels, Steering; Rep. Gr.  40 ; Drive Axle;

Drive Axle Heat Shield, Removing and Installing .

– Check the transmission fluid and fill if necessary. Refer to

⇒ “8 Transmission Fluid”, page 125

 .

– Install the noise insulation. Refer to ⇒  Body Exterior; Rep. Gr.

66 ; Noise Insulation; Overview - Noise Insulation .

Tightening Specification
♦ Refer to

⇒ “2.1 Overview - Differential”, page 189

 .

2

Differential

⇒ “2.1 Overview - Differential”, page 189
⇒ “2.2 Differential, Disassembling and Assembling”, page 190
⇒ “2.3 Differential, Adjusting”, page 194

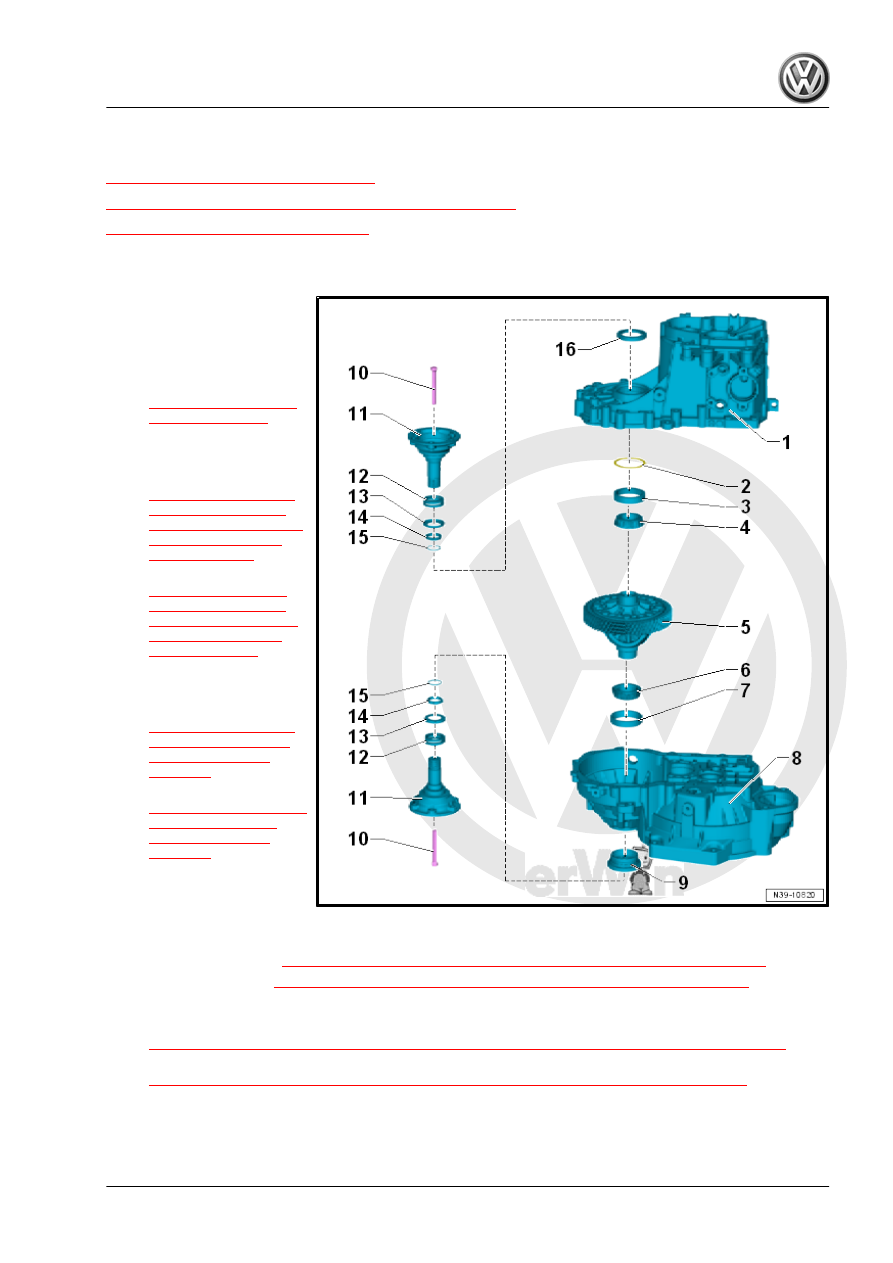

2.1

Overview - Differential

1 - Transmission Housing
2 - Shim

❑ For the differential
❑ Selecting thickness. Re‐

fer to

⇒ “2.3 Differential, Ad‐

justing”, page 194

 .

3 - Outer Race/Tapered Roller

Bearing

❑ Removing. Refer to

⇒ Fig. ““Removing the

Outer Race/Tapered

Roller Bearing from the

Transmission Hous‐

ing”“ , page 192

❑ Installing. Refer to

⇒ Fig. ““Installing the

Outer Race/Tapered

Roller Bearing Into the

Transmission Hous‐

ing.”“ , page 192

4 - Inner Race / Tapered Roller

Bearing

❑ Removing. Refer to

⇒ Fig. ““Removing the

Inner Races/Tapered

Roller Bearings”“ ,

page 191

❑ Installing. Refer to

⇒ Fig. ““Installing the In‐

ner Races/Tapered

Roller Bearings”“ ,

page 191

5 - Differential

❑ With final drive gear

wheel

6 - Inner Race / Tapered Roller Bearing

❑ Removing. Refer to

⇒ Fig. ““Removing the Inner Races/Tapered Roller Bearings”“ , page 191

❑ Installing. Refer to

⇒ Fig. ““Installing the Inner Races/Tapered Roller Bearings”“ , page 191

7 - Outer Race/Tapered Roller Bearing

❑ Removing. Refer to

⇒ Fig. ““Removing the Outer Race/Tapered Roller Bearing from the Clutch Housing”“ , page 191

❑ Installing. Refer to

⇒ Fig. ““Installing Outer Race/Tapered Roller Bearing Into the Clutch Housing”“ , page 191

8 - Clutch Housing
9 - Seal

❑ With sleeve

❑ For the right flange shaft
❑ If the seal is damaged, then replace both the seal and sleeve. Refer to

⇒ “1.3 Right Seal, Replacing”, page 185

 .

10 - Bolt

❑ 25 Nm

11 - Flange Shaft

❑ Removing and installing. Refer to

⇒ “1 Seals”, page 183

 .

12 - Flange Shaft Pressure Spring
13 - Thrust Washer

❑ Installed position. Refer to

⇒ Fig. ““Installed Position: Tapered Ring Thrust Washer -1- ”“ , page 194

14 - Tapered Ring

❑ With grooves for the thrust washer
❑ Installed position: ball toward the differential housing

15 - Circlip

❑ Holds the tapered ring, the thrust washer and the pressure spring when the flange shaft is removed

16 - Seal

❑ For the left flange shaft
❑ Replacing. Refer to

⇒ “1.2 Left Seal, Replacing”, page 183

 .

2.2

Differential, Disassembling and Assem‐

bling

Special tools and workshop equipment required
♦ Puller - Taper Roller Bearing - VAG1582-
♦ Puller - Taper Roller Bearing - Adapter 3 - VAG1582/3-
♦ Press Piece - Multiple Use - VW412-
♦ Press Plate - VW401-
♦ Press Plate - VW402-
♦ Press Piece - Rod - VW408A-
♦ Press Piece - Multiple Use - VW 473-
♦ Press Piece - Multiple Use - 30-205-
♦ Bearing Installer - Wheel Bearing - 3144-
♦ Bearing Installer - Taper Roller Bearing - 2007-
♦ Torque Wrench 1332 40-200Nm - VAG1332-
♦ Inductive Heater - VAS6414-
♦ -1- Puller - Kukko Internal - 46-56mm - 21/7-
♦ -4- Puller - Kukko Counterstay - 22/2-

Note

♦

Heat the inner race / tapered roller bearing to 100 °C (212 °F)

before installing.

♦

Replace both tapered roller bearings together.

♦

Adjust the differential when replacing the tapered roller bear‐

ing, differential, transmission housing or clutch housing. Refer

to

⇒ “3 Adjustment Overview”, page 198

 .

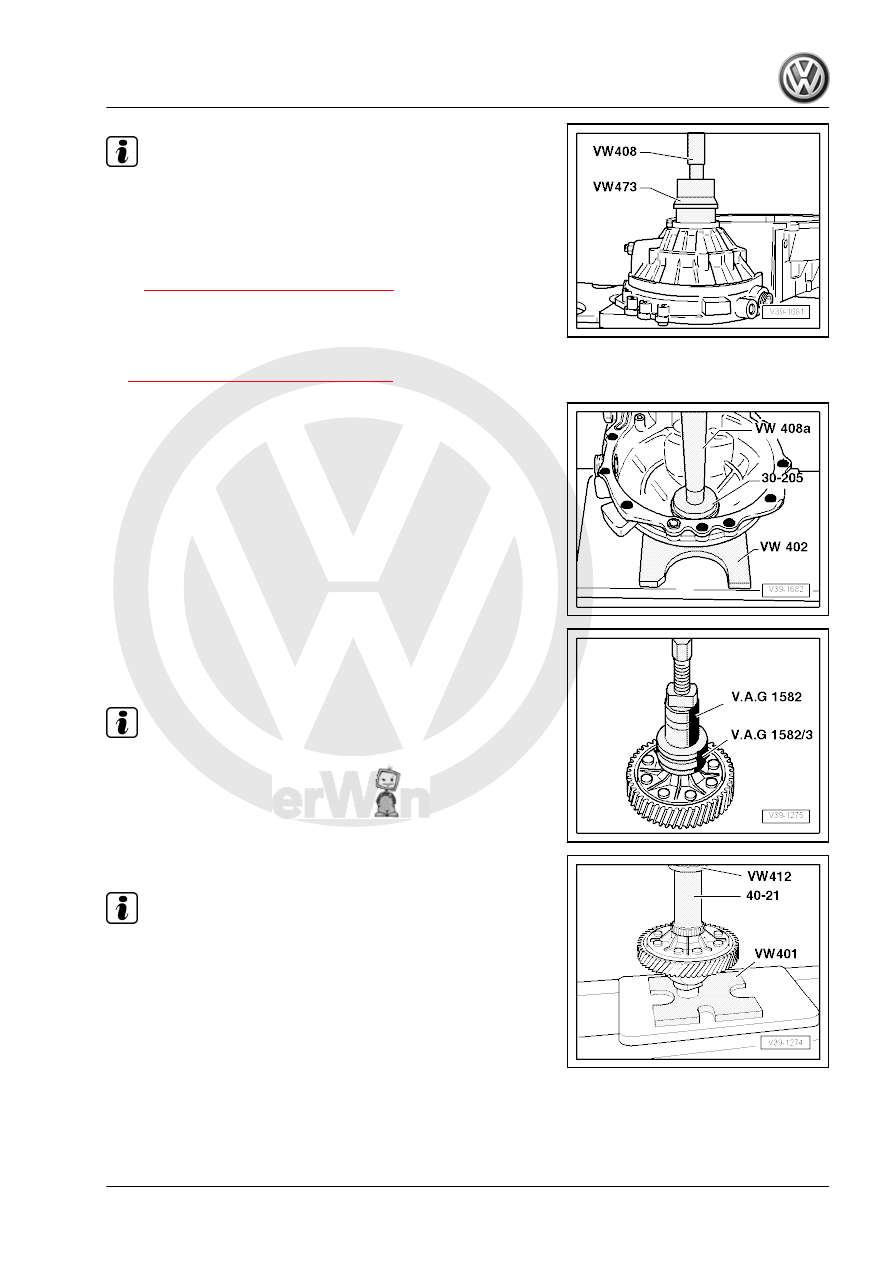

Removing the Outer Race/Tapered Roller Bearing from the

Clutch Housing
– First remove the right flange shaft seal. Refer to

⇒ “1.3 Right Seal, Replacing”, page 185

 .

Installing Outer Race/Tapered Roller Bearing Into the Clutch

Housing
There is no adjusting shim on the side of the clutch housing.

Removing the Inner Races/Tapered Roller Bearings
– Mount the Press Piece - Multiple Use - 40-105- on the differ‐

ential housing before removing the puller.

Note

Both tapered roller bearing inner races are removed from the dif‐

ferential housing in the same way.

Installing the Inner Races/Tapered Roller Bearings

Note

Inner race/tapered roller bearing for transmission housing and

clutch housing are installed using the same special tools
