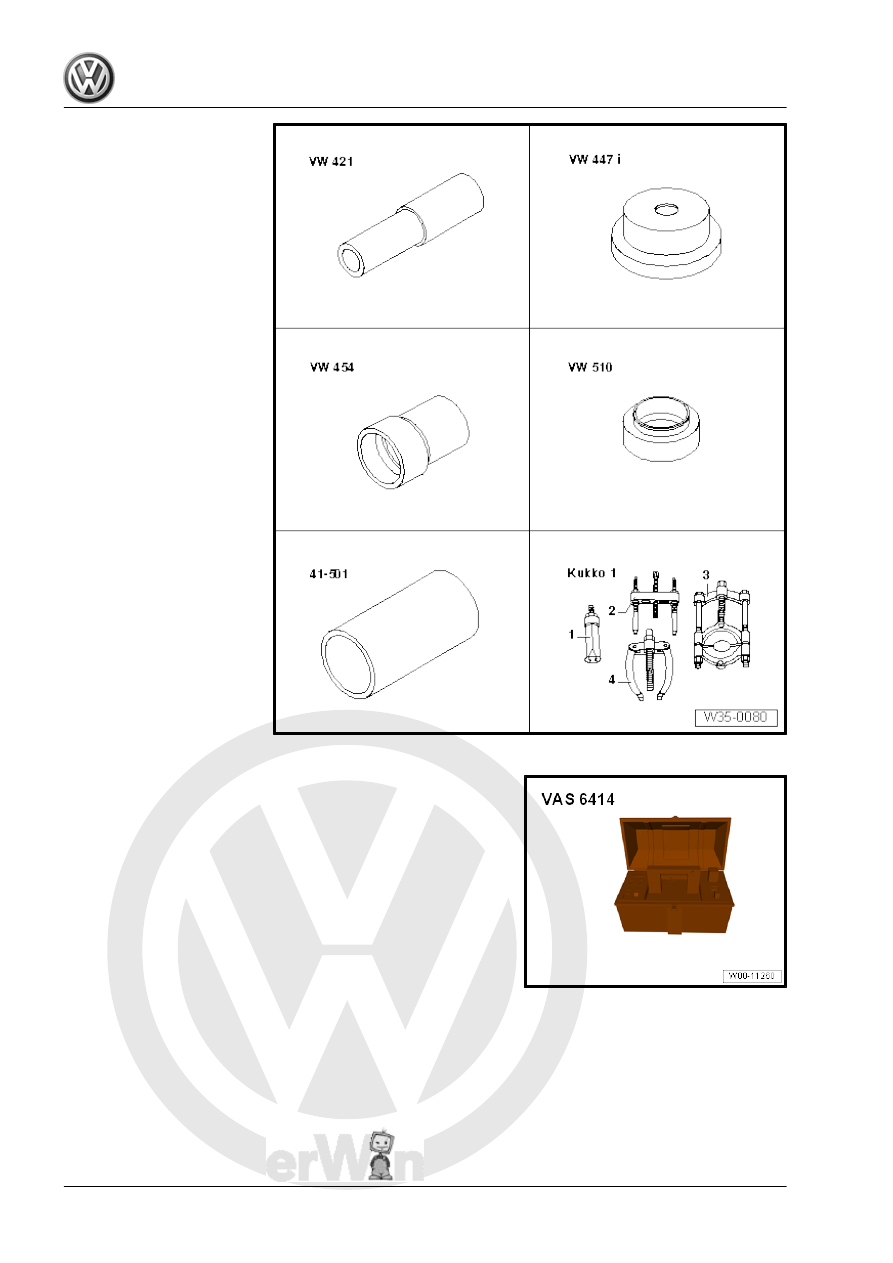

♦ Press Piece - 28x100mm -

VW421-

♦ Press Piece - VW447i-
♦ Press Piece - Multiple Use

- VW454-

♦ Press Piece - Multiple Use

- VW510-

♦ Press Tube - 41-501-
♦ -3- Puller - Kukko Quick Ac‐

tion Separating Tool -

12-75mm - Kukko 17/1-

♦ Inductive Heater - VAS6414-

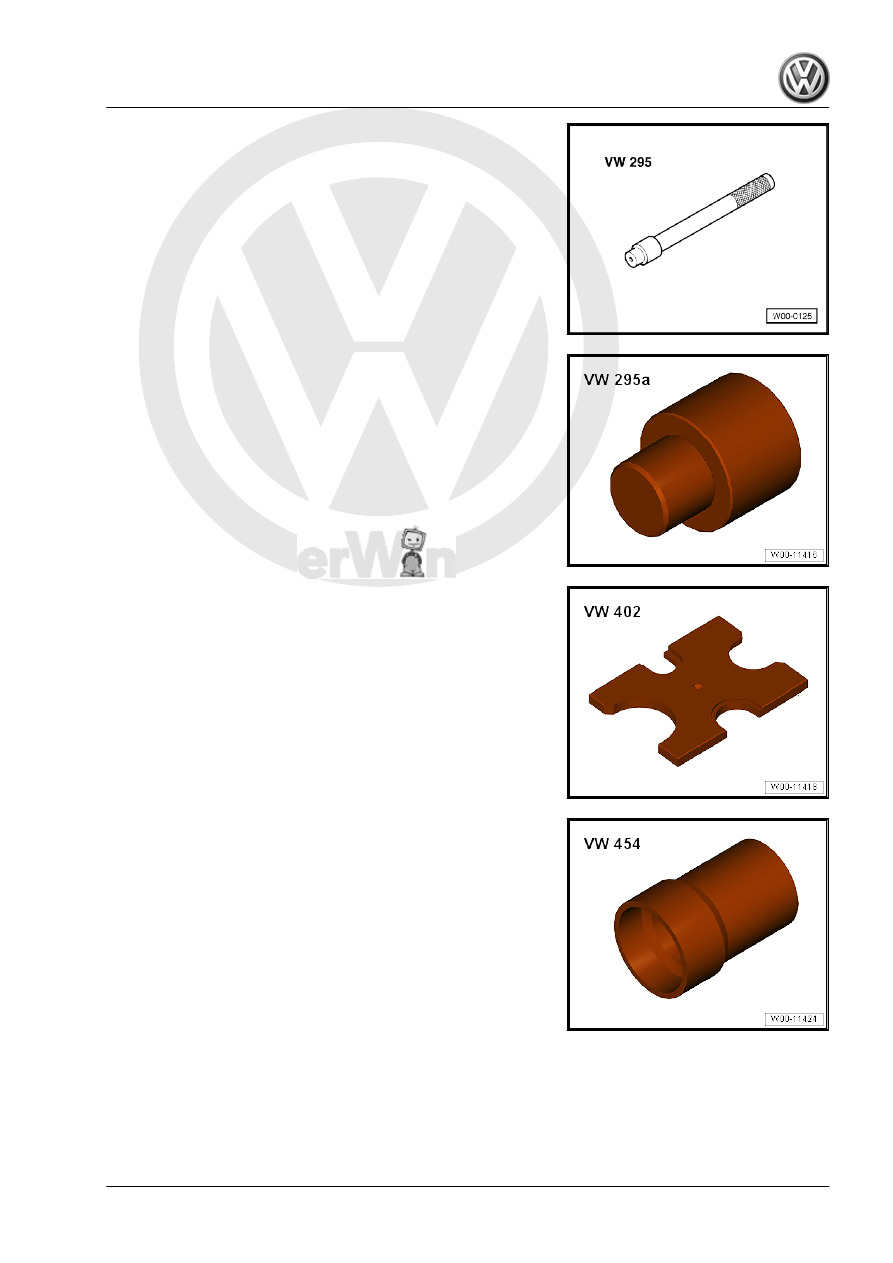

♦ Bearing/Bushing Installer - Multiple Use - VW295-

♦ Bearing/Bushing Installer - Multiple Use - VW295A-

♦ Press Plate - VW402-

♦ Press Piece - Multiple Use - VW454-

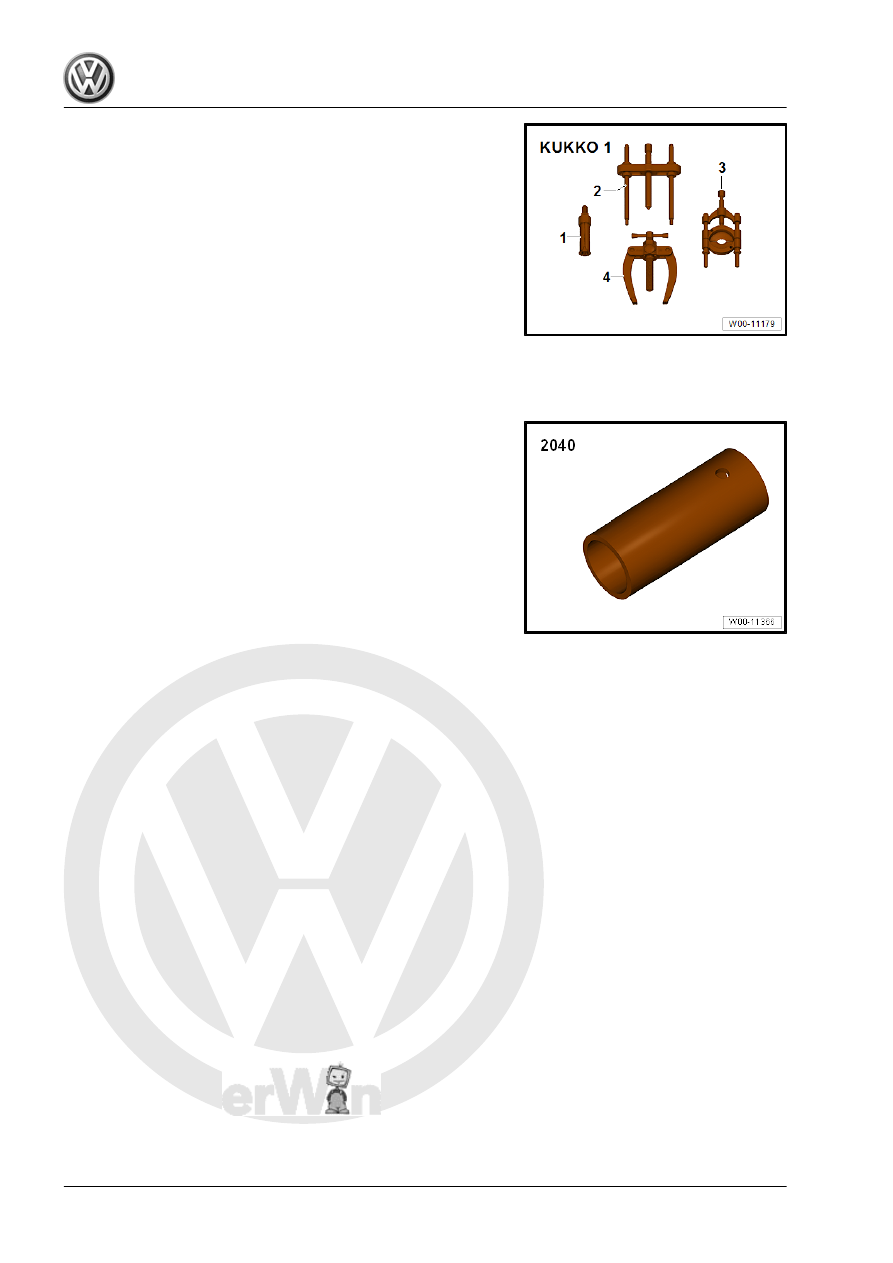

♦ -1- Puller - Kukko Internal - 36-46mm - 21/6-

♦ -3- Puller - Kukko Quick Action Separating Tool - 22-115mm -

17/2-

♦ -4- Puller - Kukko Counterstay - 22/2-
♦ Press Piece - Front Control Arm - 2040-

39 – Final Drive, Differential

1

Seals

⇒ “1.1 Component Location Overview - Seals”, page 183
⇒ “1.2 Left Seal, Replacing”, page 183
⇒ “1.3 Right Seal, Replacing”, page 185

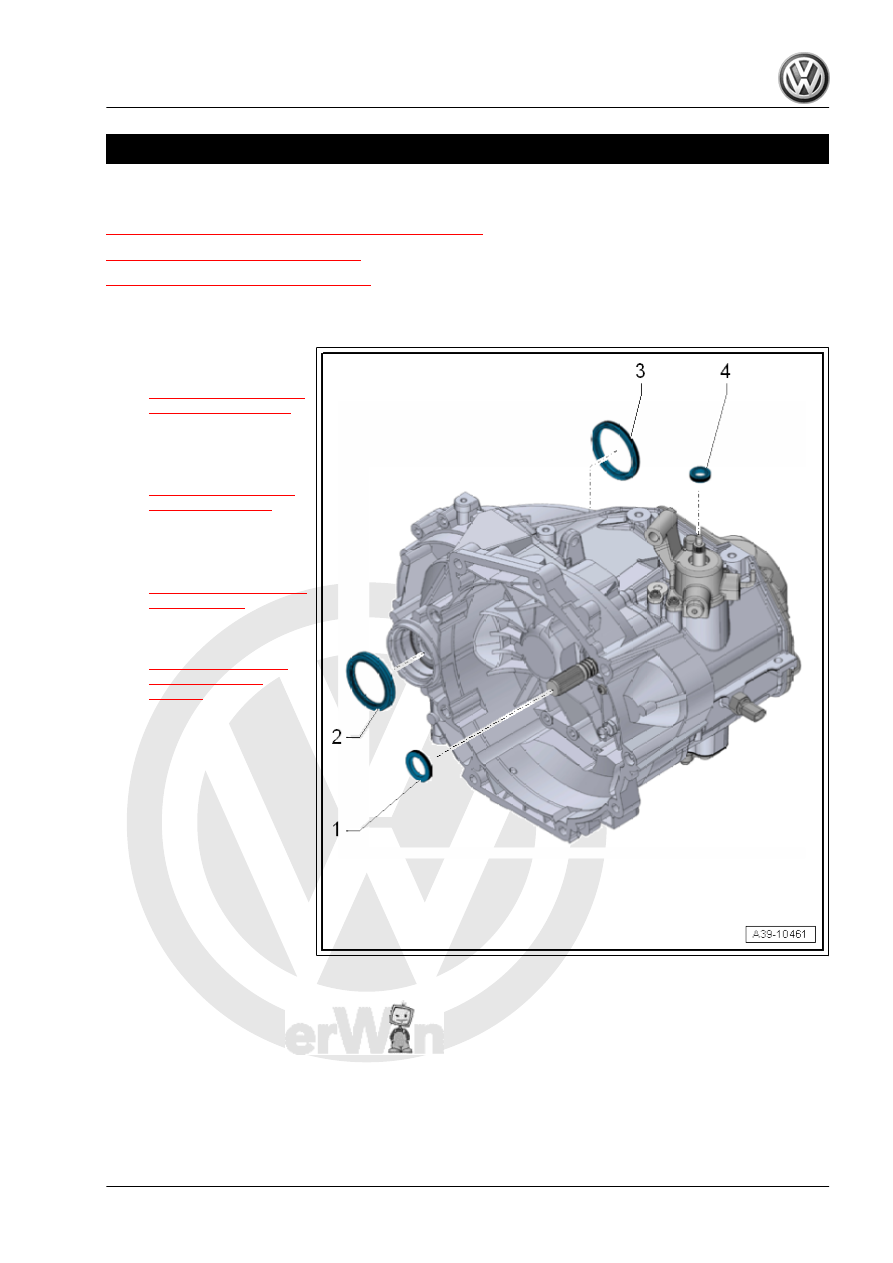

1.1

Component Location Overview - Seals

1 - Input Shaft Seal

❑ Replacing. Refer to

⇒ “1.4 Input Shaft Seal,

Replacing”, page 152

 .

2 - Seal

❑ For the right flange shaft
❑ Replacing. Refer to

⇒ “1.3 Right Seal, Re‐

placing”, page 185

 .

3 - Seal

❑ For the left flange shaft
❑ Replacing. Refer to

⇒ “1.2 Left Seal, Replac‐

ing”, page 183

 .

4 - Gearshift Shaft Seal

❑ Replacing. Refer to

⇒ “1.8 Selector Shaft

Seal, Replacing”,

page 65

 .

1.2

Left Seal, Replacing

Replacing the left flange shaft seal
Special tools and workshop equipment required
♦ Slide Hammer Set - VW771-
♦ Slide Hammer Set - Hook - VW771/37-
♦ Seal Installer - Flange Shaft Oil Seal - T10160-
♦ Used Oil Collection and Extraction Unit - SMN372500-
