Volkswagen Golf / Golf GTI / Golf Variant. Manual - part 591

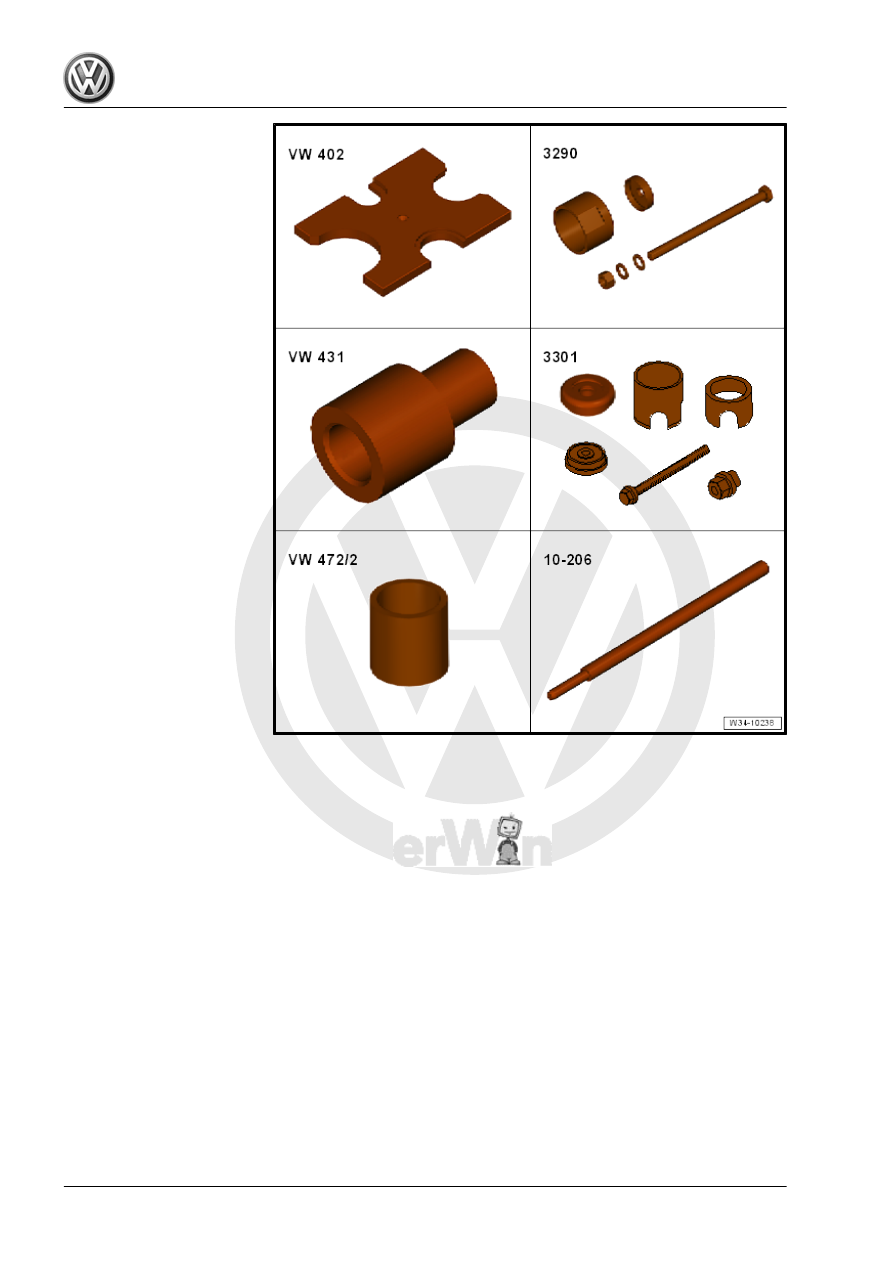

♦ Press Plate - VW402-
♦ Subframe Support Tool -

Press Piece - 3290/1-

♦ Press Piece - Multiple Use

- VW431-

♦ Subframe Bushing Tool Kit

- 3301-

♦ Press Piece - Multiple Use

Spacer Sleeve - VW472/2-

♦ Valve Guide/Clutch Re‐

lease Push Rod Seal Drift -

10-206-

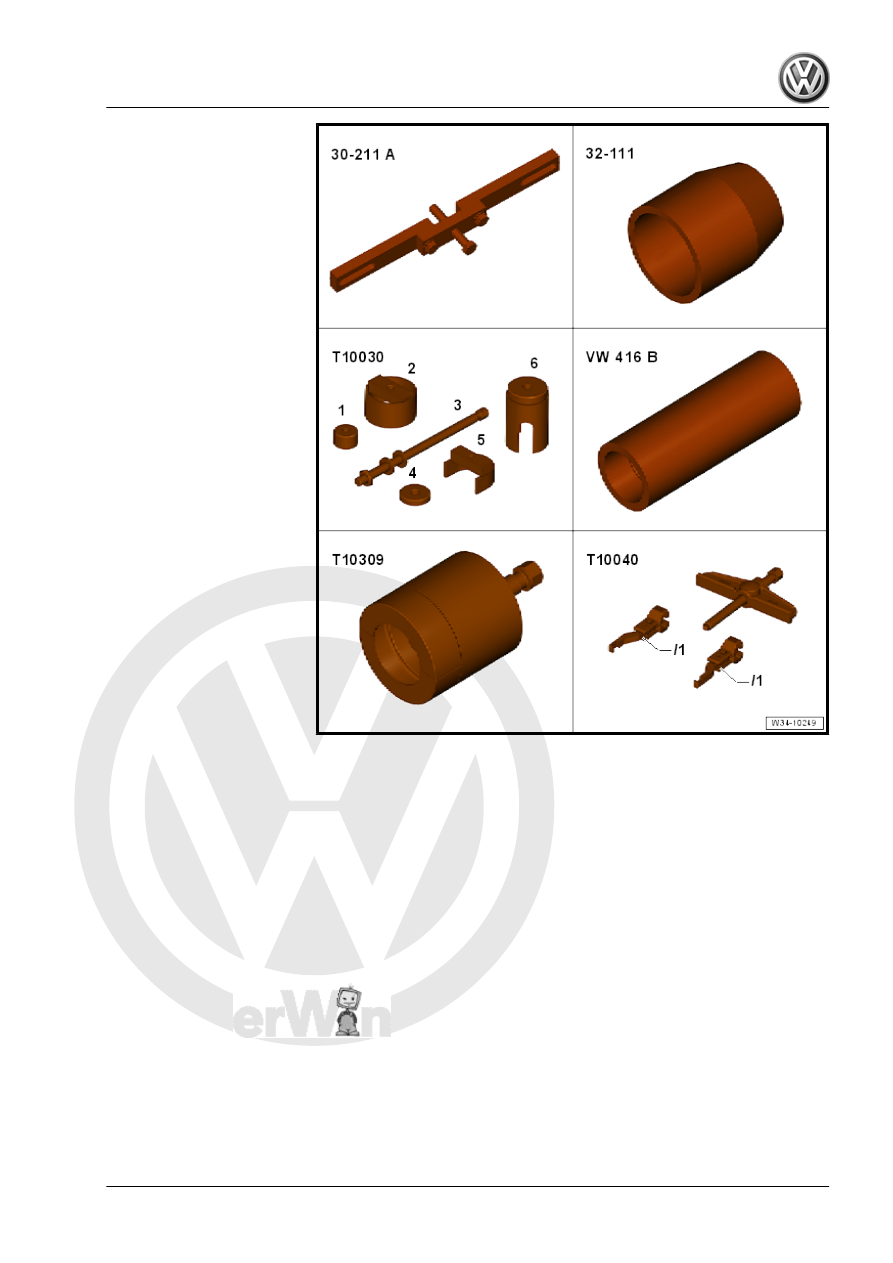

♦ Bracket - Multiple Use -

30-211A-

♦ Bearing Installer - Multiple

Use - 32-111-

♦ Assembly Tool Kit - Press

Piece 2 - T10030/4- from

the Hydraulic Press - Bush‐

ing Tool Kit - T10030-

♦ Press Piece - 37mm -

VW416B-

♦ Puller - Transmission

Gears - T10309-

♦ Puller - Two Arm - T10040-
♦ With the Puller - Two Arm

w/Thrust Piece -

T10040/2A-

♦ Puller - Two Arm Thrust

Piece - T10040/3-

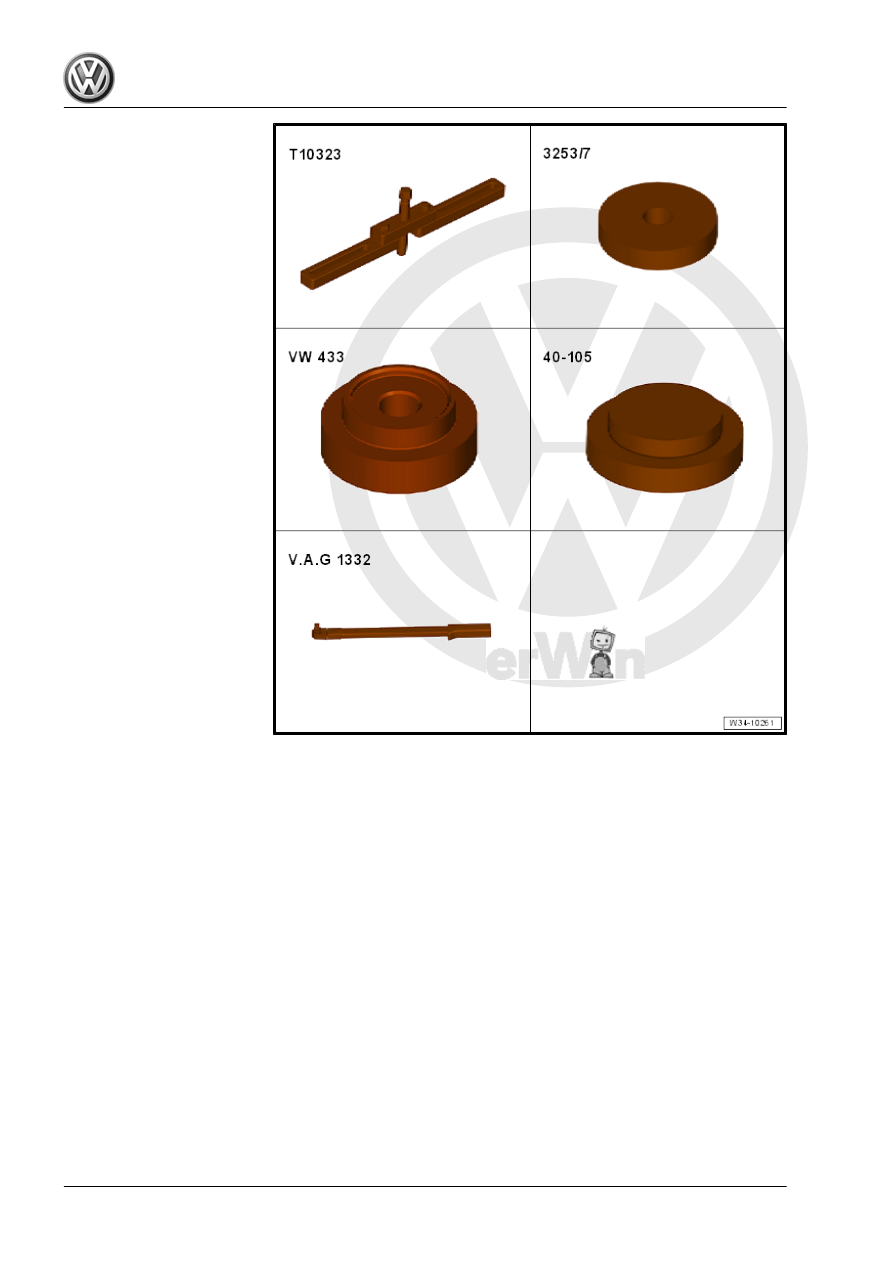

♦ Support Bridge - T10323-
♦ Rear Wheel Bearing Kit -

Piece 7 - 3253/7-

♦ Press Piece - Multiple Use

- VW433-

♦ Press Piece - Multiple Use

- 40-105-

♦ Torque Wrench 1332

40-200Nm - VAG1332-

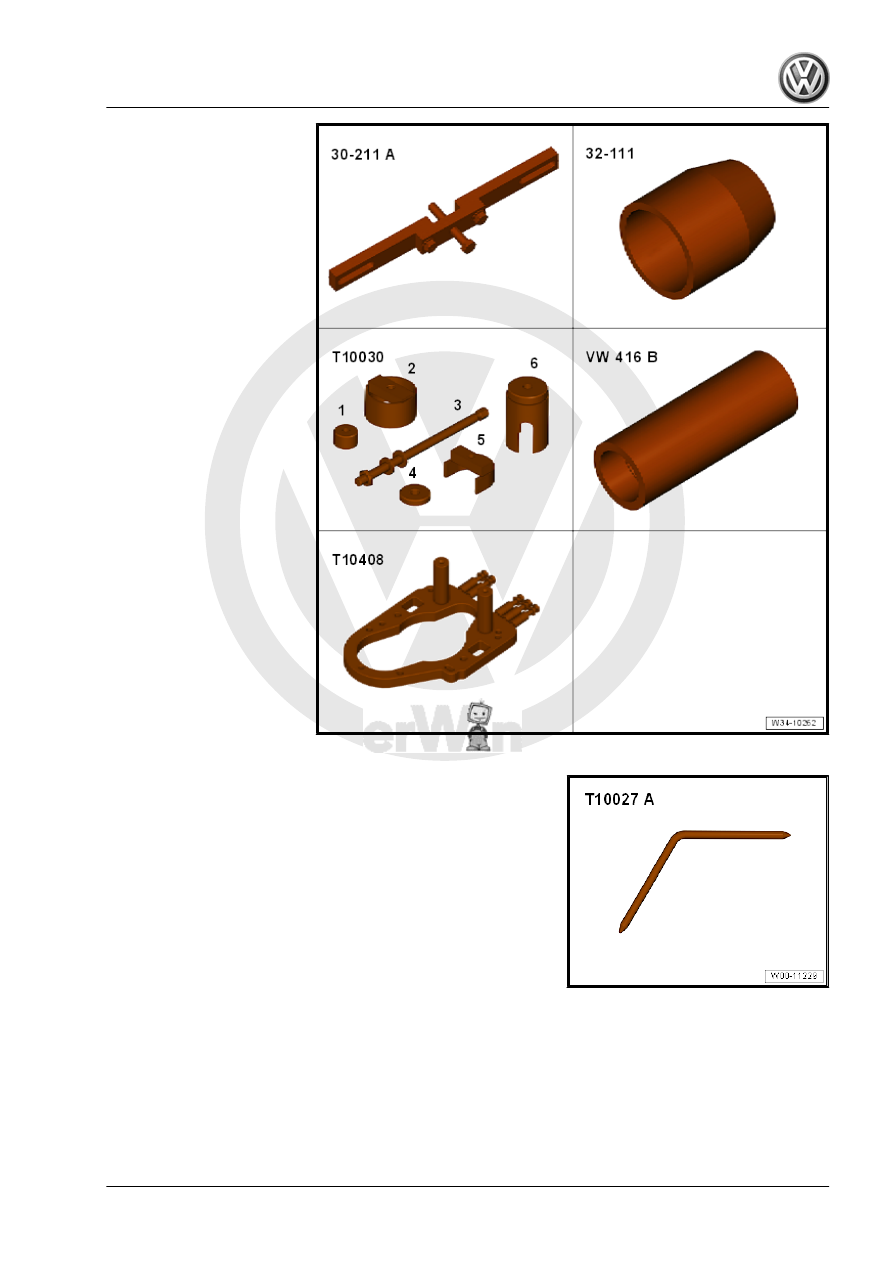

♦ Bracket - Multiple Use -

30-211A-

♦ Bearing Installer - Multiple

Use - 32-111-

♦ Assembly Tool Kit - Press

Piece 2 - T10030/4- from

the Hydraulic Press - Bush‐

ing Tool Kit - T10030-

♦ Press Piece - 37mm -

VW416B-

♦ Puller - Transmission

Gears - T10408-

♦ Puller - Transmission

Gears - Thrust Piece -

T10408/2-

♦ Spacer Plate - T10408/3-
♦ M7 x 35 hex collar bolt and

washer (components of the

Puller - Transmission

Gears - T10408- )

♦ Connecting Pin - T10027A-
