9

Special Tools

Special tools and workshop

equipment required

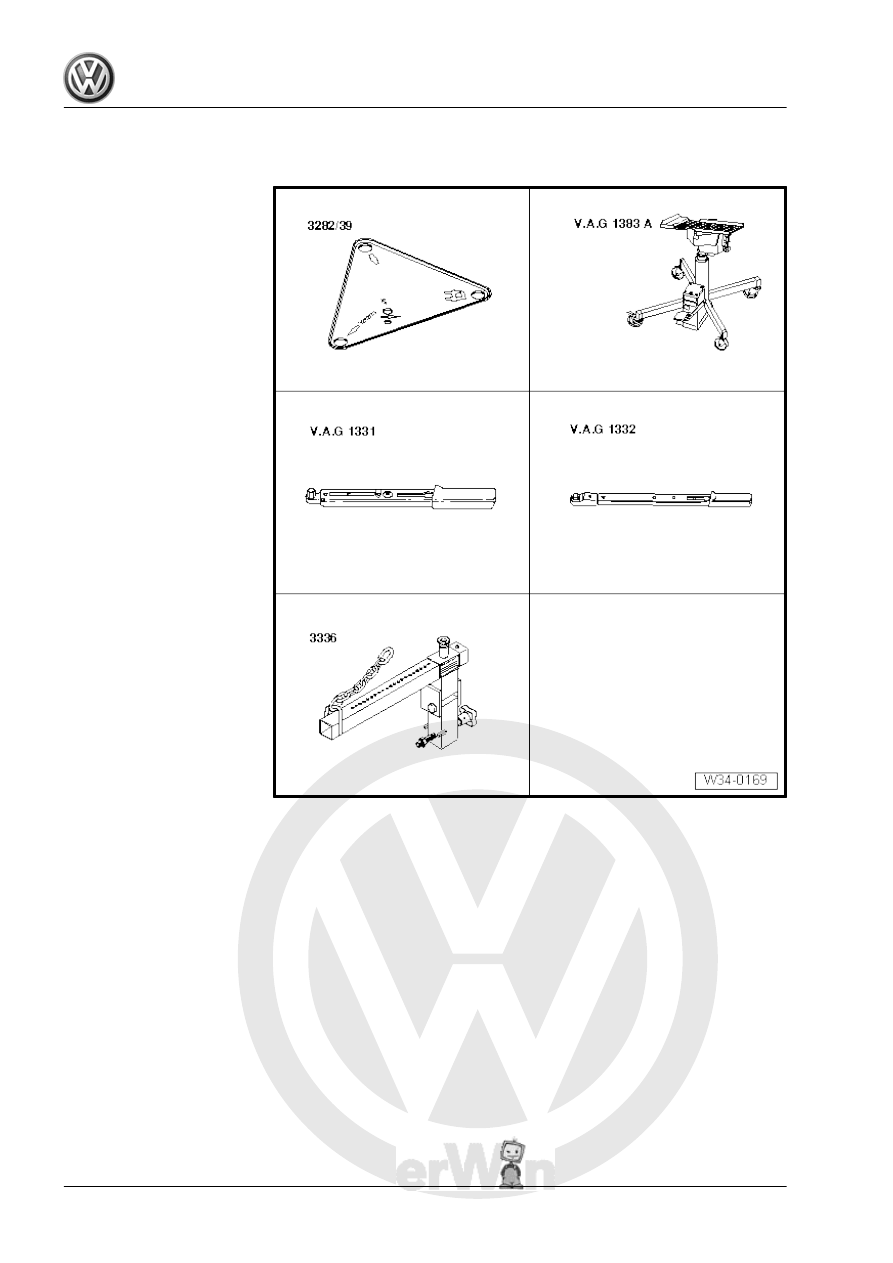

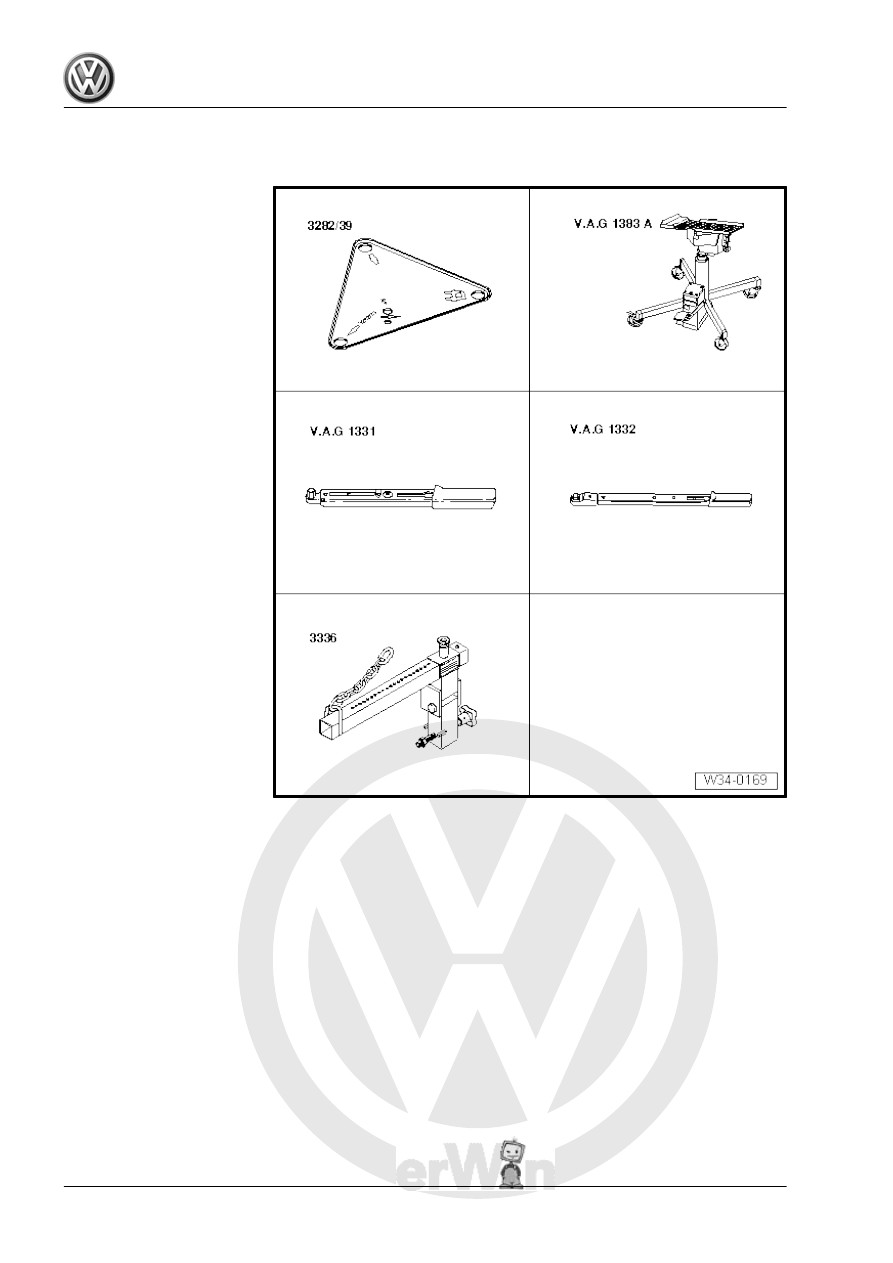

♦ Transmission Support -

Mounting Plate 39 -

3282/39-

♦ Transmission Support Ele‐

ments (determine when

mounting the Adjustment

Plate on the Transmission

Support )

♦ Engine and Gearbox Jack -

VAS6931-

♦ Torque Wrench 1331

5-50Nm - VAG1331-

♦ Torque Wrench 1332

40-200Nm - VAG1332-

♦ Transmission Support Jig -

3336- to transport the

transmission.

♦ Grease for Clutch Disc

Shaft Splines - G 000 100-

♦ Allocate the grease for

gearshift mechanism. Re‐

fer to the Parts Catalog.

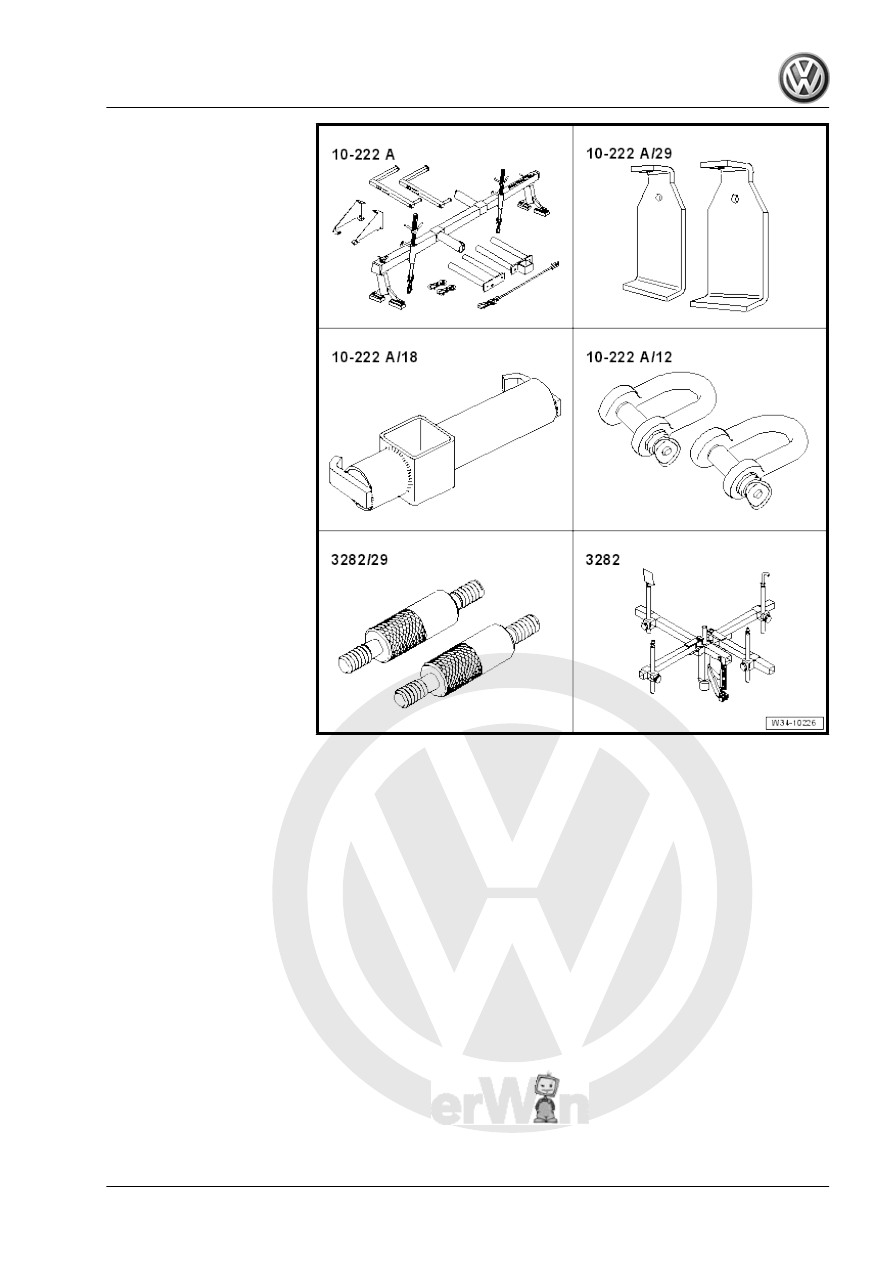

♦ Engine Support Bridge -

10-222A-

♦ Engine Support Bridge -

Gearbox Adapter -

10-222A/29-

♦ Engine Support Bridge -

Engine Support 18 -

10-222A/18-

♦ Engine/Gearbox Support

Shackle (2 pc.) - 10-222A/

12-

♦ Transmission Support -

Pins 29 - 3282/29-

♦ Transmission Support -

3282-

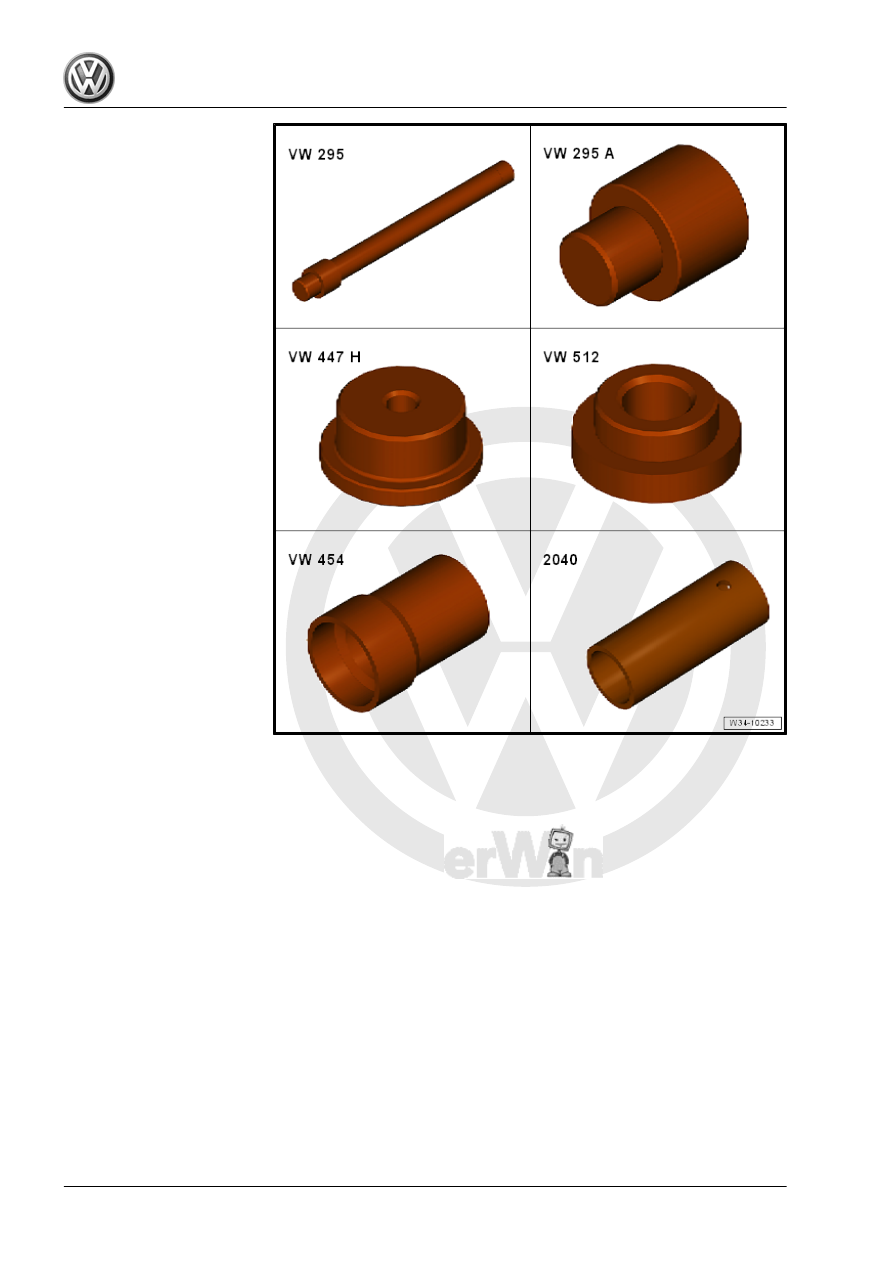

♦ Bearing/Bushing Installer -

Multiple Use - VW295-

♦ Bearing/Bushing Installer -

Multiple Use - VW295A-

♦ Press Piece - Multiple Use

- VW447H-

♦ Press Piece - Multiple Use

- VW512-

♦ Press Piece - Multiple Use

- VW454-

♦ Press Piece - Front Control

Arm - 2040-

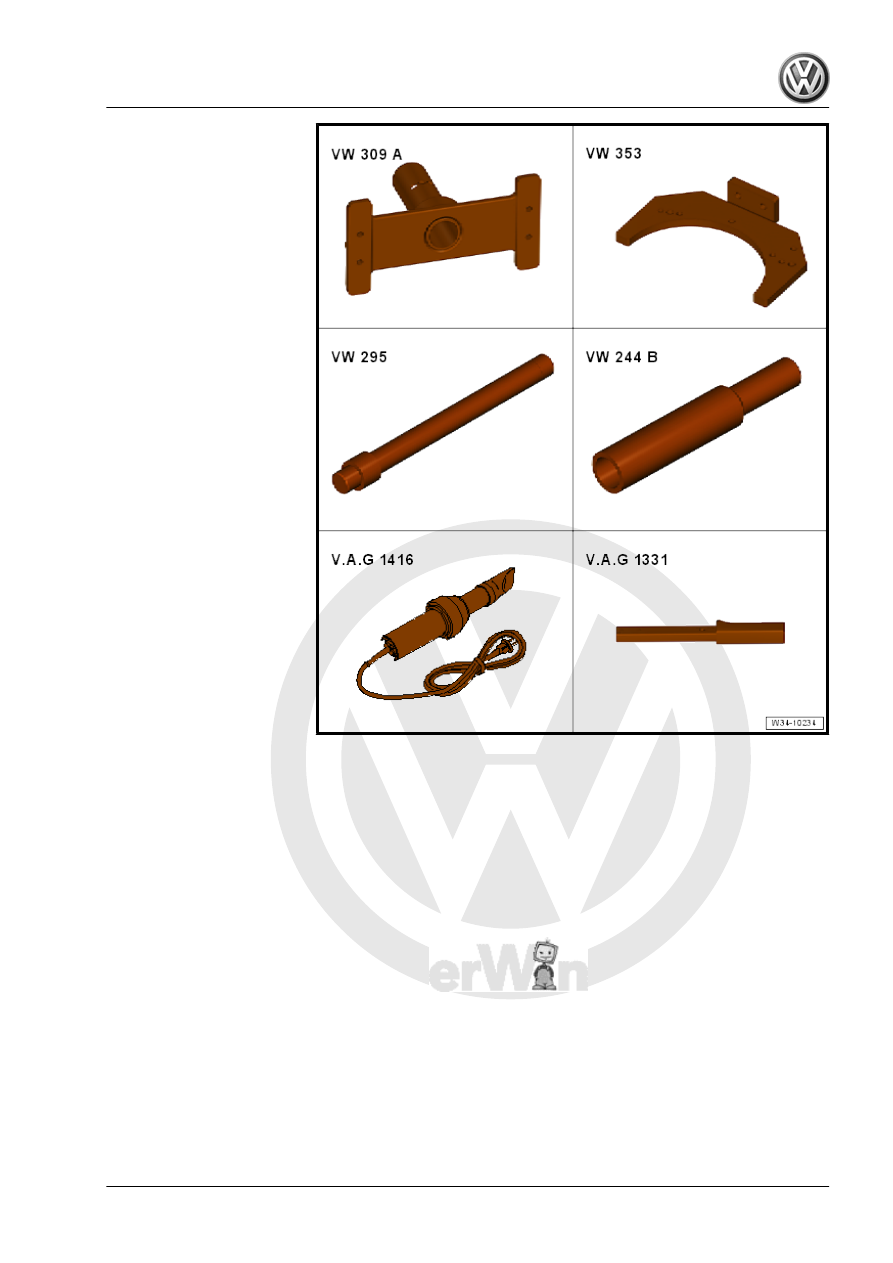

♦ Holding Plate - VW309A-
♦ or Holding Plate - VW309A-
♦ Transmission Support -

VW353-

♦ Bearing/Bushing Installer -

Multiple Use - VW295-

♦ Bearing Driver - Multiple

Use - VW244B-

♦ For example Hot Air Blower

- VAG1416-

♦ Torque Wrench 1331

5-50Nm - VAG1331-
