At an outside temperature between approximately 2 °C (35.6 °F)

and approximately -5 °C (23 °F), the change over to recirculating

air mode only occurs at a sharp increase of pollutant concentra‐

tion, during which the compressor is switched on simultaneously.
At an outside temperature less than approximately -5 °C (23 °F),

the system still only changes to recirculation mode when there is

a strong increase in the level of pollutants. However, it only

switches on for approximately 15 seconds and the A/C compres‐

sor does not switch on. If the concentration decreases, the A/C

system switches to the fresh air mode.
♦ “Automatic recirculating air mode” can be switched off at any

time. If the function is active, the A/C compressor is switched

on with a request for “automatic recirculating air mode” and

also when the outside air temperature is below 2 °C (35.6 °F).

If the temperature is below -5 °C (23 °F), it is not possible to

use the A/C compressor.

♦ If the vehicles has “automatic recirculating air mode”, the A/C

compressor can also be manually switched on when the tem‐

perature is approximately -5 °C (23 °F).

♦ To ensure that the A/C system does not operate constantly in

the recirculating air mode in areas with a consistently higher

pollution, the sensor is self-learning (it adjusts its sensitivity to

the environmental conditions).

♦ If the pollutant level in the ambient air remains relatively high

for a lengthy period, the sensor starts to adapt to the change

in ambient conditions by way of an adaptation program, with

the result that a recirculated-air request is generally applied

for less than 12 minutes given uniform ambient air pollution. If

a succession of peaks in the polluted air is detected, the A/C

system can operate over a longer period of time in recirculating

air mode.

♦ A certain amount of time is required for repositioning of the air

conditioning system doors. In the event that a sudden increase

in pollutants is encountered (for example, when driving

through a diesel exhaust cloud) gaseous pollutants can be

taken in with the fresh air into the passenger compartment until

the door can be closed. For this reason, a dust and pollen filter

is installed with a charcoal layer. A filter that is saturated with

pollutants is no longer effective and needs to be replaced.

♦ In order to avoid frequent shifting of the recirculated air/fresh

air door, a slight increase of pollutants in the ambient air will

not allow for immediate shifting (the sensor does not send a

request to the Climatronic Control Module - J255- ). The filter‐

ing of the activated charcoal insert in the dust and pollen filter

will be sufficient.

♦ In order to avoid frequent shifting of the recirculating air/fresh

air door, the requirement from the sensor for “automatic recir‐

culating air mode” remains for at least 25 seconds (minimum

duration period), even if the pollutant concentration is so far

reduced that recirculating air mode is no longer necessary.

♦ If the A/C compressor is switched off (the

AC

 button is off),

then the Climatronic Control Module - J255- limits the “auto‐

matic recirculating air mode” to approximately 15 seconds to

prevent the windows from fogging up.

♦ So that fogged windows are cleared as quickly as possible,

the Climatronic Control Module - J255- does not permit recir‐

culated air operation during the “Defrost” operating mode.

♦ The Air Quality Sensor - G238- requires approximately 30

seconds to become operational once the ignition has been

switched on (warm-up time). During this time there is no re‐

quirement from the sensor to Climatronic Control Module -

J255- for “automatic recirculating air mode”.

♦ The Air Quality Sensor - G238- contains a highly sensitive

electronic component which can be damaged if it comes in

direct contact with solvents, fuels or chemicals. For this rea‐

son, do not install sensors that may have come into contact

with these substances.

8.4

Outside Air Temperature Sensor -

G17- , Removing and Installing

Removing
– Remove the radiator grille. Refer to ⇒  Body Exterior; Rep. Gr.

66 ; Radiator Grille/Front Trim; Radiator Grille, Removing and

Installing .

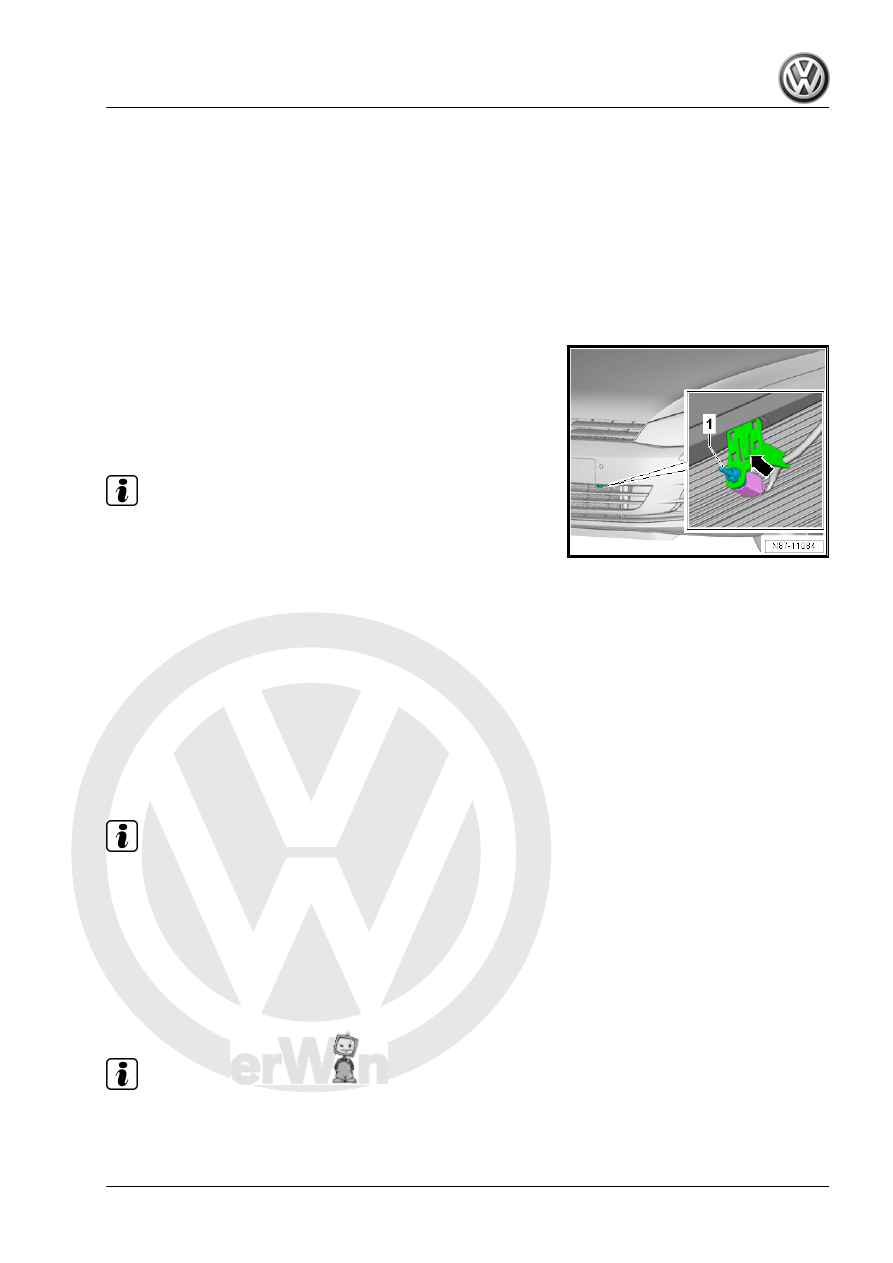

– Unclip the Outside Air Temperature Sensor - G17- -1- from the

bracket -arrow-.

– Remove the Outside Air Temperature Sensor - G17- upward.
– Disconnect the connector.
Installing

Note

Ensure electrical connector is seated correctly (water entry).

– Install in reverse order of removal.
Tightening Specifications
♦ Overview - Radiator Grille. Refer to ⇒  Body Exterior; Rep. Gr.

66 ; Radiator Grille/Front Trim; Overview - Radiator Grille .

8.5

A/C Humidity Sensor - G260- , Remov‐

ing and Installing

The A/C Humidity Sensor - G260- and the Rain/Light Recognition

Sensor - G397- are one component and are vehicle-specific.
– Removing and installing. Refer to ⇒  Electrical Equipment;

Rep. Gr.  92 ; Windshield Wiper System; Rain/Light Recogni‐

tion Sensor - G397- , Removing and Installing .

Note

The diagnosis occurs via the Vehicle Electrical System Control

Module - J519- .

8.6

Left Vent Temperature Sensor - G150- ,

Removing and Installing

Special tools and workshop equipment required
♦ Vehicle Diagnostic Tester
Removing

Note

Only for vehicles with Climatronic. For vehicles with heater or

electronic-manually regulated Air Conditioning (A/C) system the

openings on the air guide channels are closed with plugs.

– Remove the instrument panel side cover. Refer to ⇒  Body

Interior; Rep. Gr.  70 ; Instrument Panel; Instrument Panel Side

Cover, Removing and Installing .

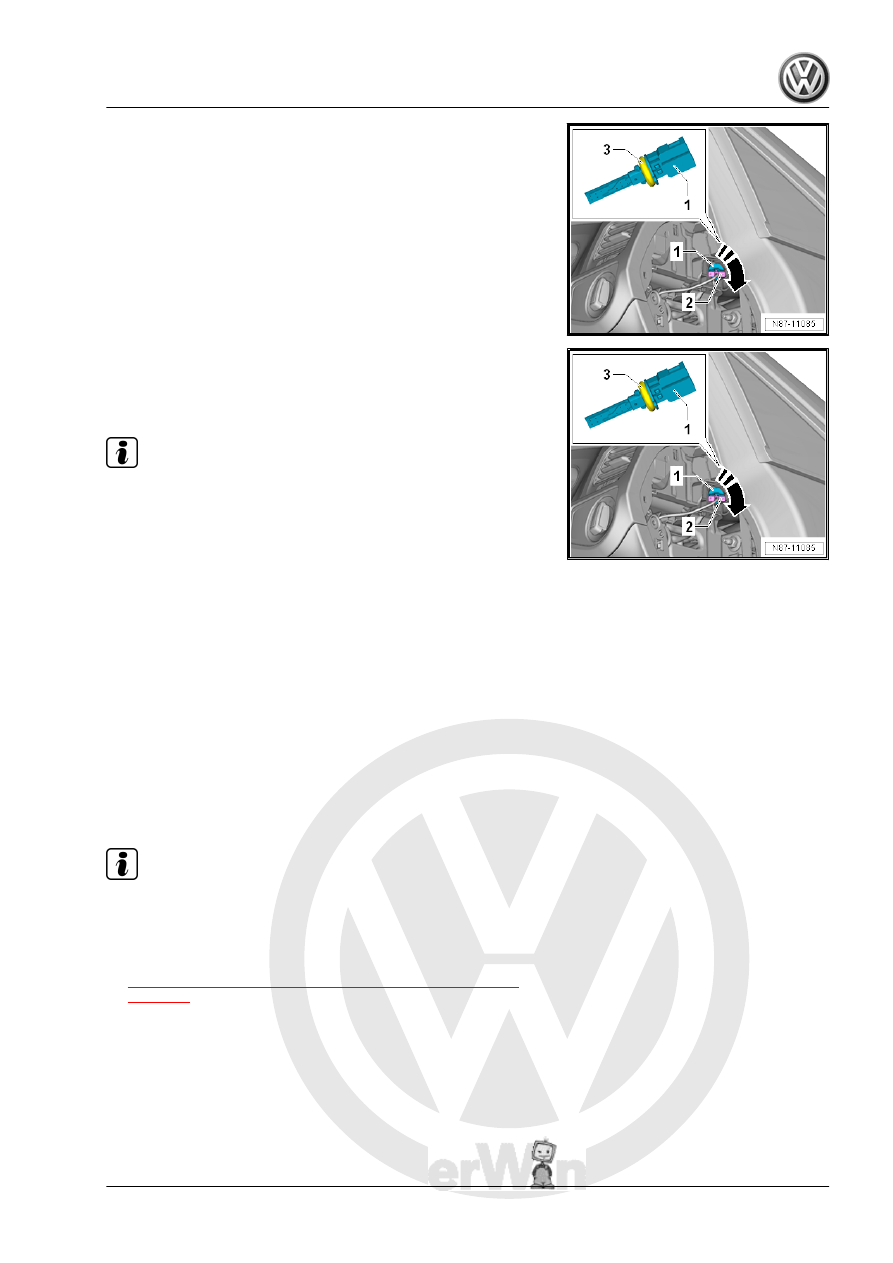

– Turn the vent temperature sensor -1- in direction of -arrow-

and remove it from the mount.

– Disconnect the connector -2-.

Installing
Install in reverse order of removal. Note the following:
– Replace the seal -3- if it is damaged or faulty.

Note

An incorrectly installed vent temperature sensor causes flow-

generated noise.

– Check the Diagnostic Trouble Code (DTC) memory and erase

any displayed entries using the Vehicle Diagnostic Tester in

the “Guided Fault Finding” function.

Tightening Specifications
♦ Instrument panel; instrument panel side cover removing and

installing. Refer to ⇒  Body Interior; Rep. Gr.  70 ; Instrument

Panel; Instrument Panel Side Cover, Removing and Installing .

8.7

Right Vent Temperature Sensor -

G151- , Removing and Installing

Special tools and workshop equipment required
♦ Vehicle Diagnostic Tester
Removing

Note

Only for vehicles with Climatronic. For vehicles with heater or

electronic-manually regulated Air Conditioning (A/C) system the

openings on the air guide channels are closed with plugs.

– Remove the instrument panel side cover. Refer to ⇒  Body

Interior; Rep. Gr.  70 ; Instrument Panel; Instrument Panel Side

Cover, Removing and Installing .

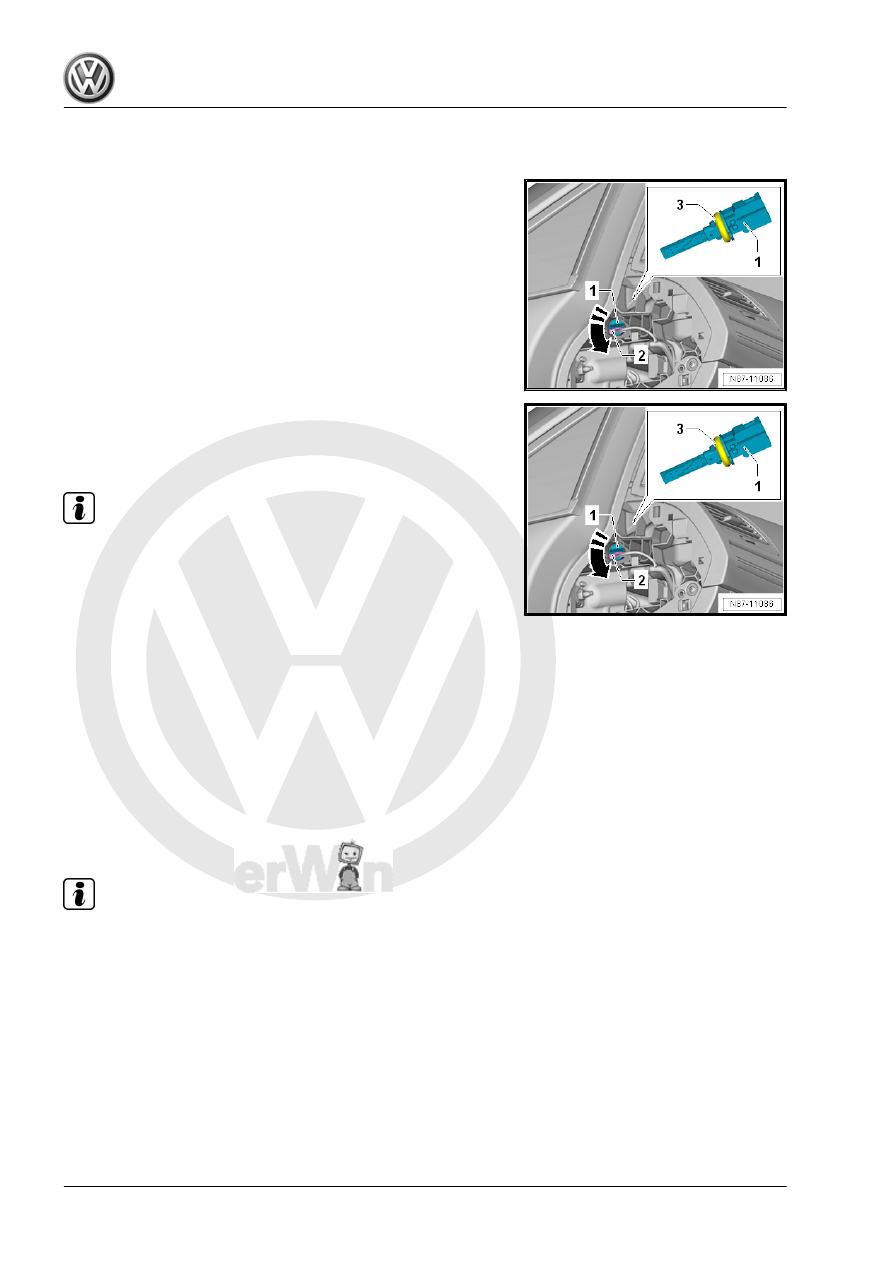

– Turn the vent temperature sensor -1- in direction of -arrow-

and remove it from the mount.

– Disconnect the connector -2-.

Installing
Install in reverse order of removal. Note the following:
– Replace the seal -3- if it is damaged or faulty.

Note

An incorrectly installed vent temperature sensor causes flow-

generated noise.

– Check the Diagnostic Trouble Code (DTC) memory and erase

any displayed entries using the Vehicle Diagnostic Tester in

the “Guided Fault Finding” function.

Tightening Specifications
♦ Instrument panel; instrument panel side cover removing and

installing. Refer to ⇒  Body Interior; Rep. Gr.  70 ; Instrument

Panel; Instrument Panel Side Cover, Removing and Installing .

8.8

Footwell Vent Temperature Sensor -

G192- , Removing and Installing

Special tools and workshop equipment required
♦ Trim Removal Wedge - 3409-
♦ Vehicle Diagnostic Tester
Removing

Note

Only for vehicles with Climatronic. For vehicles with heater or

electronic-manually regulated Air Conditioning (A/C) system the

openings on the air guide channels are closed with plugs.

– Remove the driver footwell vent. Refer to

⇒ “5.5 Driver Side Footwell Vent, Removing and Installing”,

page 117

 .
