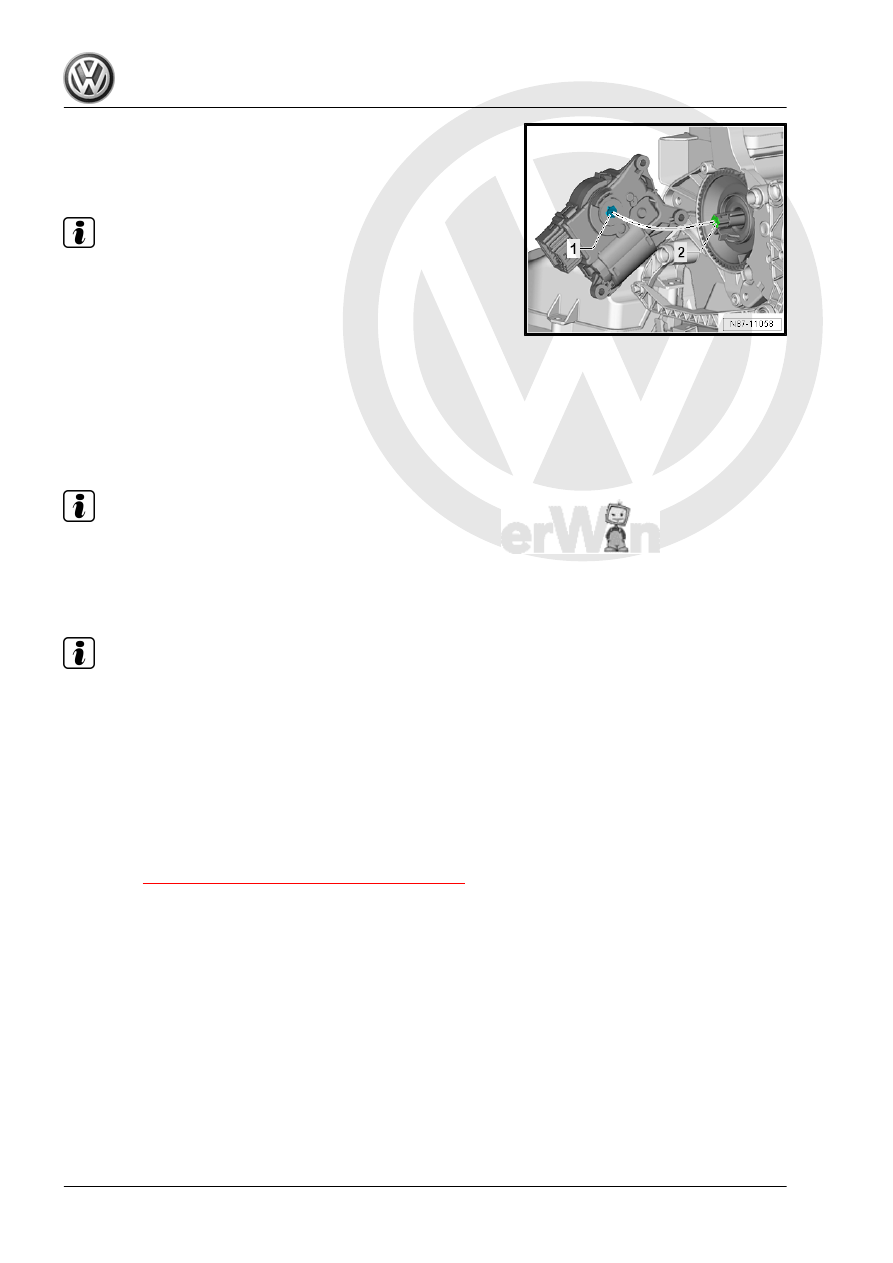

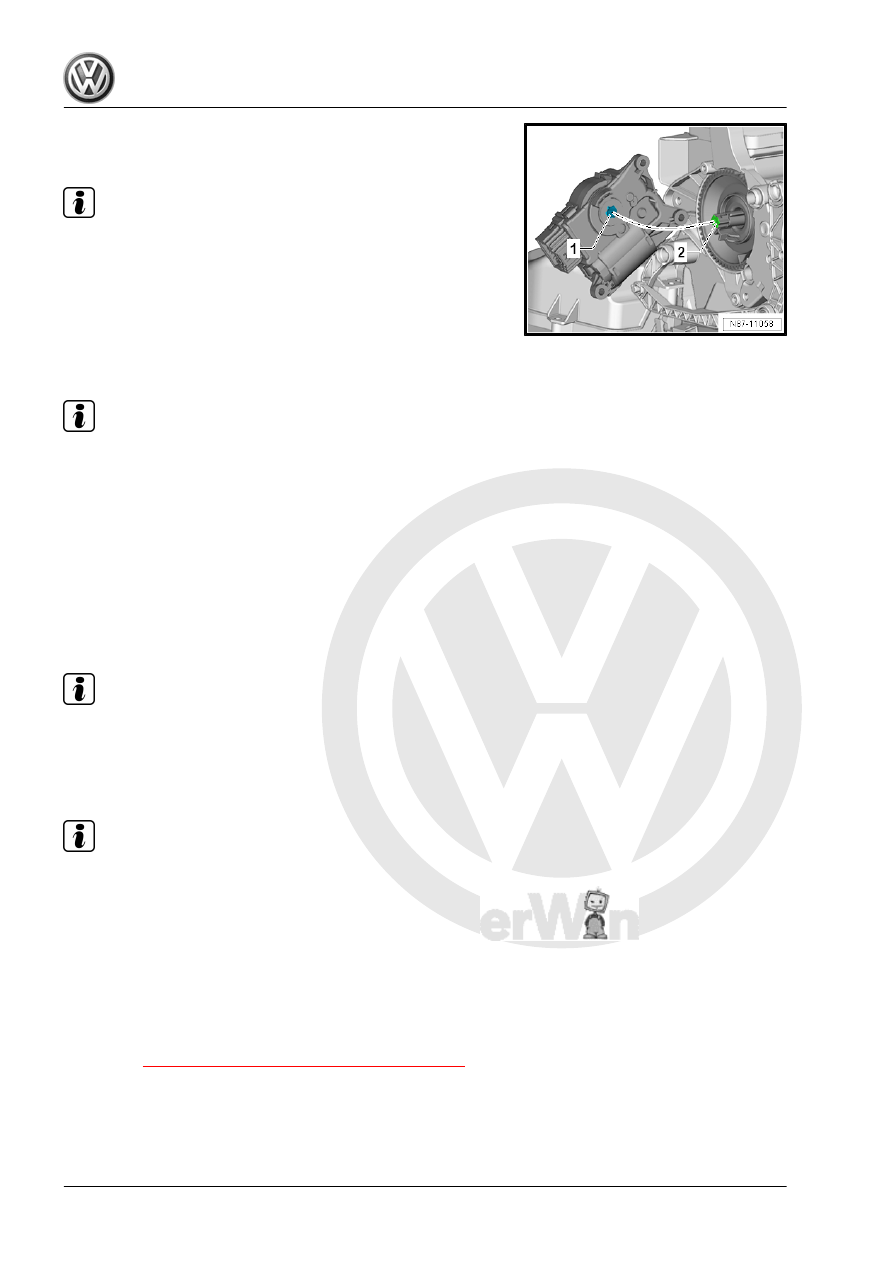

– The actuator mount -1- can only be installed in one position

on the actuating arm -2-.

• The actuator mount must be opposite the actuating arm as

shown in the illustration.

Note

If the mount and the actuating arm are not opposite each other,

turn the mount in the actuator.

– Switch on the ignition, connect the affected actuator to the ve‐

hicle wiring harness and select the setting for the desired

actuator position on the display control head (for example, the

center position). Wait until the actuator reaches the desired

position and switch the ignition off.

– Mount the actuator on the air distribution housing so that the

actuating arm reaches into the mount -1- -arrow-.

• There must not be any play in the connection between the

actuator and the actuating arm.

Note

If the bolts cannot be installed, the actuator does not sit com‐

pletely on the housing.

– Install the wiring harness so that it cannot come in contact with

any moving parts (for example, the lever on the actuator).

Note

Turn the actuator so far until it has reached a favorable position

for installation. The direction of rotation can be reversed by

switching the positive and negative.

– Check the Diagnostic Trouble Code (DTC) memory and erase

any displayed entries, then perform the “basic setting”. Refer

to Vehicle Diagnostic Tester in the “Guided Fault Finding”

function.

– Check the heater and Air Conditioning (A/C) unit function.
Tightening Specifications
♦ Refer to

⇒ “4.1 Overview - Heater and A/C Unit”, page 72

♦ Overview - instrument panel. Refer to ⇒  Body Interior; Rep.

Gr.  70 ; Instrument Panel; Overview - Instrument Panel .

7.9

Air Distribution Door Motor - V428- with

Position Sensor Air Distribution Door

Motor Position Sensor - G645- , Remov‐

ing and Installing

Special tools and workshop equipment required
♦ Vehicle Diagnostic Tester
Removing
– Remove the instrument panel. Refer to ⇒  Body Interior; Rep.

Gr.  70 ; Instrument Panel; Instrument Panel, Removing and

Installing .

– If installed: Remove the Access/Start Authorization Control

Module - J518- . Refer to ⇒  Electrical Equipment; Rep. Gr.

94 ; Access/Start Authorization; Component Location Over‐

view - Access/Start Authorization System .

– Remove the driver footwell vent. Refer to

⇒ “5.5 Driver Side Footwell Vent, Removing and Installing”,

page 117

 .

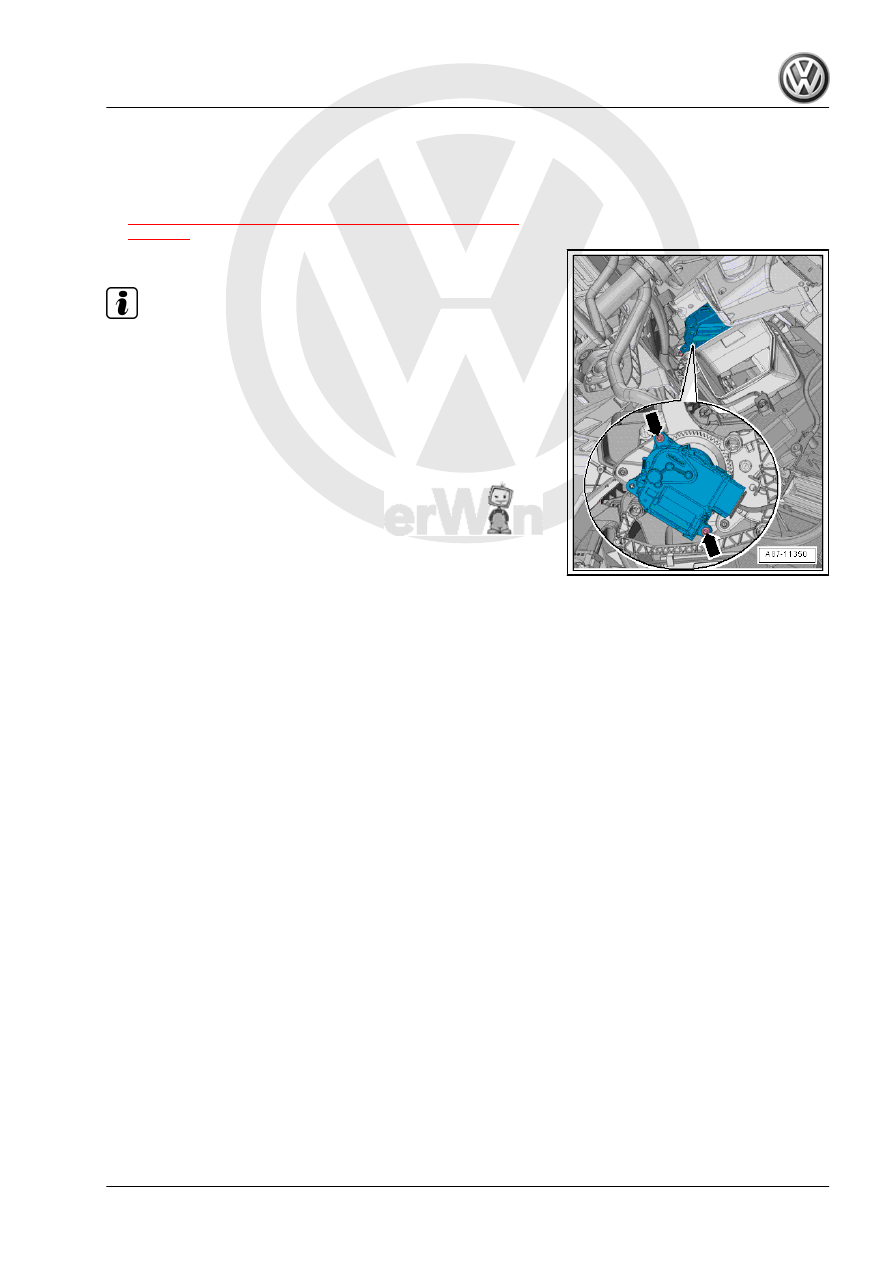

– Remove the bolts -arrows-.

Note

♦

The bolts are behind the central tube and can be reached from

below.

♦

To remove the bolts use a magnetic screwdriver or have a

second technician hold a magnet over the bolts. If a bolt falls,

it goes into the tray for the cable duct and cannot be reached.

– Remove the Air Distribution Door Motor - V428- -4-.
– Disconnect the connector -1-.

Installing
Install in reverse order of removal. Note the following:

Note

♦

Check the function of the doors and linkage before installing.

♦

Check if the lever and shafts are seated correctly in the

mounts.

– The actuator mount -1- can only be installed in one position

on the actuating arm -2-.

• The actuator mount must be opposite the actuating arm as

shown in the illustration.

Note

If the mount and the actuating arm are not opposite each other,

turn the mount in the actuator.

– Switch on the ignition, connect the affected actuator to the ve‐

hicle wiring harness and select the setting for the desired

actuator position on the display control head (for example, the

center position). Wait until the actuator reaches the desired

position and switch the ignition off.

– Attach the adjustment motor to the air distribution housing so

that the relay lever -2- reaches into the mount -1-.

• There must not be any play in the connection between the

actuator and the actuating arm.

Note

If the bolts cannot be installed, the actuator does not sit com‐

pletely on the housing.

– Install the wiring harness so that it cannot come in contact with

any moving parts (for example, the lever on the actuator).

Note

Turn the actuator so far until it has reached a favorable position

for installation. The direction of rotation can be reversed by

switching the positive and negative.

– Check the Diagnostic Trouble Code (DTC) memory and erase

any displayed entries, then perform the “basic setting”. Refer

to Vehicle Diagnostic Tester in the “Guided Fault Finding”

function.

– Check the heater and Air Conditioning (A/C) unit function.
Tightening Specifications
♦ Refer to

⇒ “4.1 Overview - Heater and A/C Unit”, page 72

♦ Overview - instrument panel. Refer to ⇒  Body Interior; Rep.

Gr.  70 ; Instrument Panel; Overview - Instrument Panel .

7.10

Air Distribution Door Adjuster, Remov‐

ing and Installing

⇒ “7.10.1 Front Air Distribution Door Adjuster, Removing and In‐

stalling, Heater and Electric-Manual Climate Control System”,

page 147
⇒ “7.10.2 Front Air Distribution Door Adjuster, Removing and In‐

stalling, Climatronic”, page 148

7.10.1

Front Air Distribution Door Adjuster, Re‐

moving and Installing, Heater and Elec‐

tric-Manual Climate Control System

Removing
– Remove the instrument panel. Refer to ⇒  Body Interior; Rep.

Gr.  70 ; Instrument Panel; Instrument Panel, Removing and

Installing .

– Remove the defroster vent air guide. Refer to

⇒ “5.11 Air Guide for Defrost Air Vent, Removing and Instal‐

ling”, page 120

 .

– Remove the air distribution door motor. Refer to

⇒ “7.9  Air Distribution Door Motor V428 with Position Sensor

Air Distribution Door Motor Position Sensor G645 , Removing

and Installing”, page 144

 .

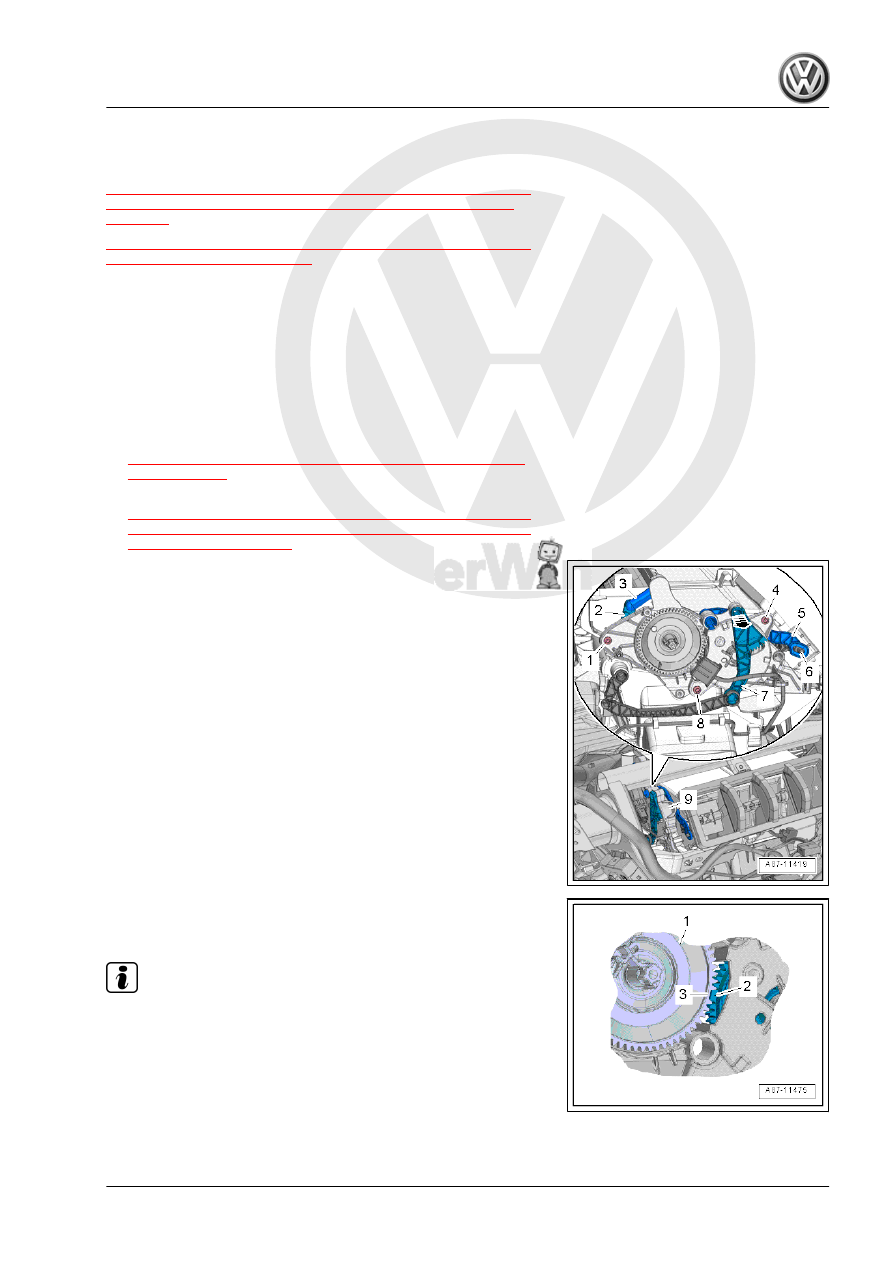

– Carefully remove the operating lever -7- -arrow-.
– Carefully remove the operating lever -3- from the lever for the

defroster door -2-.

– Remove the bolts -1, 4 and 8-.
– Remove the adjuster -9- upward.

Installing
– Install in reverse order of removal. Note the following:

Note

♦

Check the function of the doors and linkage before installing.

♦

Check if the lever and shafts are seated correctly in the

mounts.

– Check if the gears correlate correctly with one another.
• The square tooth -2- must engage into the gap -3- on the

toothed gear -1-.
