Volkswagen Golf / Golf GTI / Golf Variant. Manual - part 555

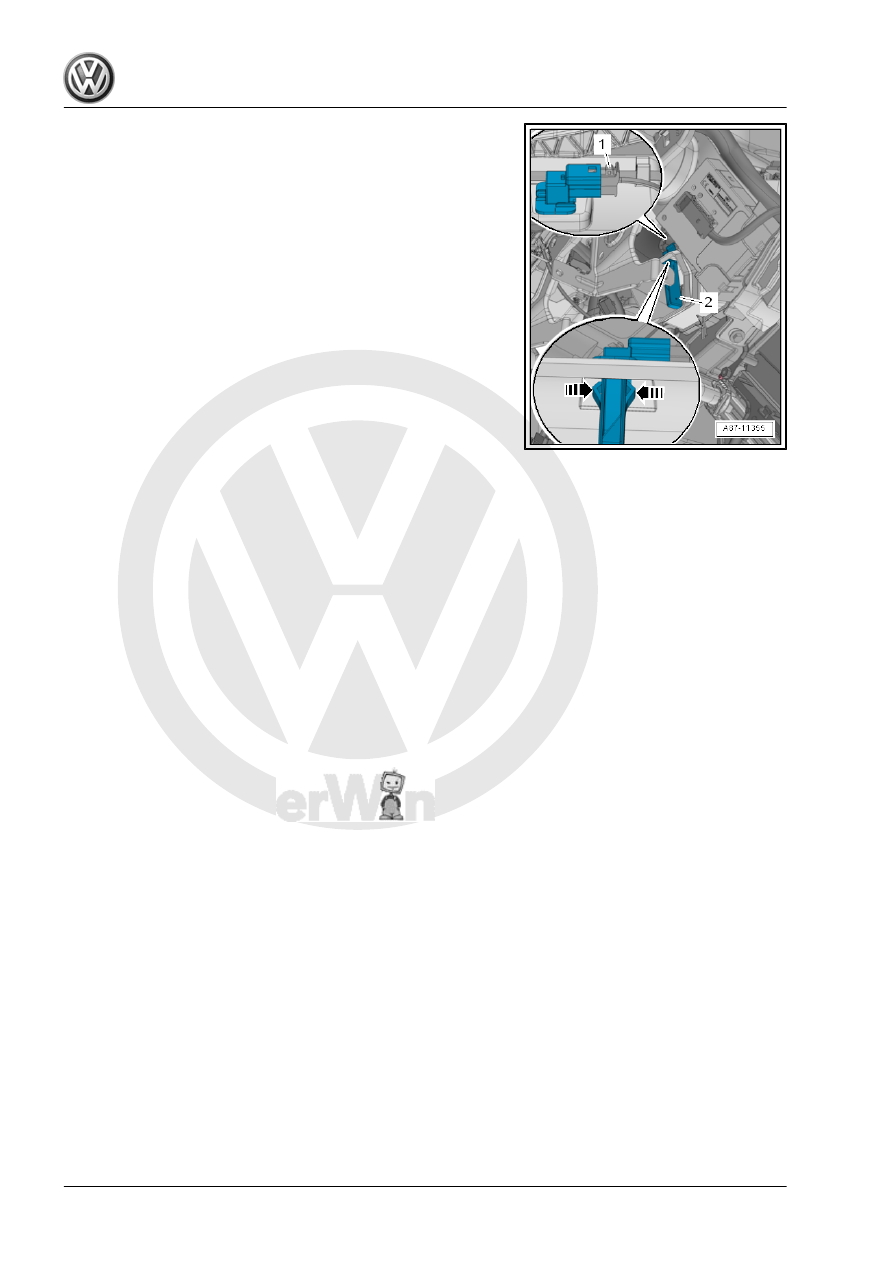

– Slightly lift the Footwell Vent Temperature Sensor - G192-

-2-.

– Release the catches -arrows- with a Trim Removal Wedge -

3409- .

– Remove the Footwell Vent Temperature Sensor - G192- -2-

upward.

– Disconnect the connector -1-.
Installing
– Install in reverse order of removal.

9

Special Tools

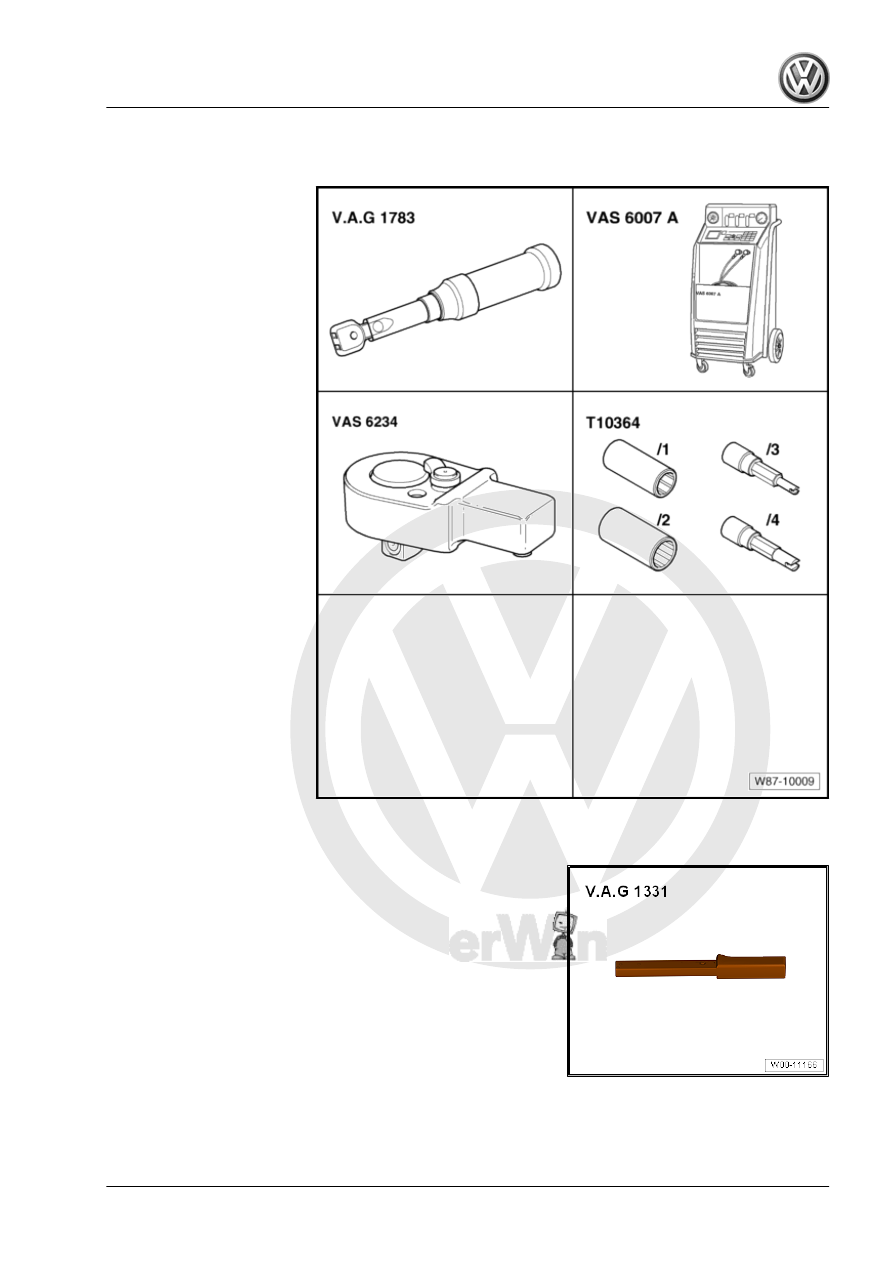

Special tools and workshop

equipment required
♦ Torque Wrench 1783 -

2-10Nm - VAG1783-

♦ A/C Service Station -

VAS6007A- (or succeeding

model)

♦ Torque Wrench 1783 - 1/4"

Drive Ratchet - VAS6234-

♦ Refrigerant Sockets -

T10364-

♦ Blower Motor Cover Plate - T10532-
♦ Torque Wrench 1331 5-50Nm - VAG1331-

♦ Engine Bung Set - VAS6122-

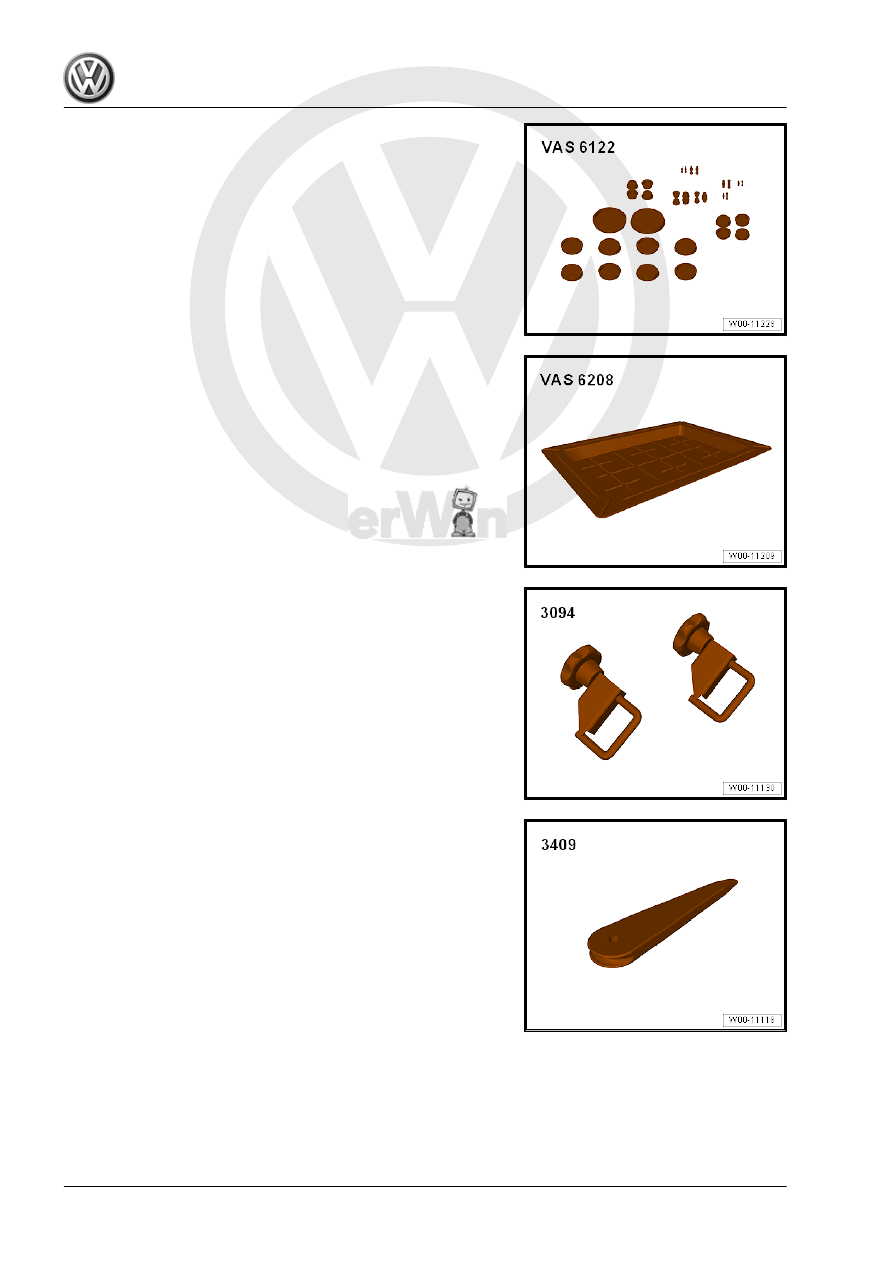

♦ Shop Crane - Drip Tray - VAS6208-

♦ Hose Clamps - Up To 25mm - 3094-

♦ Trim Removal Wedge - 3409-

10
