Volkswagen Golf / Golf GTI / Golf Variant. Manual - part 520

Special tools and workshop

equipment required

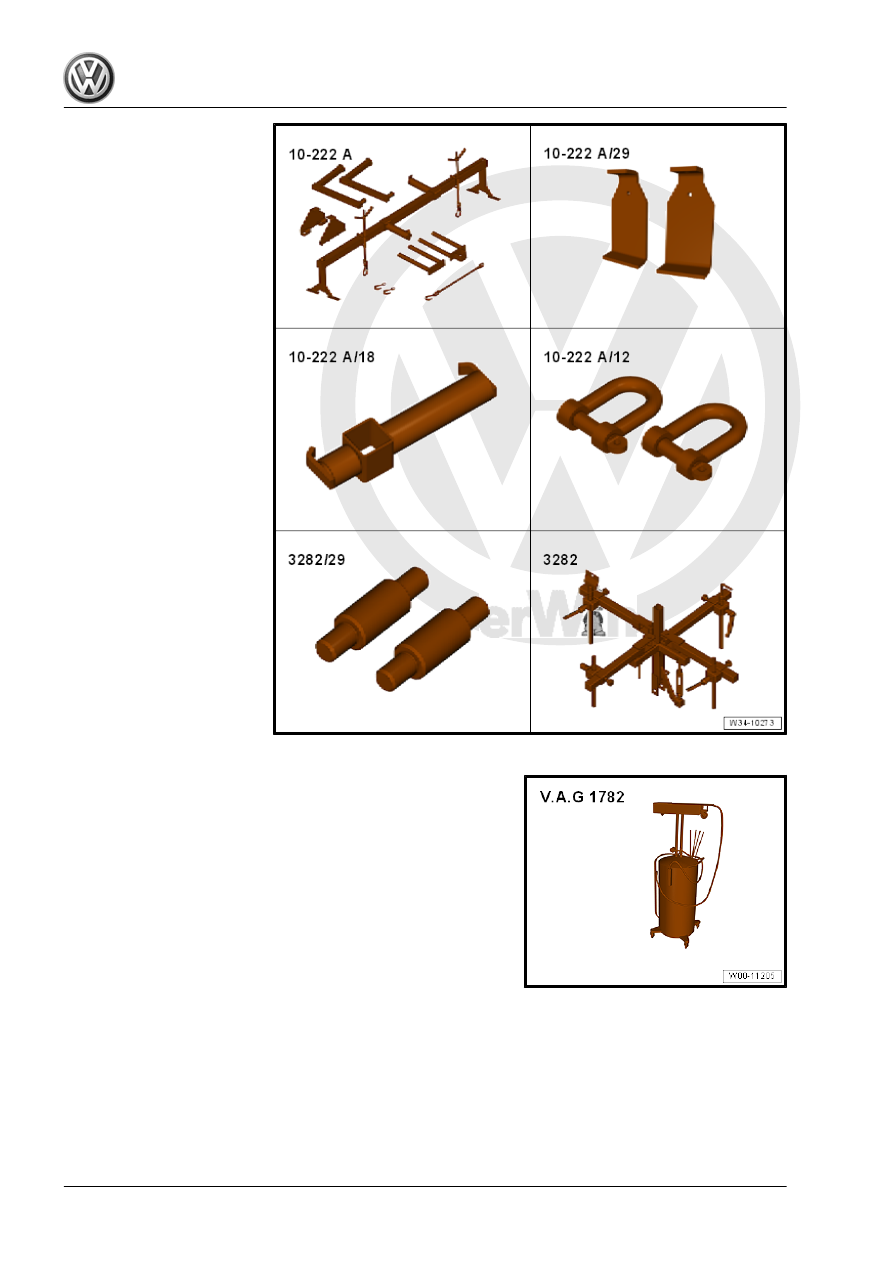

♦ Engine Support Bridge -

10-222A-

♦ Engine Support Bridge -

Engine Support 29 -

10-222A/29-

♦ Engine Support Bridge -

Engine Support 18 -

10-222A/18-

♦ If necessary Engine/Gear‐

box Support Shackle (2 pc.)

- 10-222A/12-

♦ Transmission Support -

3282-

♦ Transmission Support -

Pins 29 - 3282/29-

♦ Used Oil Collection and Extraction Unit - SMN372500-

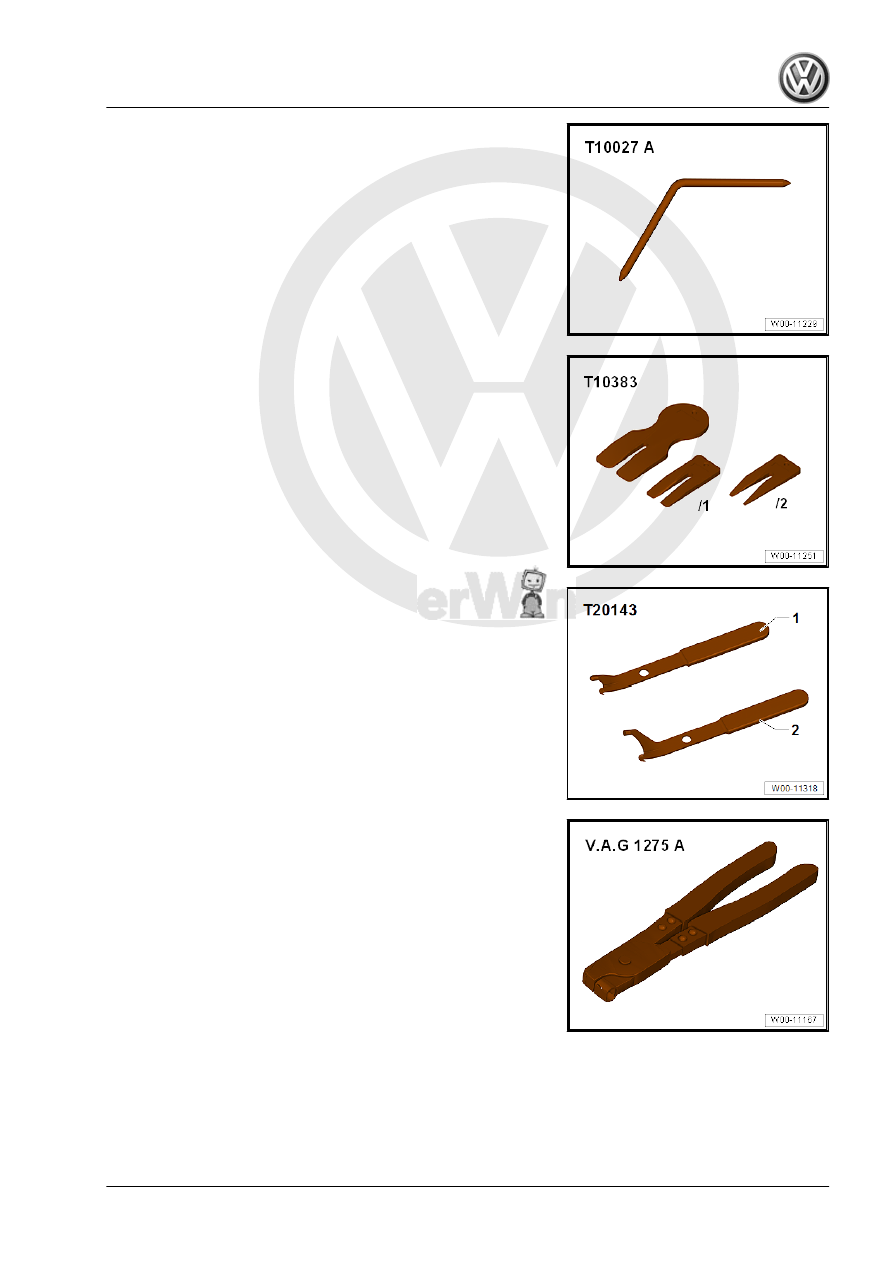

♦ Connecting Pin - T10027A-

♦ Wedge Set - T10383-

♦ Puller - Crankshaft/Power Steering Seal 1 - T20143/1-

♦ Hose Clip Pliers - VAG1275A-

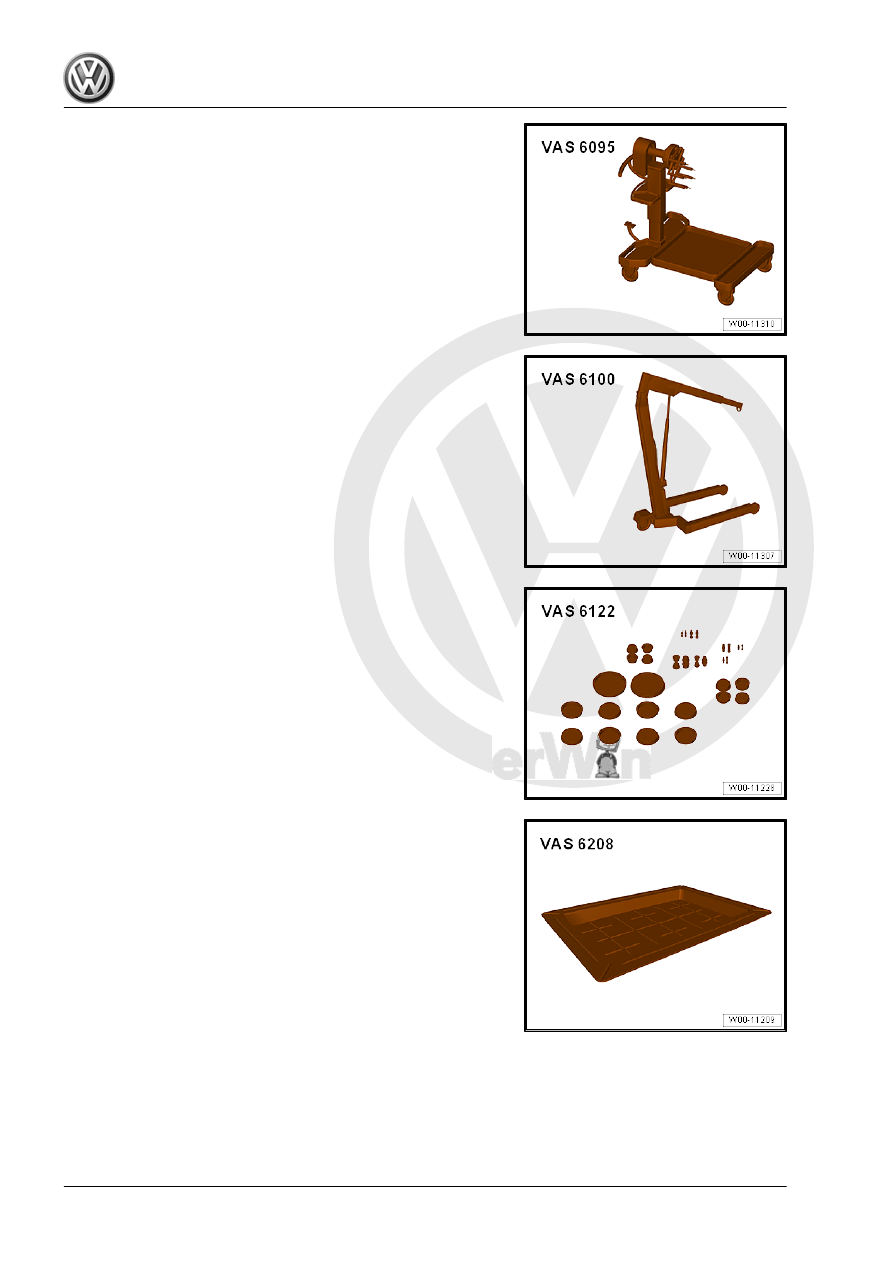

♦ Engine and Gearbox Bracket - VAS6095A-

♦ Shop Crane - VAS6100-

♦ Engine Bung Set - VA 6122-

♦ Shop Crane - Drip Tray - VAS6208-

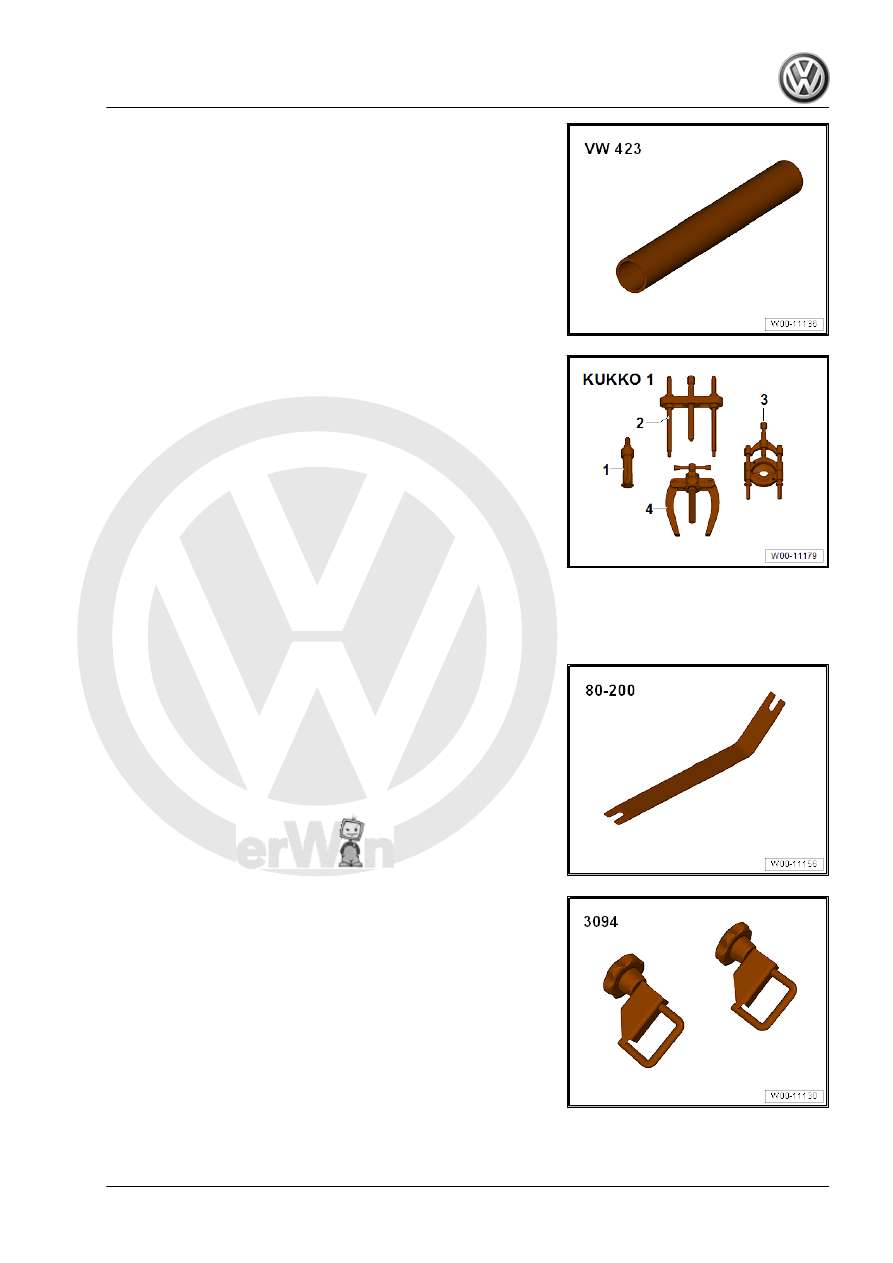

♦ Press Piece - Shift Rod/Alternator - VW423-

♦ -1- Puller - Kukko Internal - 14-19mm - 21/2-

♦ -1- Puller - Kukko Internal - 20-30mm - 21/4-
♦ -4- Counter Support - VAS251623-
♦ Thread adaptor from Puller - Kukko Counterstay - Kukko 22/1-
♦ Pry Lever - 80-200-

♦ Hose Clamps - Up To 25mm - 3094-
