Special tools and workshop

equipment required

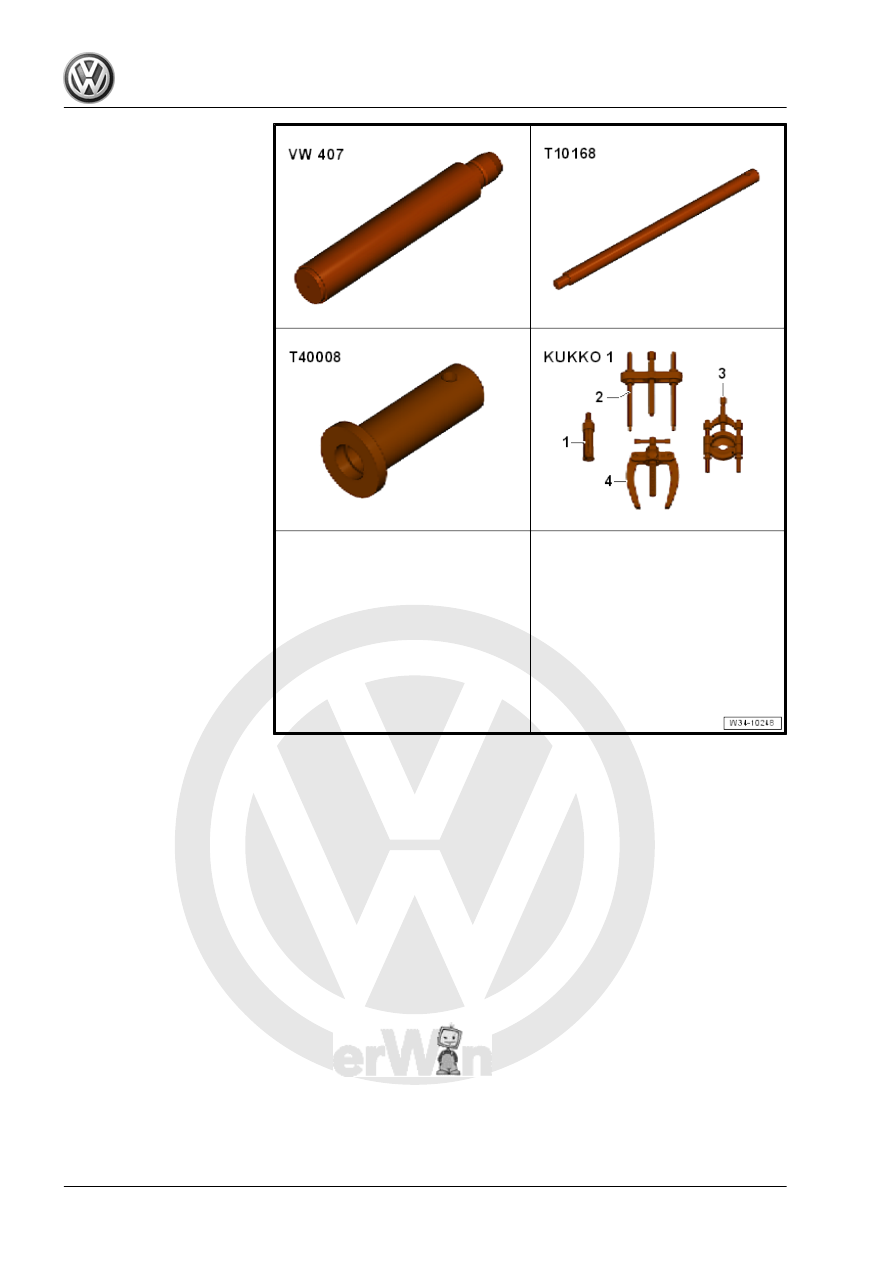

♦ Press Piece - Rod -

VW407-

♦ Bushing Driver - Selector

Shaft - T10168-

♦ Seal Installer - Driveshaft -

T40008-

♦ -1- Puller - Kukko Internal -

14-19mm - 21/2-

♦ -1- Puller - Kukko Internal -

20-30mm - 21/4-

♦ -4- Puller - Kukko Counter‐

stay - 22/1-

♦ -4- Puller - Kukko Counter‐

stay - 22/2-

♦ -4- Counter Support - VAS

251 623-

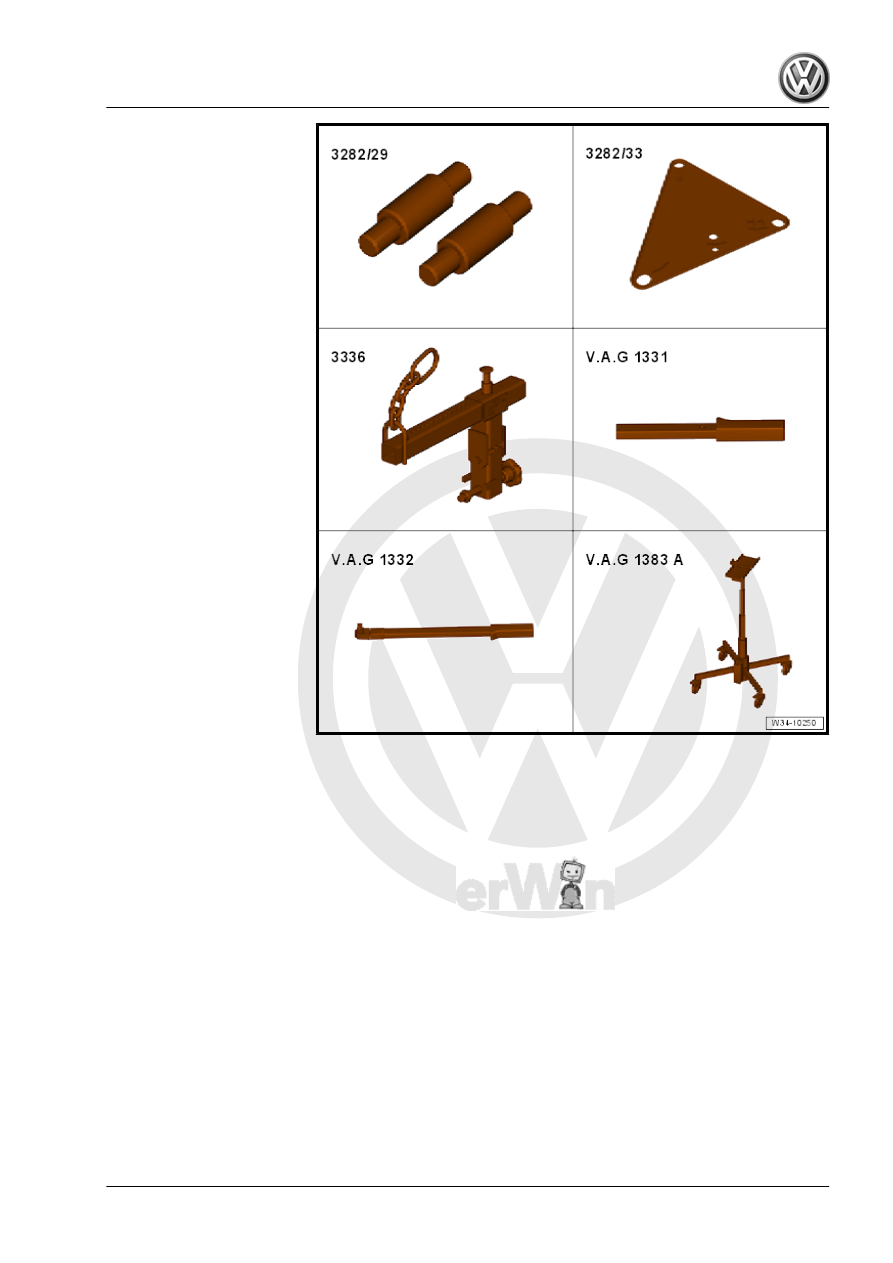

♦ Transmission Support -

Mounting Plate 33 -

3282/33-

♦ Support Elements for trans‐

mission (determine when

mounting the Mounting

Plate on the Transmission

Support )

♦ Transmission Support Jig -

3336- to transport the

transmission.

♦ Torque Wrench 1331

5-50Nm - VAG1331-

♦ Torque Wrench 1332

40-200Nm - VAG1332-

♦ Engine and Gearbox Jack -

VAS6931-

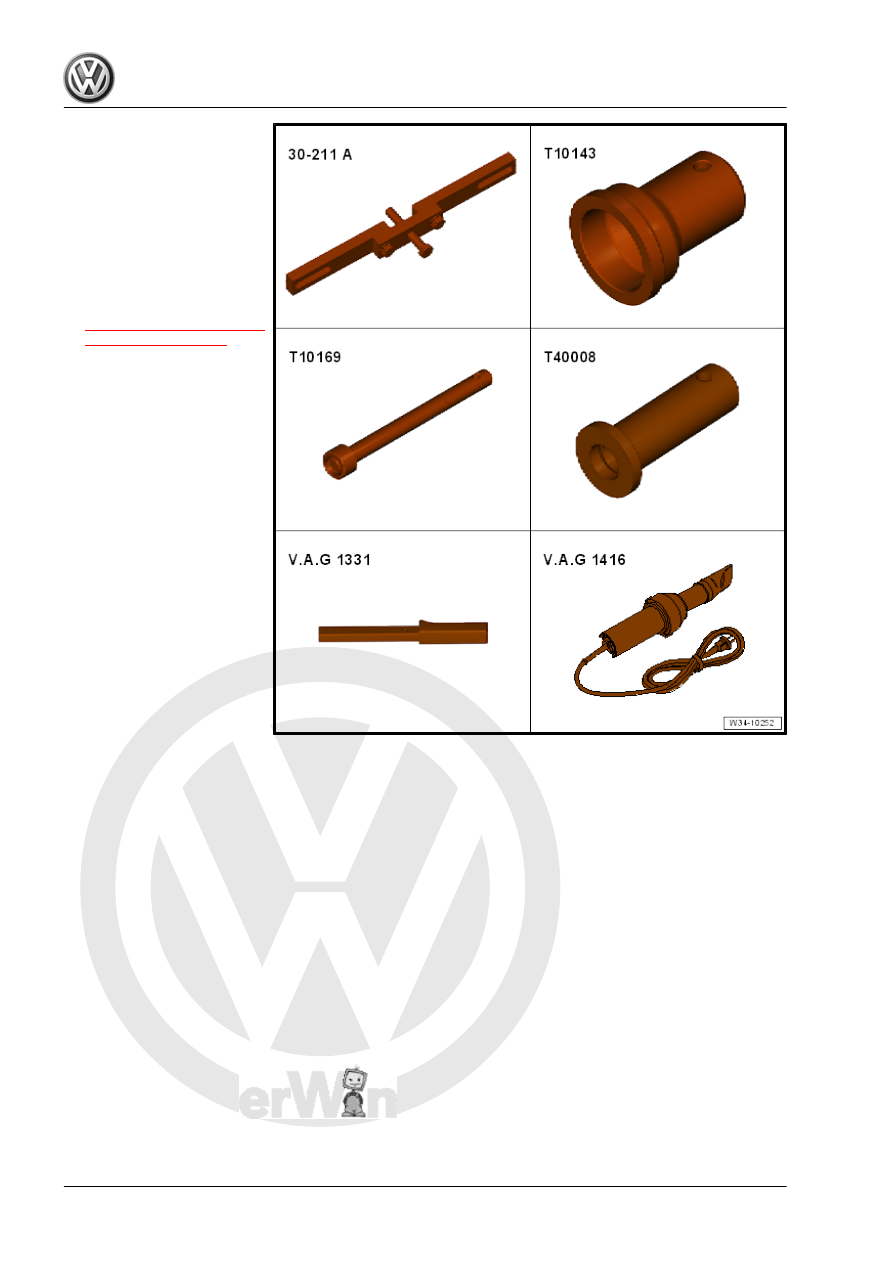

♦ Bracket - Multiple Use -

30-211A-

♦ Seal Installer - Drive Flange

- T10143- or Seal Installer -

Output Shaft Oil Seal -

T10180-

♦ Locking Sleeve Drift -

T10169-

♦ or Locking Sleeve Drift -

T10362- . Refer to

⇒ Fig. ““Lock Sleeve Differ‐

entiation”“ , page 136

♦ Seal Installer - Driveshaft -

T40008-

♦ Torque Wrench 1331

5-50Nm - VAG1331-

♦ Hot Air Blower - VAG1416-

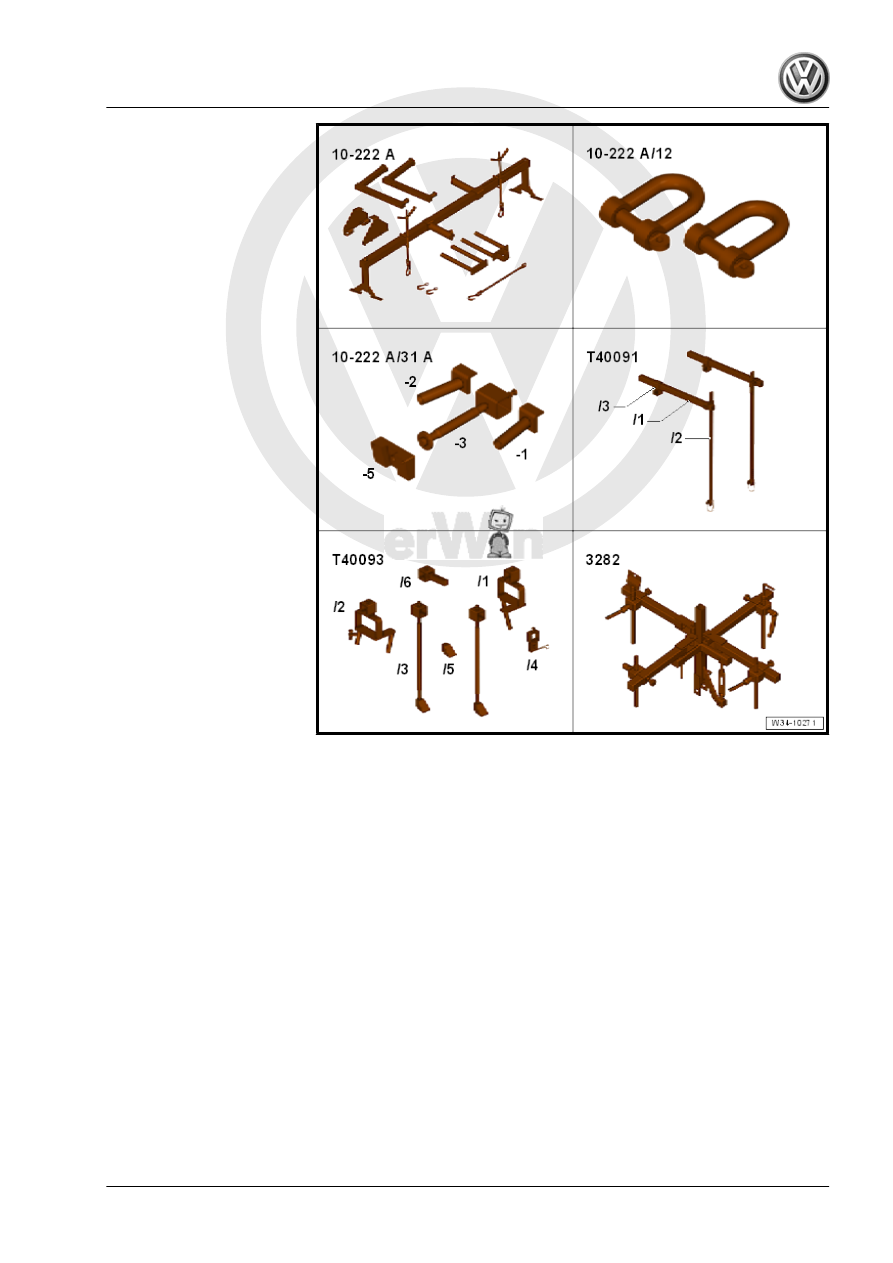

♦ Engine Support Bridge -

10-222A-

♦ Engine/Gearbox Support

Shackle (2 pc.) - 10-222A/

12-

♦ Engine Support Bridge -

Engine Support 31 - Adapt‐

er 1 - 10-222A/31-1-

♦ Engine Support Bridge -

Engine Support 31 - Adapt‐

er 2 - 10-222A/31-2-

♦ Engine Support - Basic Set

- Square Pipe - T40091/1-

♦ Engine Support - Basic Set

- Movable Joint - T40091/3-

♦ Engine Support Brackets -

T40093/3- from Engine

Support - Supplement Kit -

T40093A-

♦ Engine Support Brackets -

T40093/3-6-

♦ Transmission Support -

3282-
