Volkswagen Golf / Golf GTI / Golf Variant. Manual - part 518

Special tools and workshop

equipment required

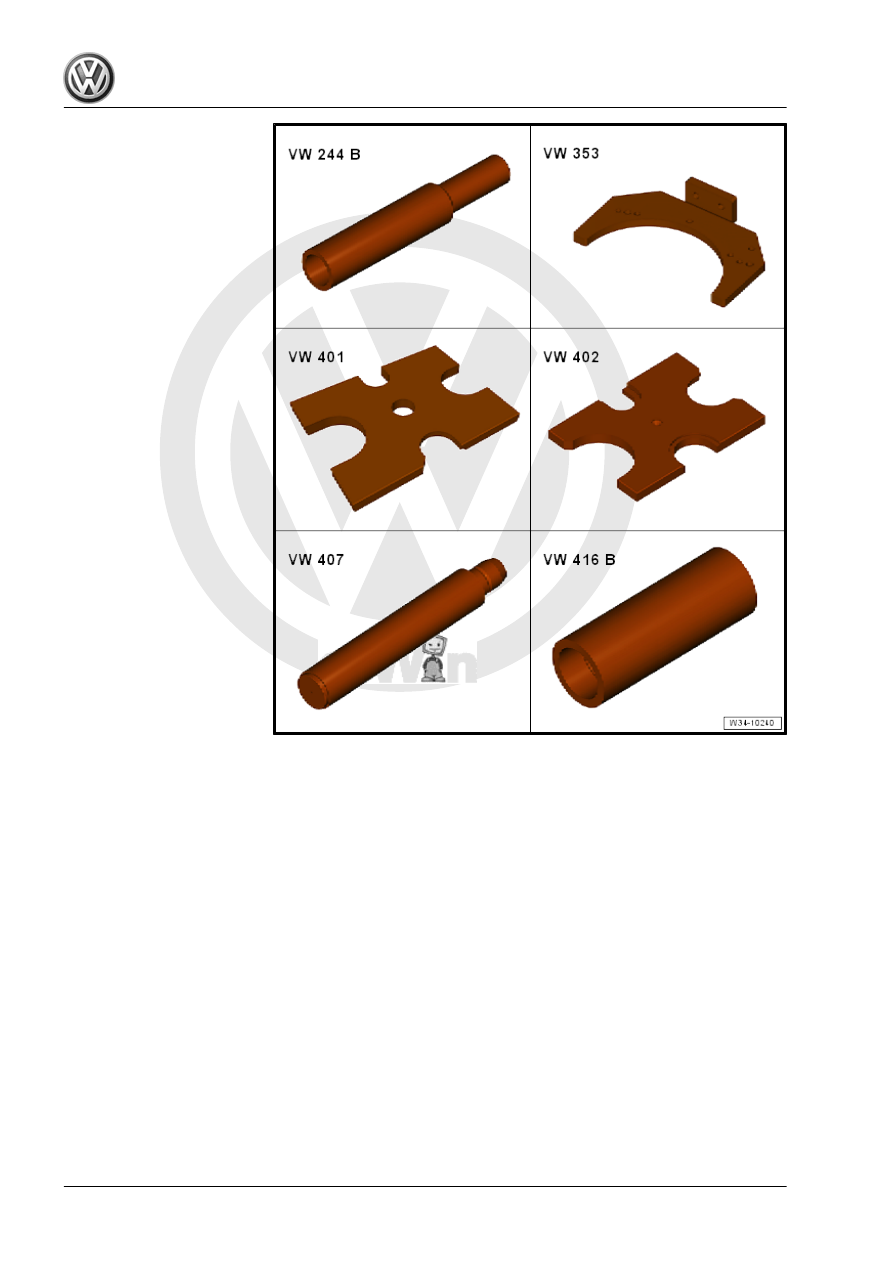

♦ Bearing Driver - Multiple

Use - VW244B-

♦ Transmission Support -

VW353-

♦ Press Plate - VW401-
♦ Press Plate - VW402-
♦ Press Piece - Rod -

VW407-

♦ Press Piece - 37mm -

VW416B-

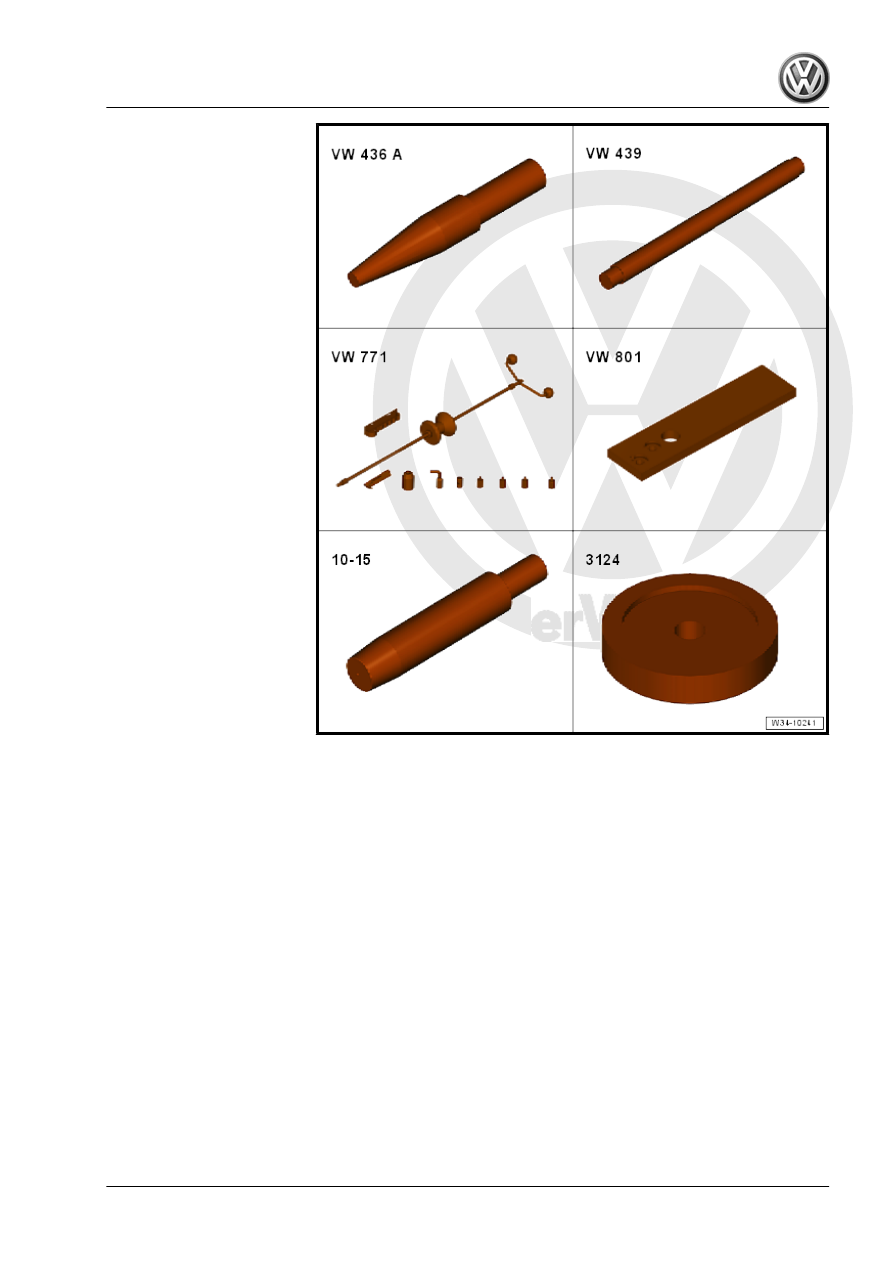

♦ Guide Pin - VW436A-
♦ Press Piece - Guide Pin -

VW439-

♦ Slide Hammer Set -

VW771-

♦ Crankshaft Holding Fixture

- VW801-

♦ Guide Pins - 10 - 15-
♦ Press Piece - Pivot Mount

Bushing - 3124-

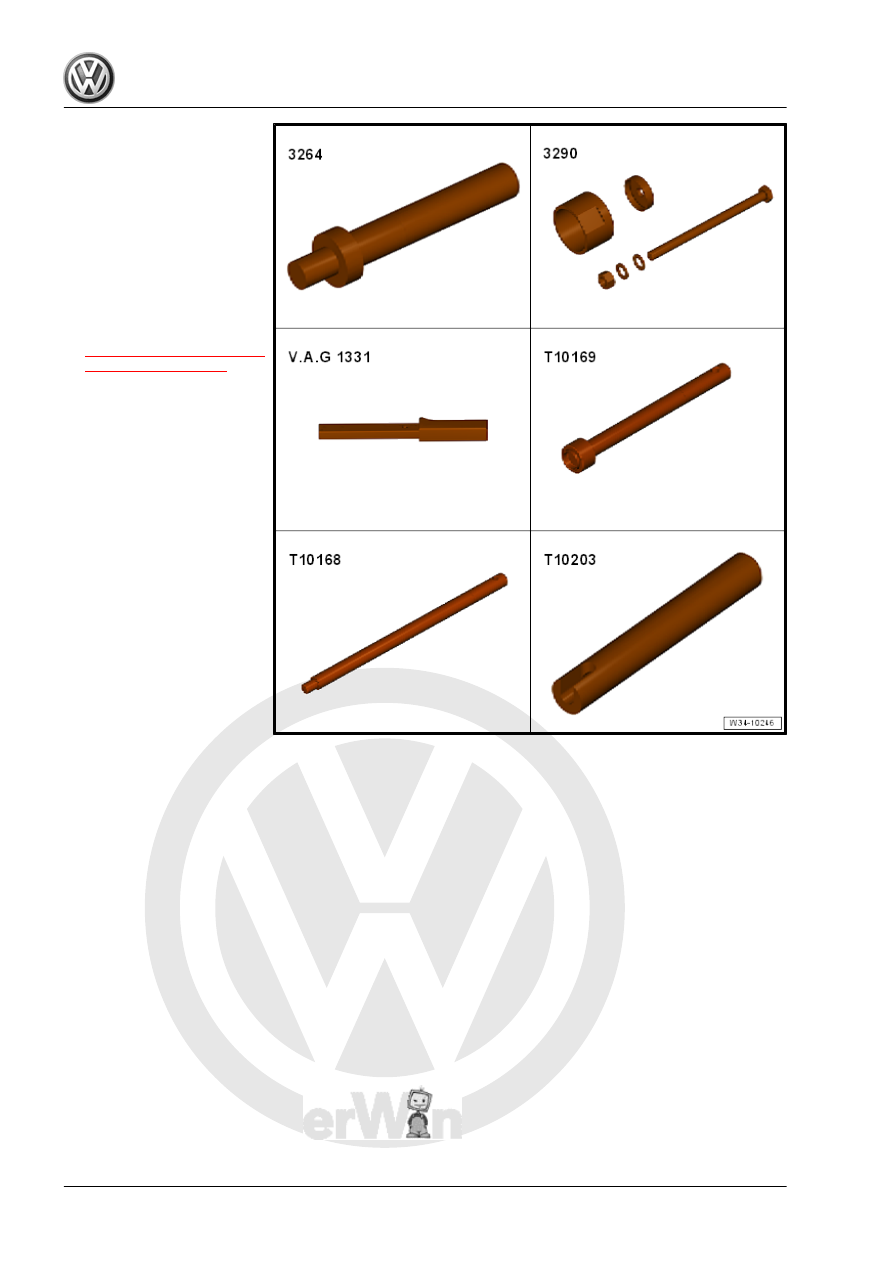

♦ Bearing Installer - Crank‐

shaft Pilot Bearing - 3264-

♦ Subframe Support Tool -

3290-

♦ Torque Wrench 5-50Nm -

VAG1331-

♦ Bushing Driver - Selector

Shaft - T10168-

♦ Locking Sleeve Drift -

T10169- or Locking Sleeve

Drift - T10362- . Refer to

⇒ Fig. ““Lock Sleeve Differ‐

entiation”“ , page 136

♦ Breather Tube Tool -

T10203-

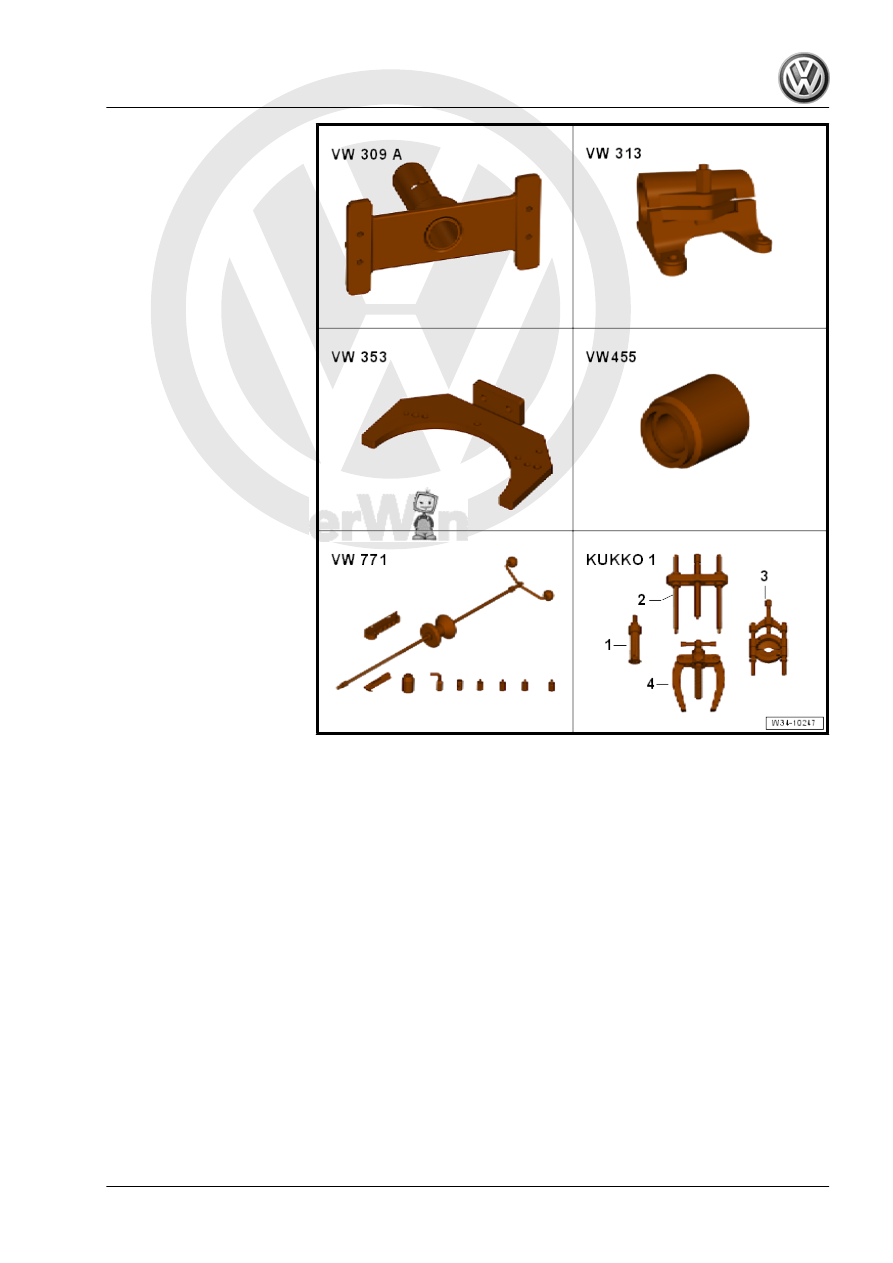

♦ Holding Plate - VW309A-
♦ or Holding Plate - VW

309A-

♦ Holding Fixture - VW 313-
♦ Transmission Support -

VW353-

♦ Press Piece - Multiple Use

- VW455- or Press Piece -

Front Wishbone - 3160-

♦ Slide Hammer Set -

VW771-

♦ -1- Puller - Kukko Internal -

12-16mm - 21/1-

♦ -3- Puller - Kukko Quick Ac‐

tion Separating Tool -

5-60mm - 17/0-

♦ -4- Puller - Kukko Counter‐

stay - 22/1-

♦ -4- Counter Support -

VAS251621-
