Front Seats

⇒ “2.1 Component Location Overview - Electric and Electronic

Components”, page 314
⇒ “2.2 Overview - Front Seat”, page 318
⇒ “2.3 Overview - Backrest Release and Entry Assistance”, page

322
⇒ “2.4 Overview - Front Backrest”, page 323
⇒ “2.5 Overview - Seat Pan”, page 327
⇒ “2.6 Overview - Seat Height Adjuster”, page 331
⇒ “2.7 Overview - Seat Angle Adjuster”, page 333
⇒ “2.8 Overview - Storage Compartment”, page 334
⇒ “2.9 Overview - Fire Extinguisher”, page 335
⇒ “2.10 Front Seat, Removing and Installing”, page 335
⇒ “2.11 Front Seat, Removing with Faulty Driver/Front Passenger

Seat Forward/Back Adjustment Motor V28 / V31 ”, page 339
⇒ “2.12 Airbag Adapter, Connecting and Disconnecting”,

page 343
⇒ “2.13 Tunnel-Side Seat Trim, Removing and Installing”,

page 344
⇒ “2.14 Sill-Side Seat Trim, Removing and Installing”,

page 345
⇒ “2.15 Seat Trim Bracket, Removing and Installing”, page 348
⇒ “2.16 Front Backrest, Removing and Installing”, page 349
⇒ “2.17 Seat Angle Adjuster, Removing and Installing”,

page 351
⇒ “2.18 Seat Height Adjustment Handle, Removing and Instal‐

ling”, page 352
⇒ “2.19 Seat Height Adjuster, Removing and Installing”,

page 353
⇒ “2.20 Seat Pan with Driver/Front Passenger Seat Forward/Back

Adjustment Motor V28 / V31 , Removing and Installing”,

page 357
⇒ “2.21 Backrest Adjuster, Removing and Installing”, page 358
⇒ “2.22 Lumbar Support Adjuster, Removing and Installing”, page

359
⇒ “2.23 Headrest, Removing and Installing”, page 360
⇒ “2.24 Headrest Guide, Removing and Installing”, page 361
⇒ “2.25 Backrest Release Trim, Removing and Installing”,

page 361
⇒ “2.26 Backrest Release, Removing and Installing”, page 362
⇒ “2.27 Connecting Cable, Removing and Installing”, page 363
⇒ “2.28 Backrest Release Mount, Removing and Installing”, page

363
⇒ “2.29 Backrest Release Cable, Removing and Installing”, page

364
⇒ “2.30 Backrest Release Cable, Adjusting”, page 365

⇒ “2.31 Entry Assistance Release Cable A, Removing and Instal‐

ling”, page 367
⇒ “2.32 Entry Assistance Release Cable A, Adjusting”,

page 367
⇒ “2.33 Entry Assistance Release Cable B, Removing and Instal‐

ling”, page 369
⇒ “2.34 Gliding Piece, Removing and Installing”, page 370
⇒ “2.35 Storage Compartment, Removing and Installing”,

page 371
⇒ “2.36 Driver/Front Passenger Seat Lumbar Support Adjustment

Switch E176 / E177 , Removing and Installing”, page 372
⇒ “2.37 Lumbar Support Adjustment Motors V125 / V126 / V129 /

V130 , Removing and Installing”, page 372
⇒ “2.38 Driver and Front Passenger Seat Adjustment Control

Head E470 / E471 , Removing and Installing”, page 373

2.1

Component Location Overview - Electric

and Electronic Components

⇒ “2.1.1 Component Locations Overview - Electric and Electronic

Components, Except Power Seat”, page 314
⇒ “2.1.2 Component Locations Overview - Electric and Electronic

Components, Power Seat”, page 316

2.1.1

Component Locations Overview - Electric and Electronic Components, Ex‐

cept Power Seat

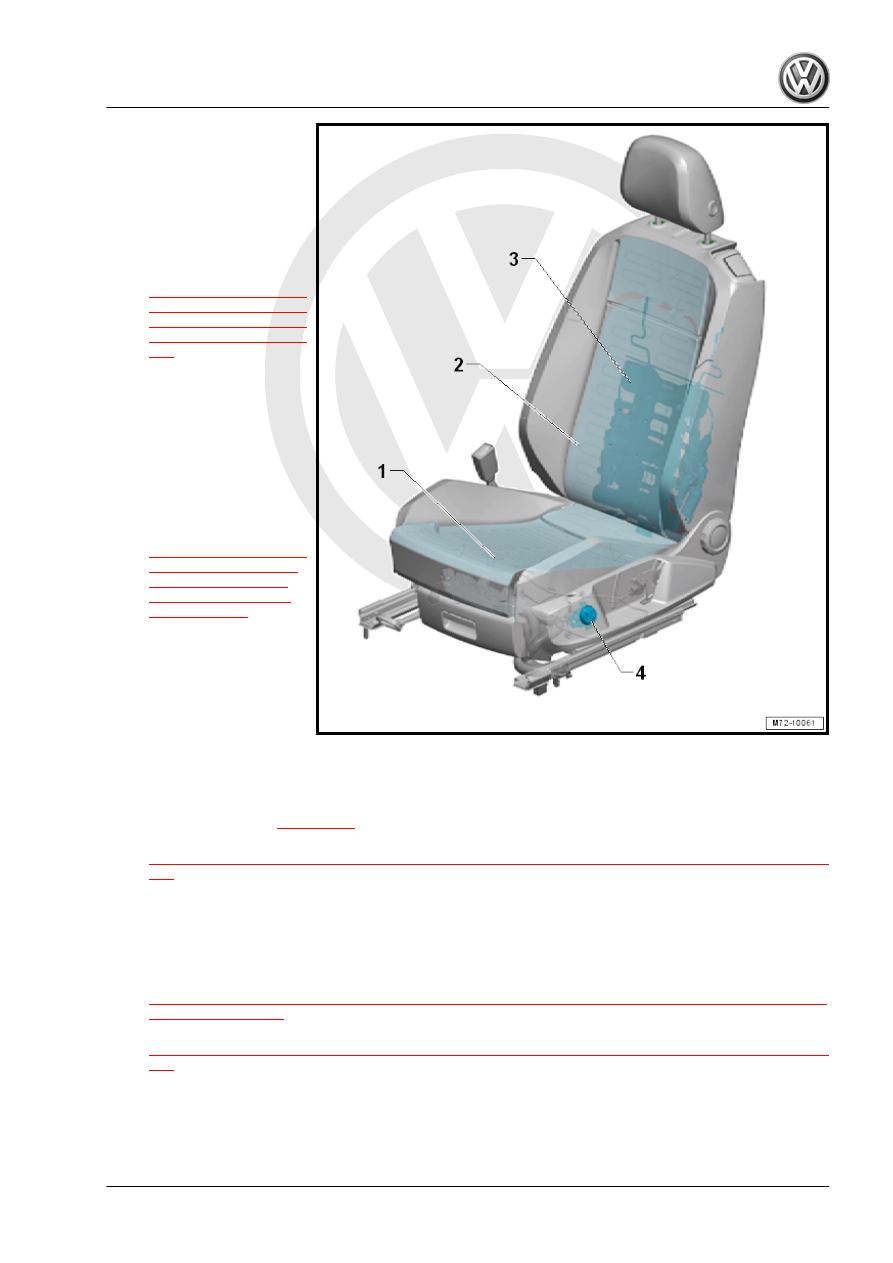

1 - Seat Heating Element

❑ Driver Seat Heating El‐

ement - Z6-

❑ Front Passenger Seat

Heating Element - Z8-

❑ Depending on the vehi‐

cle equipment level

❑ Removing and instal‐

ling. Refer to

⇒ “1.8 Driver/Front Pas‐

senger Seat Heating El‐

ement Z6 / Z8 , Remov‐

ing and Installing”, page

414

 .

2 - Backrest Heating Element

❑ Driver Backrest Heating

Element - Z7-

❑ Front Passenger Back‐

rest Heating Element -

Z9-

❑ Depending on the vehi‐

cle equipment level

❑ Removing and instal‐

ling. Refer to

⇒ “1.9 Driver/Front Pas‐

senger Backrest Heat‐

ing Element Z7 / Z9 ,

Removing and Instal‐

ling”, page 415

 .

3 - Lumbar Support

❑ Driver Seat Lumbar

Support Curvature Ad‐

justment Motor - V125-

❑ Driver Seat Lumbar

Support Height Adjust‐

ment Motor - V129-

❑ Front Passenger Seat Lumbar Support Curvature Adjustment Motor - V126-
❑ Front Passenger Seat Lumbar Support Height Adjustment Motor - V130-
❑ Equipment levels
❑ Overview. Refer to

⇒ page 326

 .

❑ Removing and installing. Refer to

⇒ “2.37 Lumbar Support Adjustment Motors V125 / V126 / V129 / V130 , Removing and Installing”, page

372

 .

4 - Lumbar Support Adjustment Switch

❑ Driver Seat Lumbar Support Adjustment Switch - E176-
❑ Front Passenger Seat Lumbar Support Adjustment Switch - E177-
❑ Depending on the vehicle equipment level
❑ Removing and installing. Refer to

⇒ “2.36 Driver/Front Passenger Seat Lumbar Support Adjustment Switch E176 / E177 , Removing and

Installing”, page 372

 .

❑ Lumbar support, removing and installing. Refer to

⇒ “2.37 Lumbar Support Adjustment Motors V125 / V126 / V129 / V130 , Removing and Installing”, page

372

 .
