Volkswagen Golf / Golf GTI / Golf Variant. Manual - part 415

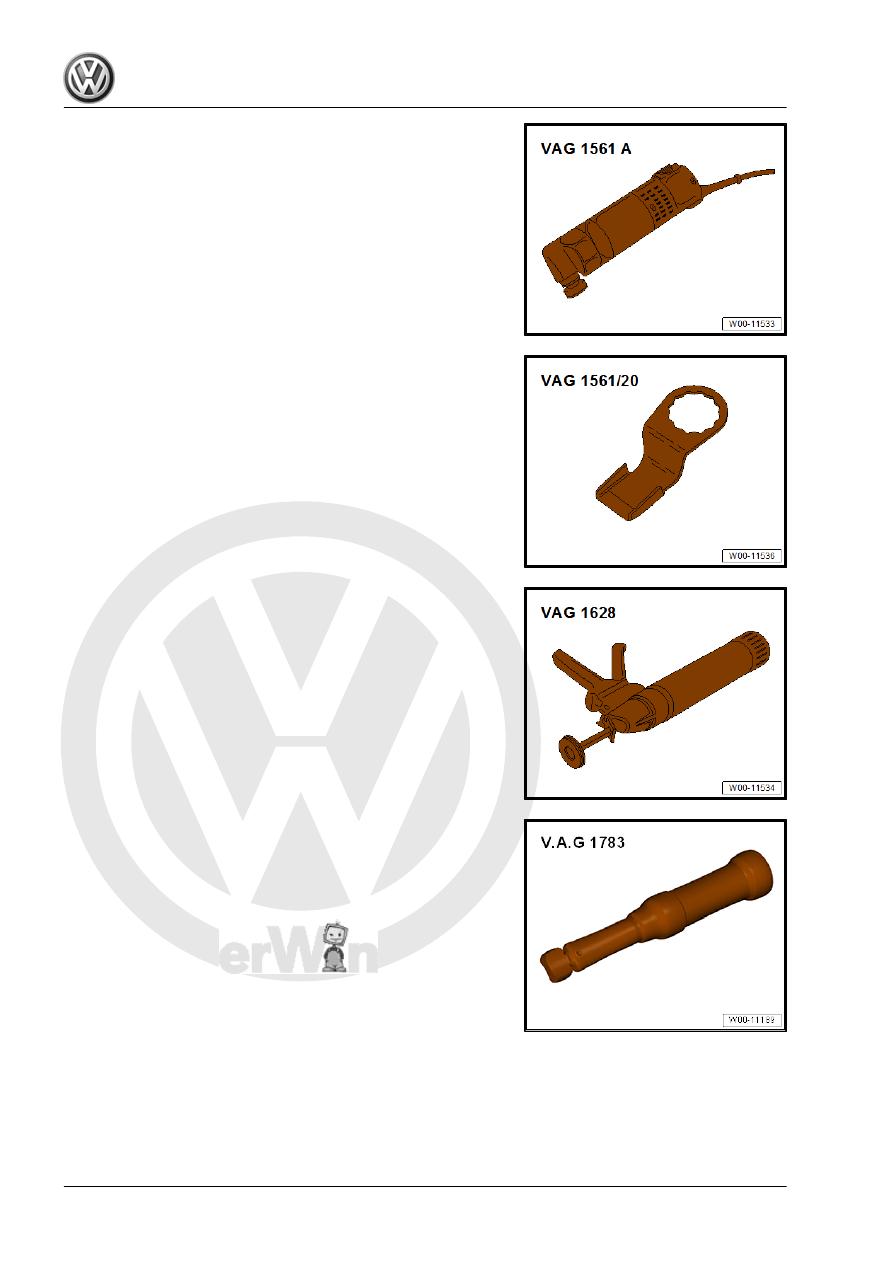

♦ Window Cutter - VAG1561A-

♦ Scraper Blade - 45mm - VAG1561/20-

♦ Cartridge Gun - VAG1628-

♦ Torque Wrench 1783 - 2-10Nm - VAG1783-

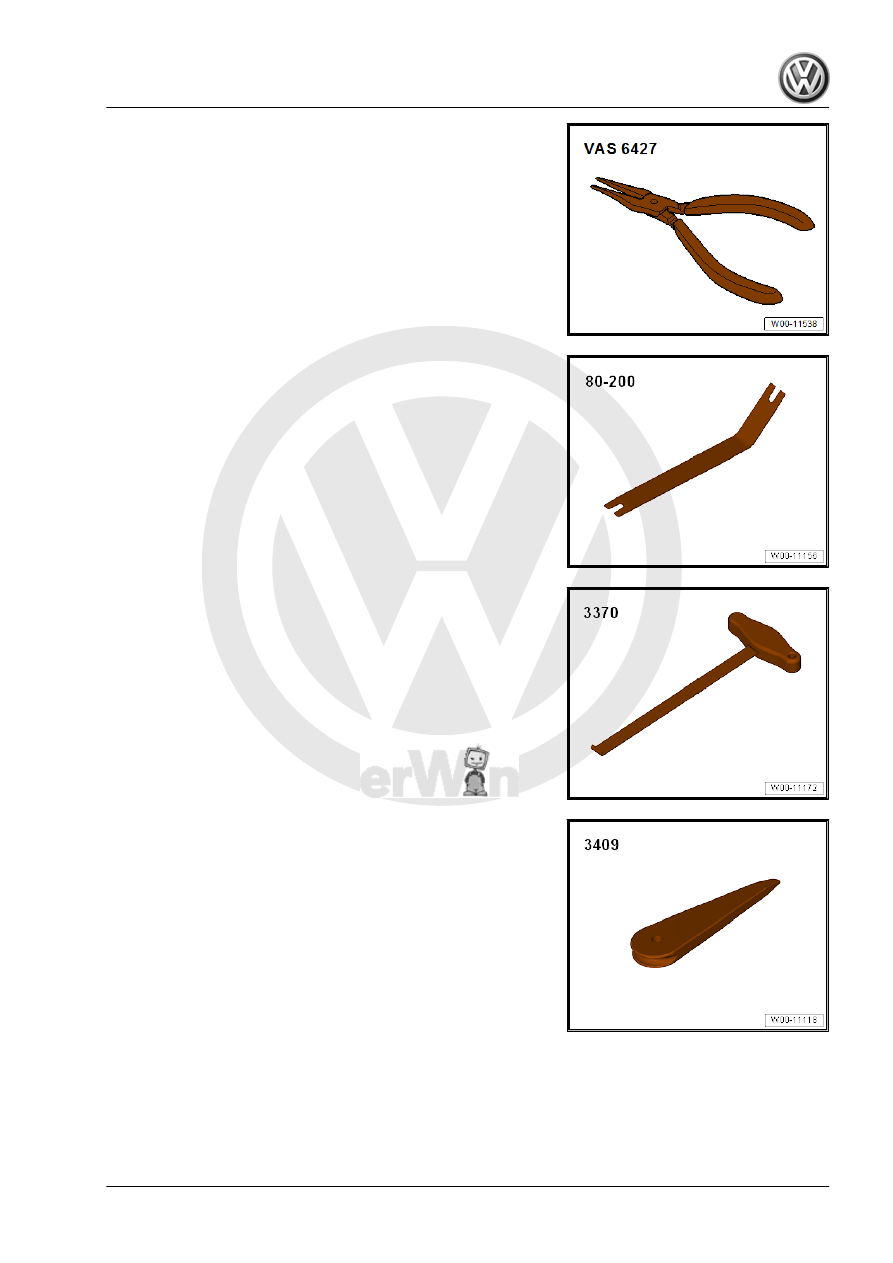

♦ Release Pliers - VAS6427-

♦ Pry Lever - 80-200-

♦ Backrest Panel Tool - 3370-

♦ Trim Removal Wedge - 3409-

72 – Seat Frames

1

Overview - Seat Versions

⇒ “1.1 Component Location Overview - Seat Versions”,

page 310
⇒ “1.2 Front Seat, Mounting on Fixture for Seat Repair”,

page 311

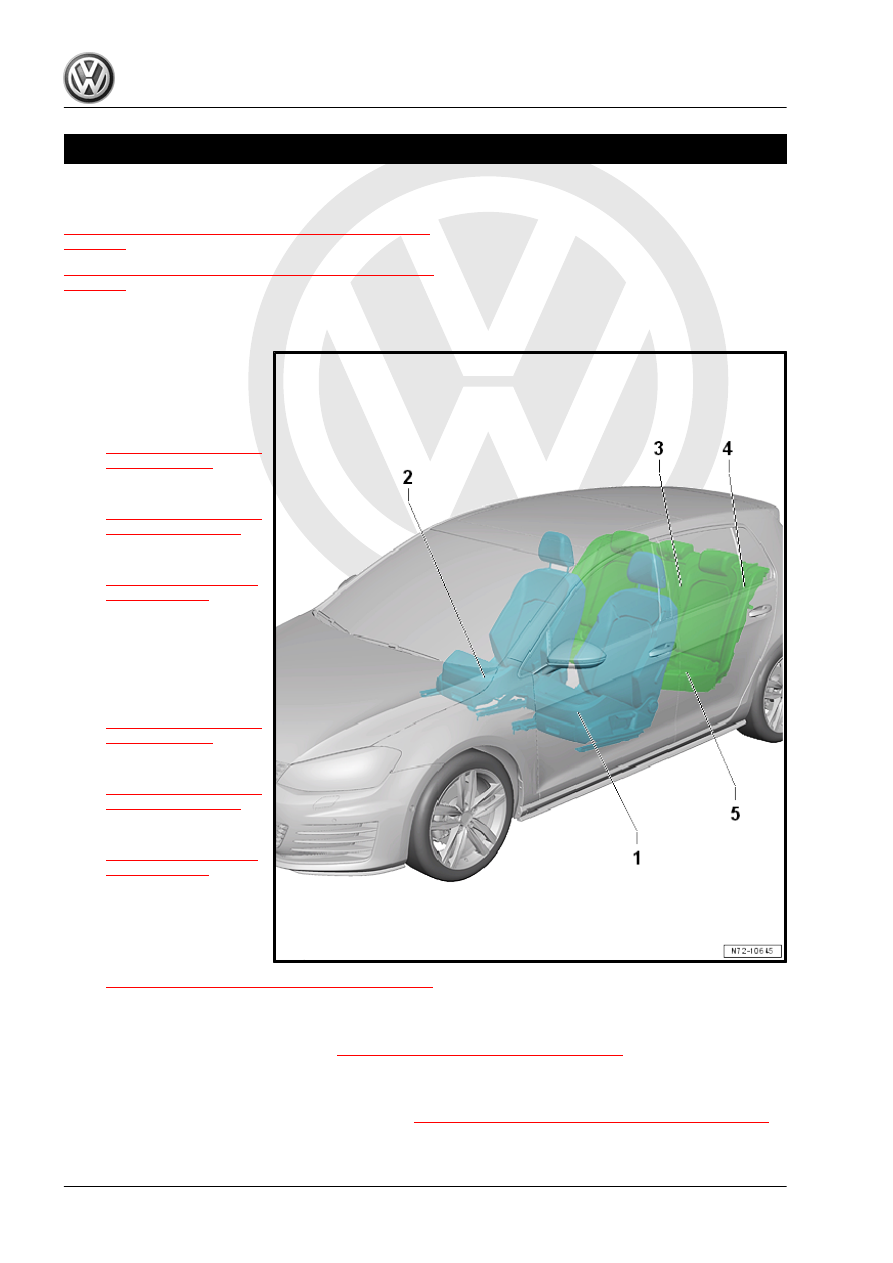

1.1

Component Location Overview - Seat Versions

1 - Driver Side Front Seat

❑ The design depends on

vehicle equipment

❑ Overview - Front Seat.

Refer to

⇒ “2.2 Overview - Front

Seat”, page 318

 .

❑ Overview - Front Back‐

rest. Refer to

⇒ “2.4 Overview - Front

Backrest”, page 323

 .

❑ Overview - Seat Pan.

Refer to

⇒ “2.5 Overview - Seat

Pan”, page 327

 .

2 - Front Passenger Side Front

Seat

❑ The design depends on

vehicle equipment

❑ Overview - Front Seat.

Refer to

⇒ “2.2 Overview - Front

Seat”, page 318

 .

❑ Overview - Front Back‐

rest. Refer to

⇒ “2.4 Overview - Front

Backrest”, page 323

 .

❑ Overview - Seat Pan.

Refer to

⇒ “2.5 Overview - Seat

Pan”, page 327

 .

3 - Rear Seat Backrest

❑ The design depends on

vehicle equipment

❑ Overview - Rear Seat

Backrest. Refer to

⇒ “3.2 Overview - Rear Seat Backrest”, page 377

 .

4 - Side Cushion

❑ Installation depends on vehicle equipment
❑ Overview - Side Cushion. Refer to

⇒ “3.5 Overview - Side Cushion”, page 381

 .

5 - Bench Seat / Single Seats

❑ The design depends on vehicle equipment
❑ Overview - Bench Seat/Single Seats. Refer to

⇒ “3.1 Overview - Bench Seat/Single Seat”, page 375

 .

1.2

Front Seat, Mounting on Fixture for Seat

Repair

Special tools and workshop equipment required
♦ Torque Wrench 1331 5-50Nm - VAG1331-
♦ Torque Wrench 1783 - 2-10Nm - VAG1783-
♦ Engine and Gearbox Bracket VAS6095A - VAS6095A-
♦ Engine/Transmission Holder - Seat Repair Fixture - VAS6136-
Assembly
– Remove the front seats. Refer to

⇒ “2.10 Front Seat, Removing and Installing”, page 335

 .

– Attach the Engine/Transmission Holder - Seat Repair Fixture

- VAS6136- onto the Engine and Gearbox Bracket -

VAS6095A- .

– Place the seat on the Engine/Transmission Holder - Seat Re‐

pair Fixture - VAS6136- .

– Secure the front seat on the Engine/Transmission Holder -

Seat Repair Fixture - VAS6136- .

Disassembly
Disassembly is performed in reverse order.
Tightening Specifications
♦ Refer to

⇒ “2.10 Front Seat, Removing and Installing”, page 335
