❑ Quantity: 7
❑ Remove the clips that are still in the mounting points on the body using the Omega Clip Tool - T40280-
❑ Replace damaged or deformed retaining clips

6 - Roof End Strip

❑ Removing and installing. Refer to

⇒ “7.2 Roof End Strip, Removing and Installing”, page 299

7 - Clip

❑ Only with a sunroof
❑ Quantity: 15
❑ Insert in the headliner
❑ Remove any remaining clips in the frame
❑ Replace damaged or deformed retaining clips

7.1.2

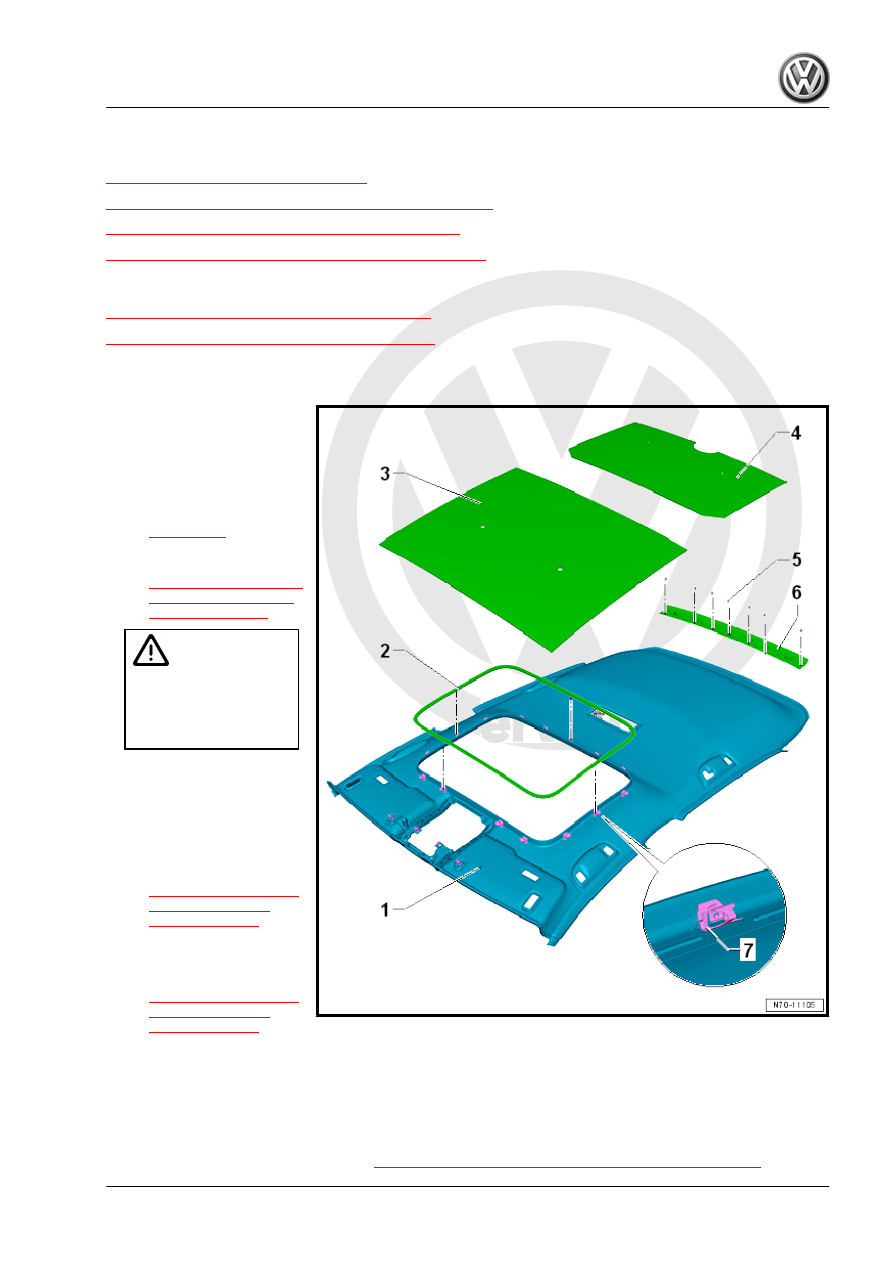

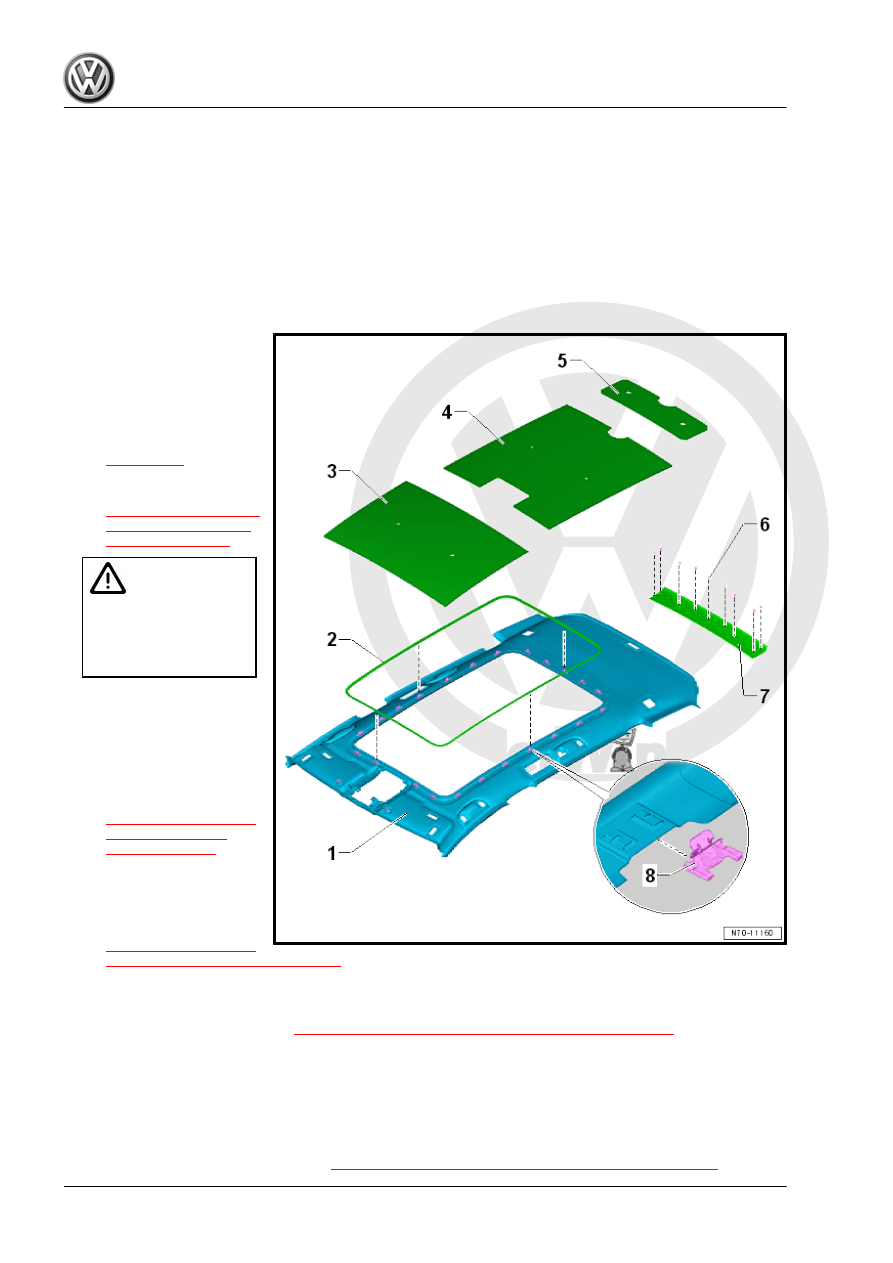

Overview - Headliner, Wagon

1 - Headliner

❑ Allocation. Refer to the

Parts Catalog.

❑ For certain equipment

levels, it is necessary to

cut openings in the new

headliner. Refer to

⇒ page 303

❑ Removing and instal‐

ling. Refer to

⇒ “7.3.2 Headliner, Re‐

moving and Installing,

Wagon”, page 301

Caution

♦

The headliner bends

easily.

♦

Replace the headliner if it

is bent.

2 - Frame

❑ Only with a sunroof

3 - Roof Reinforcement

❑ Not with a sunroof
❑ Install on the body. Re‐

fer to

⇒ “7.4 Roof Reinforce‐

ment, Attaching to

Body”, page 303

4 - Roof Reinforcement

❑ Not with a sunroof
❑ Install on the body. Re‐

fer to

⇒ “7.4 Roof Reinforce‐

ment, Attaching to Body”, page 303

5 - Roof Reinforcement

❑ Only with a sunroof
❑ Install on the body. Refer to

⇒ “7.4 Roof Reinforcement, Attaching to Body”, page 303

6 - Clip

❑ Quantity: 9
❑ Remove the clips that are still in the mounting points on the body using the Omega Clip Tool - T40280-
❑ Replace damaged or deformed retaining clips

7 - Roof End Strip

❑ Removing and installing. Refer to

⇒ “7.2 Roof End Strip, Removing and Installing”, page 299

8 - Clip

❑ Only with a sunroof
❑ Quantity: 23
❑ Insert in the headliner
❑ Remove any remaining clips in the frame
❑ Replace damaged or deformed retaining clips

7.2

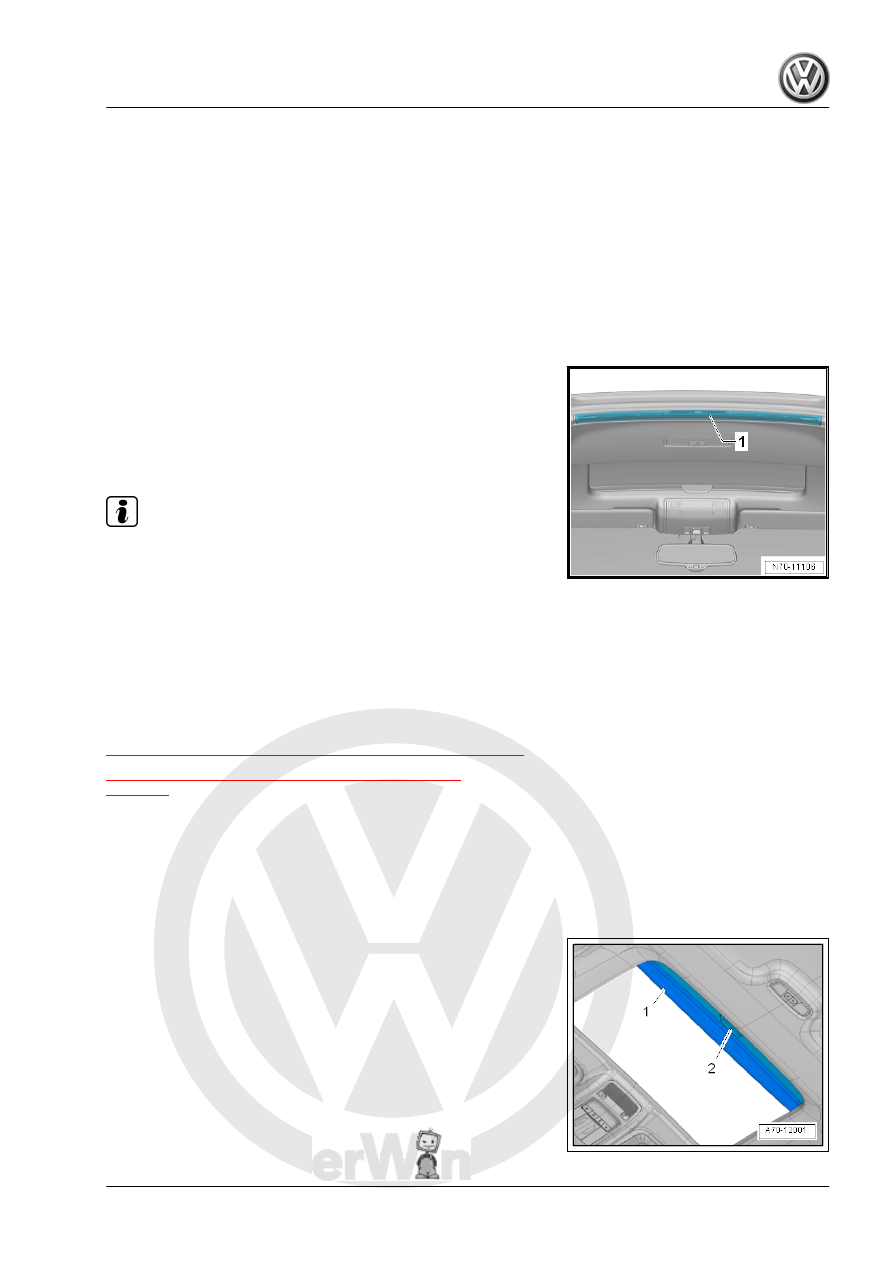

Roof End Strip, Removing and Installing

Special tools and workshop equipment required
♦ Wedge Set - T10383-
Removing
– Loosen the roof end strip -1- near the clips from the body

mounts using the Wedge Set - T10383- .

– Remove the roof end strip -1- downward.
Installing

Note

♦

Check all the fasteners for damage and replace if necessary.

♦

Remove any remaining clips in the body mounting points using

the Omega Clip Tool - T40280- . To install, insert into the roof

end strip.

♦

Make sure the roof end strip is inside the rear lid seal molding

after it is installed.

Install in reverse order of removal.

7.3

Headliner, Removing and Installing

⇒ “7.3.1 Headliner, Removing and Installing, Sedan”, page 299
⇒ “7.3.2 Headliner, Removing and Installing, Wagon”,

page 301

7.3.1

Headliner, Removing and Installing, Se‐

dan

Special tools and workshop equipment required
♦ Wedge Set - T10383-
♦ Release Pliers - VAS6427-
Removing
Vehicles with Sunroof
– Open the sunroof -1- all the way.
– Open the sun shade -2- about

/3.
