1.5

Overview - Glove Compartment

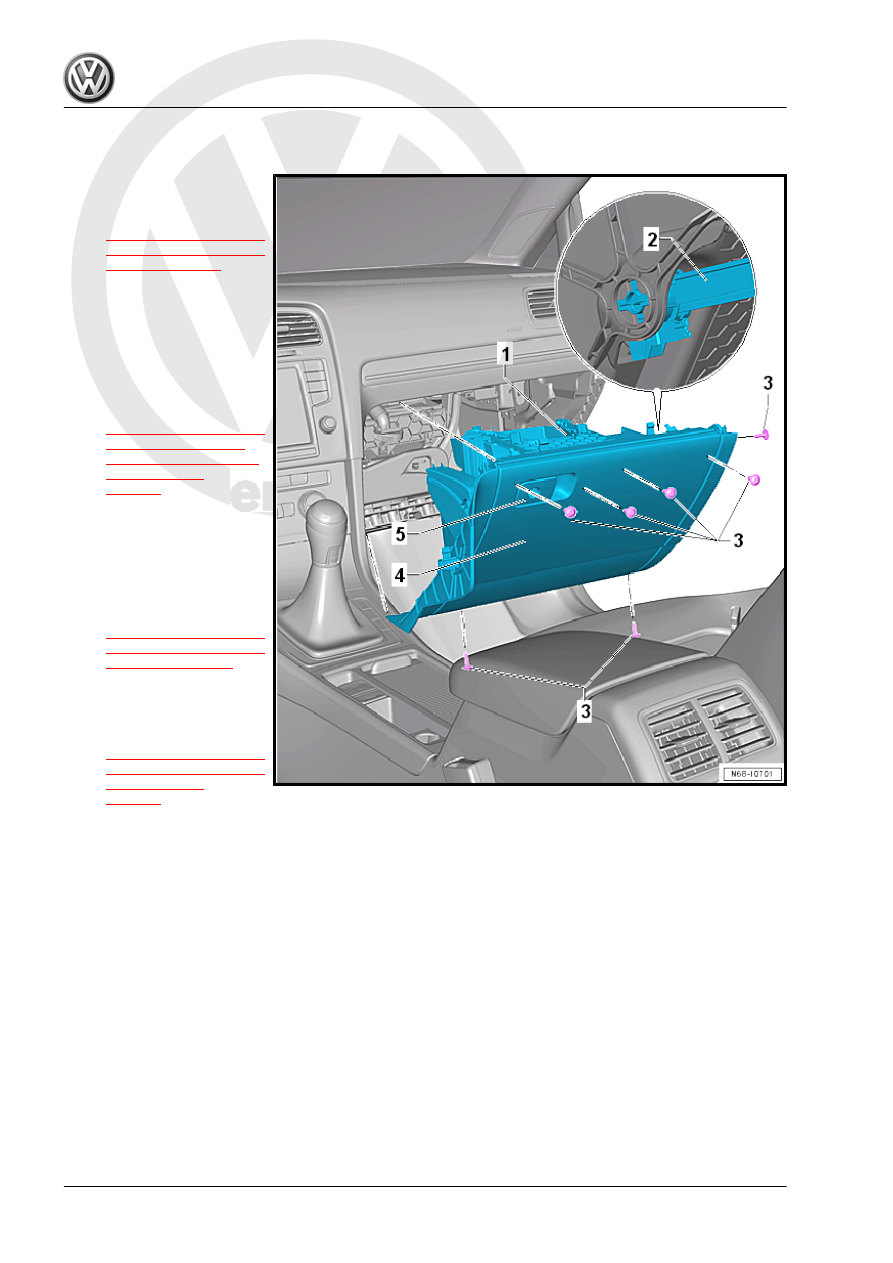

1 - Glove Compartment

❑ Removing and instal‐

ling. Refer to

⇒ “1.17 Glove Compart‐

ment, Removing and In‐

stalling”, page 36

 .

2 - Dampening Mechanism

❑ For the glove compart‐

ment lid

❑ With Glove Compart‐

ment Lamp Switch -

E26-

❑ Removing and instal‐

ling. Refer to

⇒ “1.16 Glove Compart‐

ment Lid Dampening

Mechanism, Removing

and Installing”,

page 35

 .

3 - Screw

❑ 1.5 Nm
❑ Quantity: 7

4 - Glove Compartment Lid

❑ Removing and instal‐

ling. Refer to

⇒ “1.18 Glove Compart‐

ment Lid, Removing and

Installing”, page 37

 .

5 - Glove Compartment Han‐

dle

❑ Removing and instal‐

ling. Refer to

⇒ “1.14 Glove Compart‐

ment Handle, Removing

and Installing”,

page 33

 .

1.6

Overview - Headliner Compartment

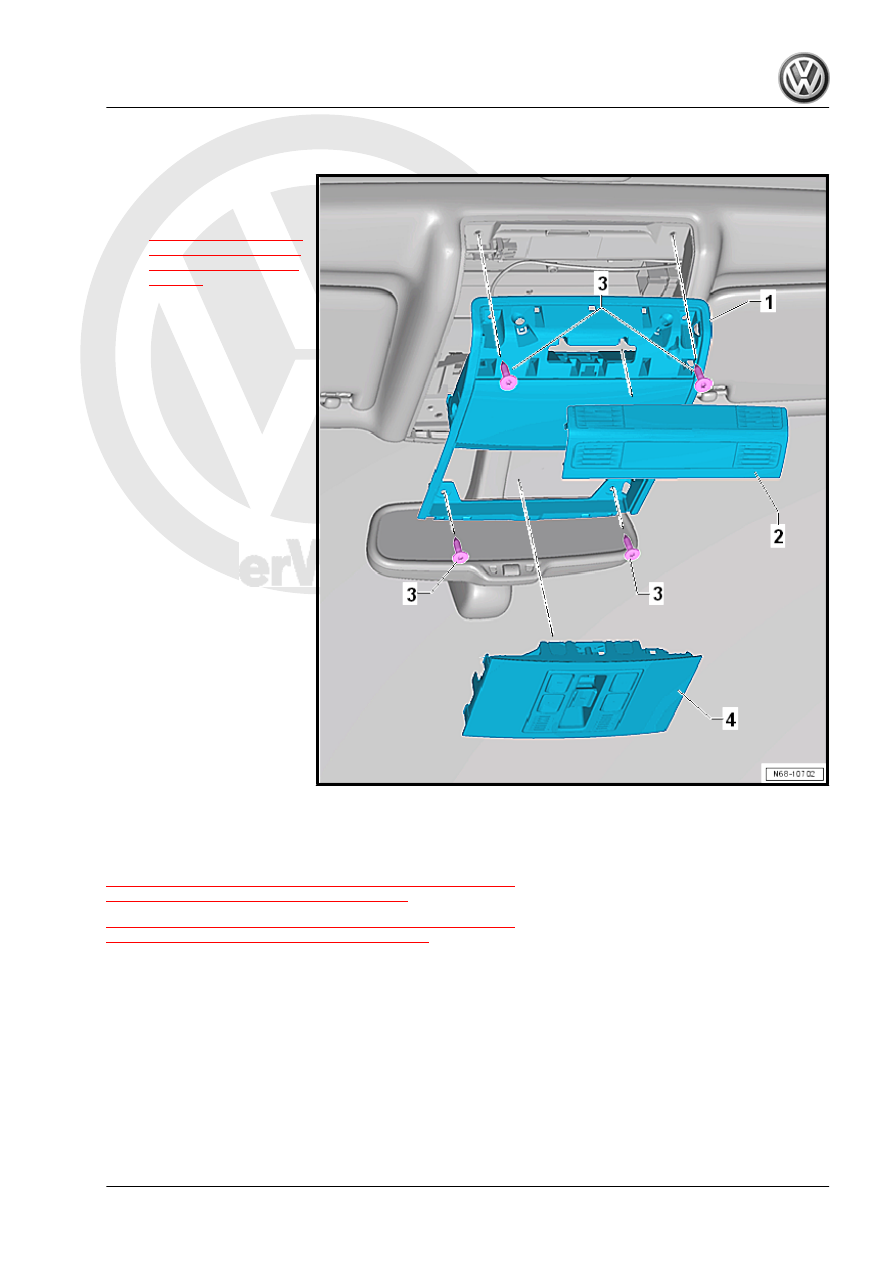

1 - Storage Compartment

❑ Removing and instal‐

ling. Refer to

⇒ “1.19 Headliner Stor‐

age Compartment, Re‐

moving and Installing”,

page 38

 .

2 - Cover
3 - Screw

❑ 1.5 Nm
❑ Quantity: 4

4 - Front Interior Lamp - WX1-

❑ Component location

overview. Refer to ⇒

Electrical Equipment;

Rep. Gr.  96 ; Lamps;

Component Location

Overview - Roof Trim

Panel Lamps .

1.7

Driver Side Footwell Cover, Removing

and Installing

⇒ “1.7.1 Driver Side Footwell Cover, Removing and Installing,

Vehicles with Manual Transmission”, page 25
⇒ “1.7.2 Driver Side Footwell Cover, Removing and Installing,

Vehicles without Manual Transmission”, page 26

1.7.1

Driver Side Footwell Cover, Removing

and Installing, Vehicles with Manual

Transmission

Special tools and workshop equipment required
♦ Torque Wrench 1783 - 2-10Nm - VAG1783-
Removing

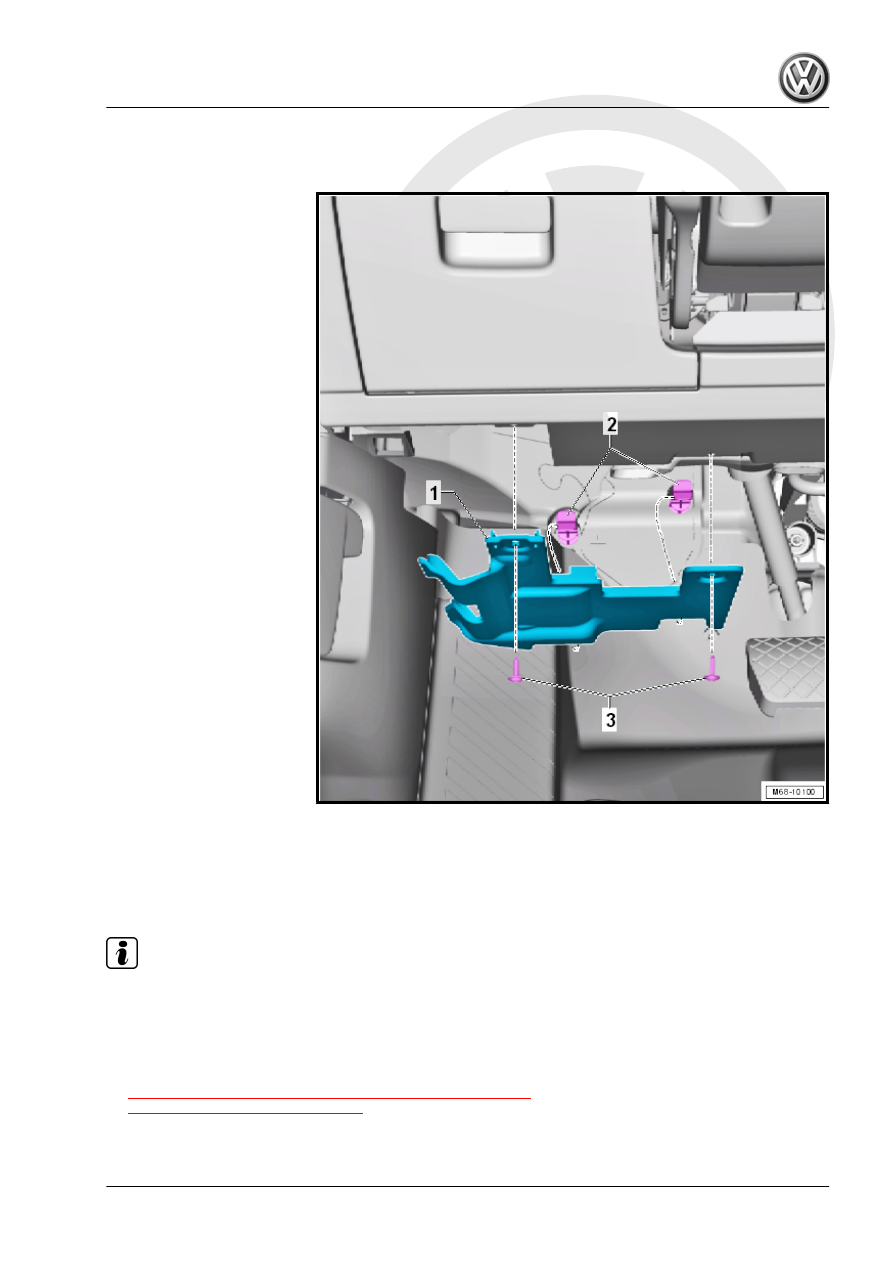

– Remove the bolt -3-.
– Pull the footwell cover -1- on the driver side out of the bracket

-2- and remove.

Installing

Note

Check all the fasteners for damage and replace if necessary.

Install in reverse order of removal.
Tightening Specifications
♦ Refer to

⇒ “1.2.1 Overview - Driver Side Footwell Cover, Vehicles with

Manual Transmission”, page 20

1.7.2

Driver Side Footwell Cover, Removing

and Installing, Vehicles without Manual

Transmission

Special tools and workshop equipment required

♦ Torque Wrench 1783 - 2-10Nm - VAG1783-
Removing

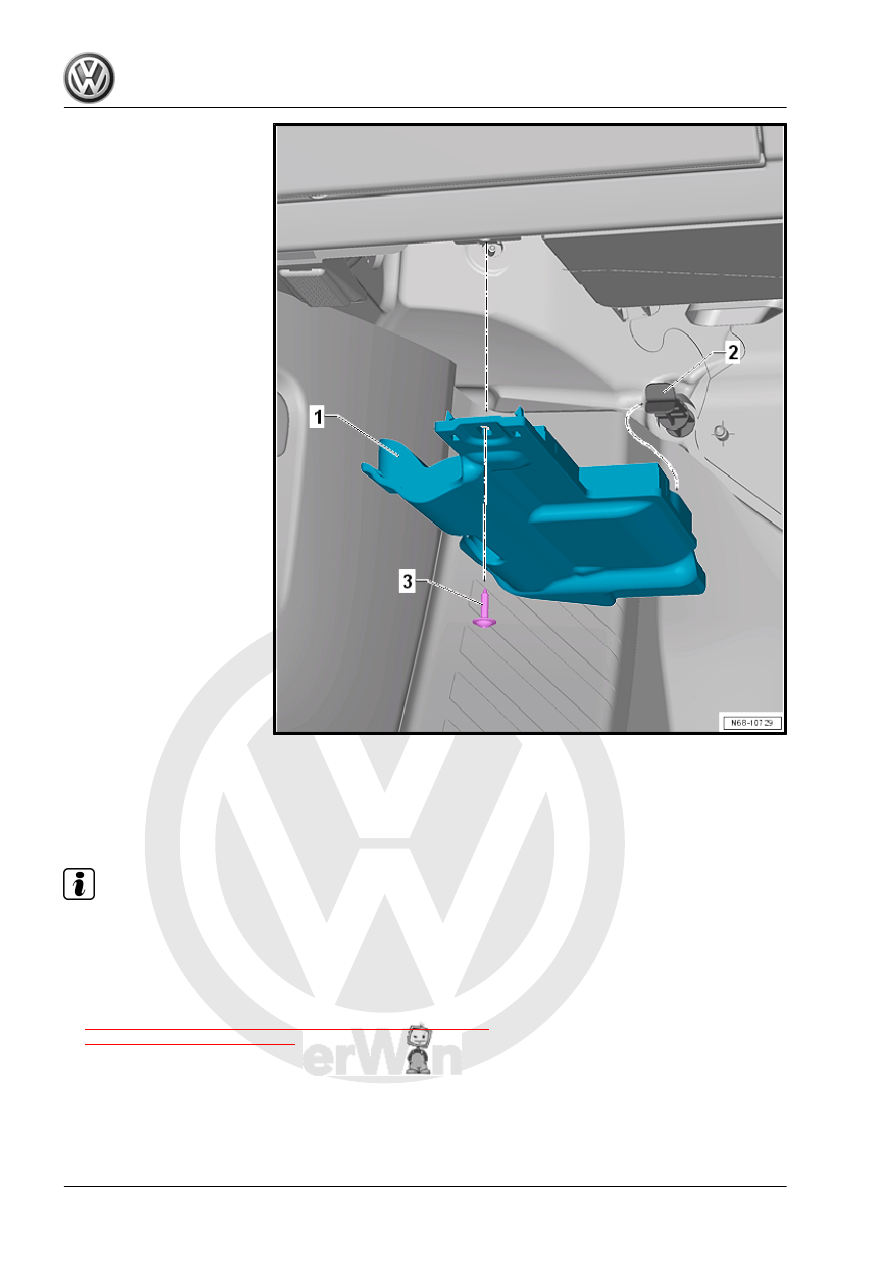

– Remove the bolts -3-.
– Pull the footwell cover -1- on the driver side out of the brackets

-2- and remove.

Installing

Note

Check all the fasteners for damage and replace if necessary.

Install in reverse order of removal.
Tightening Specifications
♦ Refer to

⇒ “1.2.2 Overview - Driver Side Footwell Cover, Vehicles with‐

out Manual Transmission”, page 21
