1.2

Overview - Driver Side Footwell Cover

⇒ “1.2.1 Overview - Driver Side Footwell Cover, Vehicles with

Manual Transmission”, page 20
⇒ “1.2.2 Overview - Driver Side Footwell Cover, Vehicles without

Manual Transmission”, page 21

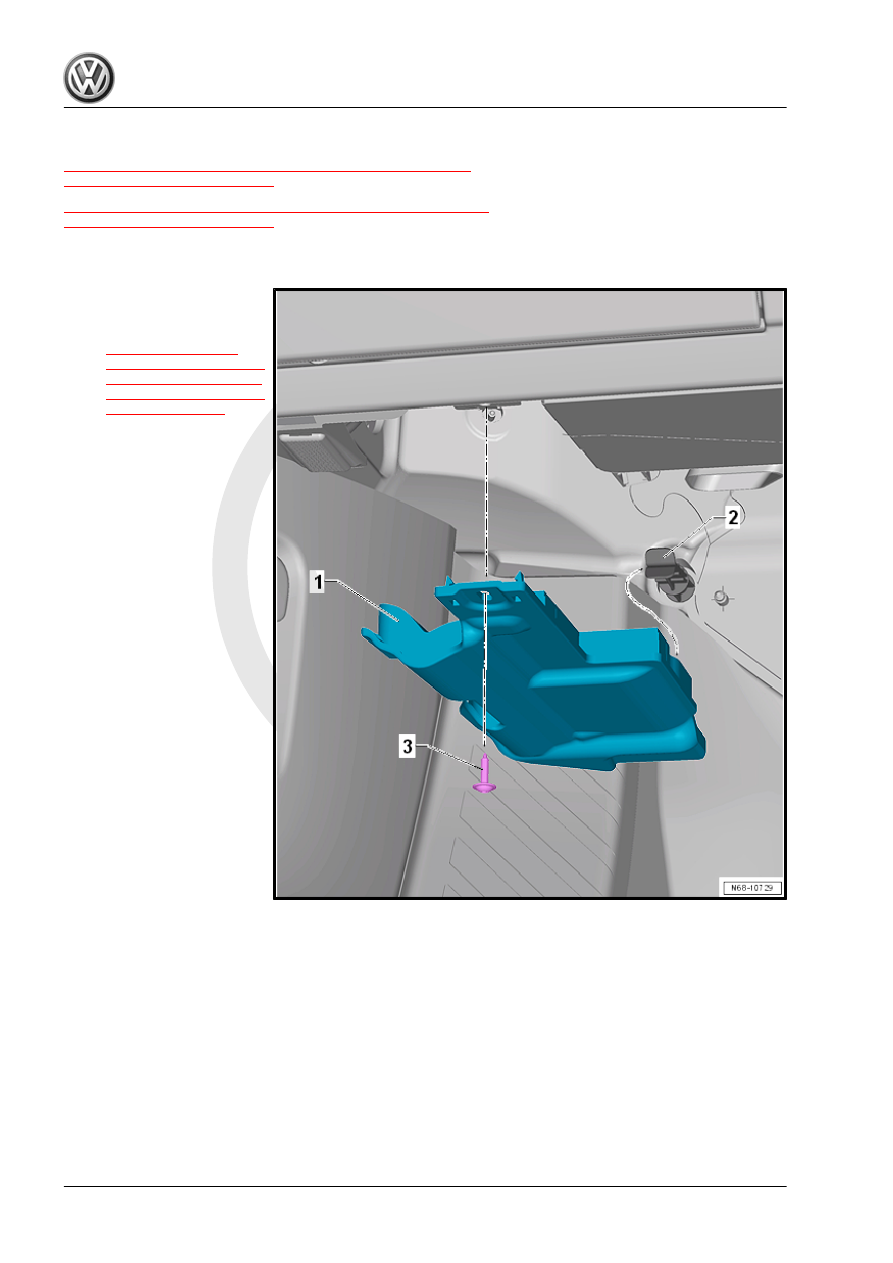

1.2.1

Overview - Driver Side Footwell Cover, Vehicles with Manual Transmission

1 - Driver Side Footwell Cover

❑ Removing and instal‐

ling. Refer to

⇒ “1.7.1 Driver Side

Footwell Cover, Remov‐

ing and Installing, Vehi‐

cles with Manual Trans‐

mission”, page 25

 .

2 - Bracket
3 - Screw

❑ 1.5 Nm

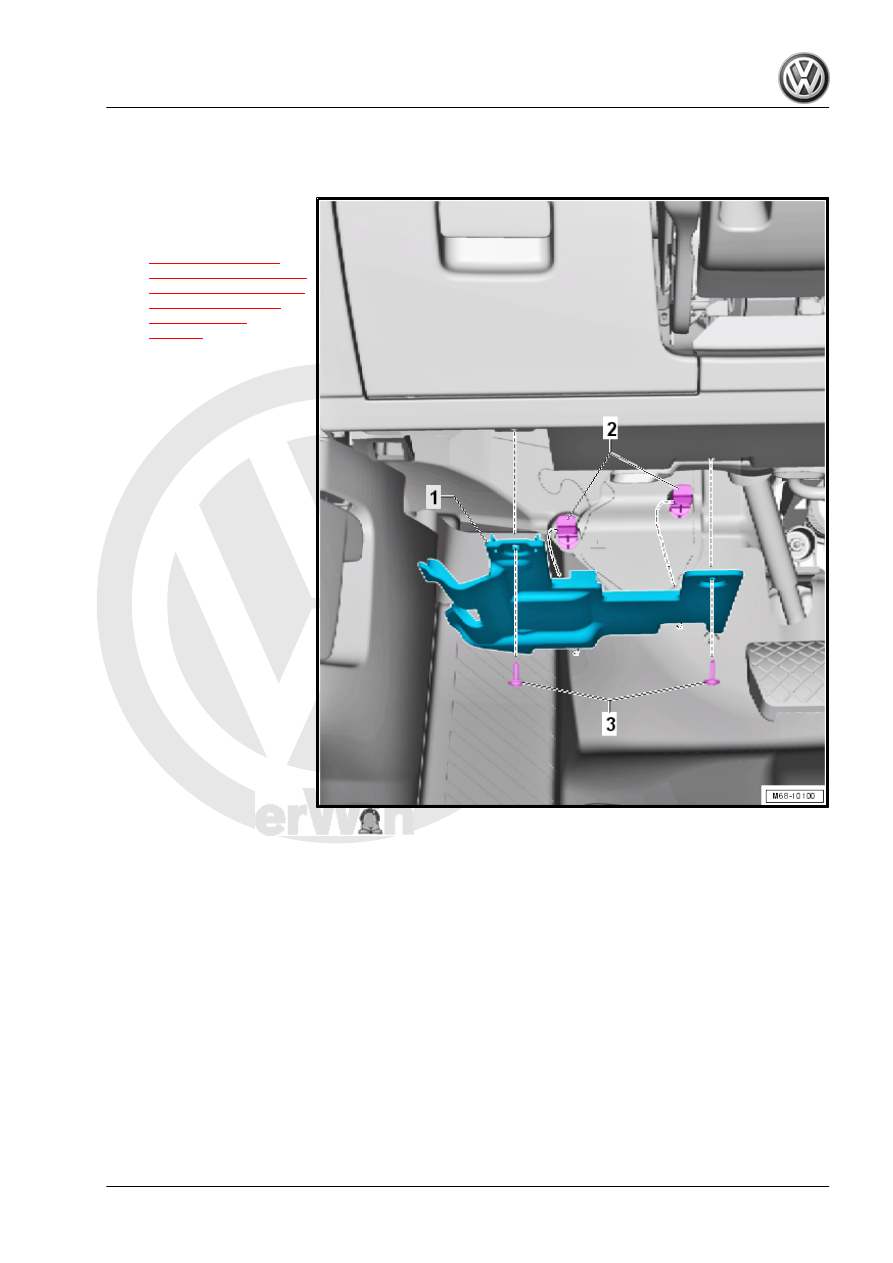

1.2.2

Overview - Driver Side Footwell Cover, Vehicles without Manual Transmis‐

sion

1 - Driver Side Footwell Cover

❑ Removing and instal‐

ling. Refer to

⇒ “1.7.2 Driver Side

Footwell Cover, Remov‐

ing and Installing, Vehi‐

cles without Manual

Transmission”,

page 26

 .

2 - Bracket

❑ Quantity: 2

3 - Screw

❑ 1.5 Nm
❑ Quantity: 2

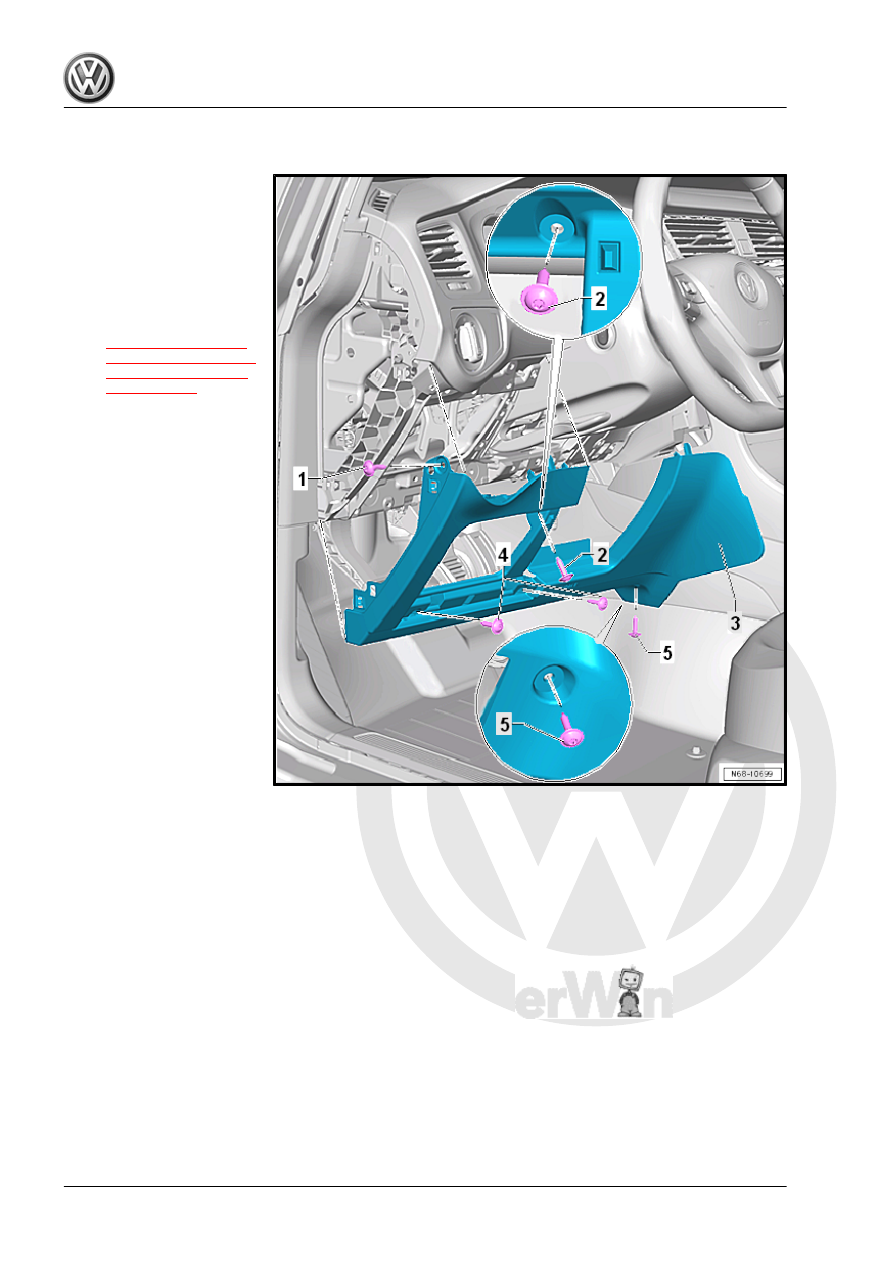

1.3

Overview - Driver Side Instrument Panel Cover

1 - Screw

❑ 1.5 Nm

2 - Screw

❑ 1.5 Nm

3 - Driver Side Instrument Pan‐

el Cover

❑ Removing and instal‐

ling. Refer to

⇒ “1.9 Driver Side In‐

strument Panel Cover,

Removing and Instal‐

ling”, page 28

 .

4 - Screw

❑ 1.5 Nm
❑ Quantity: 2

5 - Screw

❑ 1.5 Nm

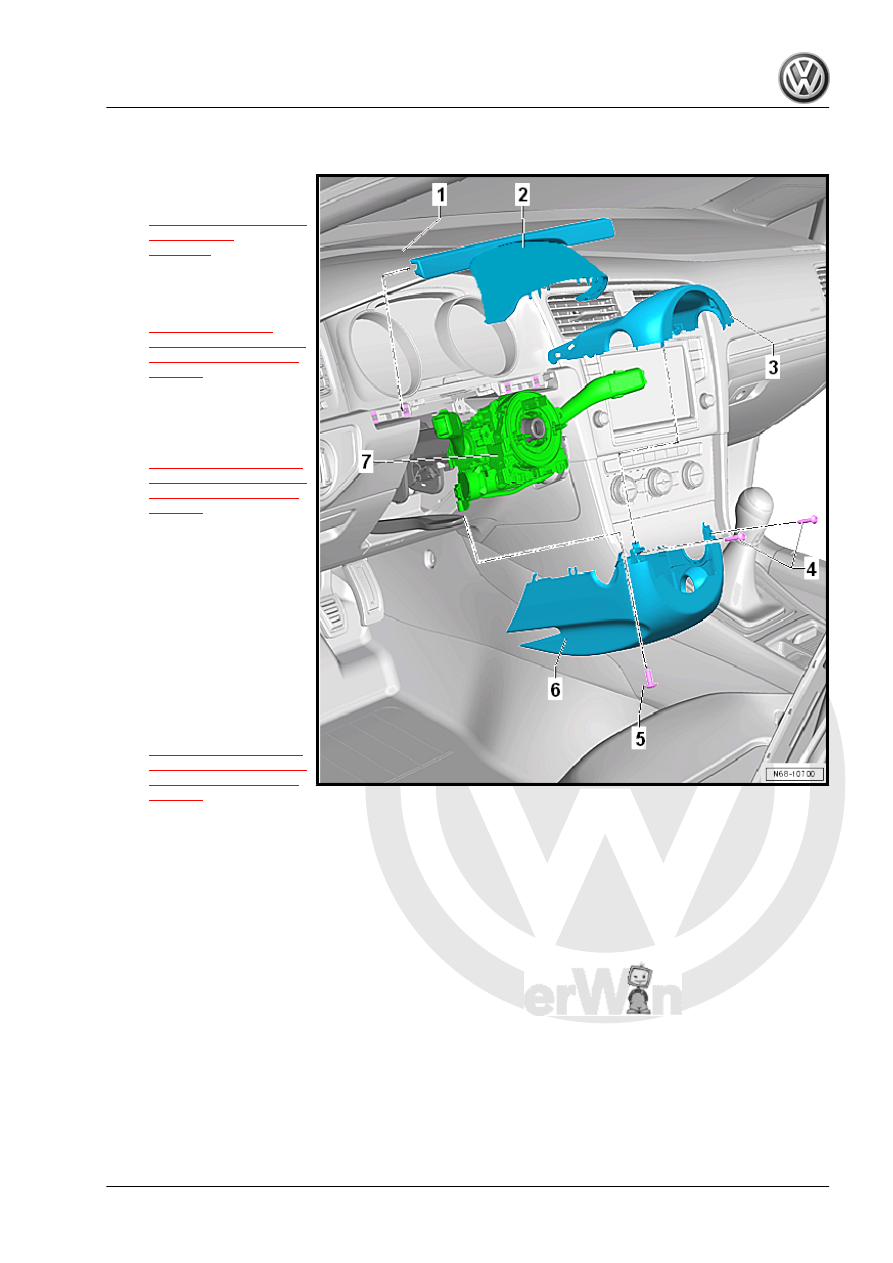

1.4

Overview - Steering Column Trim Panel

1 - Instrument Panel

❑ Overview. Refer to

⇒ “3.1 Overview - Instru‐

ment Panel”,

page 210

 .

2 - Gap Cover

❑ Removing and instal‐

ling. Refer to

⇒ “1.10 Instrument

Cluster Gap Cover, Re‐

moving and Installing”,

page 30

 .

3 - Upper Steering Column

Trim Panel

❑ Removing and instal‐

ling. Refer to

⇒ “1.11 Upper Steering

Column Trim Panel, Re‐

moving and Installing”,

page 30

 .

❑ Press on until it engages

audibly.

4 - Screw

❑ 2.5 Nm
❑ Quantity: 2

5 - Screw

❑ 2.5 Nm

6 - Lower Steering Column

Trim Panel

❑ Removing and instal‐

ling. Refer to

⇒ “1.12 Lower Steering

Column Trim Panel, Re‐

moving and Installing”,

page 31

 .

7 - Steering Column Switch Module

❑ Overview. Refer to ⇒  Electrical Equipment; Rep. Gr.  94 ; Steering Column Switch Module .
